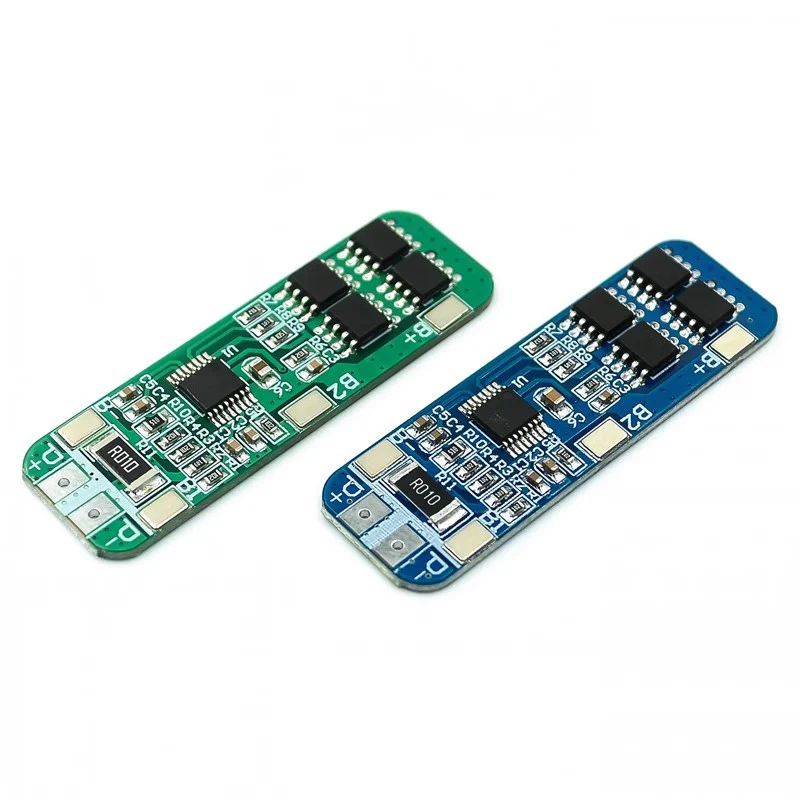

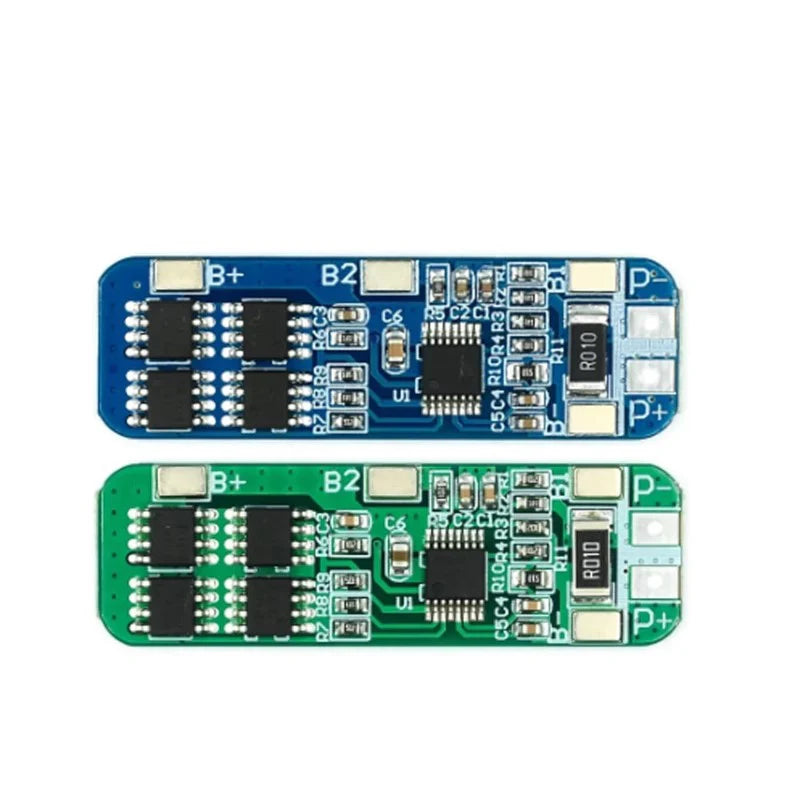

Custom 3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board Circuit Board 10.8V 11.1V 12.6V Electric Blue Green Battery

Attention:

This protection board can not be used for iron polymer battery, hand drill battery pack, electric fish battery pack, electric bicycle battery pack, 2 pieces of 24V in series, 775(4A) or more motor, 1W fisheye LED lamp, for the above combination purchase customers please pay attention! .

The described power range is suitable for the following products:

Vacuum cleaner massager battery pack, LED lamp backup power supply, 12V electronics, solar street lamp battery pack, monitoring backup power supply, and other products.

Description Explanation:

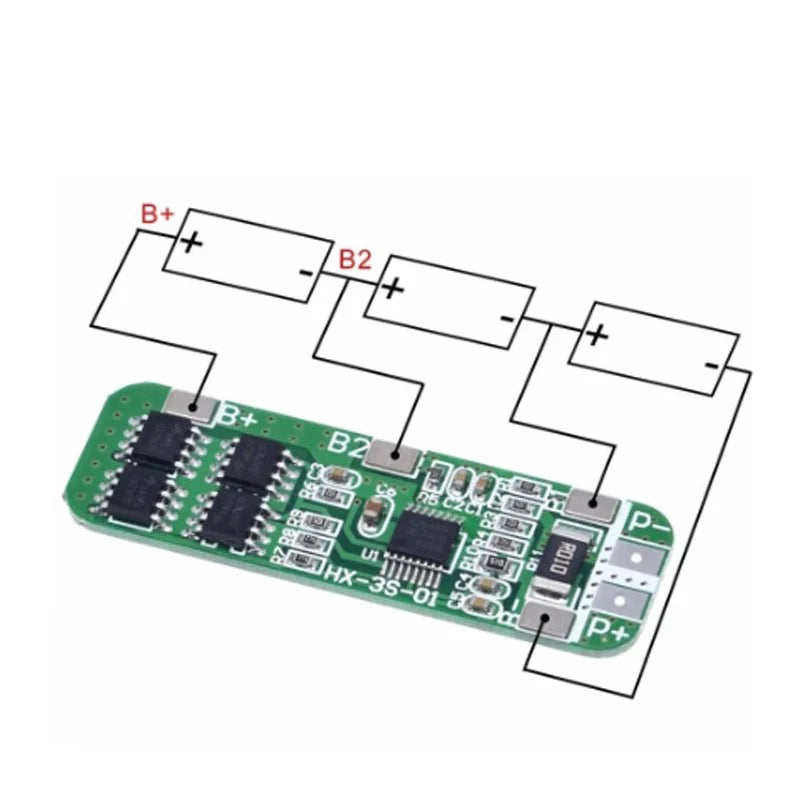

3 series (for 3 18650 batteries or polymer lithium batteries in series combination)

10.8V(rated voltage of polymer battery)

11.1V(rated voltage of 18650 or 3.7V lithium battery)

12.6V(lithium battery voltage after full charge)

Discharge 10A(refers to discharge current limit)

Lithium battery protection board

Comes with: over charge, over discharge, over current, short circuit protection

18650 Lithium Battery Pack!!

Overview:
The main IC uses the original "Seiko" imported components. With over charge, over discharge, over current, short circuit and other protection functions, used in various capacities and shapes of 3.7V lithium cell. Japan Seiko protection IC, VISHAY, AOS, IR and other high quality MOSFETs, FR-4 low temperature coefficient sheet, well-designed, comprehensive testing. Small size, suitable for many occasions requiring high integration and low cost, can meet various performance requirements, to ensure the safety and reliability of the battery pack.

The properties of the lithium battery protection board:

Model: HX-3S-01 Overcharge voltage range: 4.25-4.35v±0.05v

Size: 50*16*1.0mm overdischarge voltage range: 2.3-3.0v±0.05v

Working current: 5-8A Working temperature: -40-- +50℃

Instantaneous current: 9-10A Storage condition: -40-- +80℃

Static current: less than 6uA Effective life: more than 30,000 hours

Internal resistance: less than 60mΩ Short circuit protection: can be protected, delay self-recovery.

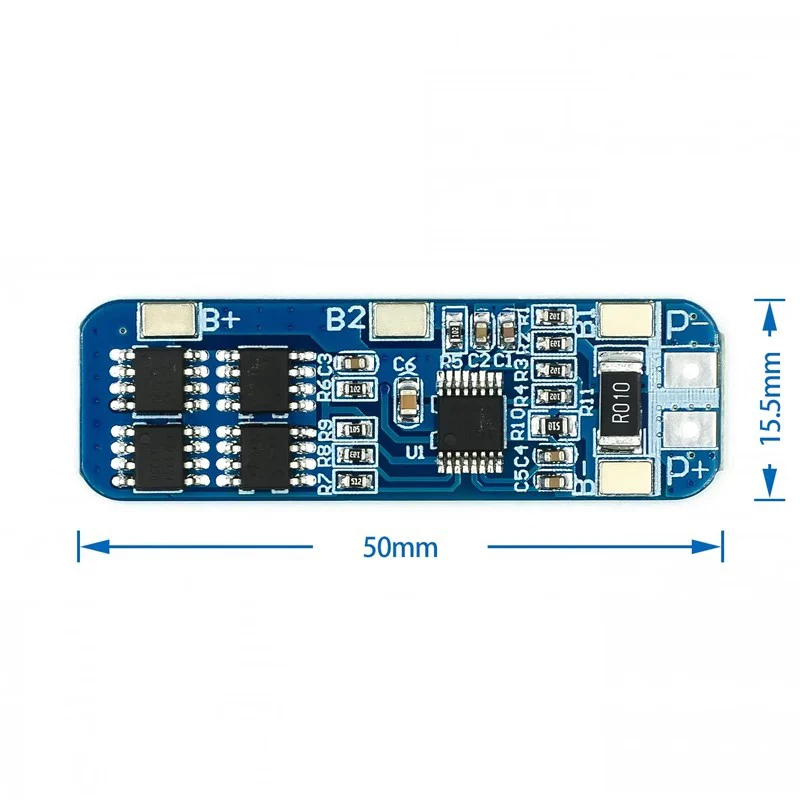

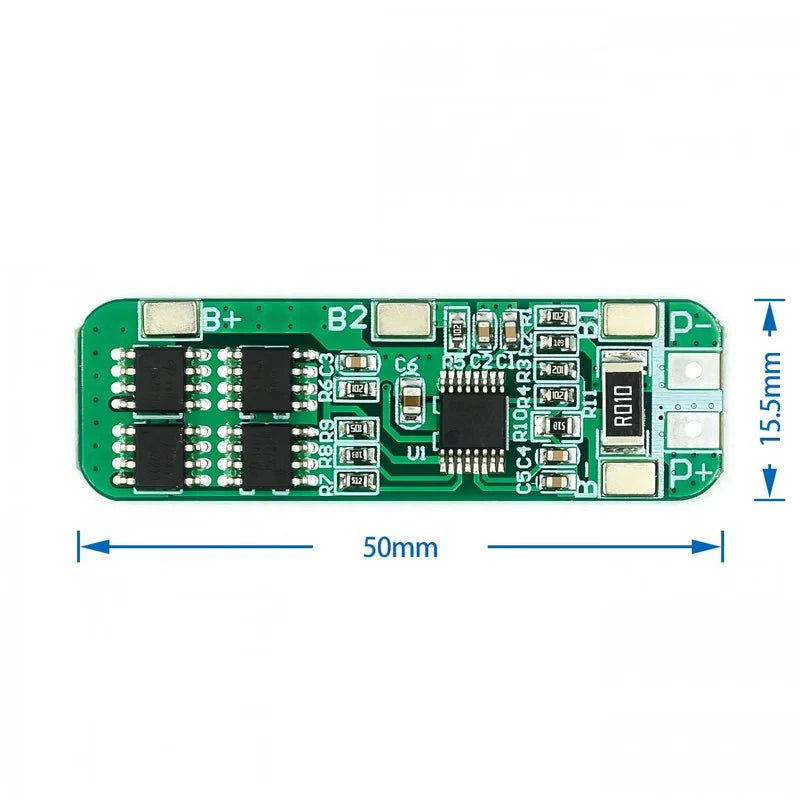

The size and device description of the protection plate;

The size of the protection board is 50*16*1.0mm; Components for Seiko S-8254AA protection chip and FDS 4435A*4;
