Custom 3S 12.6V 6A BMS Li-ion Lithium Battery Protection Board 18650 Power Bank Balancer Battery Equalizer Board for Electric Drill Manufacturer

Features:

*Product name: Protection Board

*Upper operating current: 8A

*Upper transient current: 40A±5A

*Overcharge range: 4.25±0.05V

*Over disvoltage range: 2.5±0.05V

*Charging voltage：12.6-13V

*Overcharge Protection delay: 1000mS

*Overdischarge Protection delay: 1000mS

*Overdischarge current 1 delay: 1000mS

*Overdischarge current 2 delay: 125mS

*Short circuit delay: 300uS

*Static continuous working current: 5~15A

*Overdischarge overcurrent protection current: 26A±2A

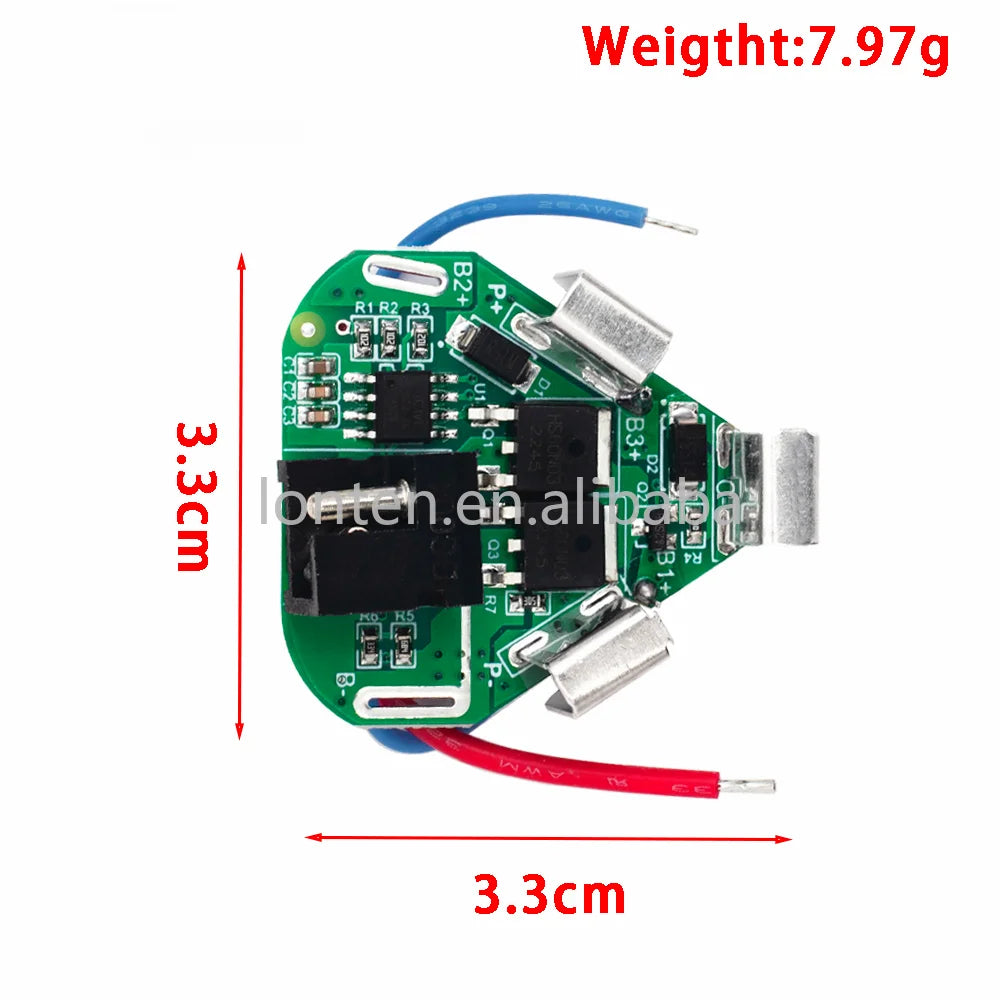

*Size: (Approx. ) 33.7*36.5mm

*Function: over charge/ over discharge/short circuit/ over current protection

*Quantity: 1Pc

Package Included:

1 × Protection Board

Note:

1.Transition: 1cm=10mm=0.39inch.

2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

3. Please allow slight manual measurement deviation for the data.
