Custom 3D Printer Parts DIY Printer Reprap A4988 Stepper Motor Driver Module With HeatSink Stepstick Compatible StepStick Manufacturer
Custom 3D Printer Parts DIY Printer Reprap A4988 Stepper Motor Driver Module With HeatSink Stepstick Compatible StepStick Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Welcome to our store, Have a nice day!
Package list:
1pcs A4988 Red Or Green
1pcs Heatsink
Product description:
A4988 is a complete microstepping motor driver with built-in translator for easy operation. This product is available in full, half, 1/4, 1/8 and 1/16 step modes operate bipolar stepper motors, output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator in slow or mixed decay modes. A4988 converter is the key to the easy implementation. As long as the "step" input inputting one pulse drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened.
In the micro-step operation, A4988 chopping control inside automatically selects the current decay mode (Slow or Mixed). In mixed decay mode, the device is initially set to a fixed downtime in some fast decay, then the rest of the slow decay downtime. Mixed decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry is provided to improve the pulse-width modulation (PWM) operation power consumption. Internal circuit protection includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO), and crossover-current protection. Special power sequencing.
A4988 surface mount QFN package (ES), a size of 5 mm × 5 mm, nominal overall package height of 0.90 mm, with an exposed pad for enhanced thermal dissipation. This package is Pb (suffix-T), with 100% matte tin leadframe plating.
Low RDS (On) Output
Automatic current decay mode detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Cross-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Optional step five modes: full, 1/2, 1/4, 1/8 and 1/16
Features:
Simple step and direction control interface
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
Short-to-ground and shorted-load protection
4-layer, 2 oz copper PCB for improved heat dissipation
Exposed solderable ground pad below the driver IC on the bottom of the PCB
Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
45 V maximum supply voltage
Built-in regulator (no external logic voltage supply needed)
Dear buyer:
Pls leave message you want which color, otherwise we ship green A4988 to you!
If you choose the "China Post Ordinary Small Packet Plus" mode of transportation, , some countries will delay receiving packages for a while. If you cannot accept the delay, then please choose another way to shipping, faster transportation and protection.
If you need more other electronic products, You can contact me.
Buying Tip: When you receive the product, the product appears subtle scratches, broken, bent pins, in the case of no effect on the use, I will not accept your controversy, if you do not agree, please do not purchase in my store.

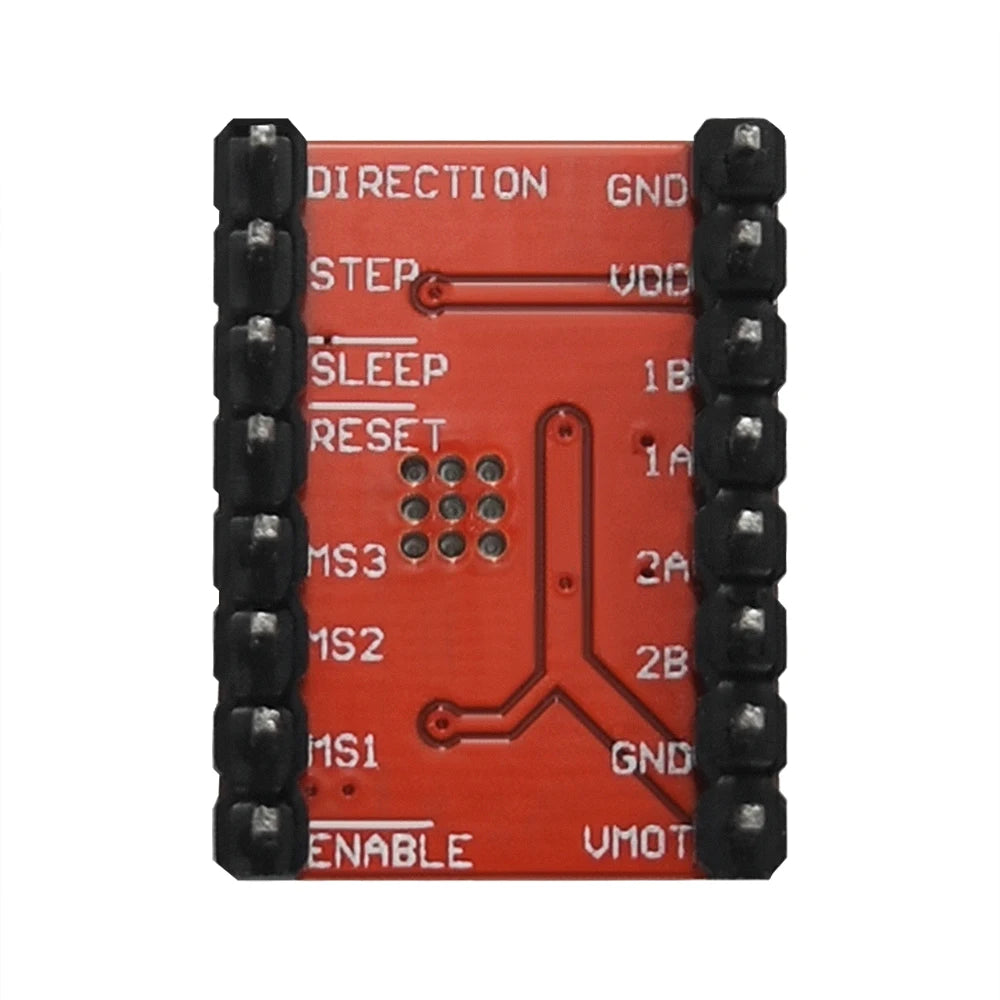

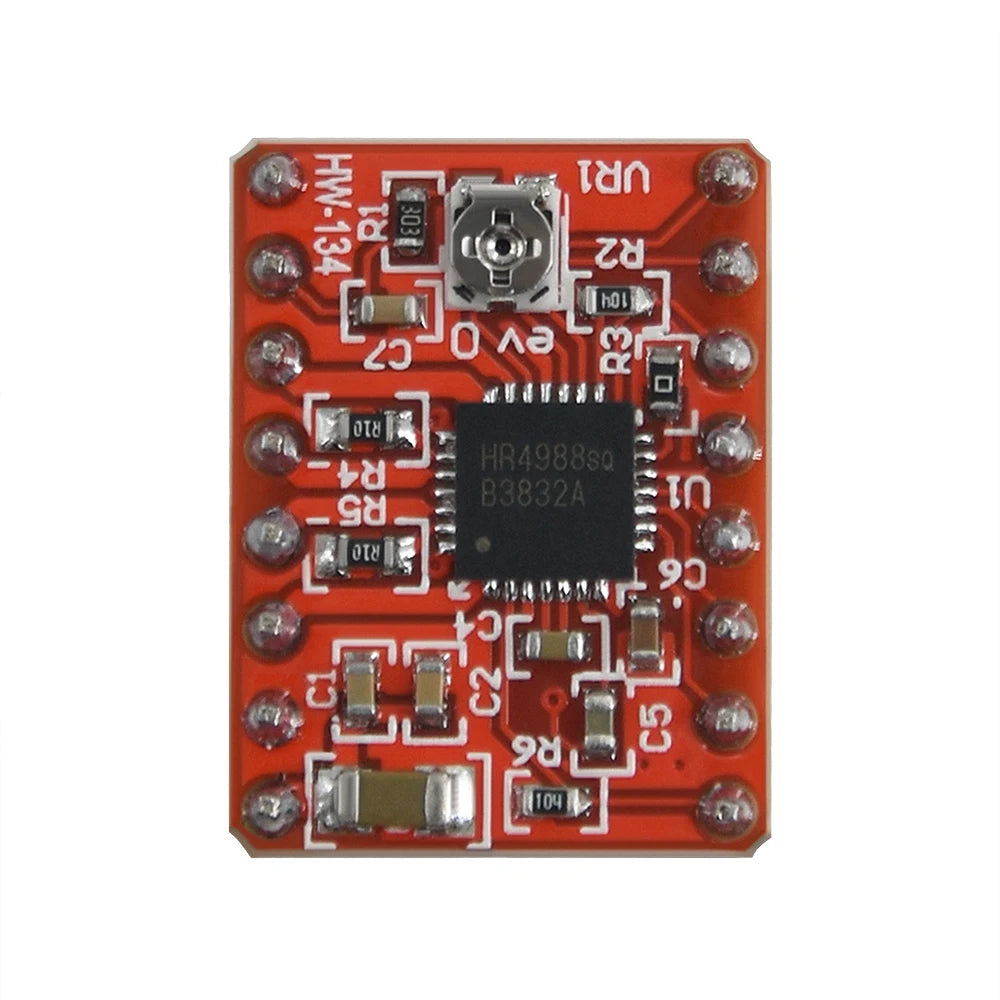

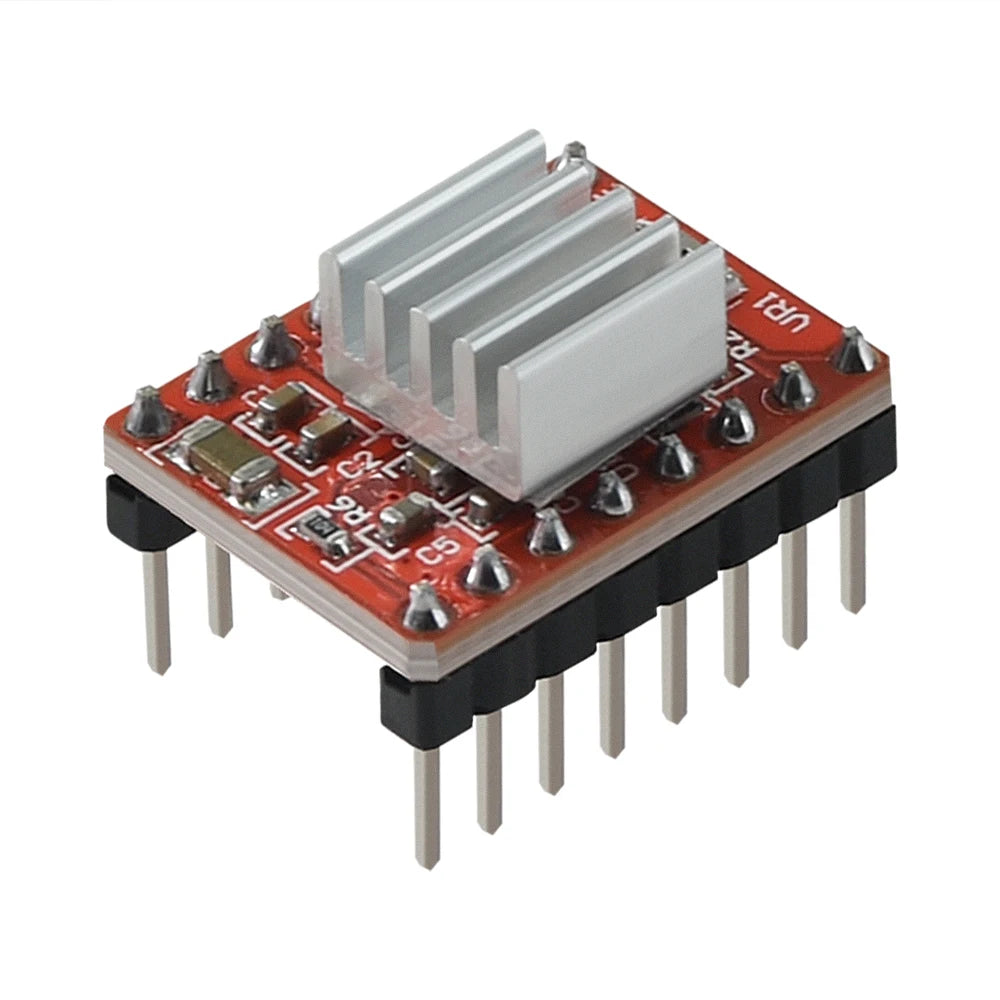

Picture Shows:
