Custom 3.7V 4.2V Charger & 5V 6V 9V 12V Discharger Board DC DC Converter Boost Module for diy UPS mobile power 18650 lithium battery Manufacturer

Custom 3.7V 4.2V Charger & 5V 6V 9V 12V Discharger Board DC DC Converter Boost Module for diy UPS mobile power 18650 lithium battery Manufacturer

Regular price $3.17 USD
Regular price $3.17 USD Sale price $3.17 USD
Sale Sold out

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.


We are a professional manufacturer, if you don't find the product you need, please contact us directly.
Click the LINK or search SKU to find the product.Highly recommend blue font products
click SKU Input Voltage  Output Voltage   Pout

IOUT IQ Eff. Accu. Size
enter (V) (V) (MAX) (MAX)   (%) (%) (MM)(LWH)
  LDO Module
0403MA 3.2-6V 3V 3.3V 1W 300MA 8uA   2% 11.6 x 7.8 x 2.5
LO7805MA 7-30V  5V 6V 9V 12V 2W 250MA 6mA   2% 18 x 10.5 x 5
TB361 4.5V-7V  3.3V 3W 400MA 5MA   2% 25 x 15 x 5
CE009 4.5-7V(USB) 3.3V 3W 400MA 5MA     25 x 15 x 5
  Low Noise Regulated Charge Pump
CE021 1.8~5V(BOOST-BUCK) 3.3V 0.33W 100MA 0.65MA 88 2% 11 x 7.6 x 4.5
0505MD 2.7~5V(BOOST) 5V 1W 200MA 1.8MA 89 2% 11 x 7.6 x 4.5
DC-DC Buck Converter
0503MA 3.3-6V 3.3V 1.65W 500mA 10UA 90 2% 10.8 x 7.7 x 5.6
4012SA 4.75-40V 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V 5W 1000MA 1.5MA 90 3% 18.3 x 10.2 x 6.7
40AJSA 4.75-40V 0.9-30V ADJ 5W 1000MA 1.5MA 90   15 x 10.3 x 6.8
38LOSA 6-40V 3.3V 5V (2 IN 1 DC-DC&LDO) 3.5W 700MA 2MA 75 2% 25 x 16 x 5.8
ND0533MA 3.3-5.5V 3.3V 6.6W 2000MA 20UA 97 2% 15 x 11 x 5.7
2712SA 4.5V-27V 3V 3.3V 3.7V 5V 6V 7.5V 9V 12V 12.5W 2500MA 0.25MA 90 3% 25 x 15 x 6.3
3630TA 8~32V 2~30V ADJ CC/CV 15W 0.2-2.5A 2.1MA 88   33 x 33 x 20
31AJQA 4.5-30V 3.3V 5V 12V 2-28V (4 channels) 50W 3000MA       88 x 55 x 15
2805UA DC 7- 28V 5V(USB) 15W 3000MA 0.23MA 92 3% 45 x 22 x 6.5
ND1805TA 4.5-18 3V 3.3V 3.7V 4.2V 5V 6V  20W 4000MA 18MA 93 3% 27 x 18 x 5
8024TA 10-80V(High-Voltage) 3.3V 5V 6V 9V 12V 15V 5W 1000MA 2.5MA 85 3% 59 x 30 x 16
7818TA 8-80V(High-Voltage) 3.3V 5V 6V 9V 12V 15V 10W 2000MA 2.5MA 91 2% 60 x 30 x 16
DC-DC Boost Converter
0405MA 0.7-5V 3V 3.3V 5V 3W 600MA 13uA 93 2% 10.7x10.6x5.6
06AJSA 2.7~6V 3~15V ADJ 6W 500MA 0.20MA 90   20 x 10.2 x 5.6
0512MA 2.6-6V  3.7V 5V 12V 6W 500MA 0.19MA 90 2%  13 x 11 x 5.2
EN12MA 2.6-6V ( Turn ON/OFF) 5V 6V 9V 12V 6W 500MA 0.21MA 90 2%  20 x 15 x 6
ND0412SA  2.6-5.5V 5V 6V 9V 12V 7W 600MA 0.19MA 93 2% 21 x 11 x 4
TC12UA 4.5-5.5V(TYPE-C USB)  6V 9V 12V 15V 24V 9W 750MA 1.6MA 90 3%
TB293  3~6V(USB) 6-15.5V(ADJ) 6W 500MA 0.20MA 90   47.5 x 16 x 5.6
TB398  3~6V(USB) 6-15.5V(USB)(ADJ) 6W 500MA 0.20MA 90   56 x 16 x 5.6
CE016  3~6V(USB) 12V(Terminal) 6W 450MA 0.20MA 90 2% 42 x 15 x 5.6
CE017  3~6V(USB) 12V(XH2.54) 6W 450MA 0.20MA 90 2% 42 x 15 x 5.6
CE036  3~6V(USB) 12V(shell/DC5.5MM) 6W 450MA 0.20MA 90 2%
2424SA  2-18V  5V 6V 9V 12V 15V 24V 10W 800MA 1MA 88 4%  22 x 15.2 x 6.2
03AJTA 2.7-5.5V 3.5-24V ADJ 30W 2000MA 1MA 90   45 x 20 x 15
0424TA 3.7V-18V 5V 6V 9V 12V 15V 19.5V 60W 4000MA 1MA 89 3% 45 x 21 x 15
Positive and negative voltage
DC-DC Buck-Boost module
Charger Module

Product Name: 3.7V 4.2V Charger & 5V 6V 9V 12V Discharger Board DC DC Converter Boost Module

Packing list:

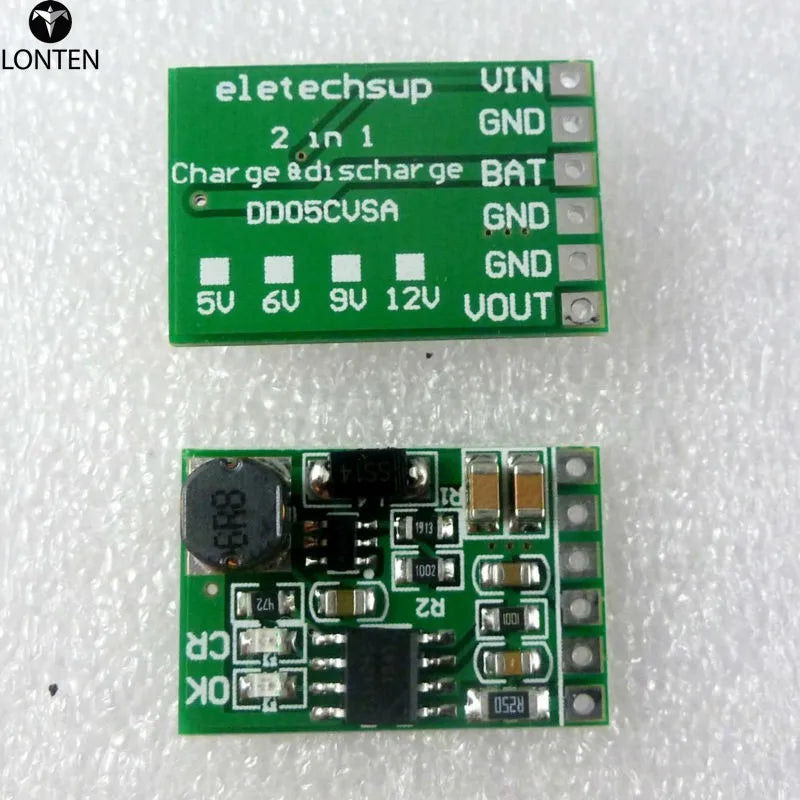

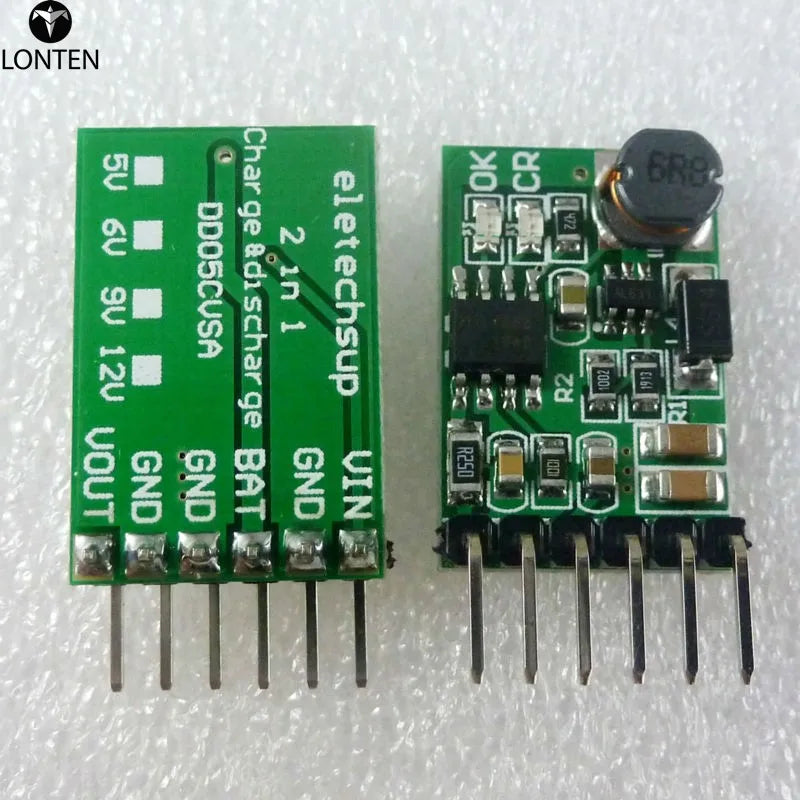

1 PCS 05CVSA 2 in 1 charge and boost DC DC Converter

Description:

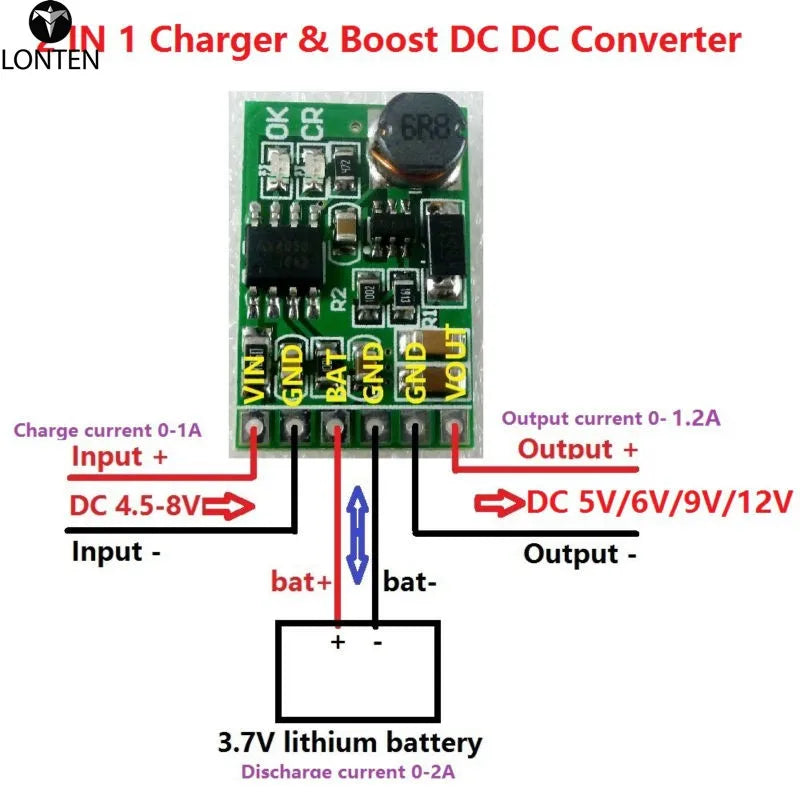

2 in 1 charge and Discharger(boost) modules


Charge voltage : DC 4.5V-8V(Recommend DC 5V)
Charging current : 0-1A
Full charge voltage : 4.2V+-2%.

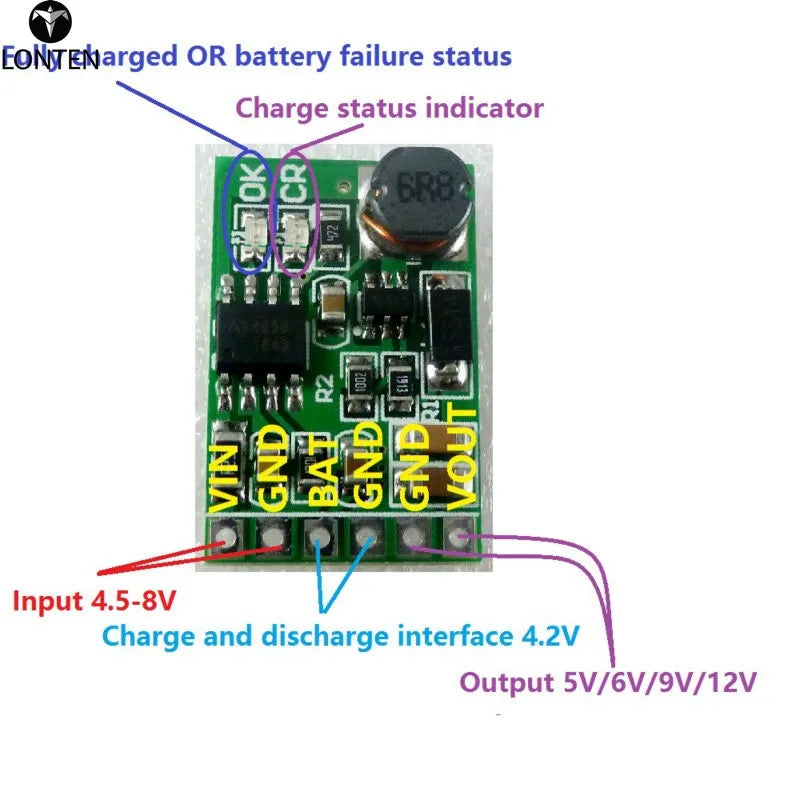

Led indicator : "OK" LED is fully charged OR battery failure status indicator;
"CR" LED is charge status indicator


(Boost in)Discharge current : 0-2A;
(Boost in)Discharge quiescent current : 450uA
(Boost in)Discharge conversion efficiency : 78%-90%


(Boost out)Output current : 0-1.2A(5V),0-1A(6V),0-0.66A(9V),0-0.5A(12V);


Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

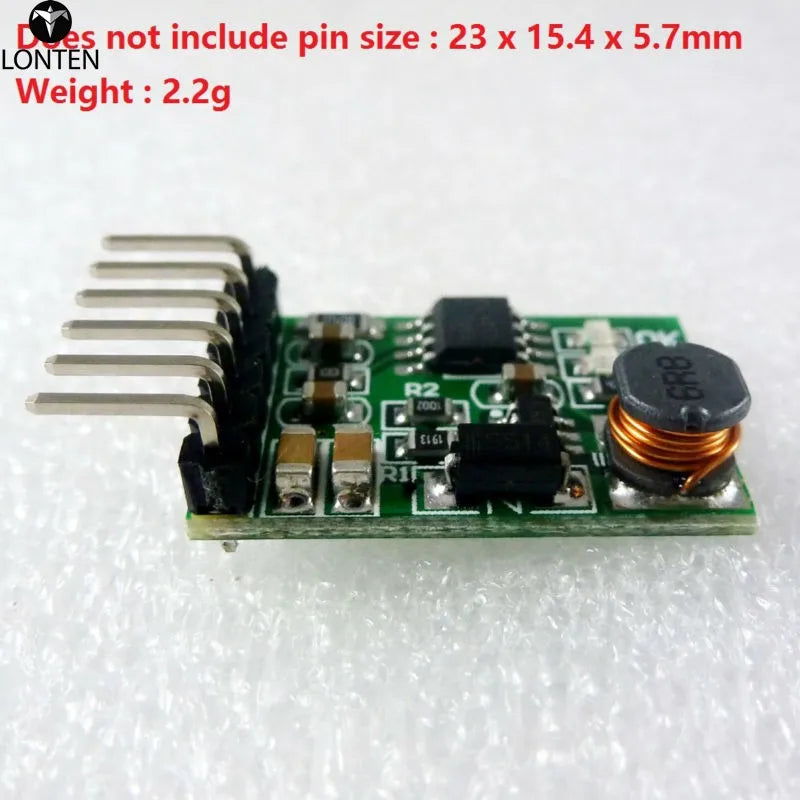

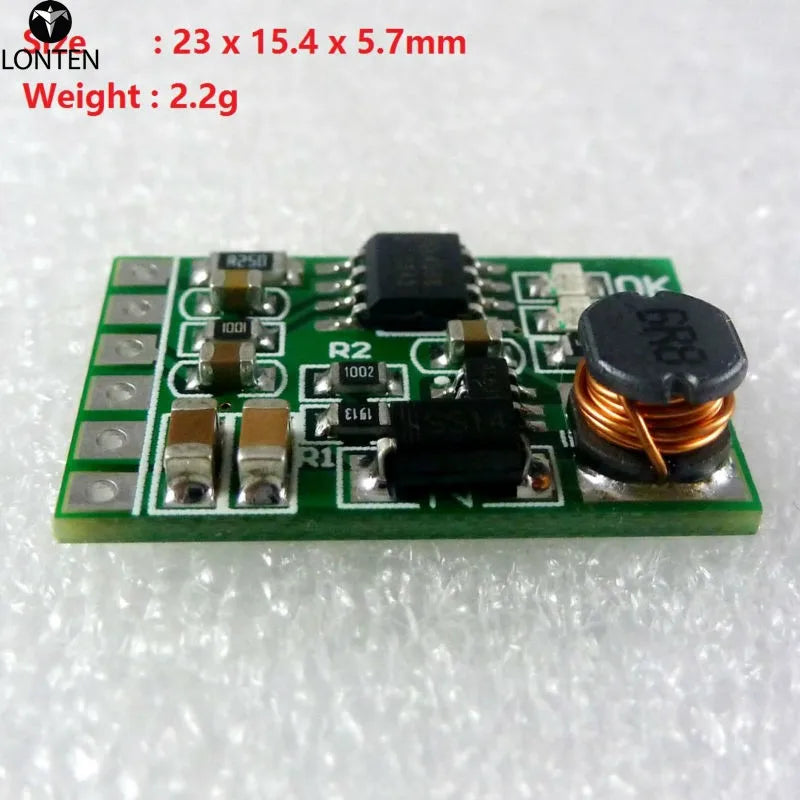

Does not include pin size : 23 x 15.4 x 5.7mm
Weight : 2.2g(with Pin),1.8g(no Pin)

Note :
This module without lithium battery over-discharge protection,
Matching protection board Click here to buy



Applications:



Battery equipment
Lithium Battery 18650 14500
Mobile phone diy
UPS power supply equipment diy
Solar charging
MP3/MP4 player
o equipment
Video equipment
Portable Devices
Bluetooth Applications










 Welcome Customize Order!
