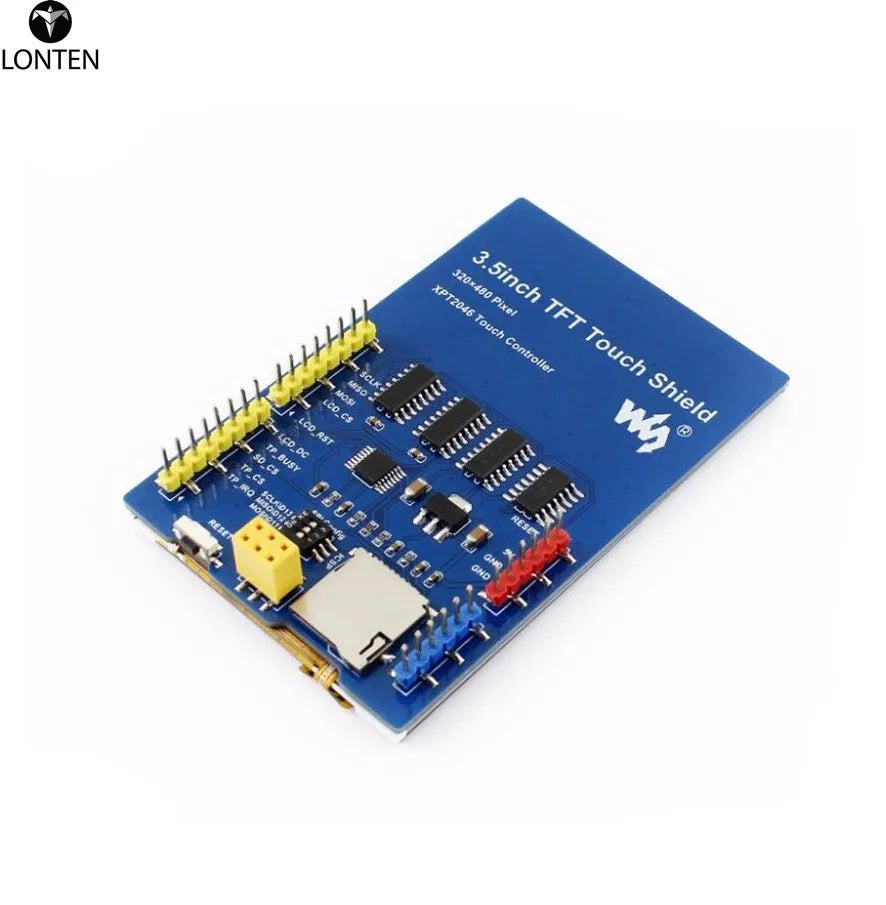

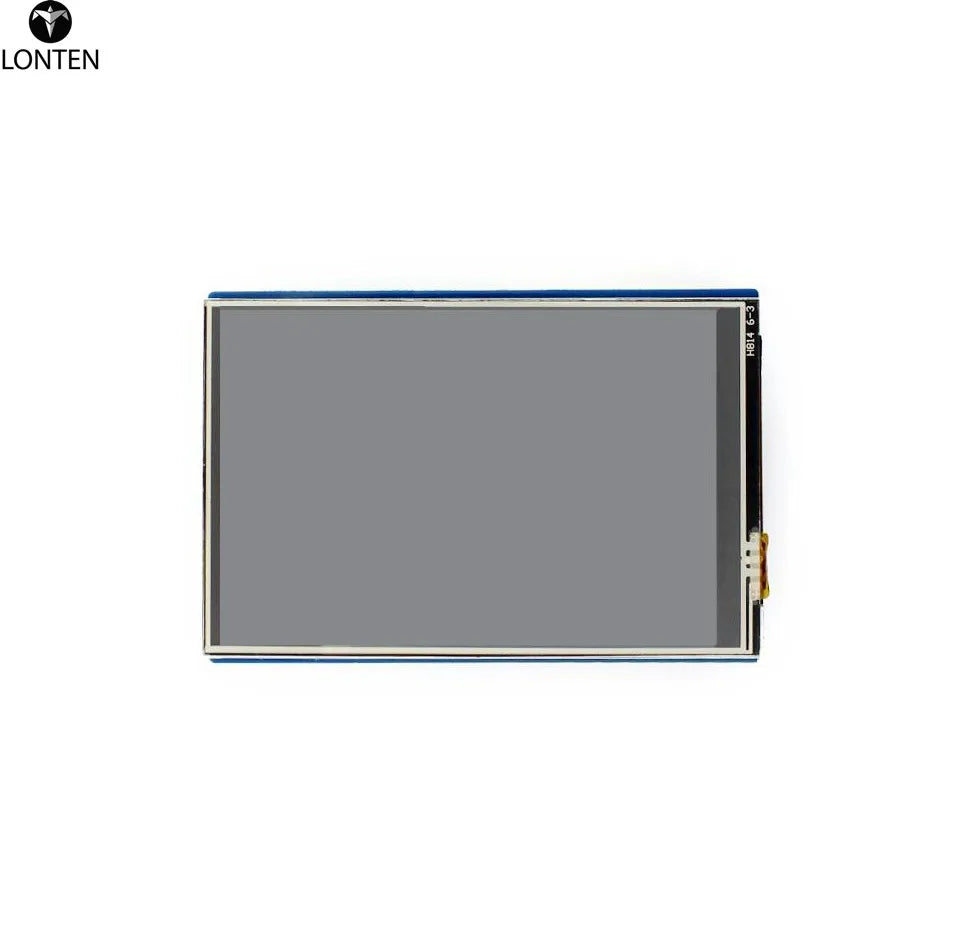

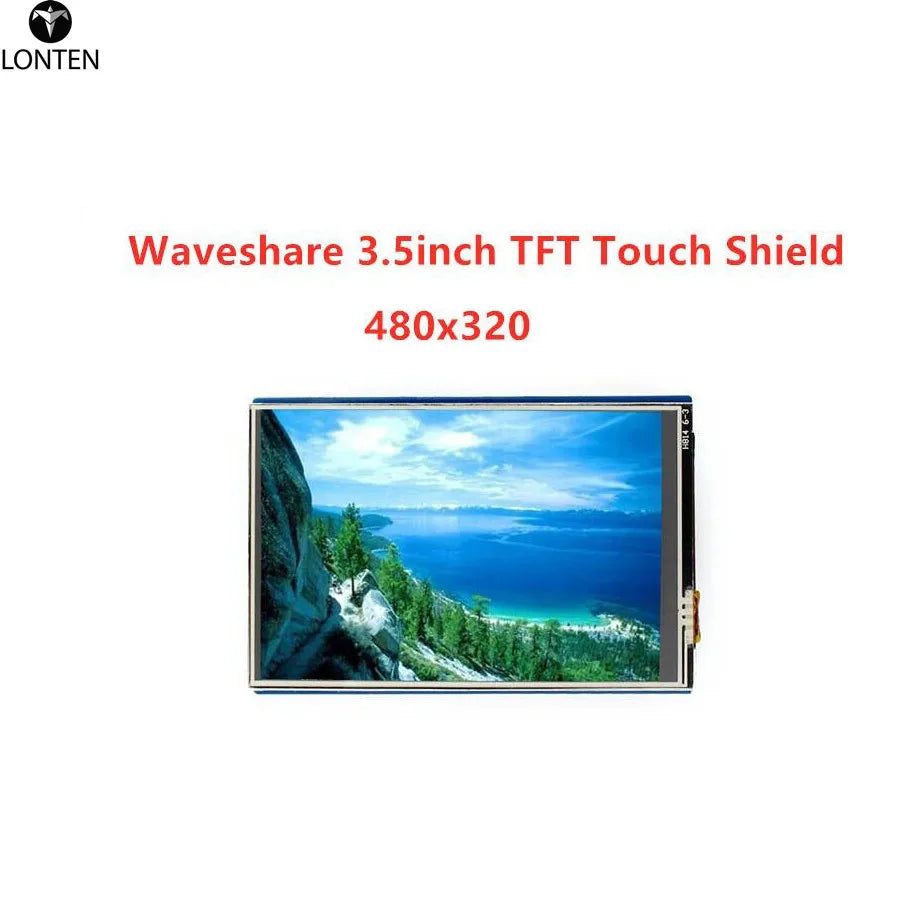

Custom 3.5inch Touch LCD Shield for Resistive 480x320 resolution Standard interface Controlled via SPI Micro SD slot Manufacturer
Custom 3.5inch Touch LCD Shield for Resistive 480x320 resolution Standard interface Controlled via SPI Micro SD slot Manufacturer
Regular price
$26.66 USD
Regular price
$26.66 USD
Sale price
$26.66 USD
Unit price
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, provide electronic component ,welcome OEM ,ODM,for more please contact.
3.5inch Touch LCD Shield for
DESCRIPTION
3.5inch Touch LCD Shield for
Features
- Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution

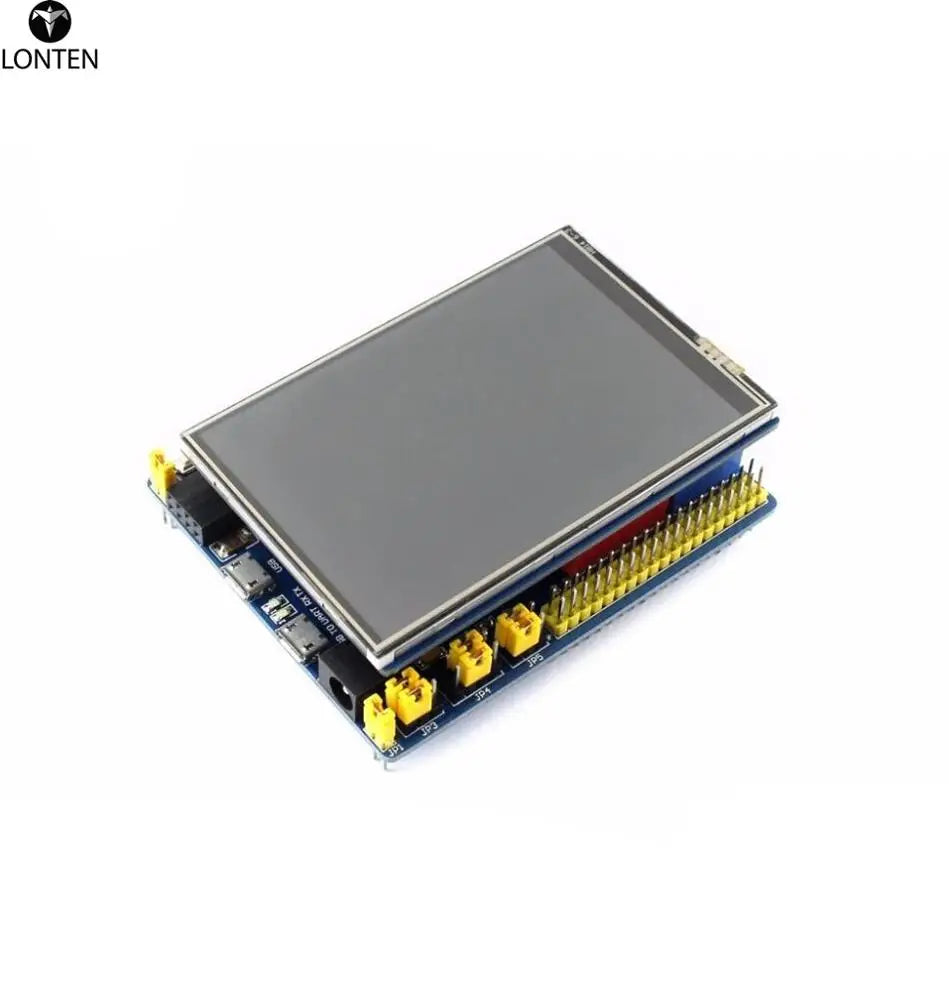

- Standard interface, compatible with development boards like : UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
- Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
- Micro SD slot, provides an easy way to store photos for displaying
- Controlled via SPI, only a few pins are used
- Comes with STM32 and examples, convenient for porting
Key Parameters
| LCD Type | TFT |
|---|---|
| LCD Interface | SPI |
| LCD Controller | ILI9486 |
| Touch Screen Type | Resistive |
| Touch Screen Controller | XPT2046 |
| Colors | RGB, 65K colors |
| Resolution | 480x320 (Pixel) |
| Aspect Ratio | 8:5 |
| I/O Voltage | 3.3V/5V |
Interface
| Symbol | / NUCLEO PIN | Description |
|---|---|---|
| 5V | 5V | 5V power input |
| GND | GND | Ground |
| SCLK | D13 | SPI clock |
| MISO | D12 | SPI data input |
| MOSI | D11 | SPI data output |
| LCD_CS | D10 | LCD chip select |
| LCD_RST | D8 | LCD reset |
| LCD_DC | D7 | LCD data/command selection |
| TP_BUSY | D6 | Touch panel busy |
| SD_CS | D5 | Micro SD card chip select |
| TP_CS | D4 | Touch panel chip select |
| TP_IRQ | D3 | Touch panel interrupt |

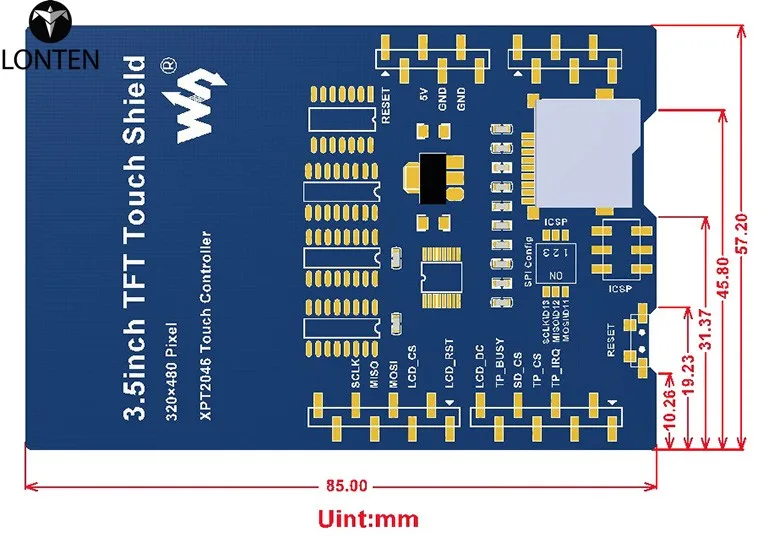

External Dimension
Development Resources
Wiki : www..com/wiki/3.5inch_TFT_Touch_Shield
PACKAGE CONTENT
- 3.5inch TFT Touch Shield x1
