Custom 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V Manufacturer

Name: Custom 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V Manufacturer
Brand: Lonten Tech
Price: 2.59 USD
Availability: InStock

$2.59 USD

~~$2.59 USD~~ $2.59 USD

Sale Sold out

Quantity

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.

Product Name: 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V

We are a professional manufacturer, if you don't find the product you need, please contact us directly.
Click the LINK or search SKU to find the product.Highly recommend blue font products
click	SKU	Input Voltage	Output Voltage	Pout	IOUT	IQ	Eff.	Accu.	Size
enter	SKU	(V)	(V)	(MAX)	(MAX)		(%)	(%)	(MM)(LWH)
	LDO Module
	0403MA	3.2-6V	3V 3.3V	1W	300MA	8uA		2%	11.6 x 7.8 x 2.5
	LO7805MA	7-30V	5V 6V 9V 12V	2W	250MA	6mA		2%	18 x 10.5 x 5
	TB361	4.5V-7V	3.3V	3W	400MA	5MA		2%	25 x 15 x 5
	CE009	4.5-7V(USB)	3.3V	3W	400MA	5MA			25 x 15 x 5
	Low Noise Regulated Charge Pump
	CE021	1.8~5V(BOOST-BUCK)	3.3V	0.33W	100MA	0.65MA	88	2%	11 x 7.6 x 4.5
	0505MD	2.7~5V(BOOST)	5V	1W	200MA	1.8MA	89	2%	11 x 7.6 x 4.5
	DC-DC Buck Converter
	0503MA	3.3-6V	3.3V	1.65W	500mA	10UA	90	2%	10.8 x 7.7 x 5.6
	4012SA	4.75-40V	3V 3.3V 3.7V 5V 6V 7.5V 9V 12V	5W	1000MA	1.5MA	90	3%	18.3 x 10.2 x 6.7
	40AJSA	4.75-40V	0.9-30V ADJ	5W	1000MA	1.5MA	90		15 x 10.3 x 6.8
	38LOSA	6-40V	3.3V 5V (2 IN 1 DC-DC&LDO)	3.5W	700MA	2MA	75	2%	25 x 16 x 5.8
	ND0533MA	3.3-5.5V	3.3V	6.6W	2000MA	20UA	97	2%	15 x 11 x 5.7
	2712SA	4.5V-27V	3V 3.3V 3.7V 5V 6V 7.5V 9V 12V	12.5W	2500MA	0.25MA	90	3%	25 x 15 x 6.3
	3630TA	8~32V	2~30V ADJ CC/CV	15W	0.2-2.5A	2.1MA	88		33 x 33 x 20
	31AJQA	4.5-30V	3.3V 5V 12V 2-28V (4 channels)	50W	3000MA				88 x 55 x 15
	2805UA	DC 7- 28V	5V(USB)	15W	3000MA	0.23MA	92	3%	45 x 22 x 6.5
	ND1805TA	4.5-18	3V 3.3V 3.7V 4.2V 5V 6V	20W	4000MA	18MA	93	3%	27 x 18 x 5
	8024TA	10-80V(High-Voltage)	3.3V 5V 6V 9V 12V 15V	5W	1000MA	2.5MA	85	3%	59 x 30 x 16
	7818TA	8-80V(High-Voltage)	3.3V 5V 6V 9V 12V 15V	10W	2000MA	2.5MA	91	2%	60 x 30 x 16
	DC-DC Boost Converter
	0405MA	0.7-5V	3V 3.3V 5V	3W	600MA	13uA	93	2%	10.7x10.6x5.6
	06AJSA	2.7~6V	3~15V ADJ	6W	500MA	0.20MA	90		20 x 10.2 x 5.6
	0512MA	2.6-6V	3.7V 5V 12V	6W	500MA	0.19MA	90	2%	13 x 11 x 5.2
	EN12MA	2.6-6V ( Turn ON/OFF)	5V 6V 9V 12V	6W	500MA	0.21MA	90	2%	20 x 15 x 6
	ND0412SA	2.6-5.5V	5V 6V 9V 12V	7W	600MA	0.19MA	93	2%	21 x 11 x 4
	TC12UA	4.5-5.5V(TYPE-C USB)	6V 9V 12V 15V 24V	9W	750MA	1.6MA	90	3%
	TB293	3~6V(USB)	6-15.5V(ADJ)	6W	500MA	0.20MA	90		47.5 x 16 x 5.6
	TB398	3~6V(USB)	6-15.5V(USB)(ADJ)	6W	500MA	0.20MA	90		56 x 16 x 5.6
	CE016	3~6V(USB)	12V(Terminal)	6W	450MA	0.20MA	90	2%	42 x 15 x 5.6
	CE017	3~6V(USB)	12V(XH2.54)	6W	450MA	0.20MA	90	2%	42 x 15 x 5.6
	CE036	3~6V(USB)	12V(shell/DC5.5MM)	6W	450MA	0.20MA	90	2%
	2424SA	2-18V	5V 6V 9V 12V 15V 24V	10W	800MA	1MA	88	4%	22 x 15.2 x 6.2
	03AJTA	2.7-5.5V	3.5-24V ADJ	30W	2000MA	1MA	90		45 x 20 x 15
	0424TA	3.7V-18V	5V 6V 9V 12V 15V 19.5V	60W	4000MA	1MA	89	3%	45 x 21 x 15
	Positive and negative voltage
	DC-DC Buck-Boost module
	Charger Module

Packing list:

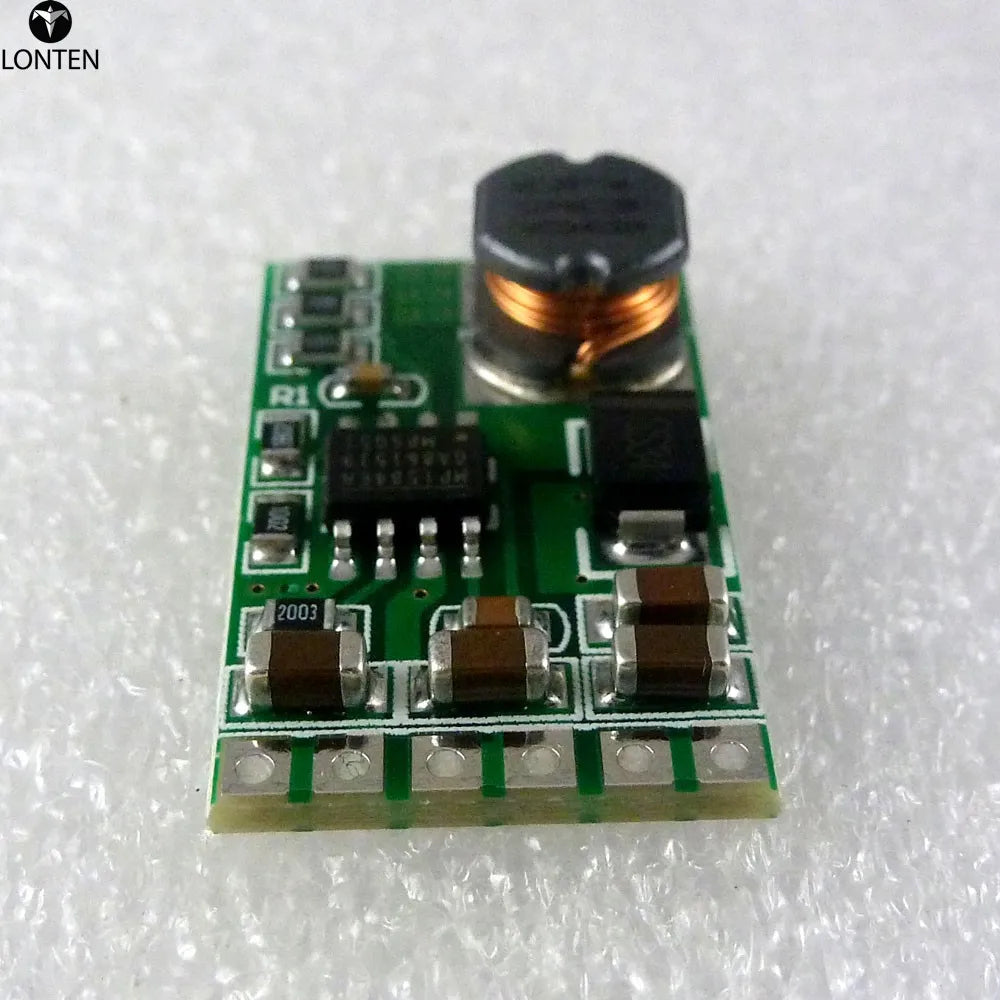

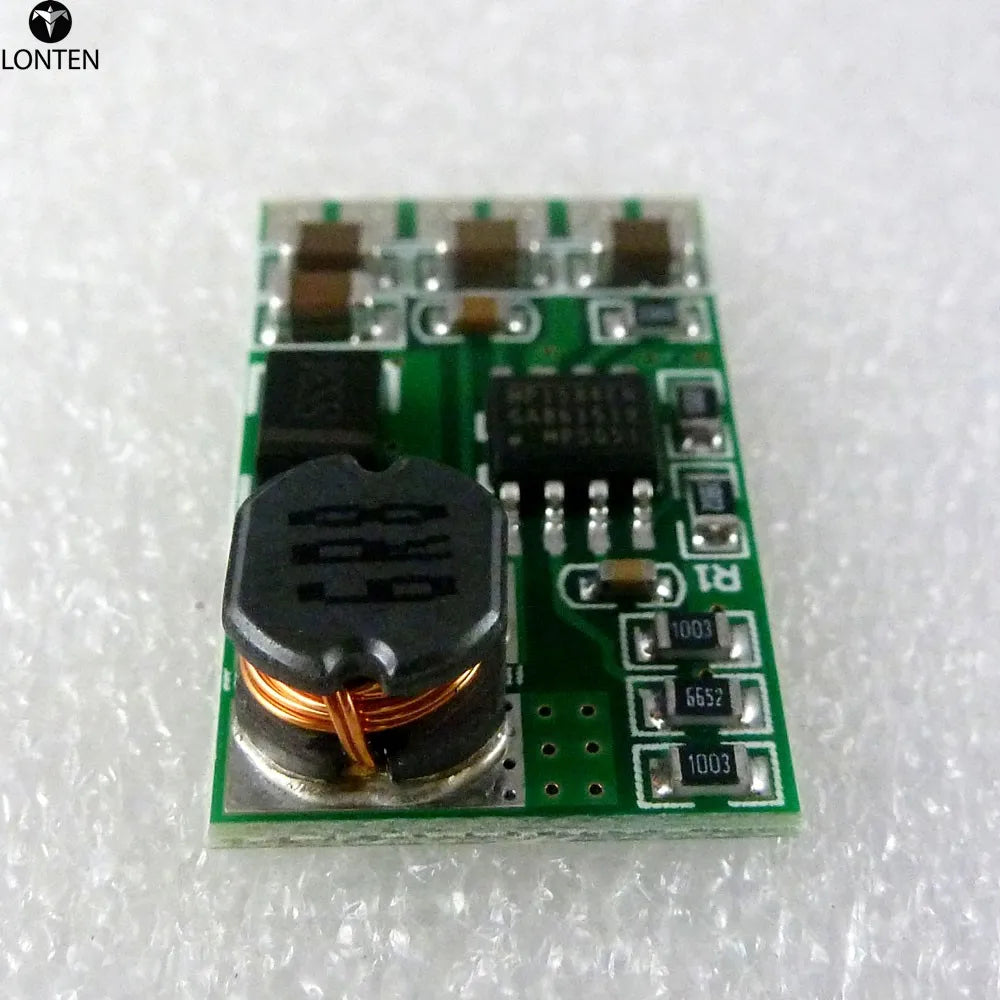

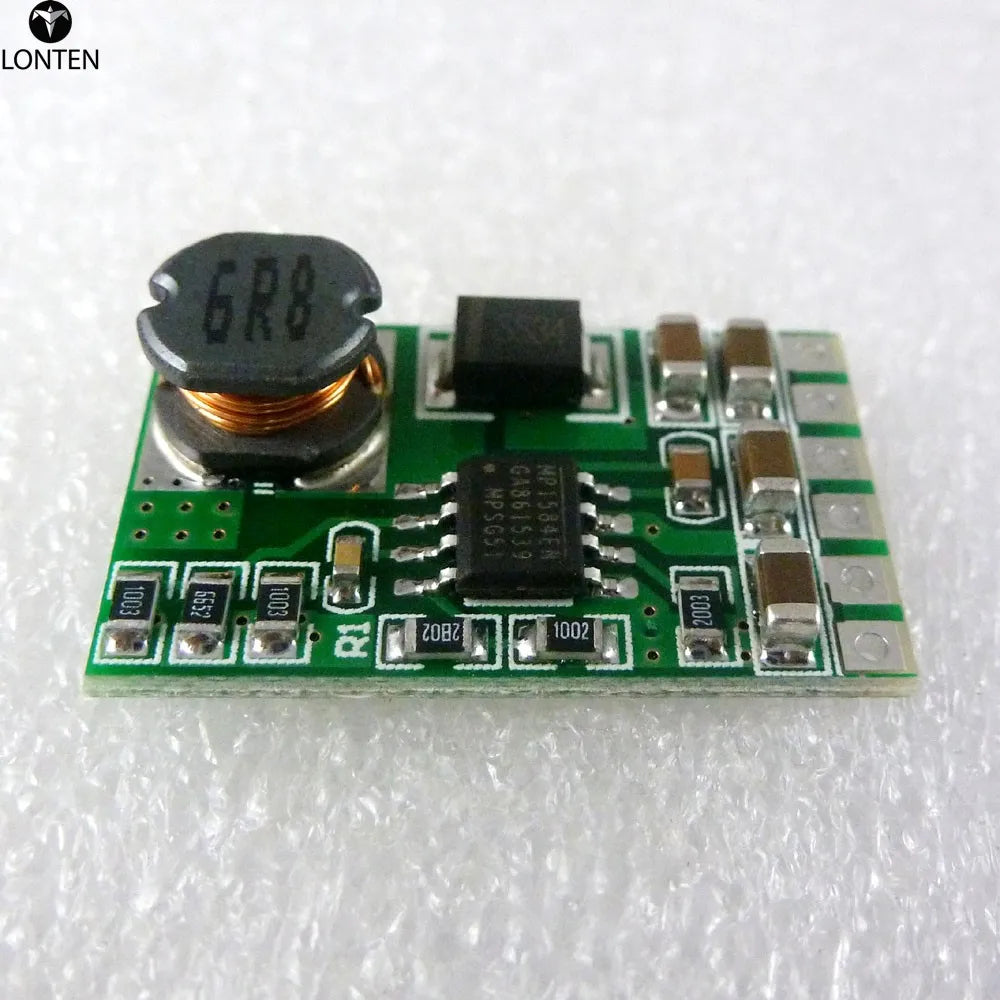

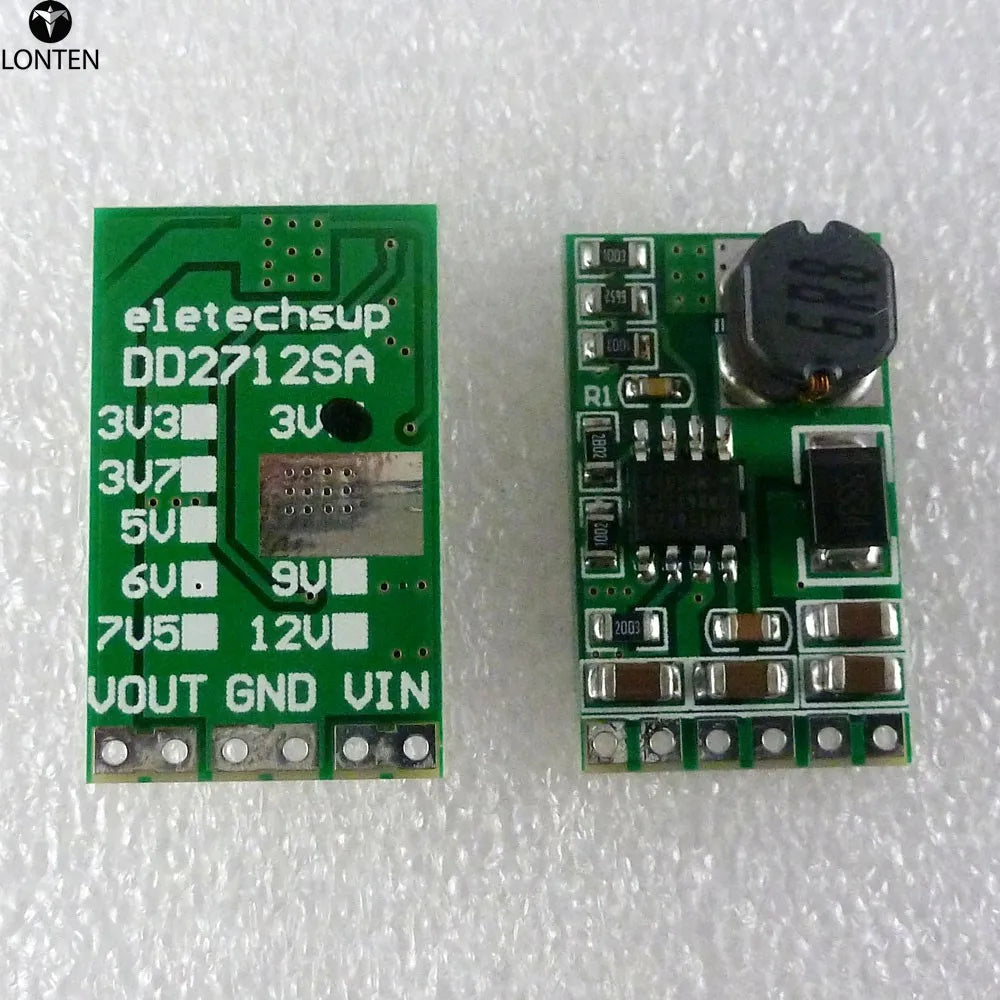

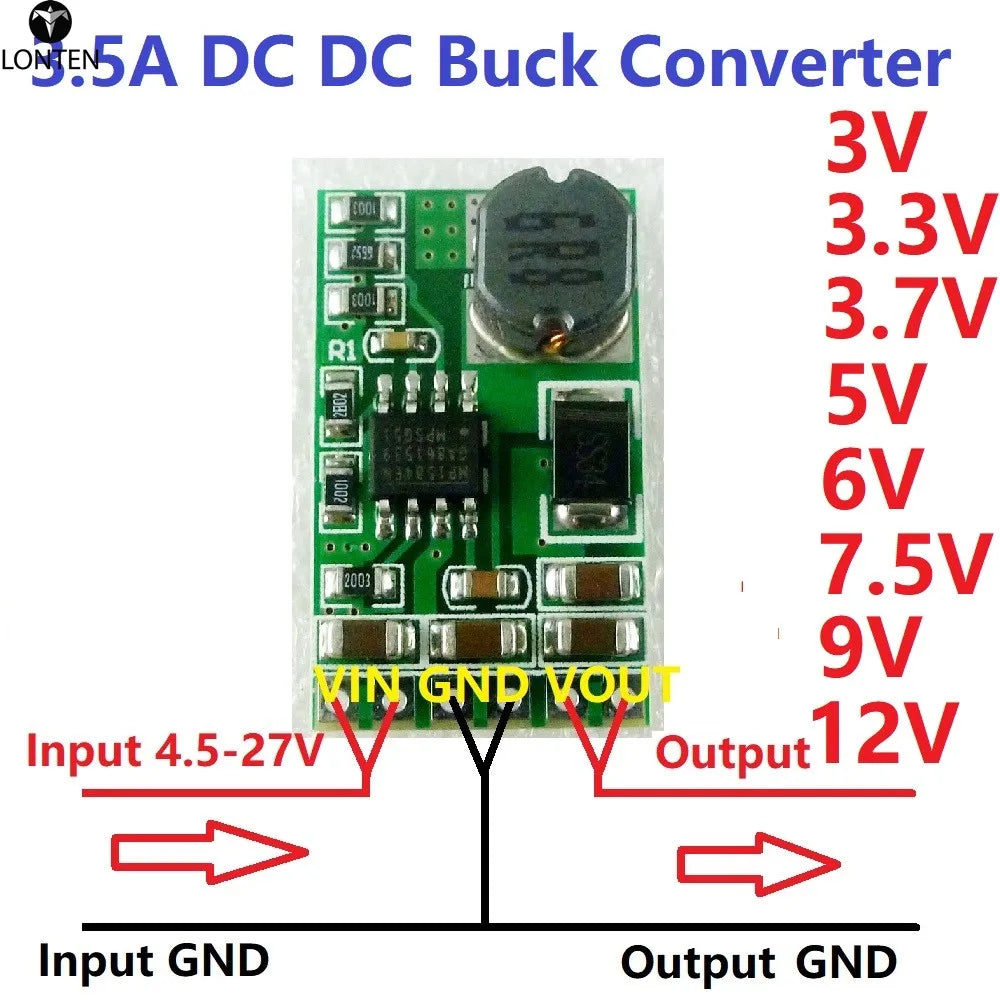

1 PCS 2712SA 3.5A DC DC Step Down Converter Module 4.5V-27V to 3V/3.3V/3.7V/5V/6V/7.5V/9V/12V

Description:

3V :

Input voltage 4.5~27V,output 3V

Maximum output current 2.5A,Short time maximum output current 3.5A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

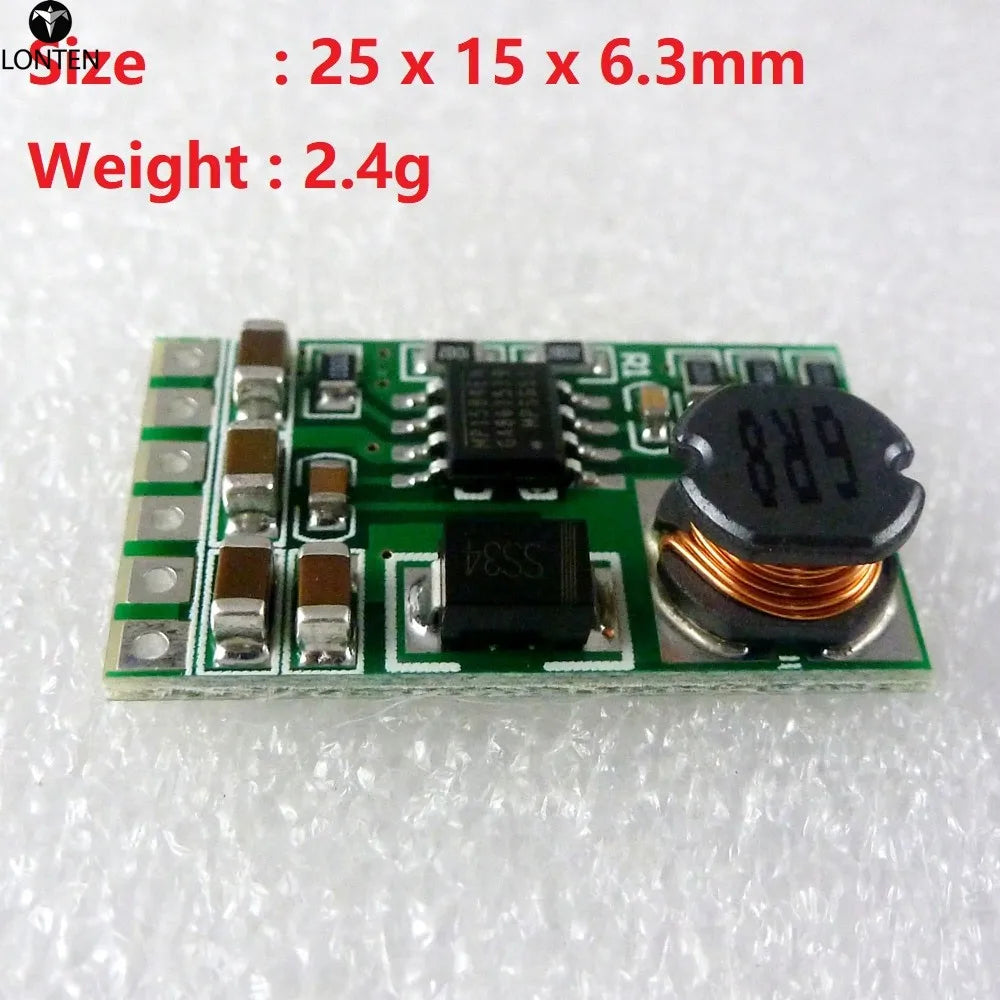

Size : 25 x 15 x 6.3mm

Weight : 2.4g

3.3V :

Input voltage 4.5~27V,output 3.3V

Maximum output current 2.5A,Short time maximum output current 3.5A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

3.7V :

Input voltage 4.5~27V,output 3.7V

Maximum output current 2.5A,Short time maximum output current 3.5A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

5V :

Input voltage 6.5~27V,output 5V

Maximum output current 2.5A,Short time maximum output current 3.5A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

6V :

Input voltage 7.5~27V,output 6V

Maximum output current 2.5A,Short time maximum output current 3.3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

7.5V :

Input voltage 9~27V,output 7.5V

Maximum output current 2.5A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

9V :

Input voltage 11~27V,output 9V

Maximum output current 2.3A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

12V :

Input voltage 13~27V,output 12V

Maximum output current 2A,Short time maximum output current 3A

DC-DC Step-Down Converter module working frequency 900KHz. efficiency is 76-92% .

Quiescent current: about 250uA

Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.

Operating Temperature :–20°C to +85°C

Size : 25 x 15 x 6.3mm

Weight : 2.4g

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

Motor Toy

WIFI Router Switch

Network equipment

Multimeter instrumentation

CCTV camera

Electric toys

Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee

Smart home / home automation

Distributed Power Systems

Battery Charger

Pre-Regulator for Linear Regulators
