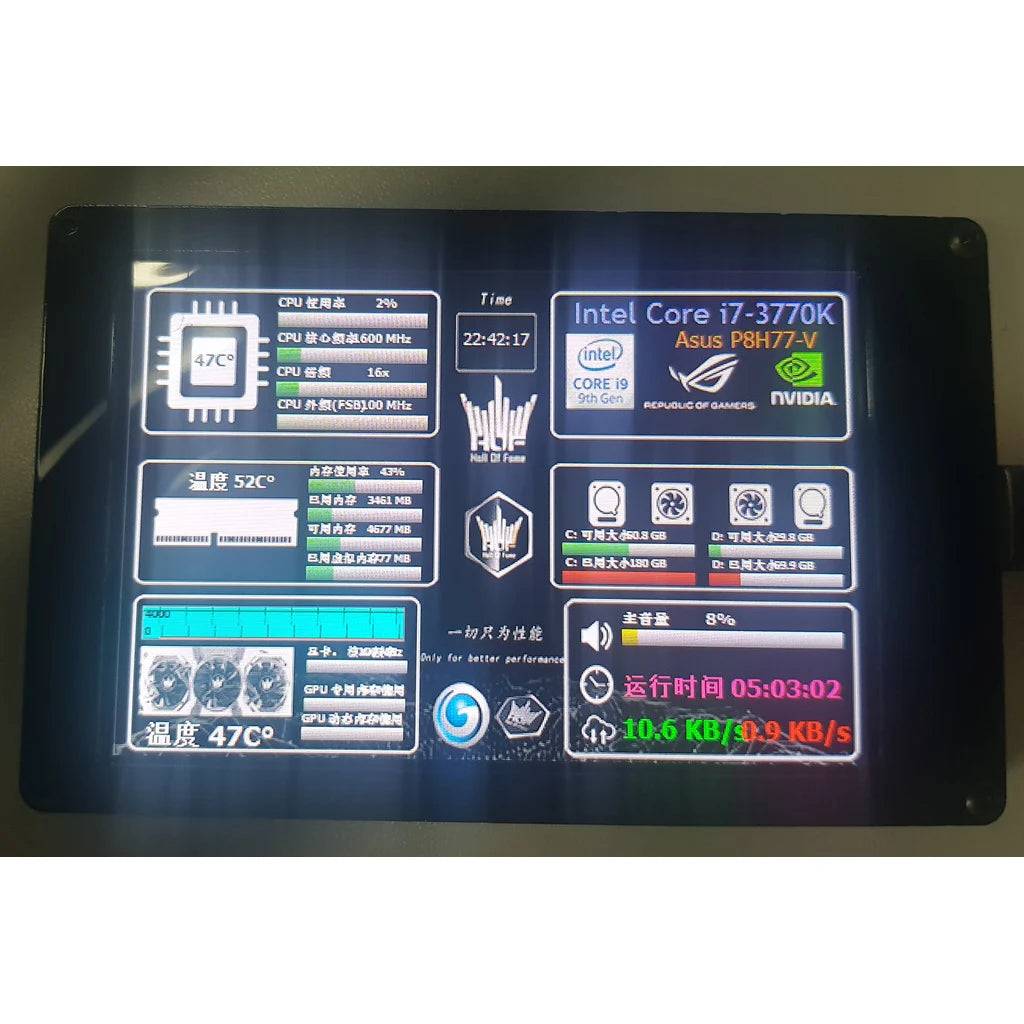

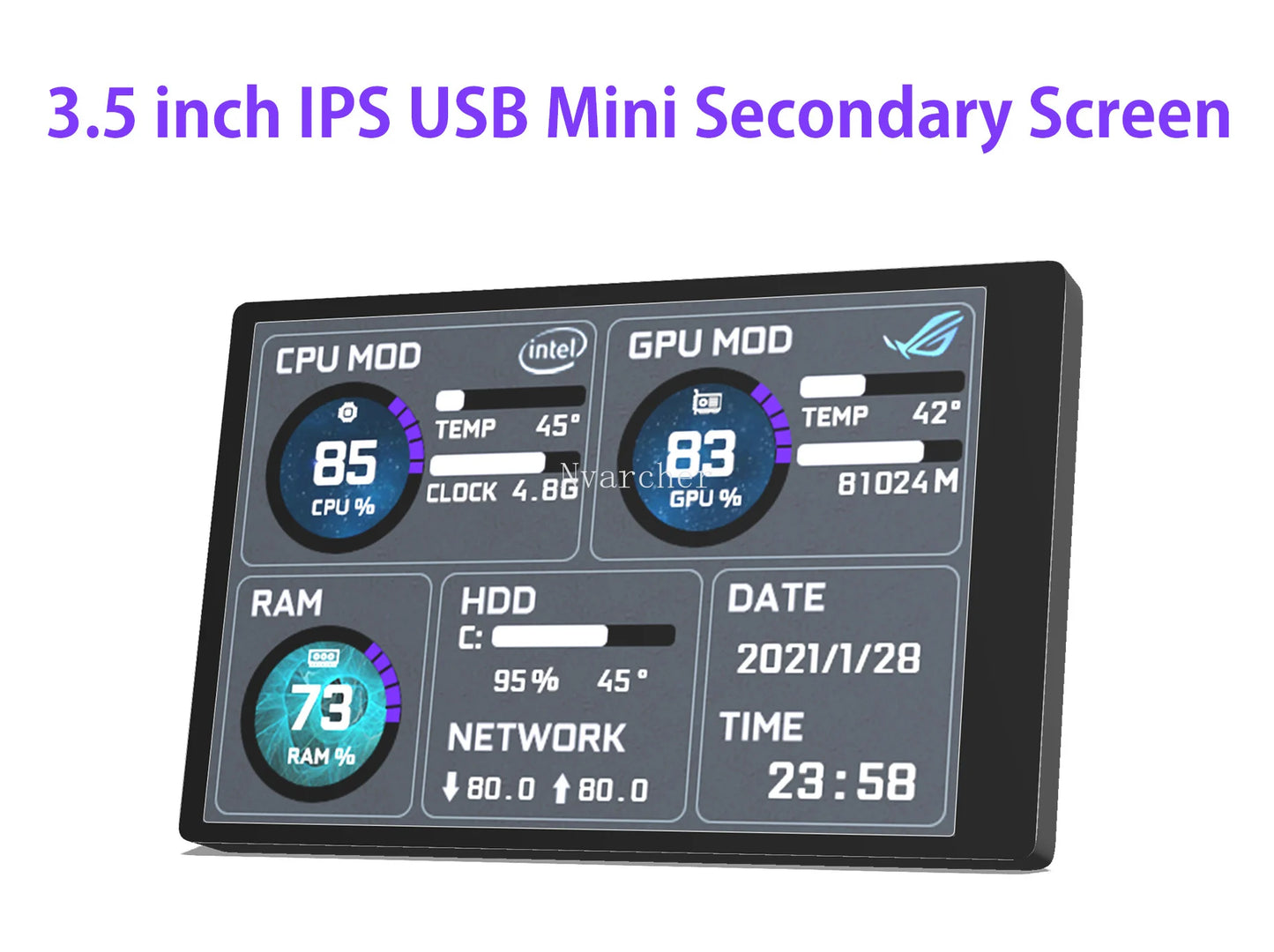

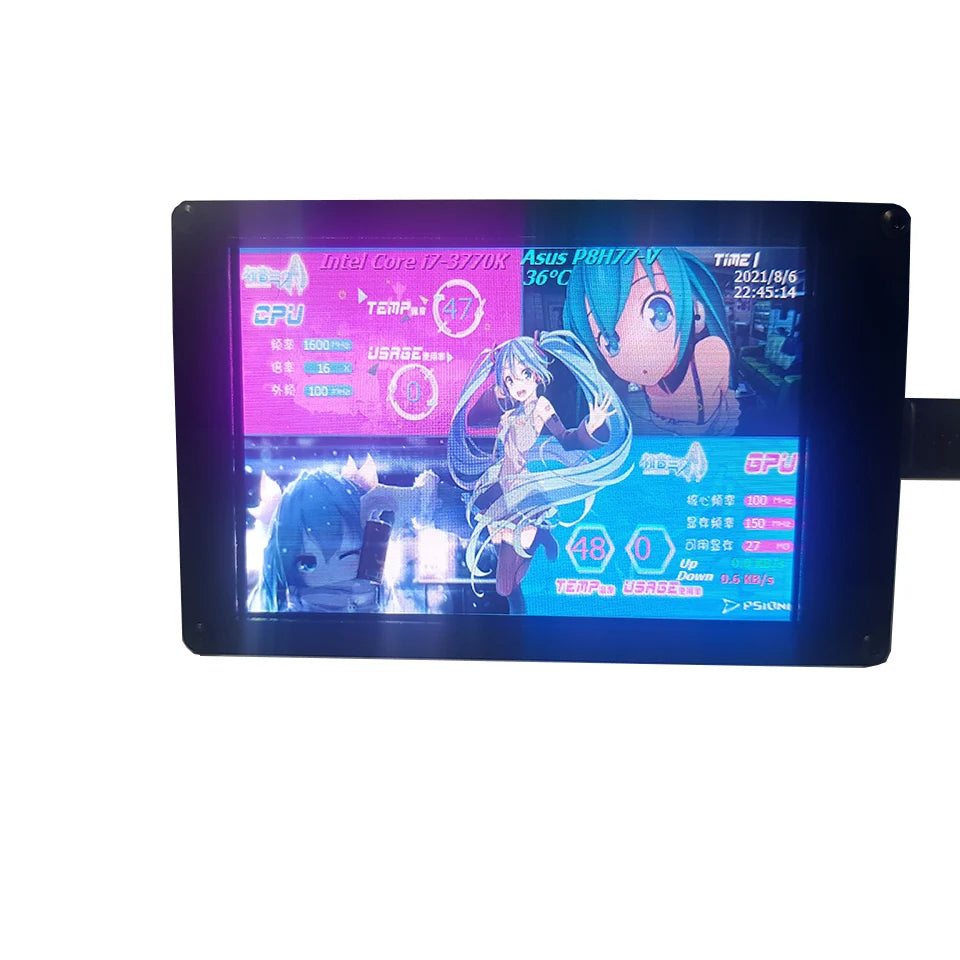

Custom 3.5 Inch 480*320 IPS LCD Monitor Display AIDA64 USB Display Sub-Screen Support Raspberry Pi With RGB Breathing Light Manufacturer

Custom 3.5 Inch 480*320 IPS LCD Monitor Display AIDA64 USB Display Sub-Screen Support Raspberry Pi With RGB Breathing Light Manufacturer

$100.00 USD
$0.00 USD $100.00 USD
Sale Sold out
Noticed
The 3.5-inch screen is not applicable to aida64 software, only its own software wallpaper can be used, and the 7-inch screen can be compatible with aida64.Thanks
https://github.com/SHWotever/SimHub/wiki/Dashstudio---USB-Displays

Frequently Asked Questions
1 Is this small LCD monitor compatible with the 2.4-inch AX206 photo frame?
Answer:
The use of aida64 under Windows is completely compatible, and the Lcd4Linux software package (supporting 32-bit and 64-bit) that needs to be recompiled by myself under Linux is also compatible.
Therefore, this LCD monitor can be used in various Linux systems such as Windows, Qunhui NAS, openwrt router, and Raspberry Pi.
without case version suitable for directly installing on the chassis.
3. Have technical support?
Answer:
1 Provide a certain level of technology, provide a basic simple tutorial, and use Qunhui NAS. Lcd4linux installation tutorial, etc.
2  Provide several configuration themes I collected online. Convenient to get started as soon as possible.
4 How many USB ports does this LCD monitor have? Is horizontal screen display supported under Windows?
Answer:

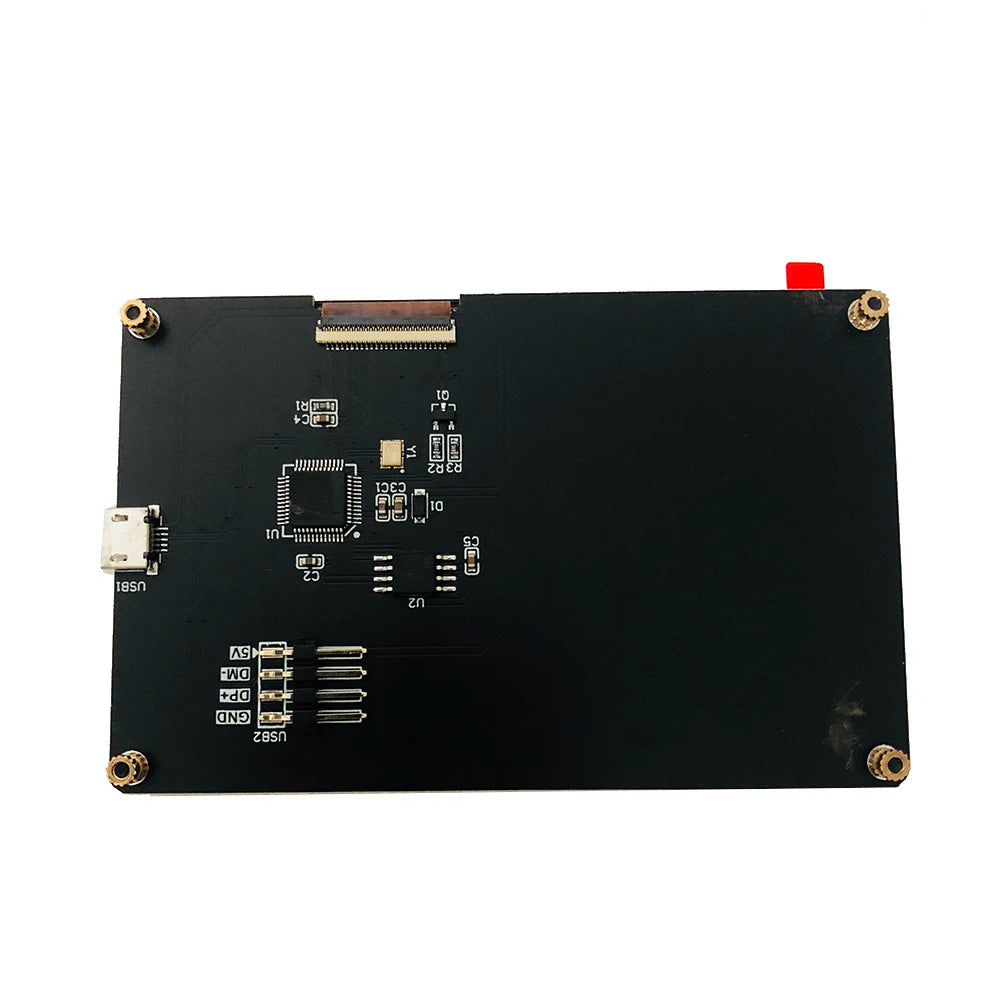

1 Supports 4 USB ports, two of which are MicroUSB on the side of the product, and one MicroUSB and a 4PIN 2.54 pin USB on the back of the product.
2 Supports horizontal screen display under Windows, just plug in a jumper cap.
5. Are there any accessories to send?
Answer:
1 Because this product is assembled and welded manually by myself. The color is OK.
2 A 1M MicroUSB cable or a USB DuPont cable (9-pin USB head, which can be directly plugged into the motherboard USB socket) is delivered. The default is a MicroUSB cable.
If you need a USB DuPont cable, you can place an order with a USB 9-pin DuPont cable.
6 Is it easy to fix to the chassis?
Answer:
1 You can buy double-sided foam tape to fix the box to the chassis.
2 Remove the box to keep the motherboard module, use the copper pillars and M3 screws fixed in the box. Punch holes in the chassis and fix it directly on the chassis.
3 Put the box directly on the case for use.
4 The delivered permanent magnet small foot cup is sucked to the iron case (the default is not delivered, it is easy to crush the screen, you need to note when placing an order).
Size:94.69*58.59*9mm






Version 1:








Version 2:

Software download address

https://lgb123-1253504678.cos.ap-beijing.myqcloud.com/35inchENG.rar

Please note that only applies to windows system!


Display area: 49*74mm

Dimensions: 55*85mm

Resolution: 320*480

Thickness: 7~8mm

Viewing angle: IPS full viewing angle

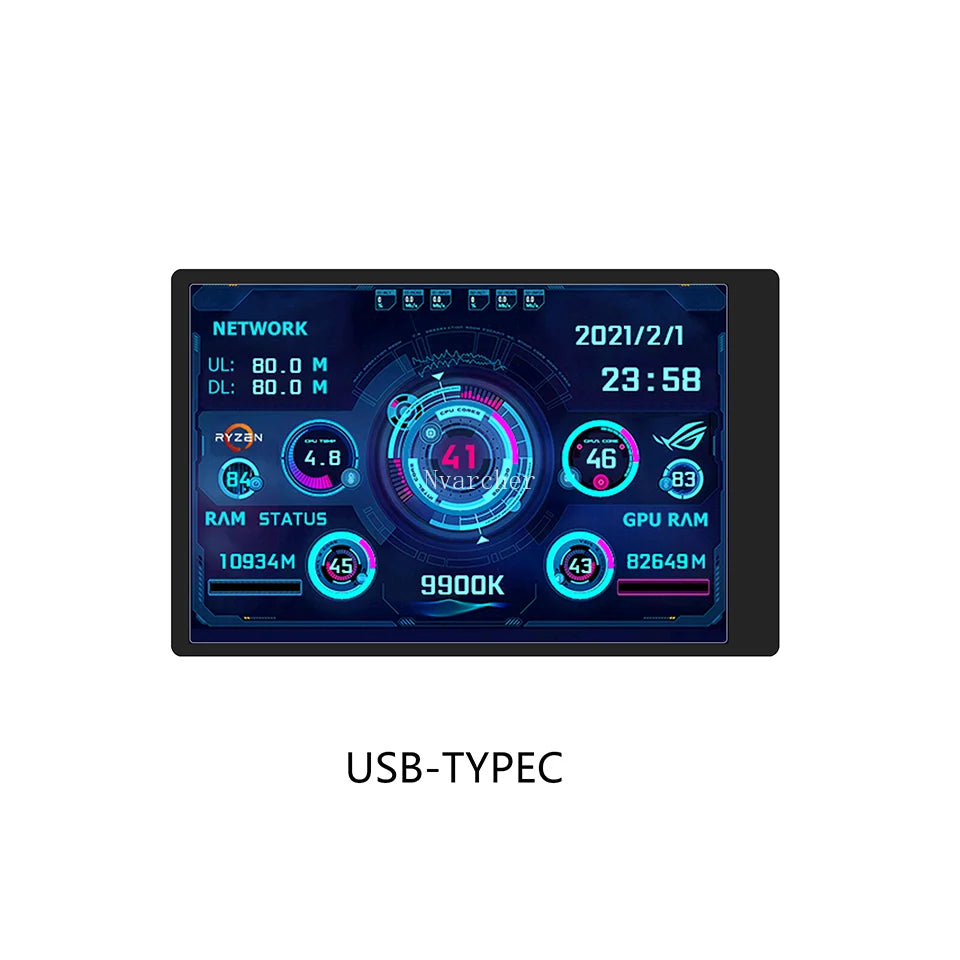

Interface: USB-TYPEC

Shell material: metal


1. How to use?
Link the mini secondary screen with the computer, and then start our customized software, no need for AIDA64, no need for other cumbersome settings

2. Why doesn't the graphics card data move?
General notebook users generally use independent monitors on standby, and only use the core monitor to save power, and the secondary monitor monitors the more important independent monitor. Of course, the graphics card monitors the data does not change.

3. Can other content be displayed?
No, it can only display the content of custom software settings

4. USB interface version?
USB1.0 USB2.0 USB3.0 unlimited, as long as it is USB





CPU: temperature, main frequency, usage rate
Graphics card: temperature, video memory, usage rate
Memory: used memory, usage rate
Hard disk: temperature, space usage
Network: upload speed, download speed
Others: date, time, volume, weather forecast

Multi-theme continuous online update

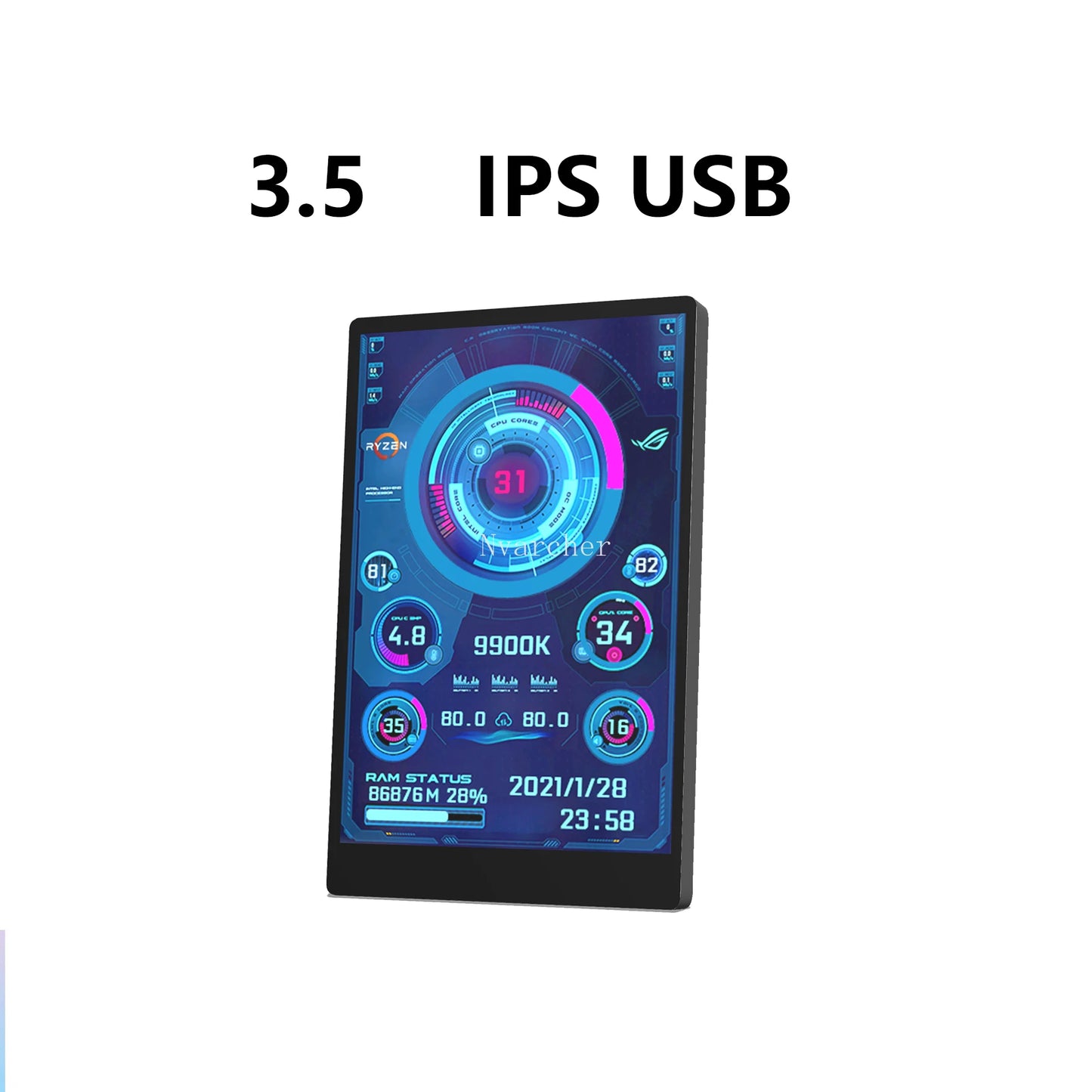

Support horizontal and vertical screen switching
360°rotation
Energy saving and environmental protection
Turn off the screen automatically after shutdown
Comfortable eye protection
Brightness stepless adjustment

Breaking through physical limitations, it can be used as long as there is a USB port

The small USB head is plugged into the secondary screen, and the big USB head is plugged into the computer (see the picture below)
Free 1 meter data cable when placing an order

Leave professional things to professional software
One-click operation
Change background image with one click
One-click switch theme
Adjust brightness
Auto-start at boot
Set weather forecast city



How to use the screen: Download the driver and unzip it into a folder, then right-click the icon in the figure below to run it as an administrator.
