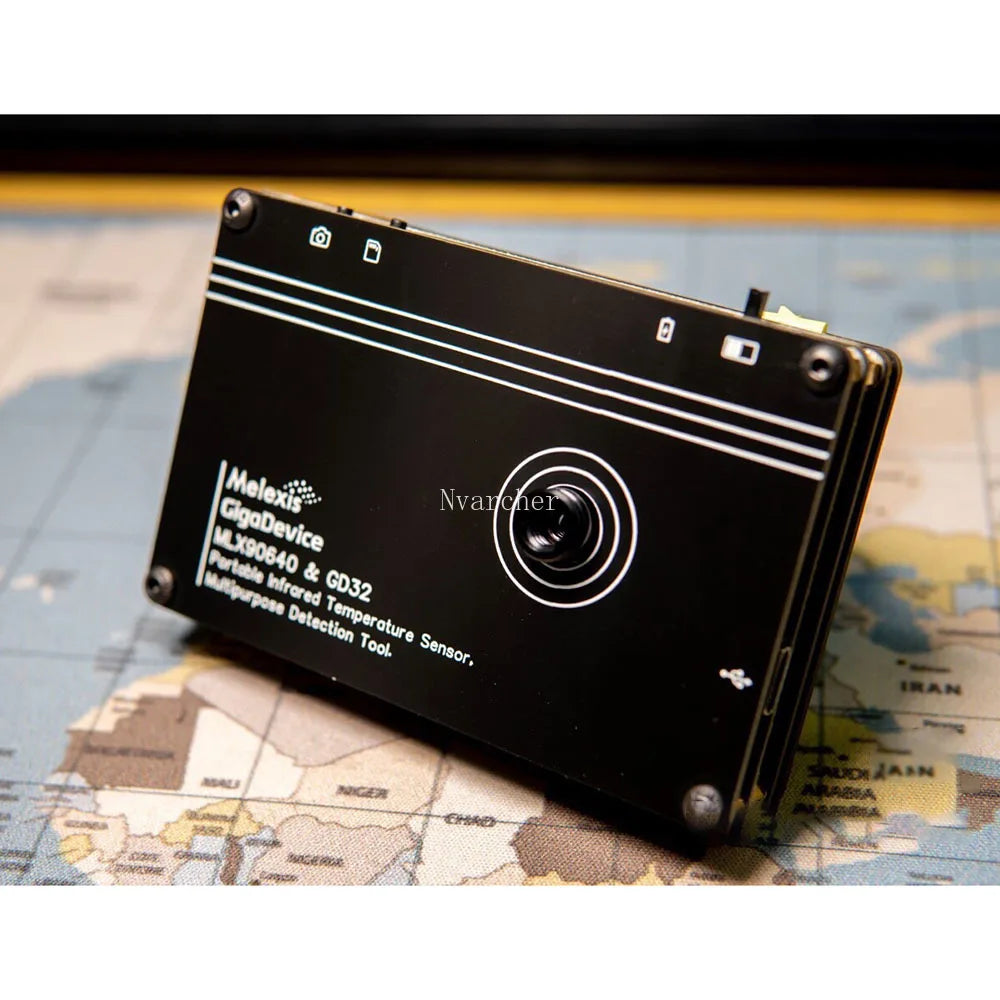

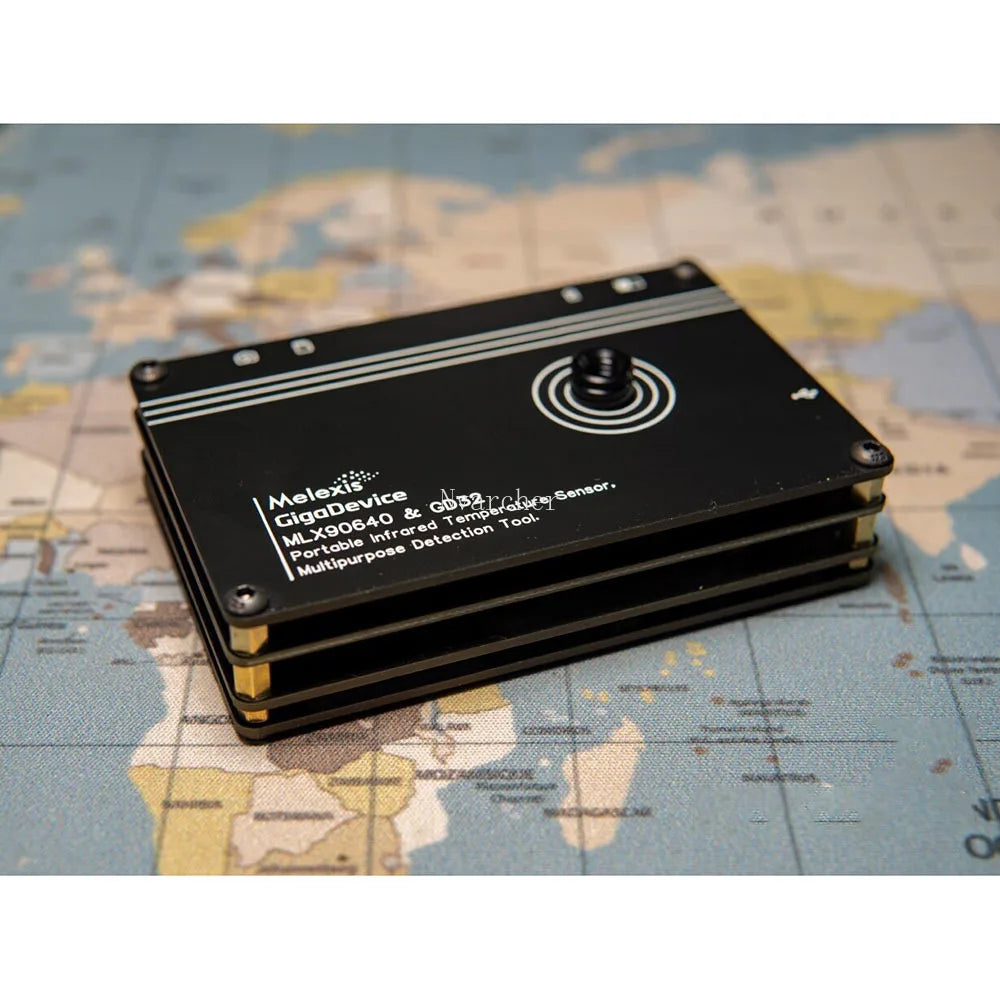

Custom Custom 3.2 inch MLX90640 Rechargeable DIY Infrared Thermal Imaging Temperature Detector Save Images Electronic Repair Equipment Manufacturer

MLX90640 Portable Rechargeable DIY Infrared Thermal Imaging Temperature Detector Can Save Images Electronic Repair Equipment

The target temperature measurement range is -40~+300℃, and the dynamic refresh rate is 8Hz.

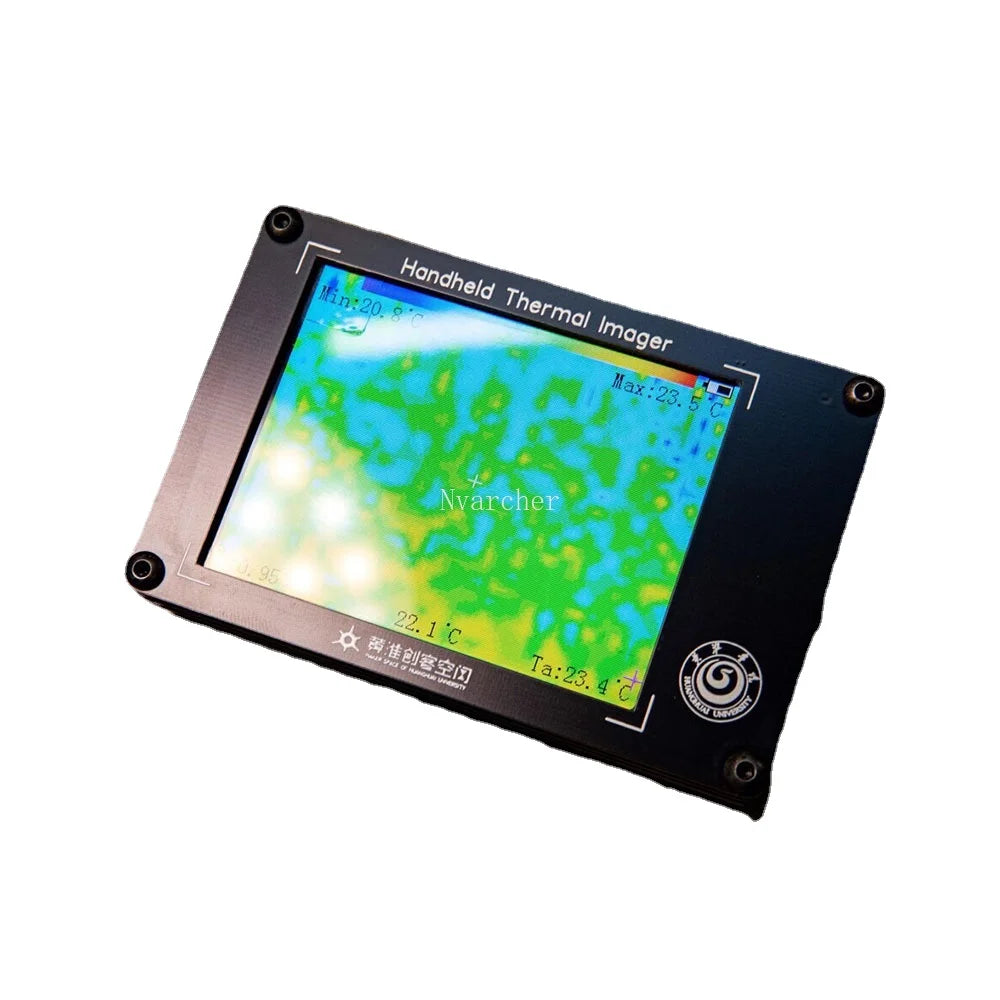

The 3.2-inch LCD screen has a resolution of 320*240,

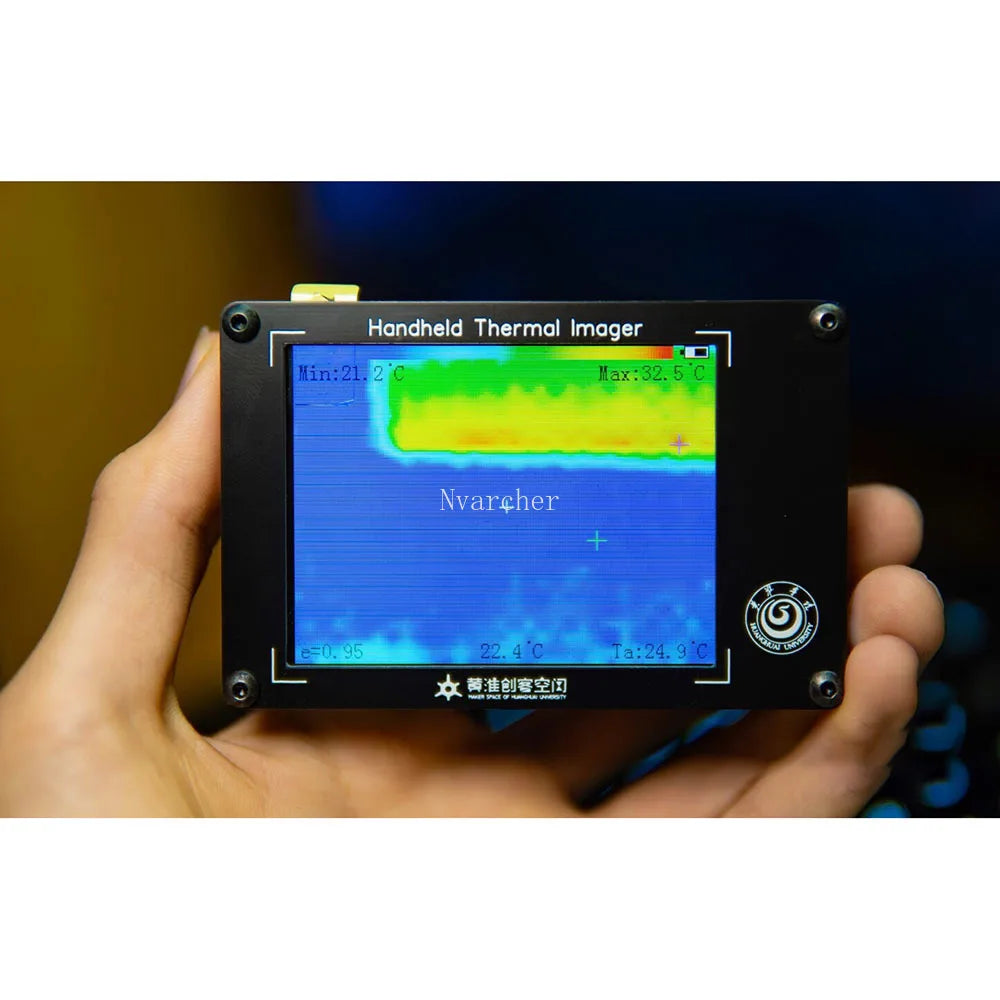

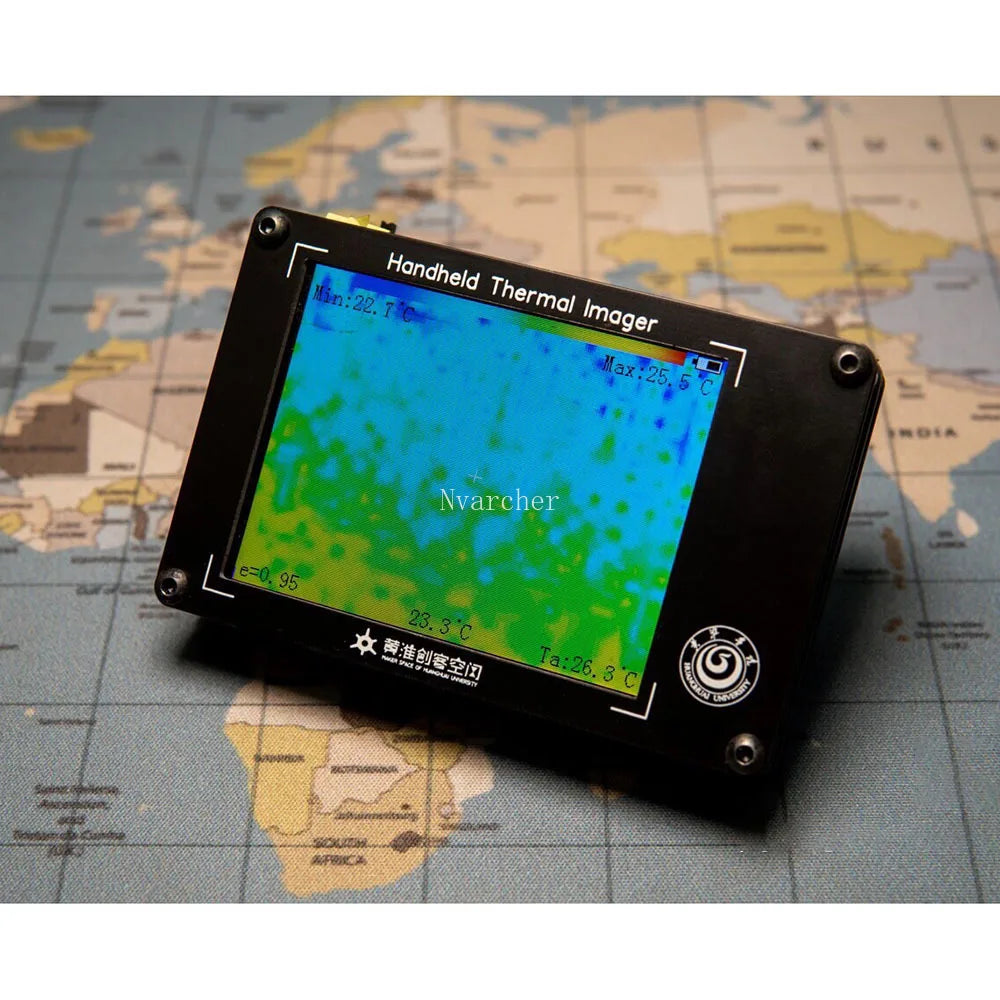

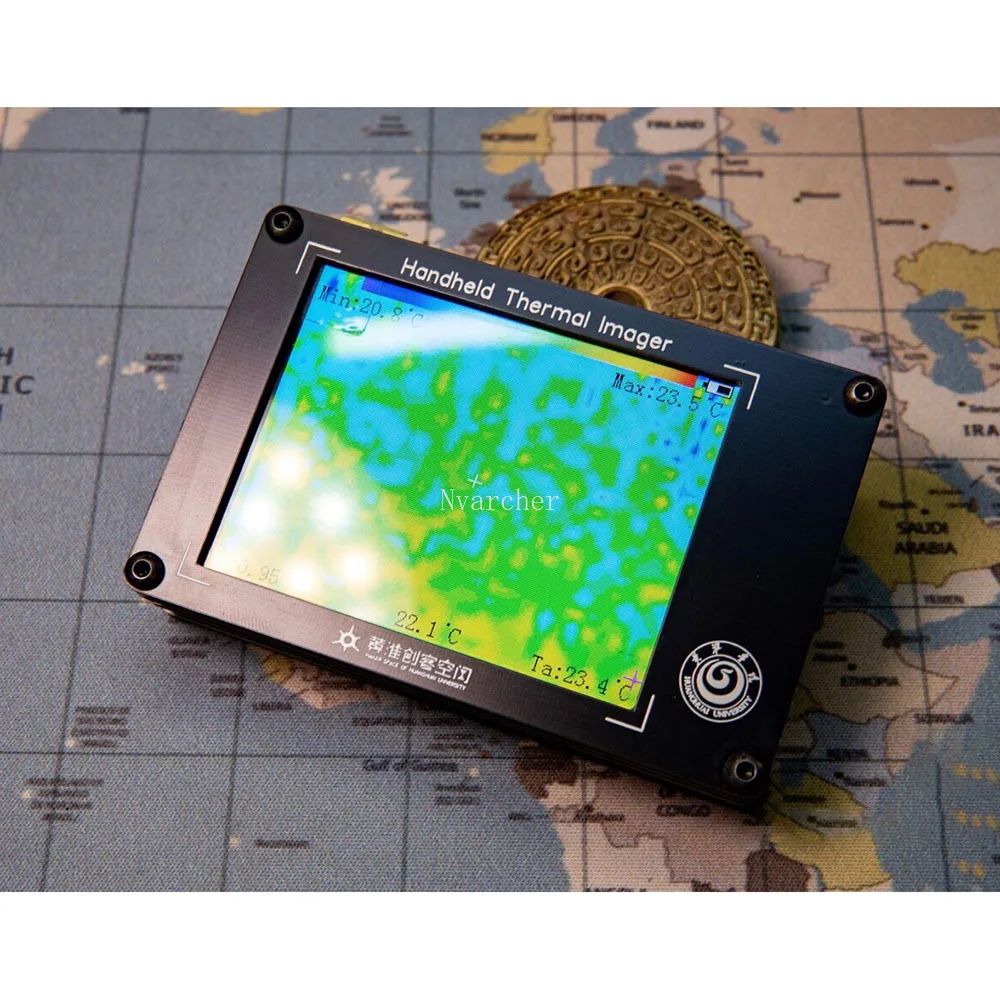

The screen can display and track the maximum temperature, minimum temperature, center point temperature.

The shell uses FR4 epoxy sheet, which can better protect the internal components, is not easy to damage, and has a long service life. Cigarette case size, easy to carry, you can take it anywhere you want to use it.

Powered by lithium battery, it adopts USB-C charging method, Type C 5V and the battery life can reach 10 hours. It can be used while charging when there is no power, which is very convenient.

Size: 95*62*20mm

Battery :1500mh 3.7V

The built-in SPI Flash chip can store 100 pictures, and the data line can be connected to a computer or mobile phone to view and copy the image files.
