Custom 2x 78M05 7806 L7809 LM7812 three-terminal positive regulators Module LDO Board 7-30V to 5V 6V 9V 12V Manufacturer

Name: Custom 2x 78M05 7806 L7809 LM7812 three-terminal positive regulators Module LDO Board 7-30V to 5V 6V 9V 12V Manufacturer
Brand: Lonten Tech
Price: 1.89 USD
Availability: InStock

$1.89 USD

~~$1.89 USD~~ $1.89 USD

Sale Sold out

Quantity

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.

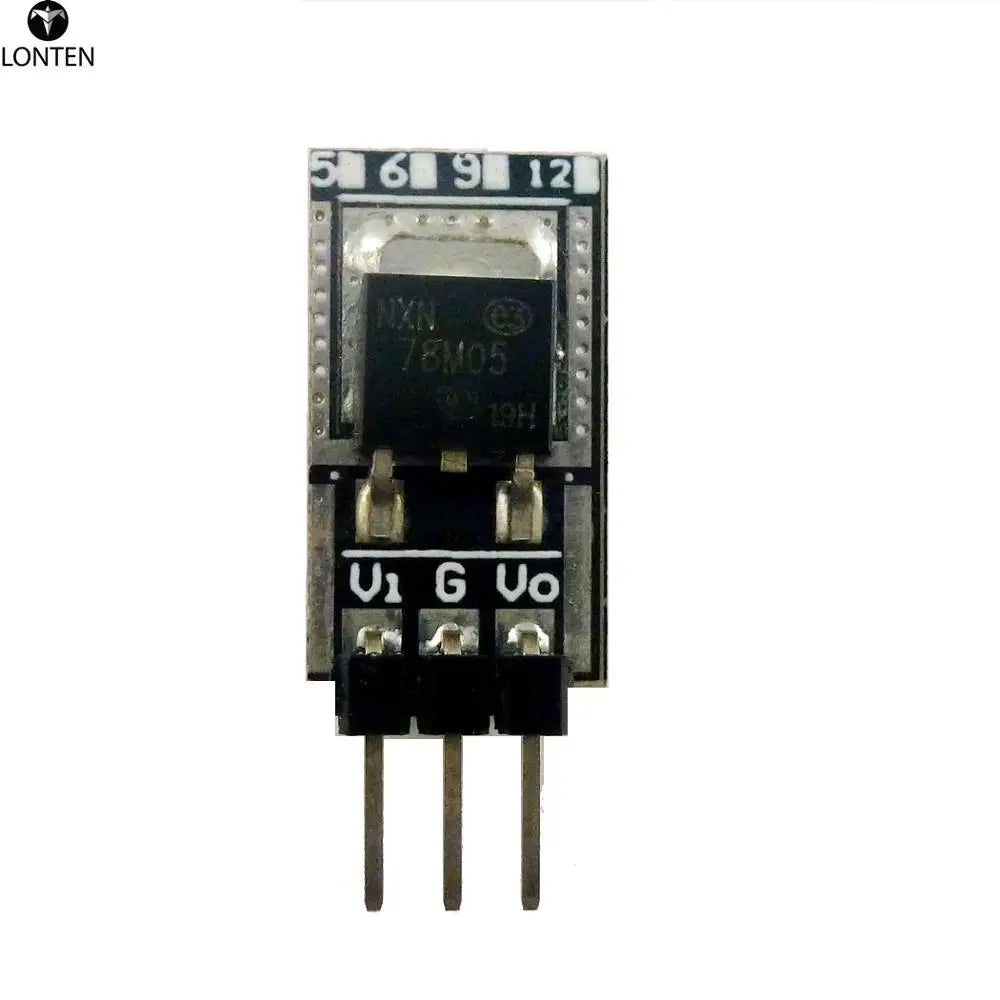

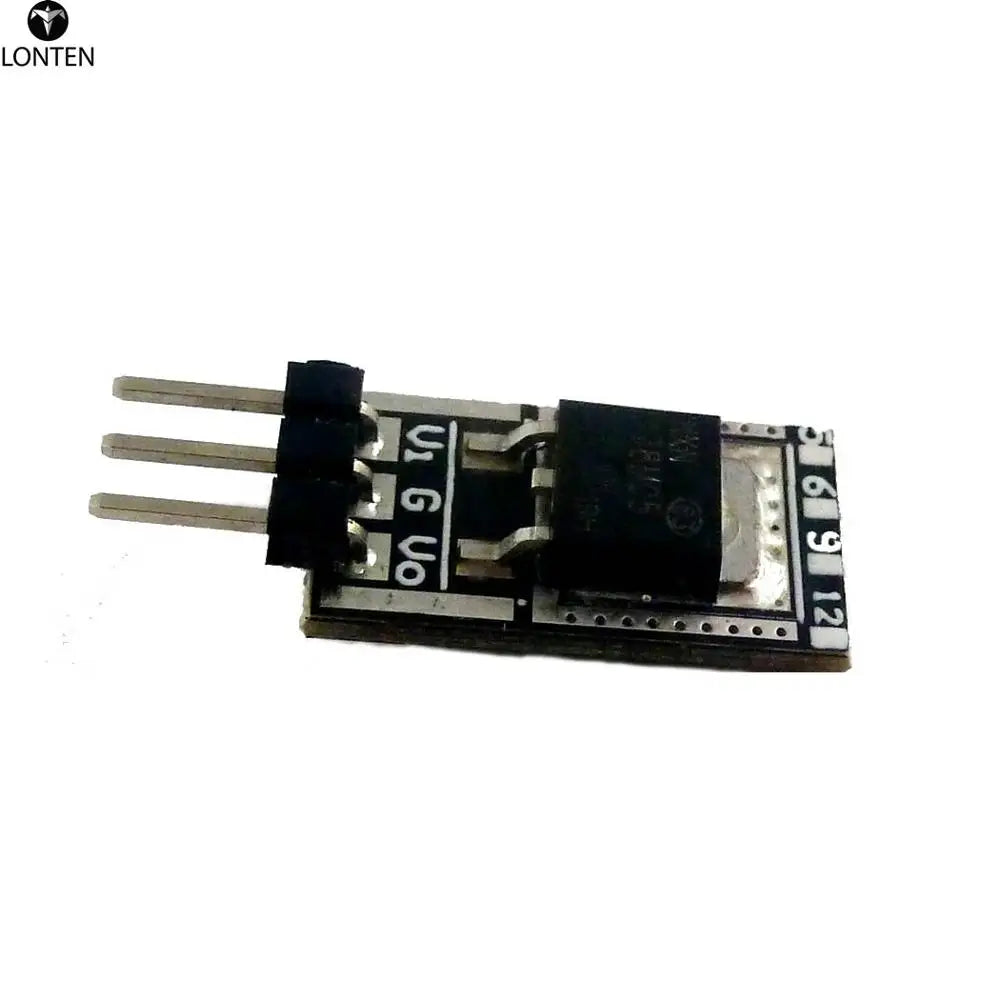

Product Name: 2x 78M05 7806 L7809 LM7812 three-terminal positive regulators Module LDO Board 7-30V to 5V 6V 9V 12V

Packing list:

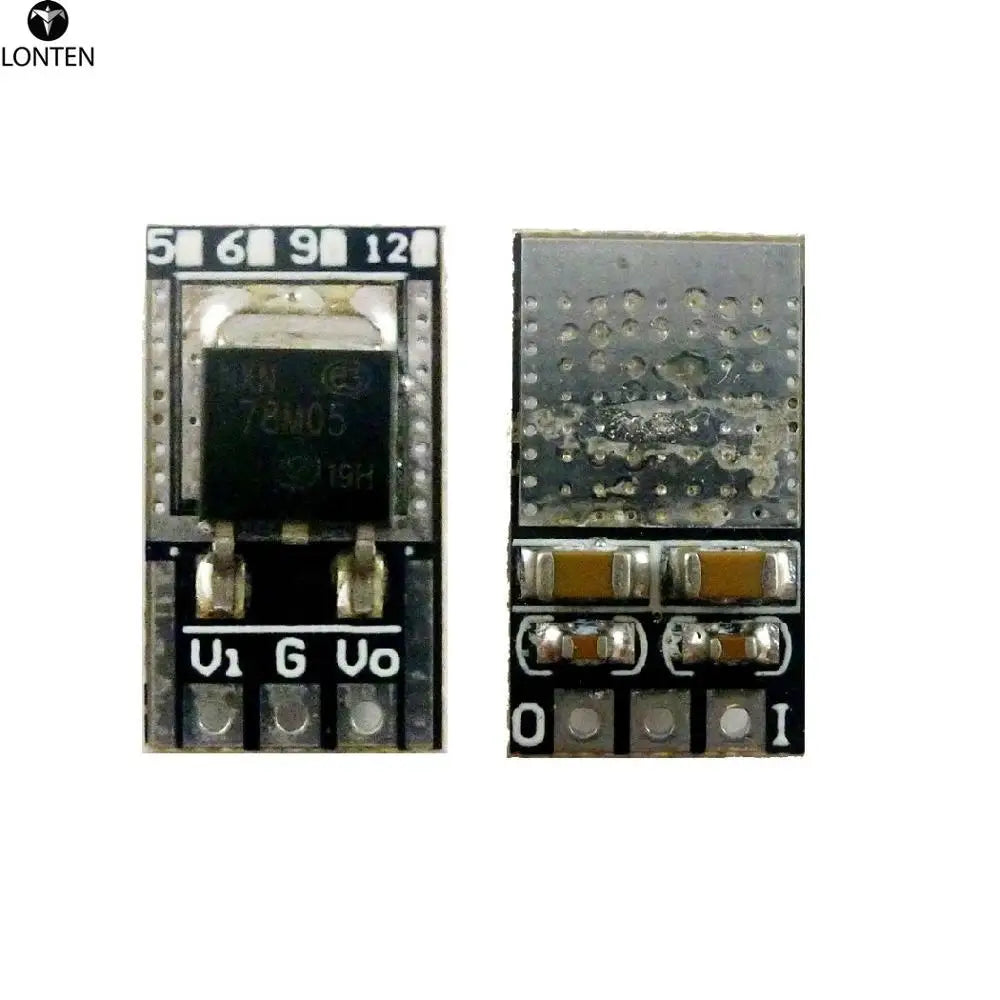

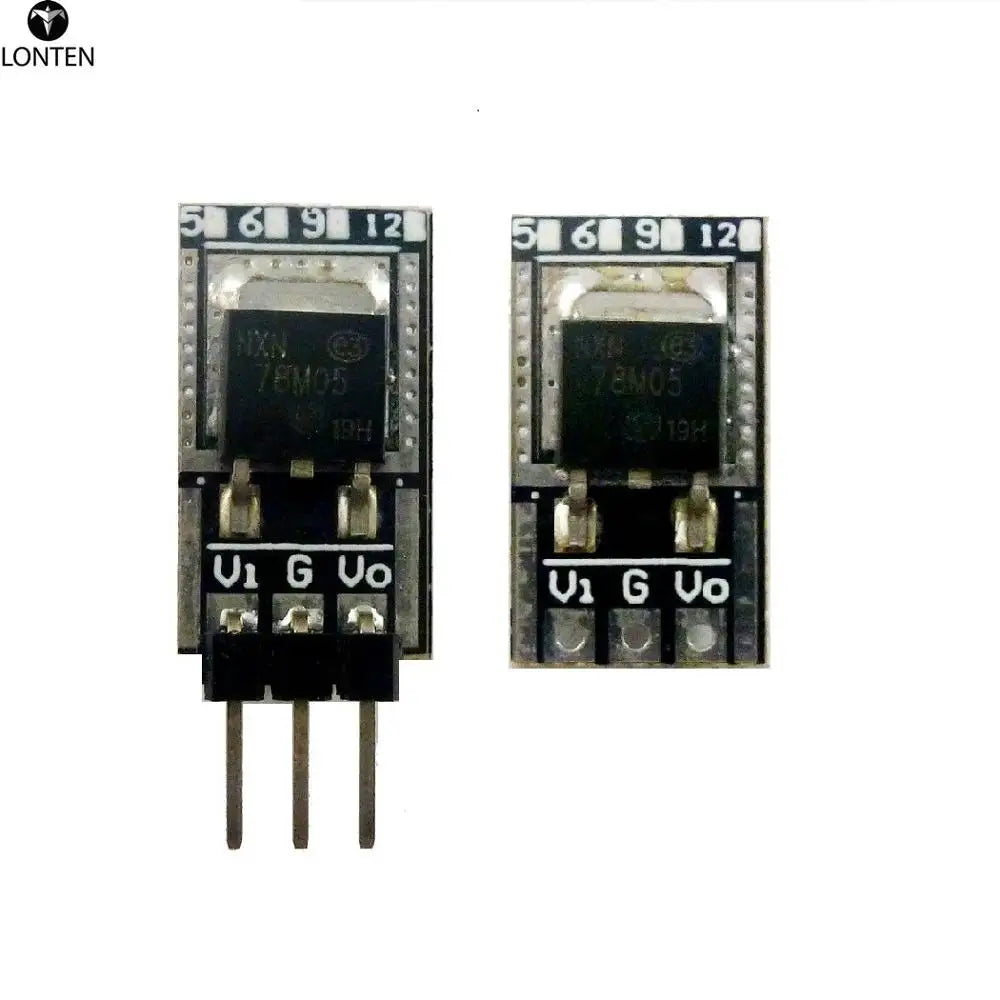

2 PCS 78XX three-terminal positive regulators LDO Module

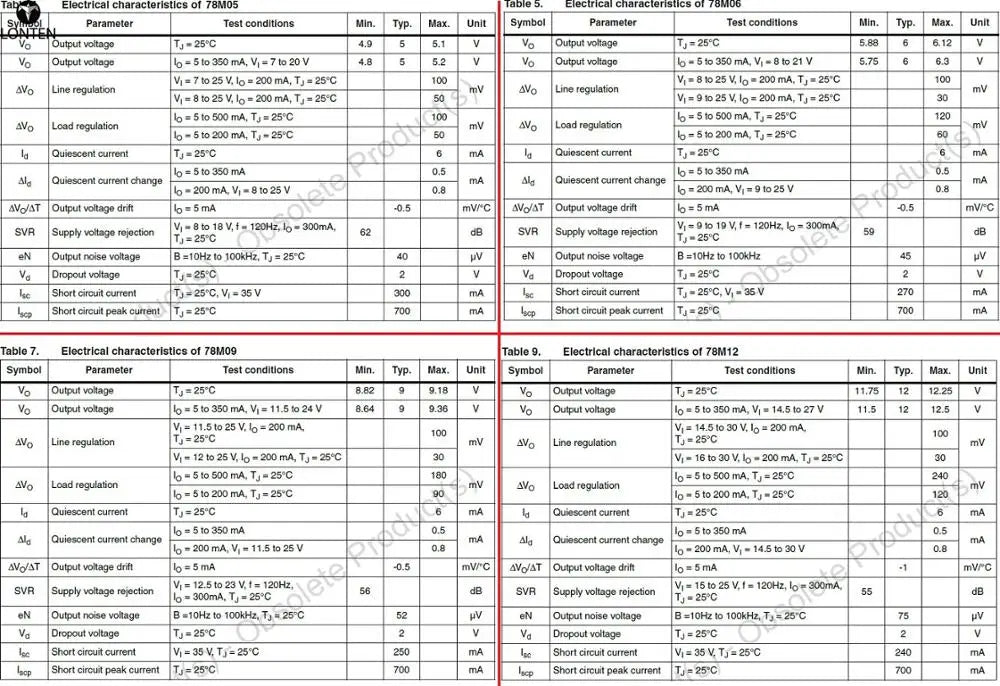

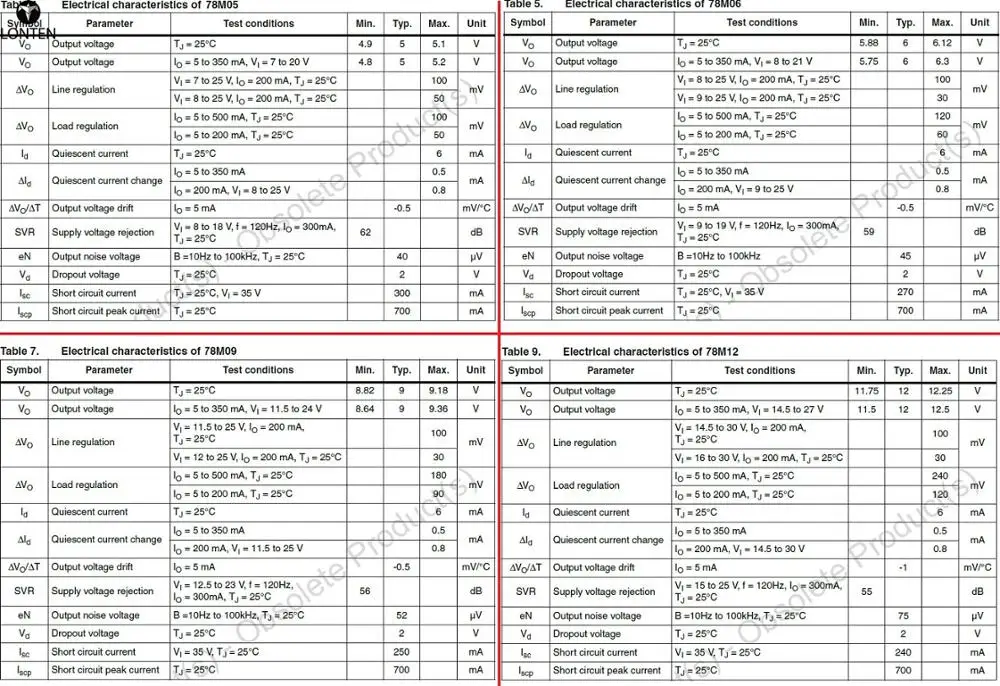

Description:

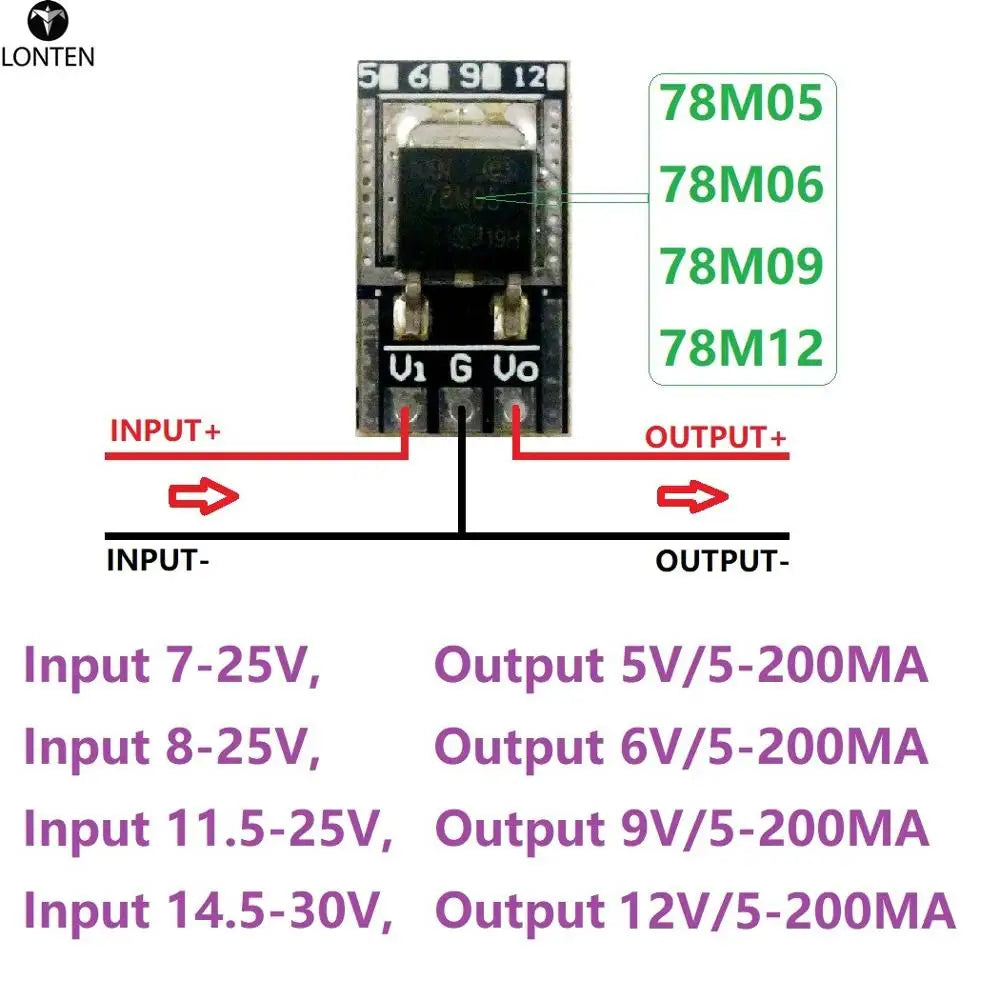

5V :
Input voltage: DC 7-25V ,Output voltage: DC 5V
Output current : 5- 200mA
Short Circuit Current : 300mA

6V :
Input voltage: DC 8-25V ,Output voltage: DC 6V
Output current : 5- 200mA
Short Circuit Current : 270mA

9V :
Input voltage: DC 11.5-25V ,Output voltage: DC 9V
Output current : 5- 200mA
Short Circuit Current : 250mA

12V :
Input voltage: DC 14.5-30V ,Output voltage: DC 12V
Output current : 5- 200mA
Short Circuit Current : 240mA

Highly Accurate:±2%
Quiescent Current : 6mA
Thermal overload protection
Short circuit protection
Output transition SOA protection
± 2 % output voltage tolerance
Guaranteed in extended temperature range
Operating Temperature: -40℃ ~ +125℃

Size : 18 x 10.5 x 5mm
Weight : with pin 1.1g,no pin 0.9g

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

Breadboard Power Supply

Small power motors

Camera, Video camera

Electric toys
Relay PLC

Model aircraft

LED Lighting

raspberry pi UNO MEGA2560

electronic diy kit

STM32 FPGA/CPLD PIC AVR Board

electronic diy kit

Wifi Module,ESP8266
