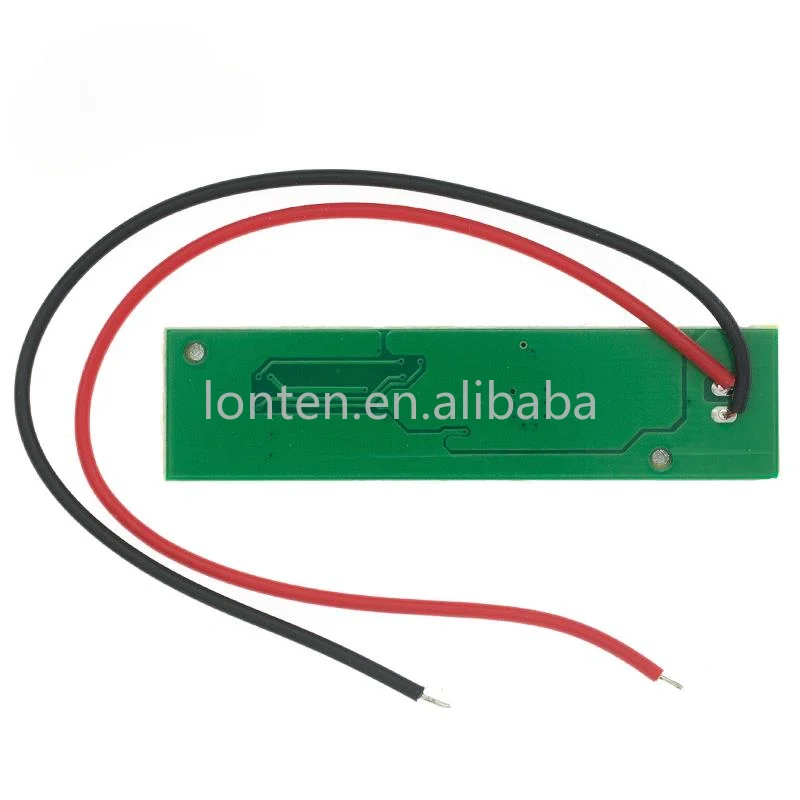

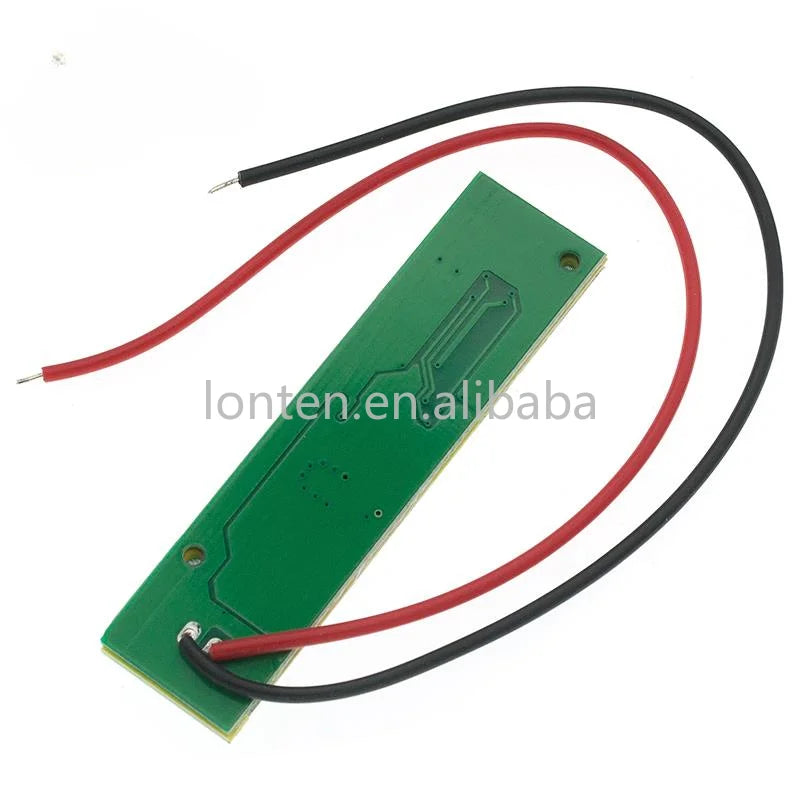

Custom 2S/3S/4S 8.4V 12.6V 16.8V BMS Li-ion Battery Lithium Capacity Indicator Display PCB Module 18650 Power Level Tester LCD Charge Manufacturer
Custom 2S/3S/4S 8.4V 12.6V 16.8V BMS Li-ion Battery Lithium Capacity Indicator Display PCB Module 18650 Power Level Tester LCD Charge Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Operaction:

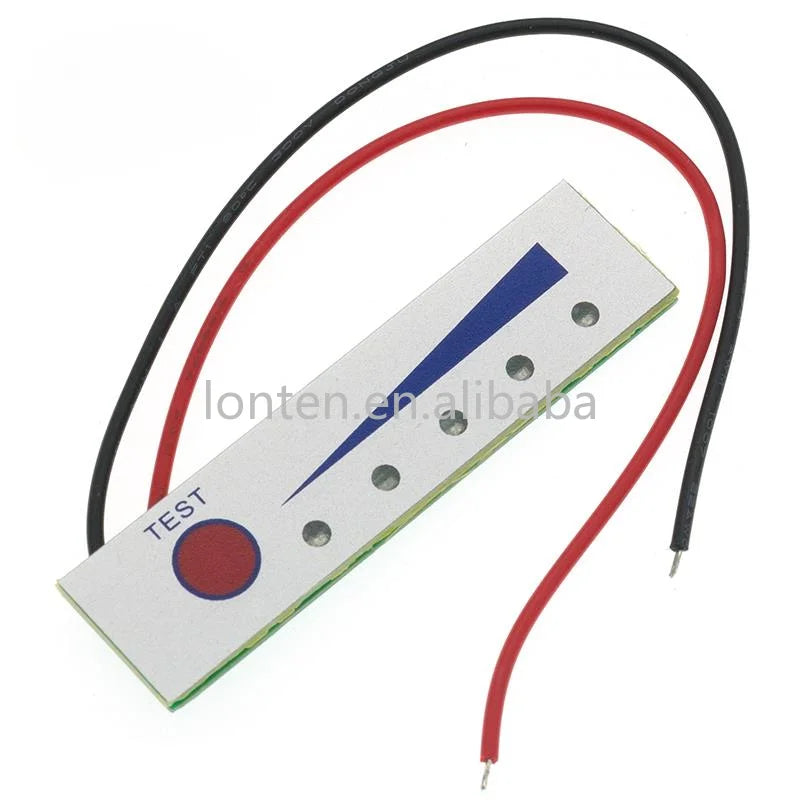

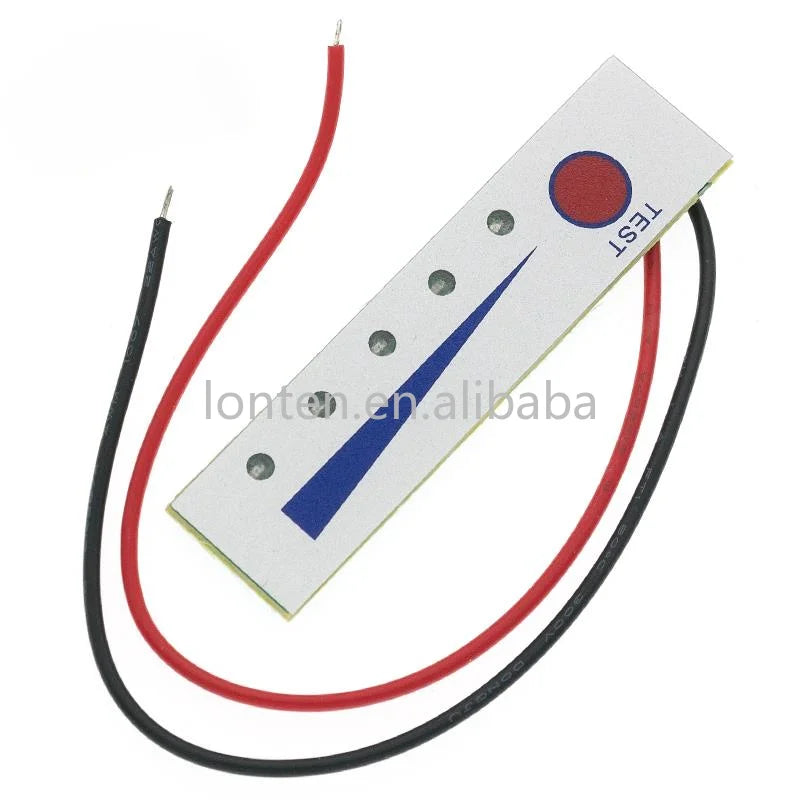

1. Please processing with your fingers lightly press the red button when c harge or discharge, when the LED lights, the light board line current is about 30mA.
2. Release the finger, LED lights will go out, light board line off, no current through.
3. Board with reverse function, the line is connected or wrong is no problem, adjust it over

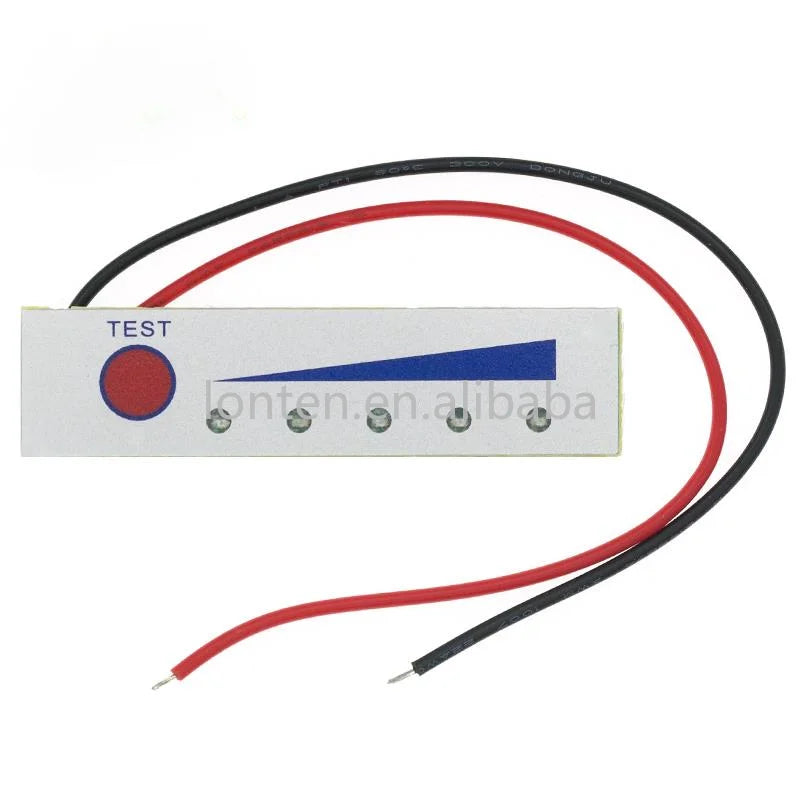

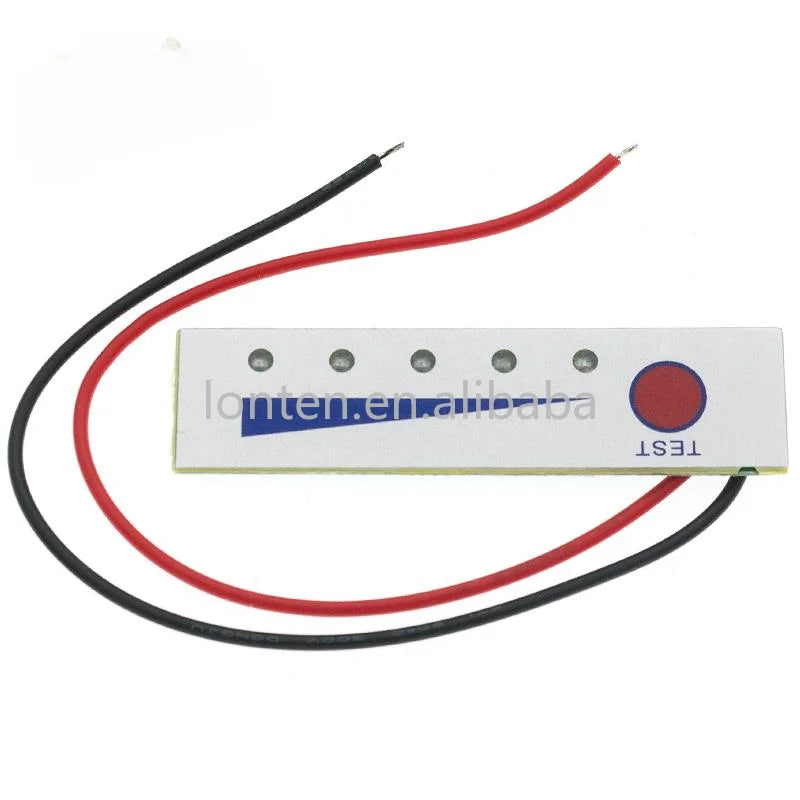

A total of 5 small lights, display power, suitable for reverse converter lithium battery power tips!
Size: 2.7*62*15.8MM
Cable Length: 140MM
2S 8.4V Power Level:
- L1: 4.5-5.5V
- L2: 5.5V-6.8V
- L3: 6.8V-7.4V
- L4: 7.4V-8.0V
- L5: 8.0V-8.4V
-
3S 12.6V Power Level:
- L1: 1.5-9V
- L2: 9V-11V
- L3: 11V-11.5V
- L4: 11.5V-12V
- L5: 12V-12.6V
-
4S 16.8V Power Level:
- L1: 8-10V
- L2: 10V-13.0V
- L3: 13.0V-15.0V
- L4: 15.0V-16.0V
- L5: 16.0V-16.8V
-
