Custom 2GB AI Kit, AI Robot Based On Jetson Nano 2GB Developer Kit (Optional)

Custom 2GB AI Kit, AI Robot Based On Jetson Nano 2GB Developer Kit (Optional)

$169.09 USD
$189.09 USD $169.09 USD
Sale Sold out
Color
The 18650 batteries are NOT included


Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

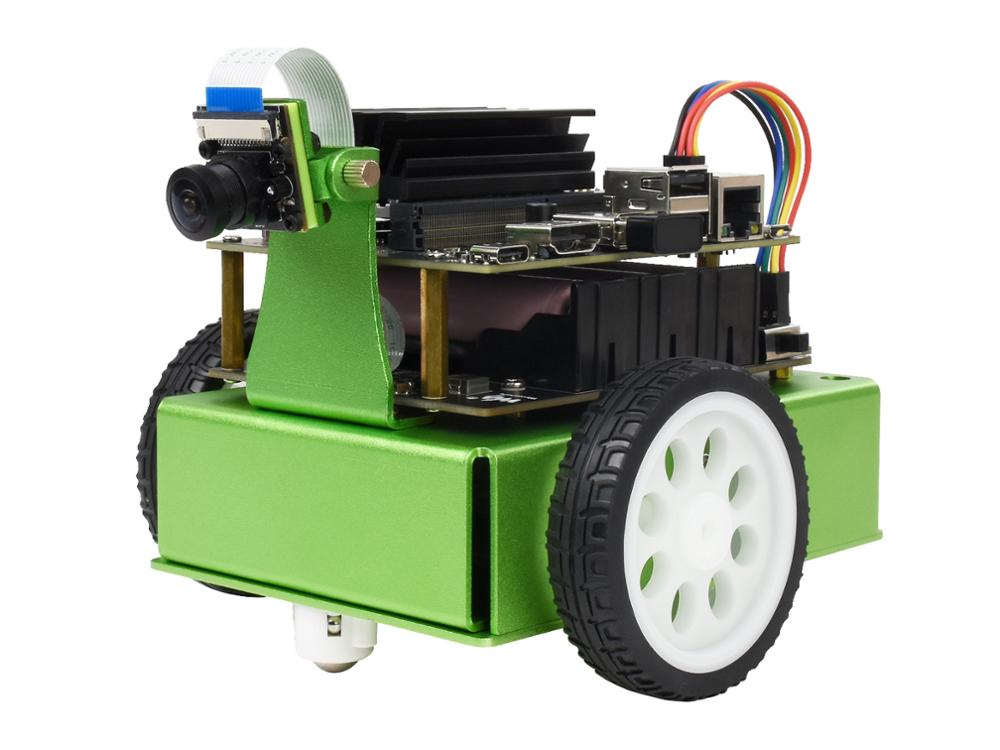

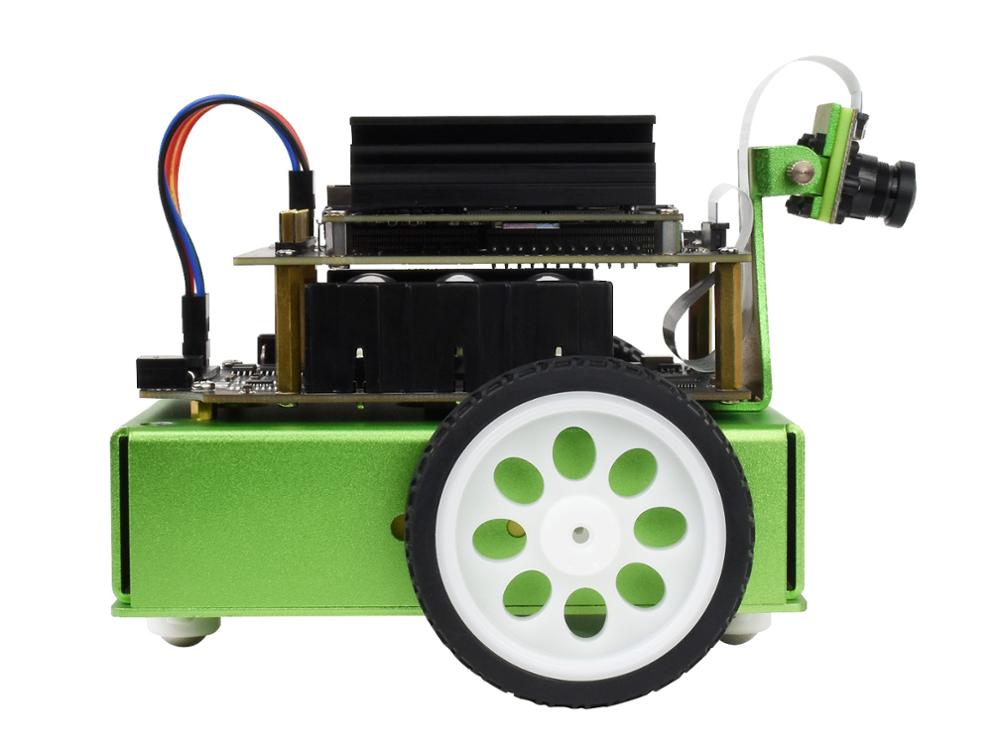

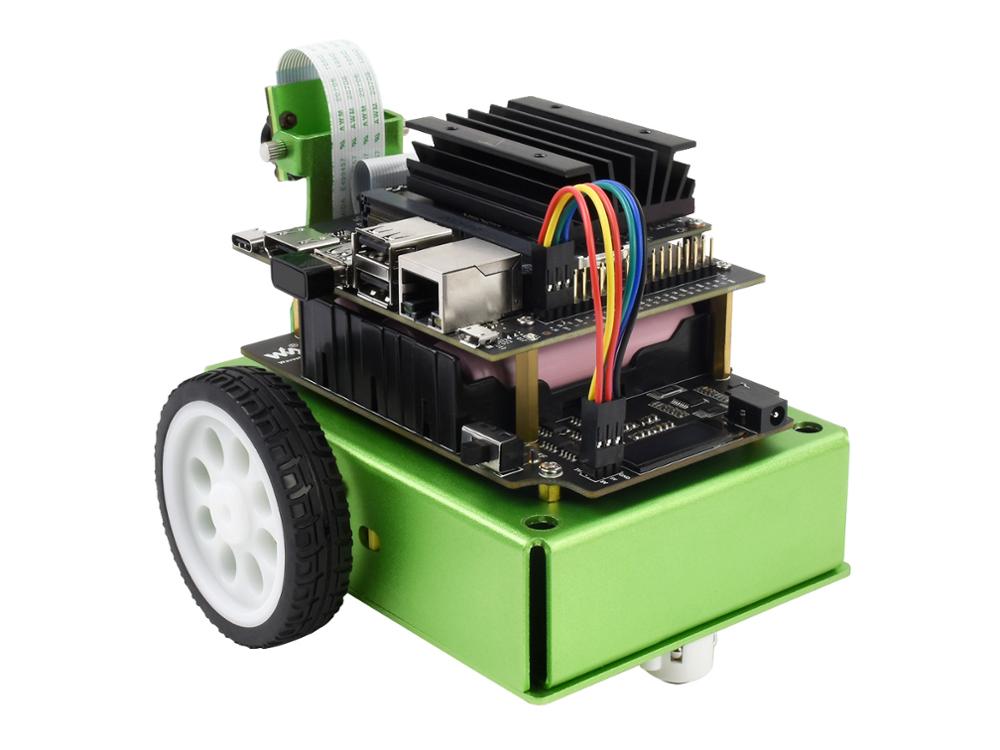

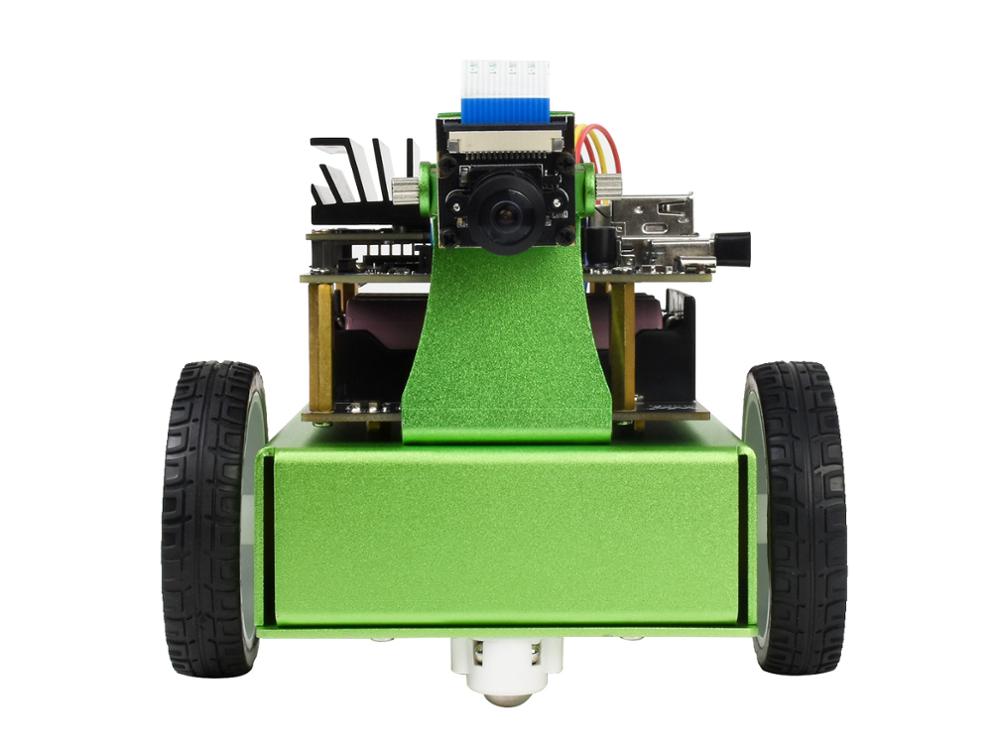

JetBot 2GB AI Kit, AI Robot Based On Jetson Nano 2GB Developer Kit (Optional)

JETBOT 2GB AI KIT

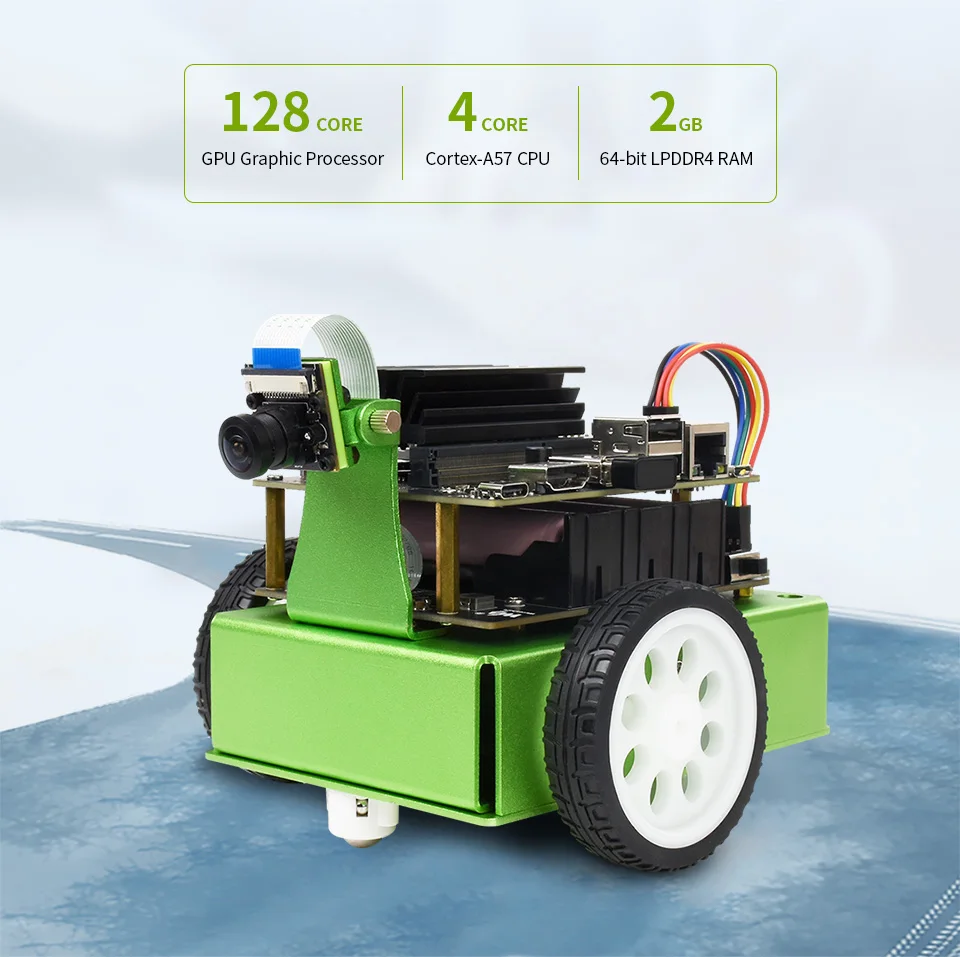

AI-Based Smart Robot Powered NVIDIA Jetson Nano 2GB Developer Kit

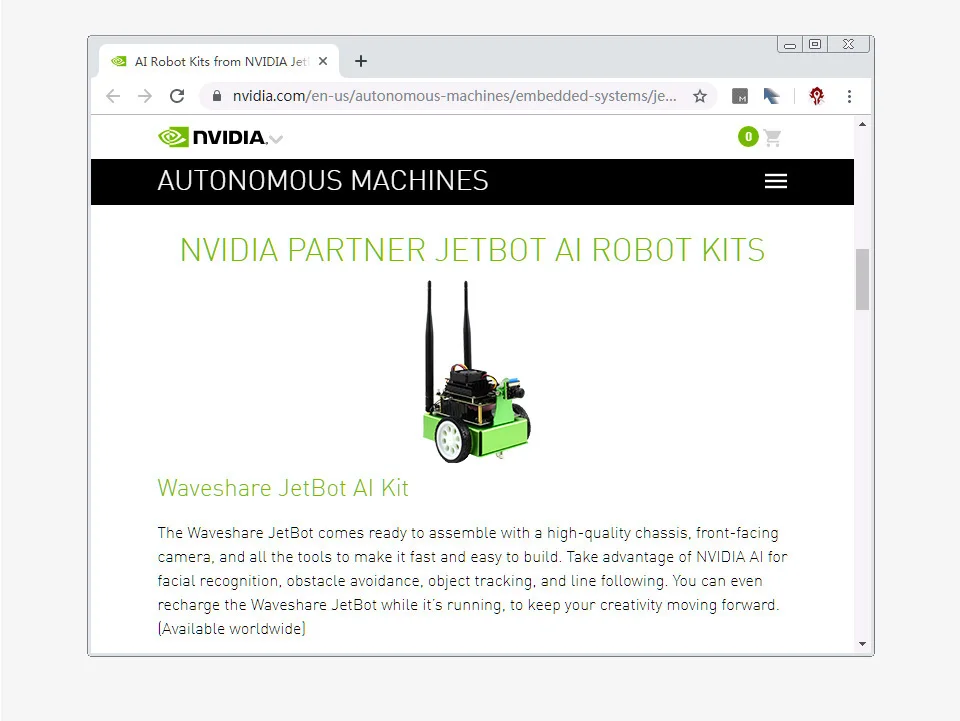

NVIDIA Official Recommendation

Since Waveshare JetBot AI Kit released, it is welcomed by lots of global users due to its high quality structure design and extreme cost effective, and has successfully become one of the most recommended AI robot kits by NVIDIA. As anticipated, the JetBot 2GB version is also available now.


Note: the  Jetson Nano 2GB Developer Kit is optional.
AI-Based "Actual Smart"

Smart Robot Is Always The Favorite Project Of Electronic Enthusiasts,
However, A Robot Will Be "Not That Smart" If It Is Not AI-Based.

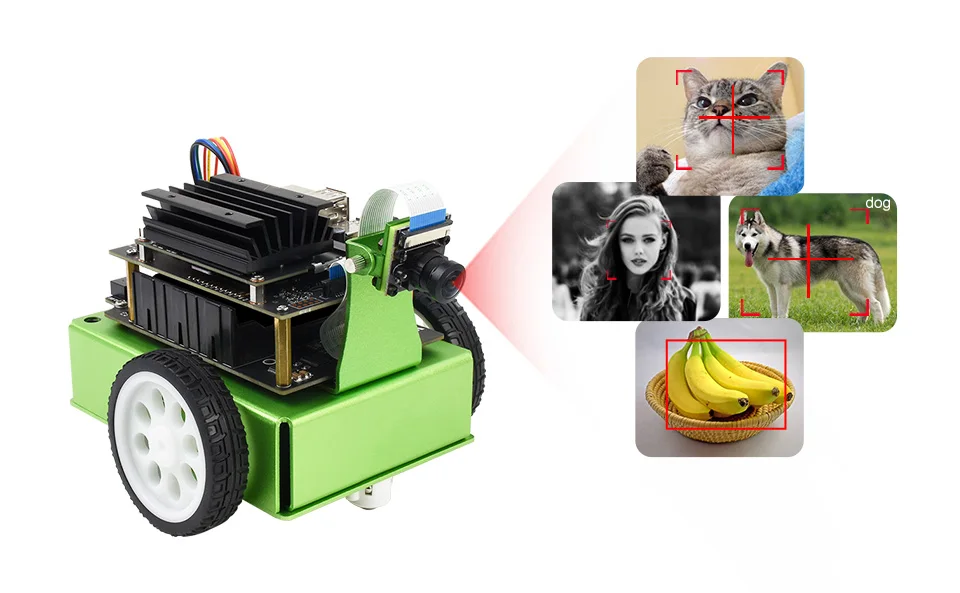

This is an actual smart robot powered by NVIDIA JetBot AI project and the Jetson Nano 2GB Developer Kit, easily achieving AI functions like: facial recognition, object tracking, and self driving. Comes with ROS nodes code as well, which makes it easy to get started with ROS.

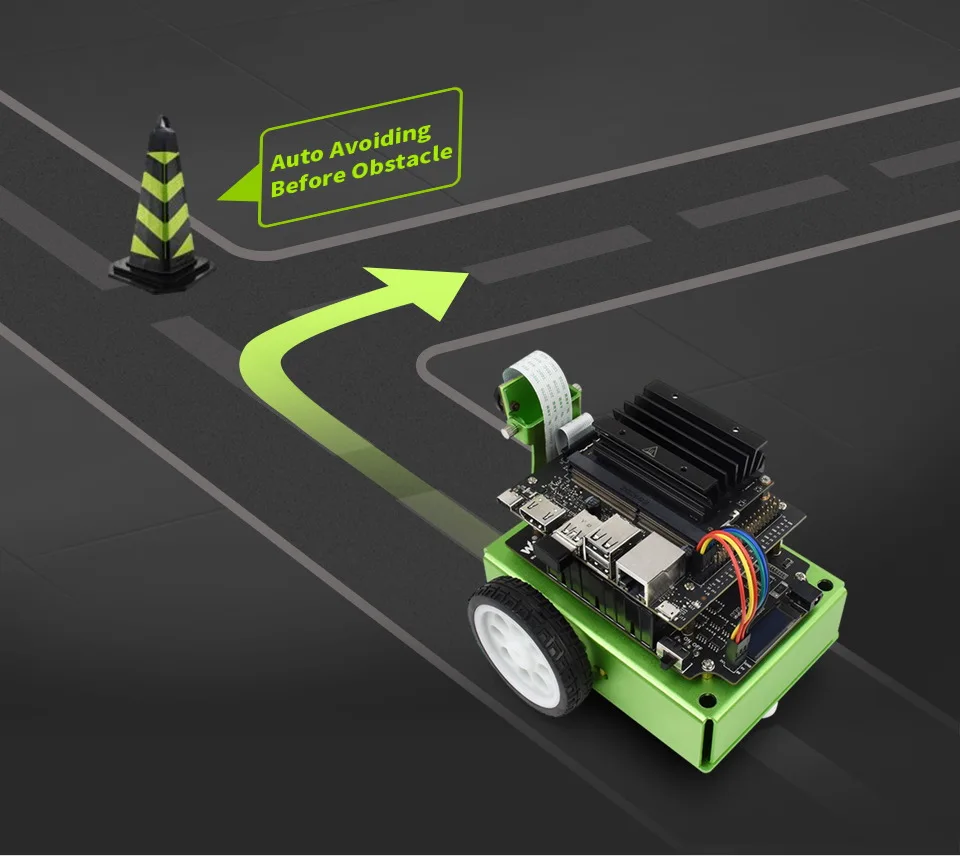

Auto Road Following & Collision Avoidance

Collecting Data Via Camera By Taking Enough Images Of Different Conditions, Using The Data To Train The Neutral Network, Combined With AI Algorithm, Finally Achieving Auto Collision Avoidance On Sorts Of Environments.

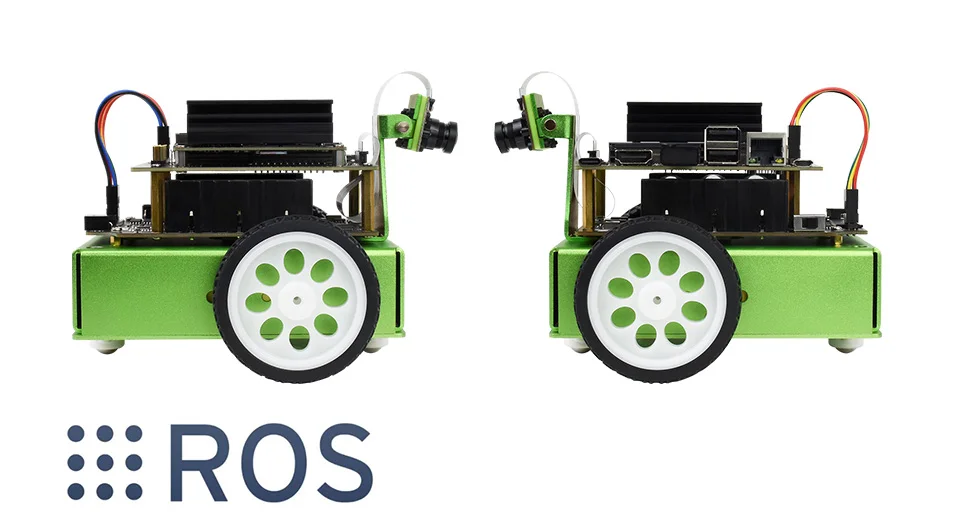

Robot Operating System (ROS) Support

Comes With ROS Nodes Code, Make It Easy To Get Started With ROS, And To Learn The ROS System Framework And Concept

The Robot Operating System (ROS) is a flexible framework for writing robot software. It is a collection of tools, libraries, and conventions that aim to simplify the task of creating complex and robust robot behavior across a wide variety of robotic platforms. The ROS is one of the most popular robot software framework in the world.

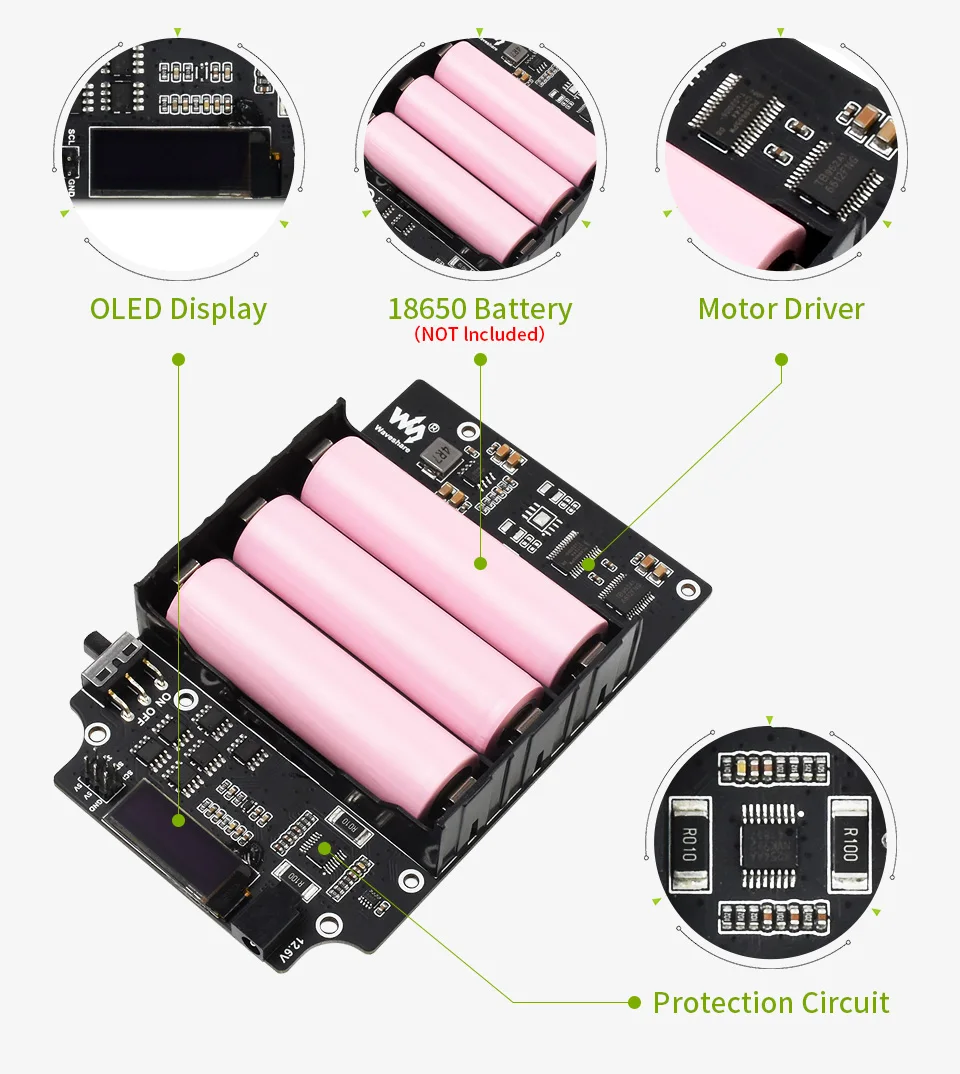

JetBot Expansion Board  Highly Integrated

No Messy Wiring, Simple Assembly

8MP 160° FOV Camera

Sony IMX219 Sensor, 3280×2464 Resolution
Facial Recognition, Object Classify, Real Time Monitoring

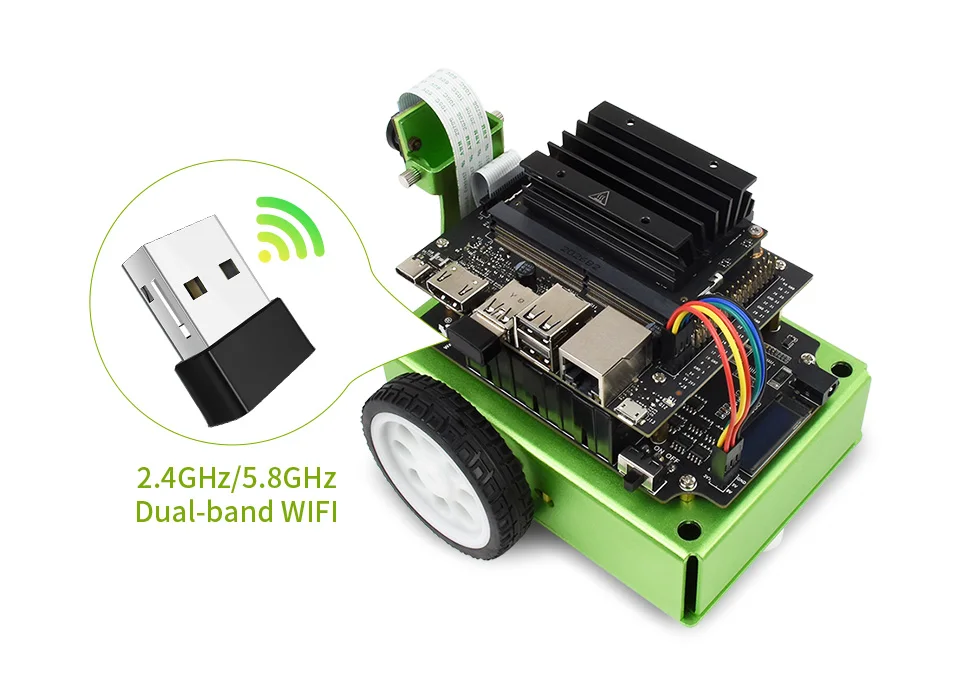

USB WiFi Connectivity

High Speed WiFi, Stable Connection, Low Latency

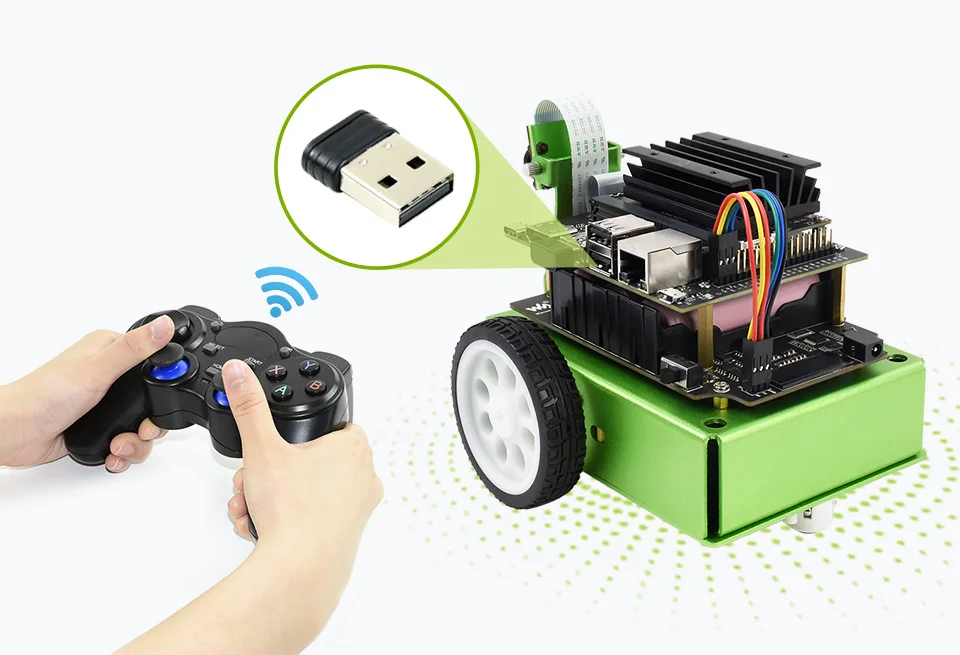

Gamepad Teleoperation

Plug And Play, Easy To Use

Resources & Services
Wiki: JetBot_2GB_AI_Kit
Jetson AI Robot Selection Guide


JetBot 2GB


JetBot


JetRacer


JetRacer Pro

CONTROLLER

Jetson Nano 2GB

Jetson Nano

OS

Ubuntu 18.04 LTS

LANGUAGE

Python

CAMERA

8MP HD resolution, 160° FOV wide angle camera

OLED

0.91" 128×32 pixels

WIRELESS

2.4GHz / 5.8GHz dual-band WiFi

2.4GHz / 5GHz dual-band WiFi, Bluetooth 4.2

TELEOPERATION

Gamepad, webpage

COMMUNICATION

WiFi

PROTECTION

over charge/discharge protection, over current protection, short circuit protection, reverse proof

DRIVING TYPE

Differential 2WD

Ackerman steering
Dual gearmotor rear wheel drive

Ackerman steering
High speed motors 4WD
Front and rear axle differentials

SHOCK ABSORBER

N/A

Adjustable oil-filled shocks
4WD independent suspension

POWER SUPPLY

12.6V, 18650 battery × 3
(connected in series)

8.4V, 18650 battery × 4
(two in parallel, two in series)

Note: the 18650 batteries are NOT included.

MOTOR

TT motor
Reduction rate 1:48
Idle speed 240RPM

37-520 DC gearmotor
Reduction rate 1:10
Idle speed 740RPM

RC380 high speed carbon brushed motor
Idle speed 15000RPM

SERVO

N/A

MG996R, 9kg/cm torque

E6001, 6kg/cm torque

CHASSIS

Aluminum alloy chassis

Quality rugged plastic chassis

CRASHPROOF

N/A

Front sponge

PROGRAM LIBRARY

JetBot, ROS

JetRacer, DonkeyCar

SUGGESTION

Entry level
Basic programming skill required

Competition level
Experienced programming skill required

High speed competition level
Experienced programming skill required

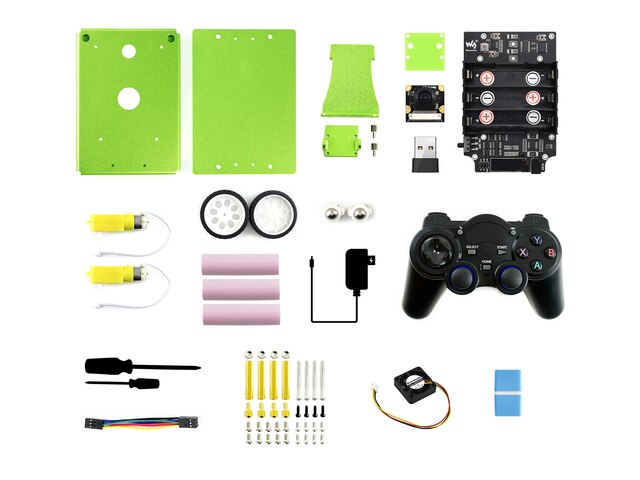

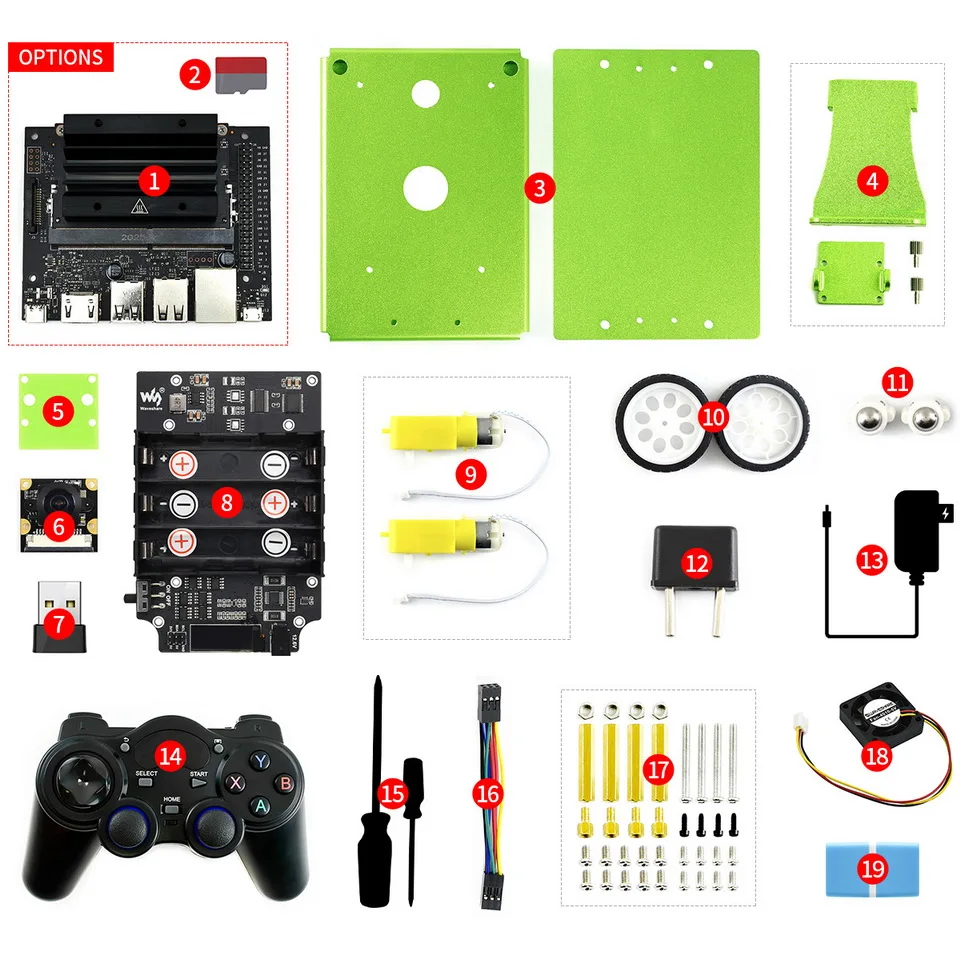

PACKAGE CONTENT

Weight: 0.912 kg

  • The 18650 batteries are NOT included


  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

  1. OPTIONS Jetson Nano 2GB Developer Kit

  2. OPTIONS Micro SD Card 64GB

  3. Metal box

  4. Camera holder

  5. Acrylic camera spacer

  6. IMX219-160 Camera

  7. USB WiFi

  8. JetBot expansion board

  9. Motor x2

  10. Wheel x2

  11. Caster x2

  12. Power adapter EU head

  13. 12.6V battery charger

  14. Wireless gamepad

  15. Screwdriver x2

  16. 6pin 9cm cable

  17. Screws pack

  18. 4010 cooling fan

  19. Micro SD card reader

 Welcome Customize Order!
