Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Below item is .
Product Name: high-efficiency 8W 2-5V to 5V DC DC Boost Converter for Arduiuo UNO MEGA2560 DUE AVR STM32 Breadboard MCU Development board
Packing list:

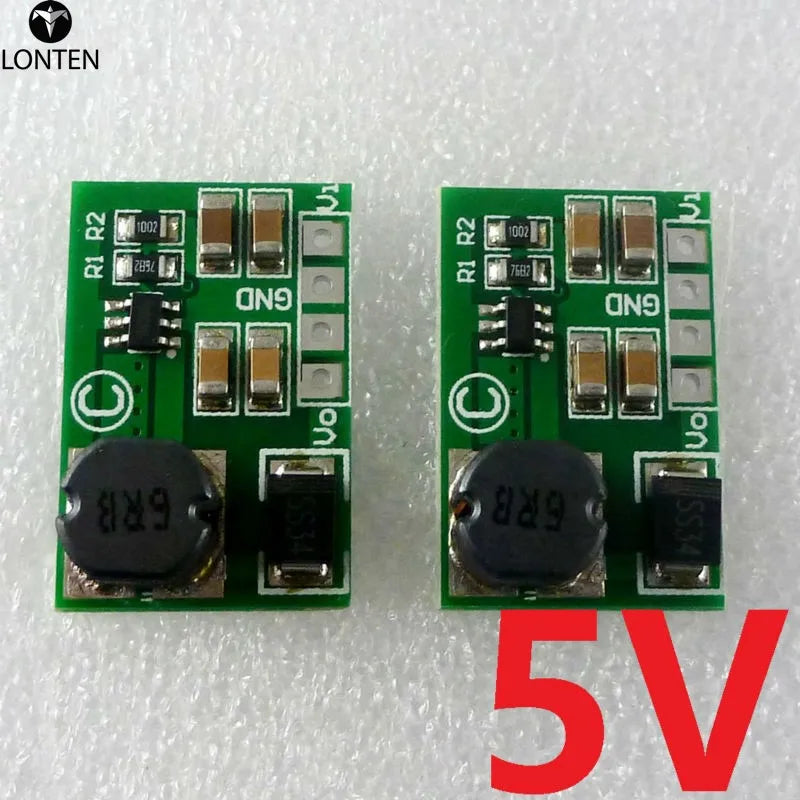

2 PCS 8W 2424SA_5V 2V-5V TO 5V DC DC Boost Converter Module
Description:

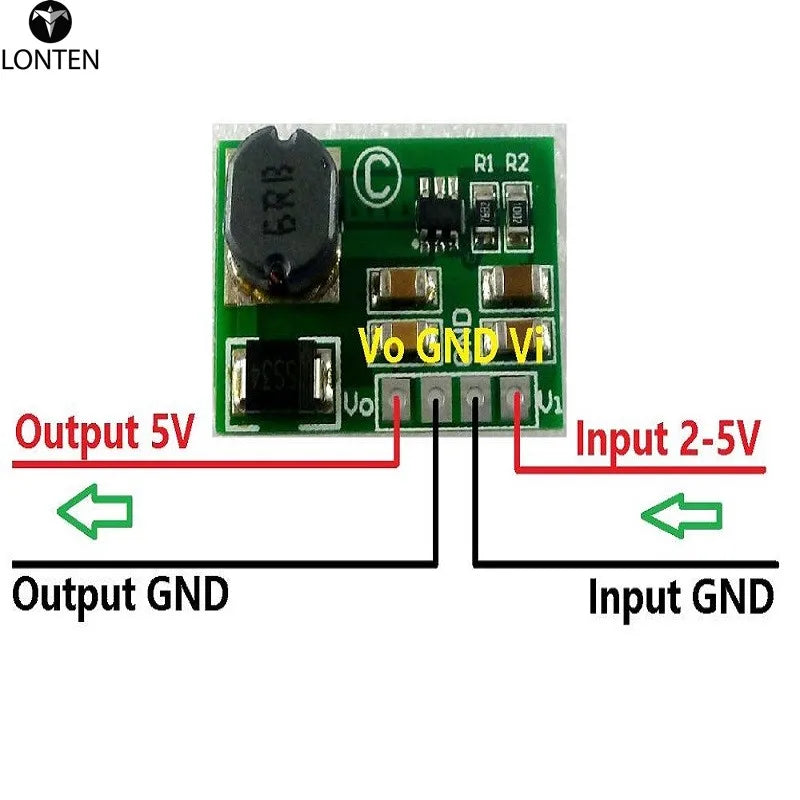

Input voltage DC 2 ~ 5V,output DC 5V±4% (No-load voltage is 5-5.4V)
Internal 4A Switch Current Limit.
DC DC Boost Converter Module working frequency 1.2MHZ.
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.

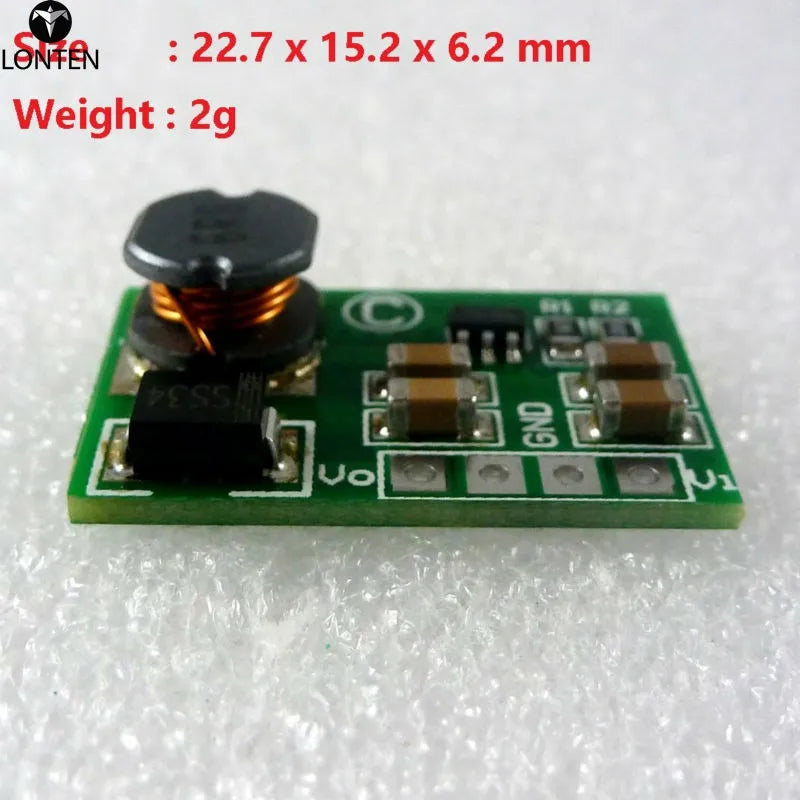

Size : 22mm x 15.2mm x 6.2mm
Weight : 2g
Applications
Battery equipment
Breadboard Power Supply
Breadboard Power Supply
ARM STM32 Arduiuo UNO MEGA2560 FPGA CPLD Board
Small power motors
Camera, Video camera
Toy car
Camera, Video camera
Toy car
power bank
Phone PDA
LED Lighting
Wireless communication equipment
Phone PDA
LED Lighting
Wireless communication equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
