Lonten Tech
Custom 2424SA_12V 12W DC-DC Converter Boost 2V-12V to 12V Power Supply UPS Module for LED Monitor CCTV PTZ Manufacturer
Custom 2424SA_12V 12W DC-DC Converter Boost 2V-12V to 12V Power Supply UPS Module for LED Monitor CCTV PTZ Manufacturer
Regular price
$1.98 USD
Regular price
$1.98 USD
Sale price
$1.98 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Below item is .

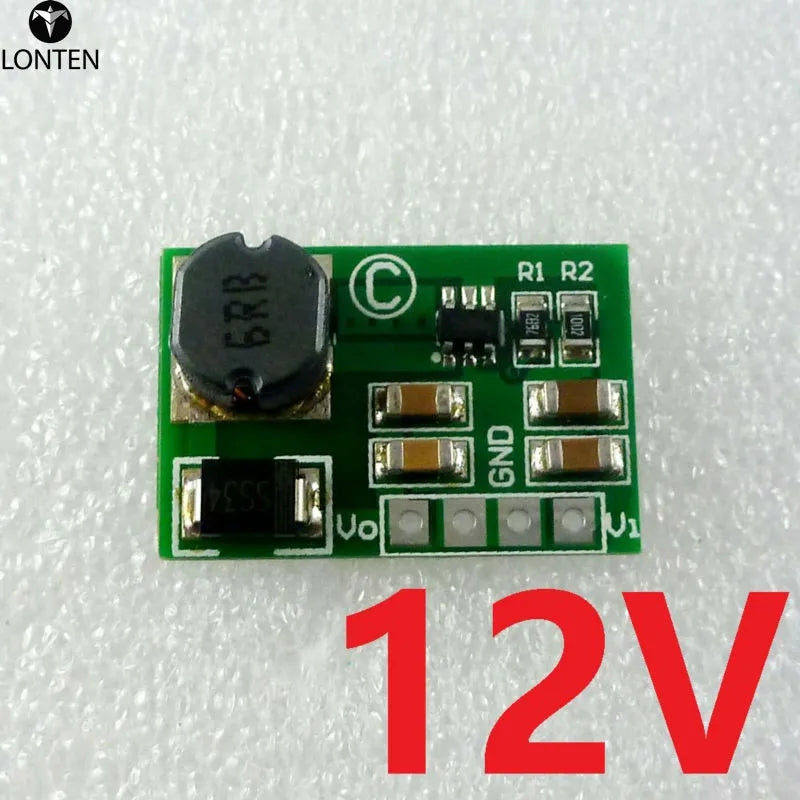

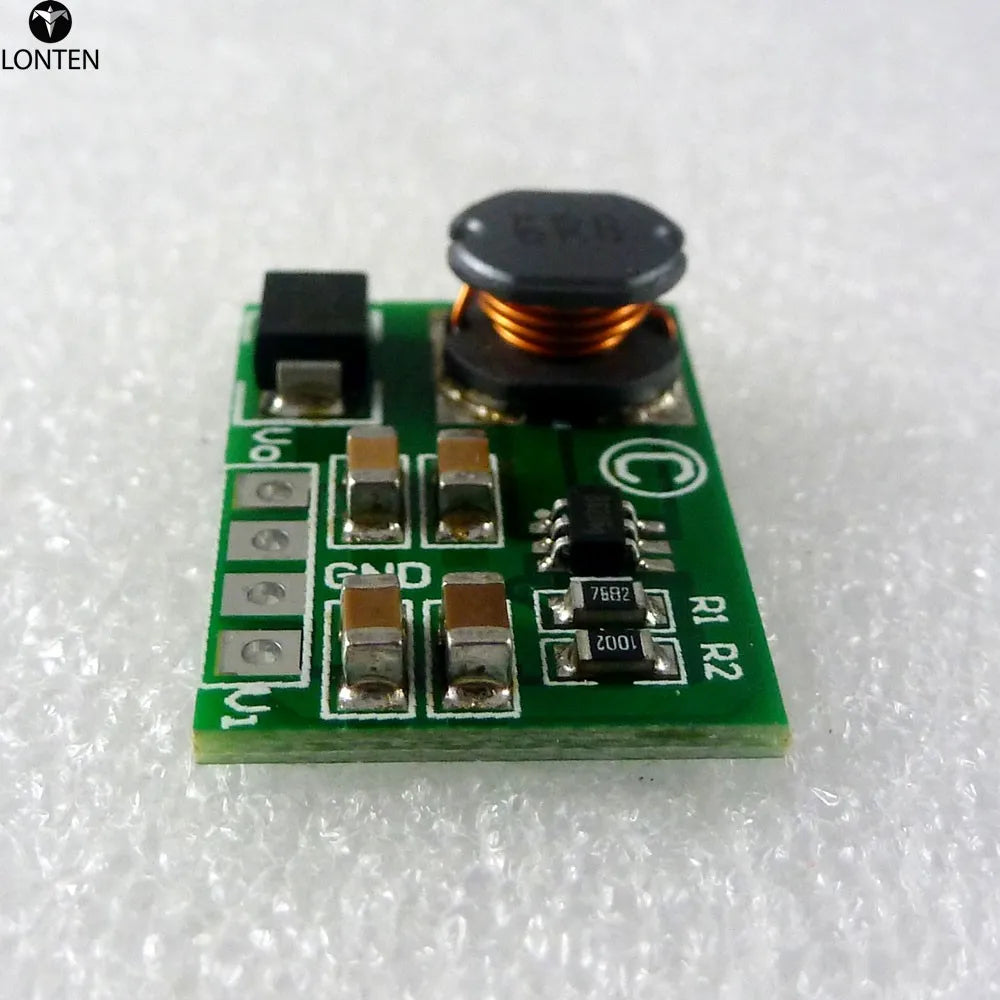

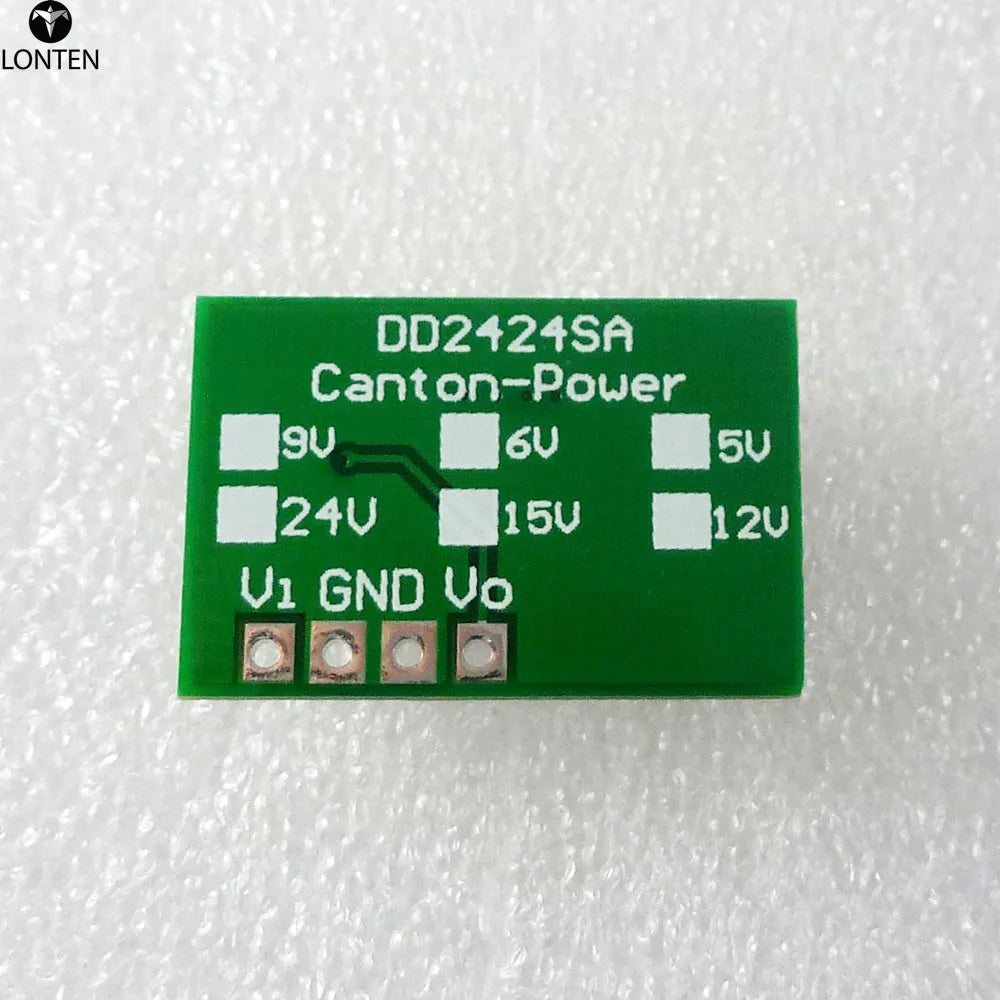

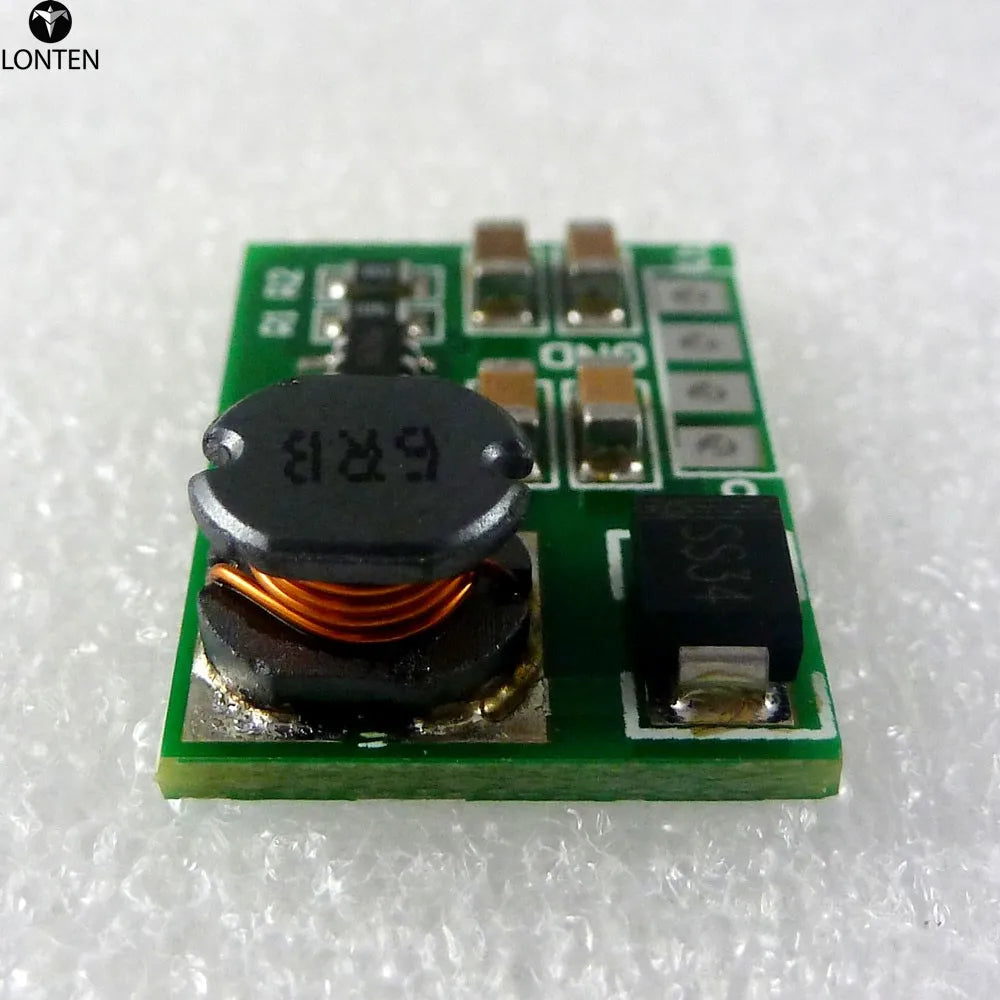

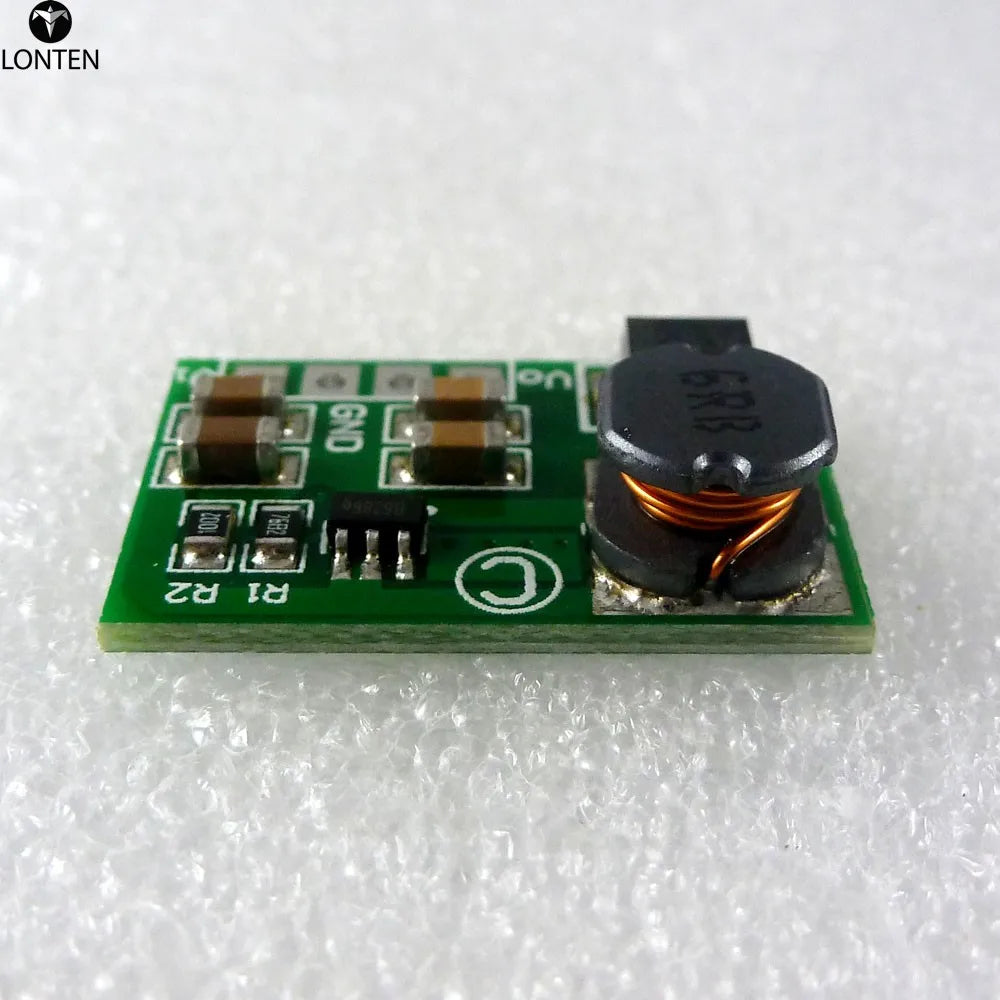

Product Name: 12W DC-DC Converter Boost 2V-12V to 12V Power Supply UPS Module for LED Monitor CCTV PTZ
Packing list:
1 PCS 12W 2424SA_12V 2V-12V TO 12V DC DC Step-up Converter Module
Description:

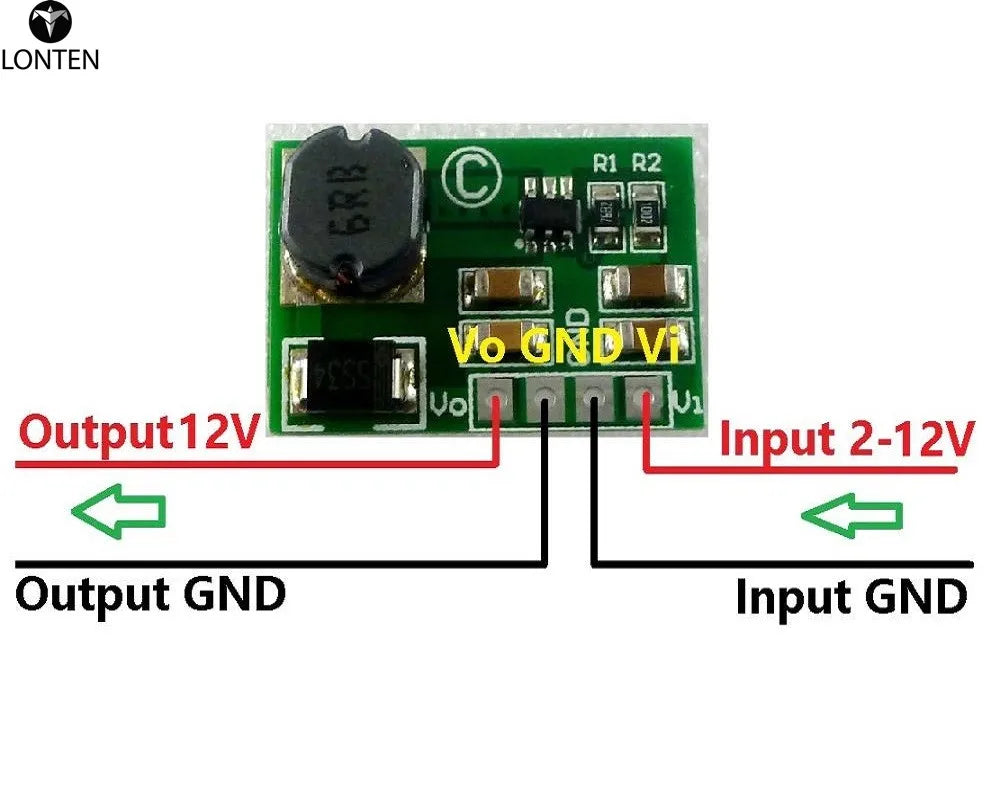

Input voltage DC 2 ~ 12V,output DC 12V±4% (No-load voltage is 12-12.5V)
Internal 4A Switch Current Limit.
DC DC Boost Converter Module working frequency 1.2MHZ.
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size : 22mm x 15.2mm x 6.2mm
Weight : 2g
Applications
Battery equipment
Small power motors
IP Camera, Video camera,PTZ
IP Camera, Video camera,PTZ
RS485 Modbus PLC
Toy car boat
Model aircraft
power bank
LED Lighting
Wireless communication equipment
LED Lighting
Wireless communication equipment
Multimeter Instrumentation
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
