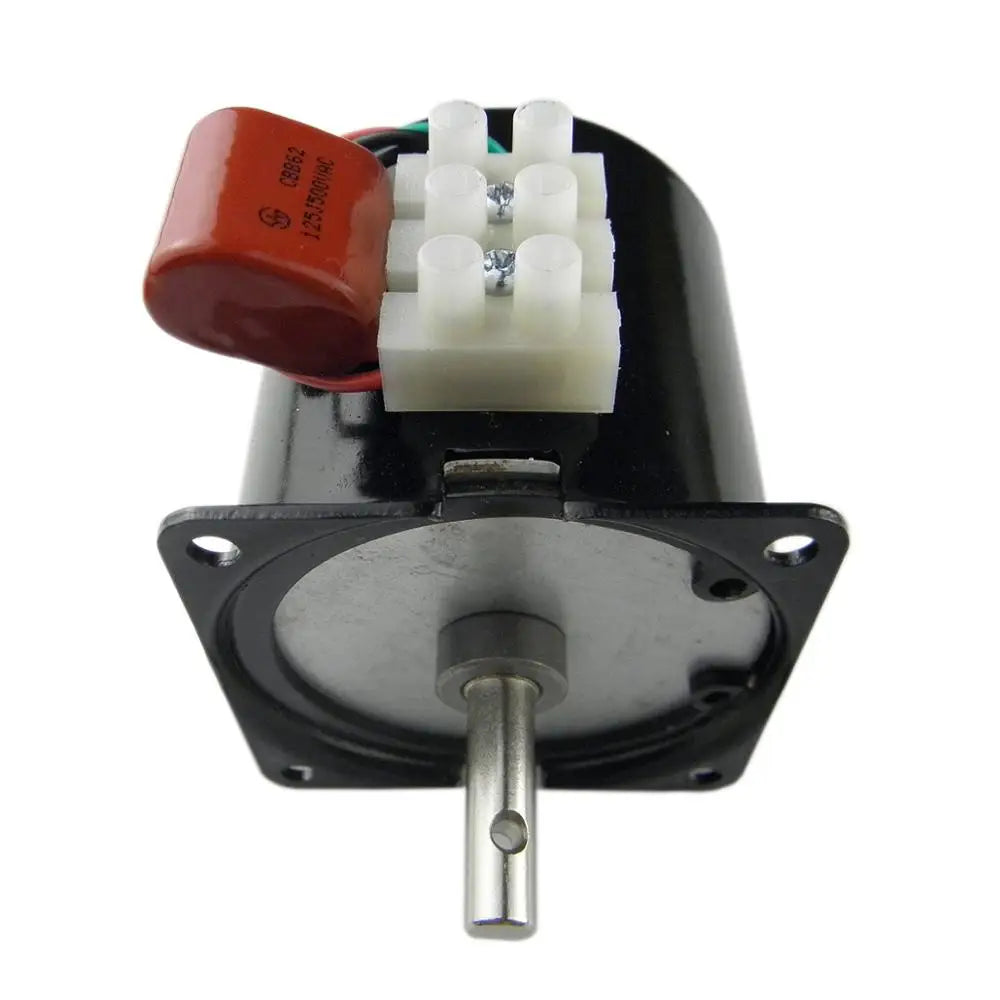

Custom 220V AC Synchronous Motor 68KTYZ Synchronous Gear Motor 80RPM Mini Permanent Synchronous Motor Manufacturer

Application:

This motor is mainly used for: stage lighting, electric curtains, monitoring PTZ, air conditioners, Christmas trees, advertising light boxes, dynamic painting, water control, a plastic machine, Dianjiao Ji, a press, the screen machine, Electronic equipment and so on.

Specifications:

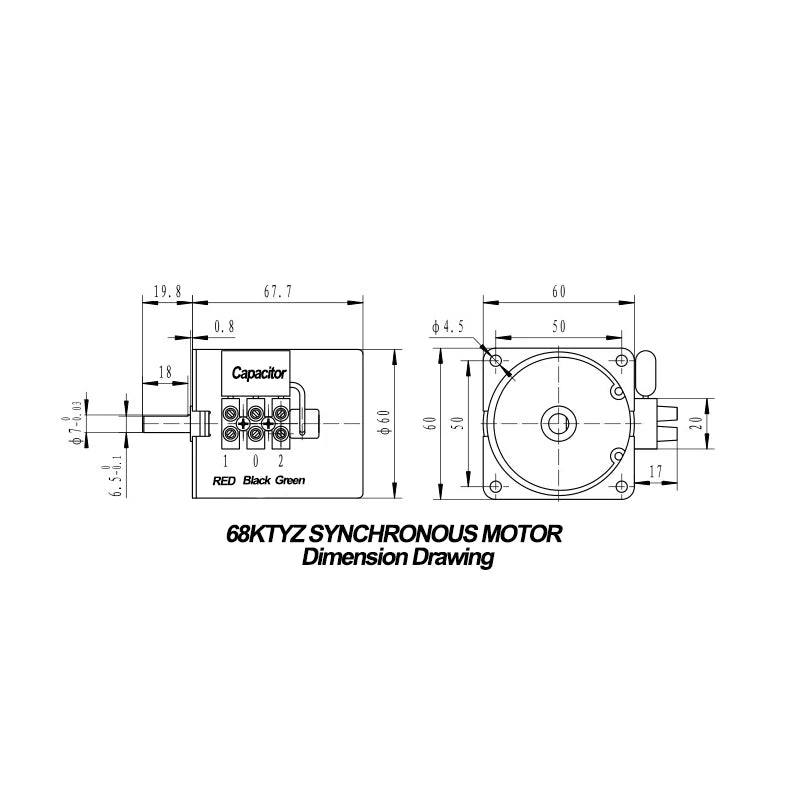

Voltage: AC220V Frenquency: 50Hz~60Hz Current: 0.5A Power: 14W Speed: 80RPM Motor Dimension: 60mm*68mm Shaft Type: D-Type (Edge Milling: 0.5MM) Output Shaft Diameter: 7MM Output Shaft Length: 19mm

Features:

1.Low speed, large torque, positive and negative control, can be recycled for 24 hours. Synchronization, no inertia. Pure copper wire, metal gear. Large torque. 2.Out shaft( D word out of the shaft, easy to install is not easy to slip). 3.Connection (center shaft, bolt holes at the four corners for fixing with the motor bracket).
