Features

1 Support WIFI network. (Attention: The switch module must keep connect with wifi service.)

2 Support three working modes: self-lock, inter-lock and momentary control.

3 Support Max 8 timing tasks for each added device.

4 Support status tracking, home appliances status timely feedback to your App.

Product Specification:

1 Input voltage: AC 60-270V

2 Output voltage: AC 60-270V

3 Maximum load: 10A

4 Working temperature: 0-60 centigrade

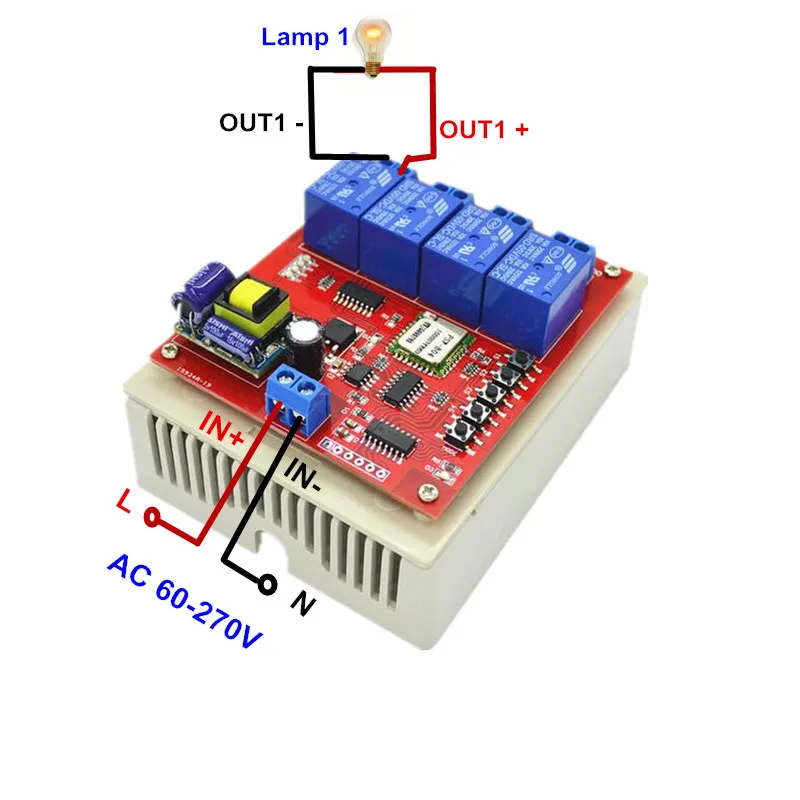

5 IN+ connect with Live wire; IN- connect with Null wire;

6 Control method: WIFI + Manual Button Control

7 Channels: 4 Way

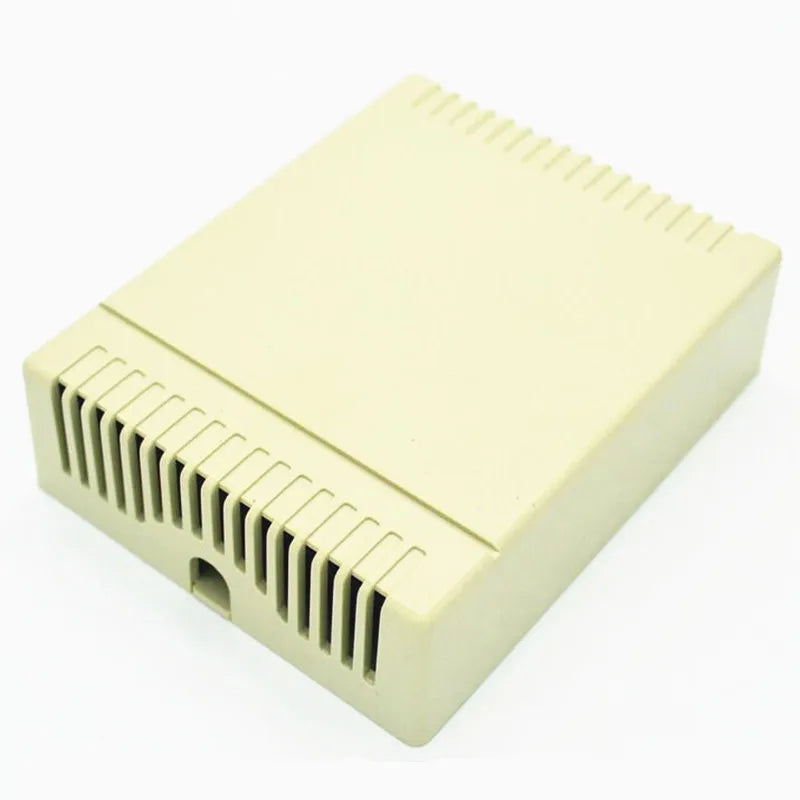

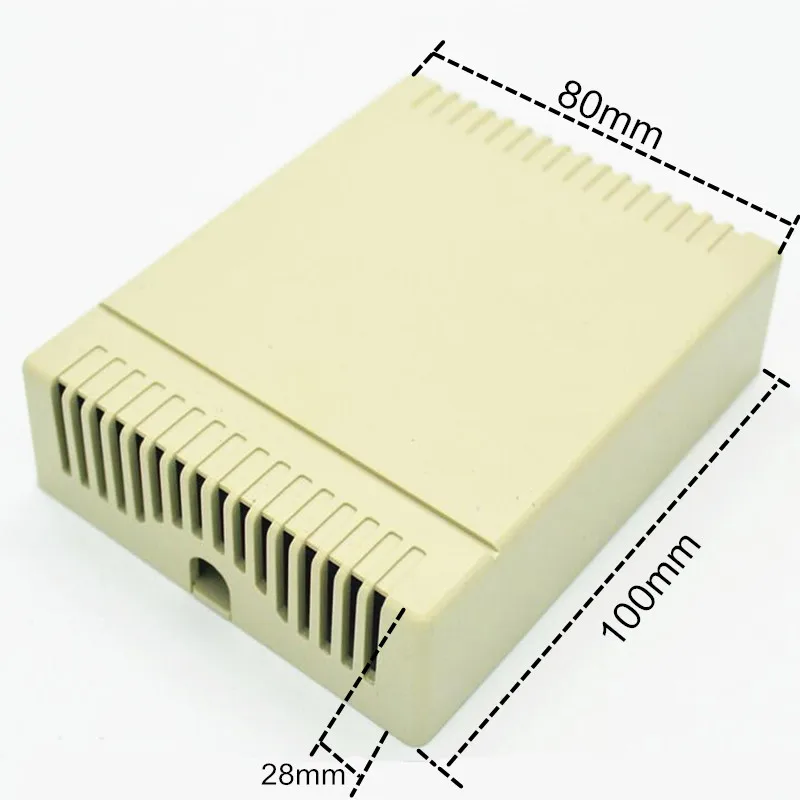

8 Switch size: 100*80*28mm

9 Active output, when you supply 220V power, the output will be 220V also.

10 Support system: Android/IOS

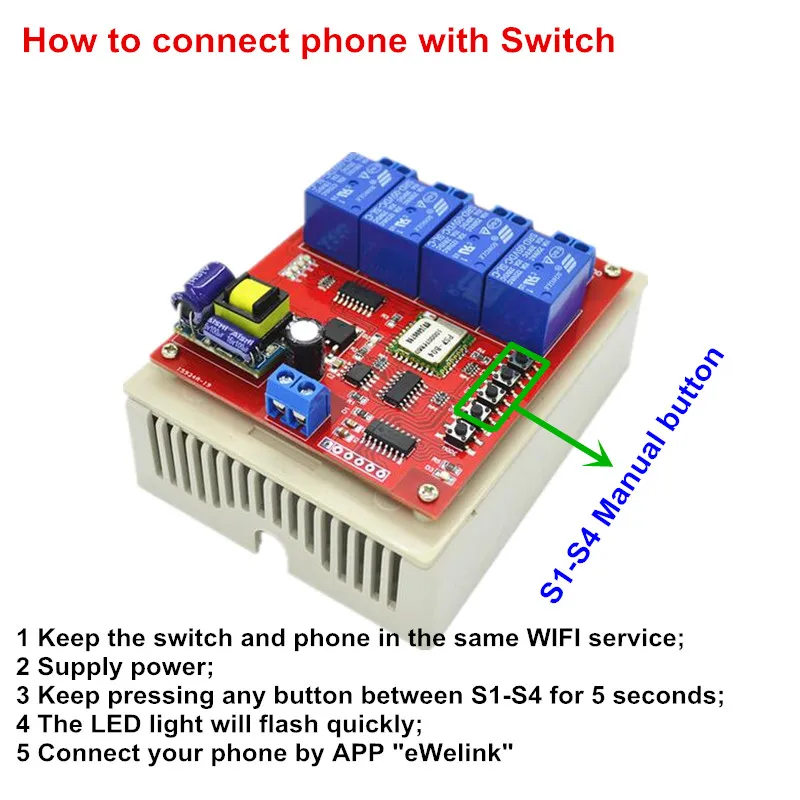

How to connect phone with switch?

1 Download and install the software of eWeLink from APP store or Google play store.

2 Follow eWeLink instructions to register an account on it.

3 Log in your account of eWeLink.

4 Press any manual control button (S1,S2,S3,S4) for 5 seconds until you see the D3 light flash quickly, then release it. Now add device on mobile phone by eWeLink APP according its introduction.

5 Now you can use your phone to control the switch under 2G/3G/4G signal.

6 You can name your own device and control it only by yourself.

7 You can also share your device with your family or friends.

How to set working mode?

Supply AC 60-270V power to the relay.

1: Press mode button until you see D2 flash 3 times, release button, now it is self-lock.

2: Press mode button until you see D2 flash 2 times, release button, now it is inter-lock.

3: Press mode button until you see D2 flash 1 time, release button, now it is momentary.

What is the difference between working mode?

1 Self-lock: Press remote button A , receiver CH1 ON. press button A again, then receiver CH1 OFF

2 Inter-lock: Press remote button A , receiver CH1 ON, and receiver CH2,CH3,CH4 OFF.

3 Momentary: Press remote button A, receiver CH1 ON. After 1 seconds, receiver CH1 OFF

1 Where can I use this switch?

First, I have a wireless router and WIFI service in my house;

Second, I install this switch in the range of wireless router WIFI signal.

Third, I connect my phone with the switch under wireless router WIFI service.

Then you can go anywhere to control it now.

2 Where can I download the APP?

APP store and Google Play store---- eWeLink

3 Can I install this switch in my car?

Yes, but I have to install a wireless router and have WIFI service in the car, then it is Ok.

4 How many people can control my WIFI switch?

I can share this switch to as many people as I can.
