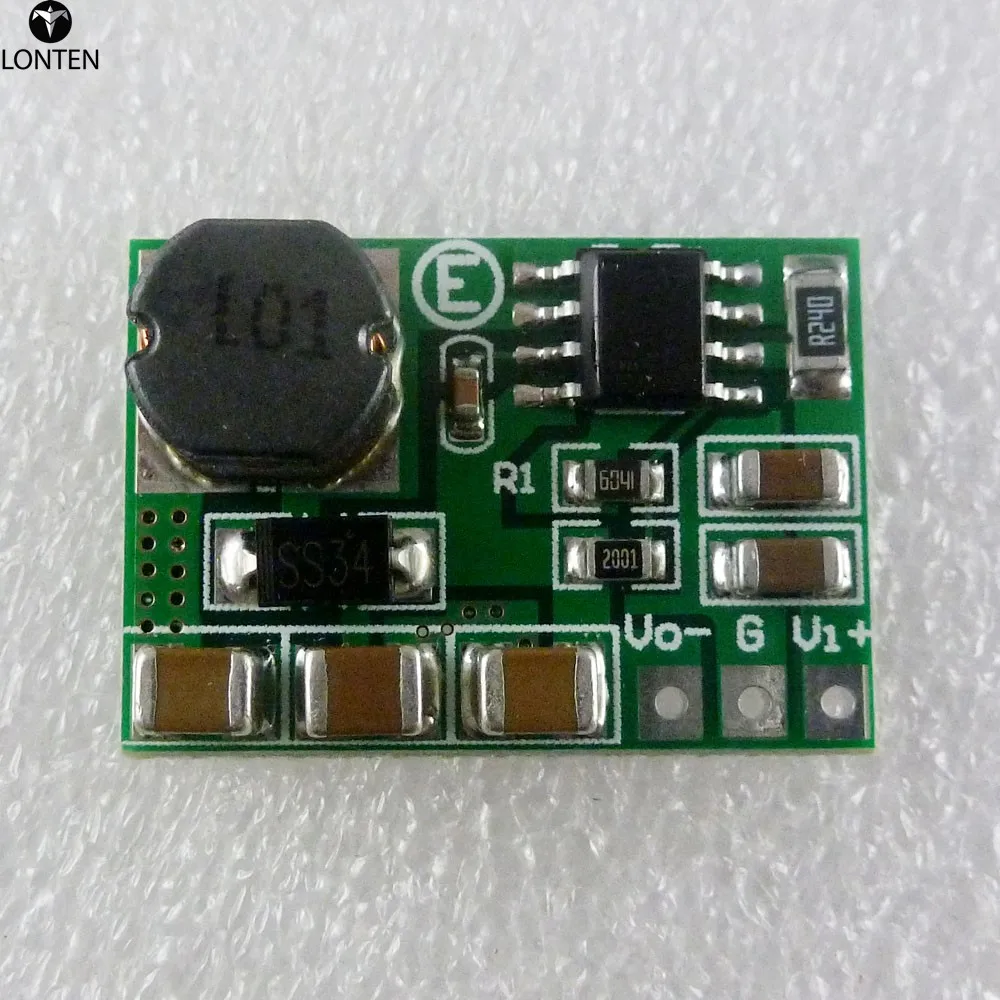

Product Name: 200-500mA +/- Voltage Converter Positive to Negative power supply DC-DC Boost-Buck Module +3~+15V to -3.3v -5V -6V -9V -12V-15V
Packing list:
1 PCS 3V-15V TO -3.3V/-5V/-6V/-9V/-12V/-15V Boost-Buck Positive to Negative voltage Module
Description:

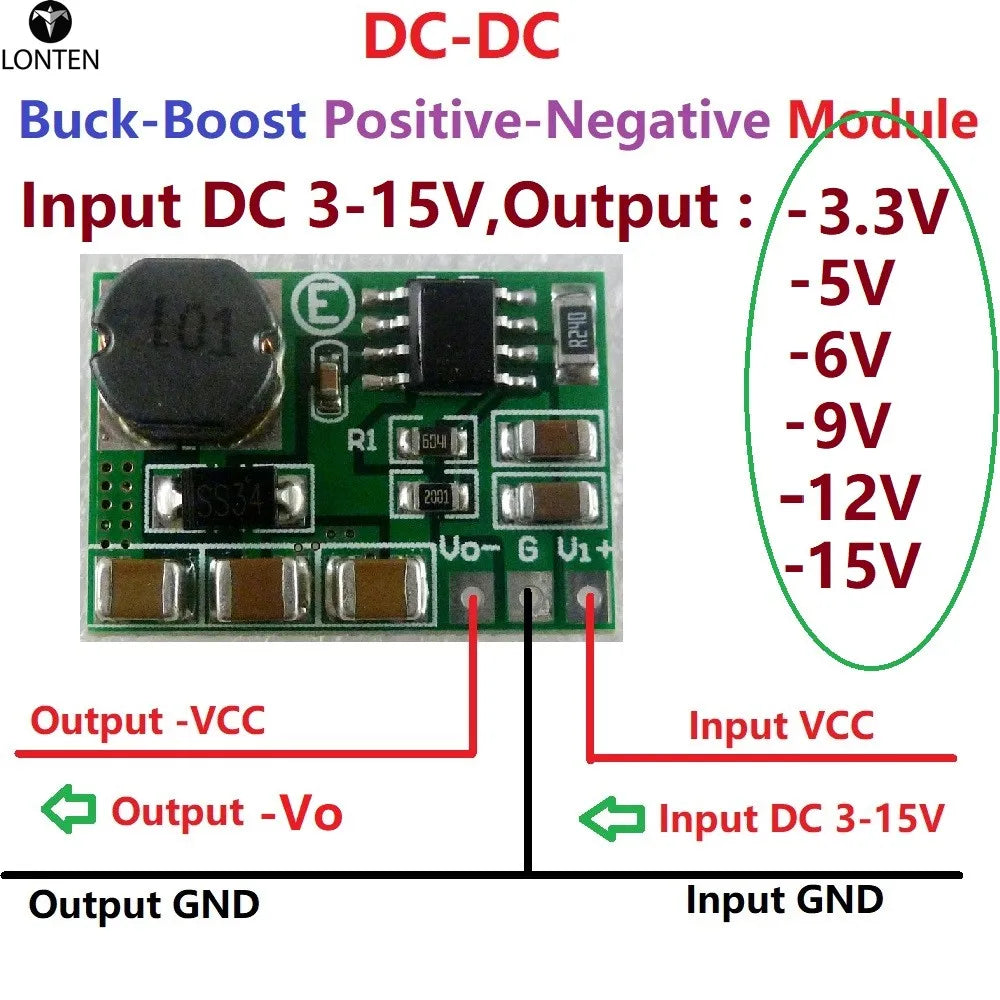

DC-DC Boost-Buck Inverting switch regulators Module

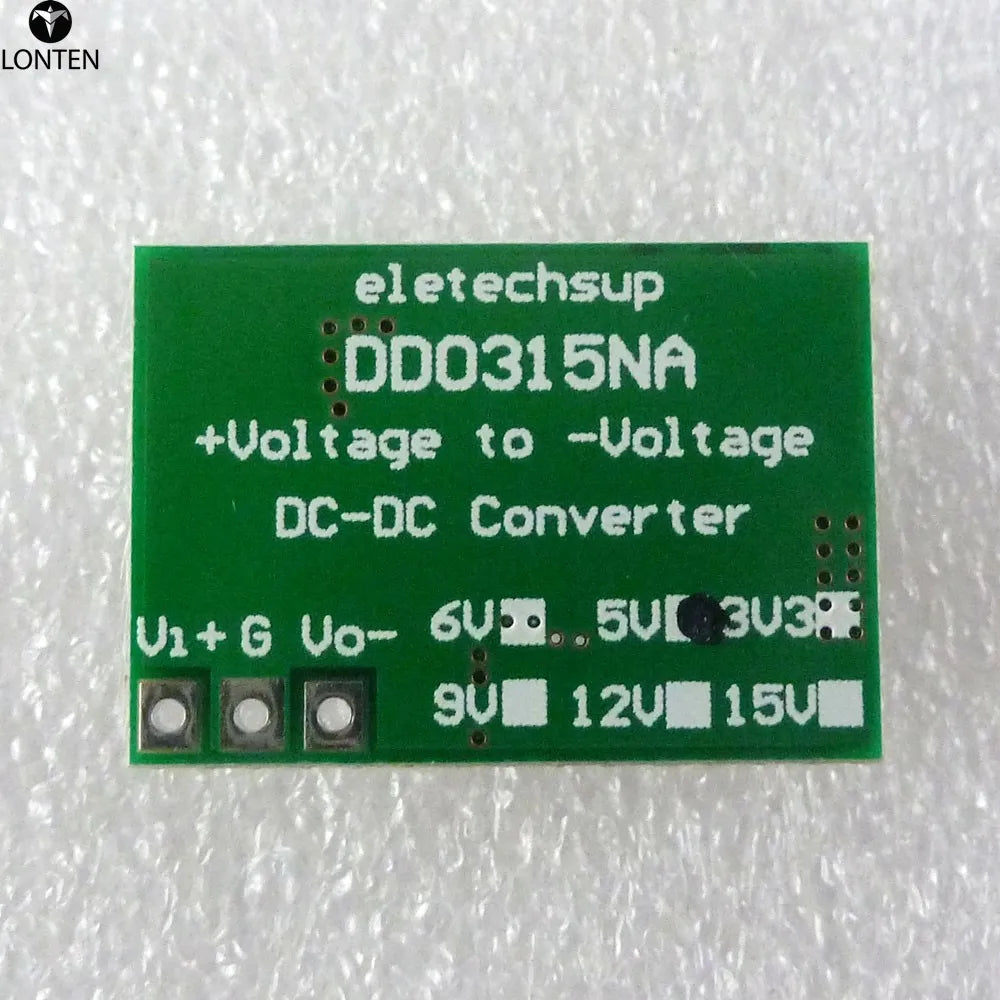

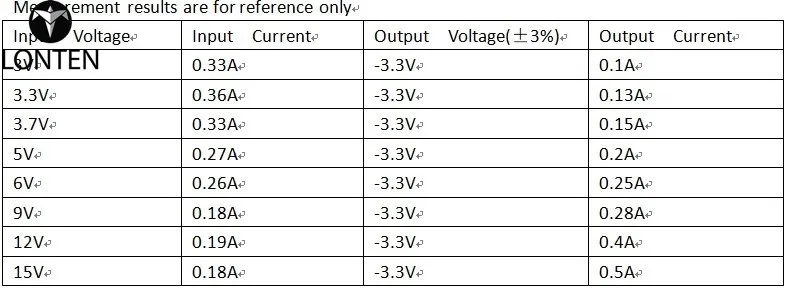

-3.3V :
Input voltage DC +3~+15V,output DC -3.3V(Deviation is ±3%)
Maximum input current 600mA
Maximum output current : 500mA
Quiescent current: 4-10mA

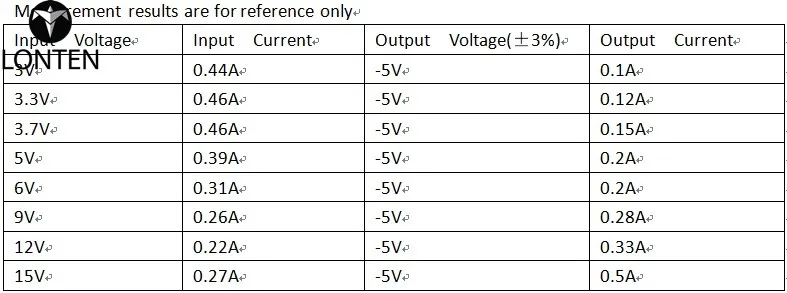

Input voltage DC +3~+15V,output DC -5V(Deviation is ±3%)
Maximum input current 500mA
Maximum output current : 500mA
Quiescent current: 4-10mA

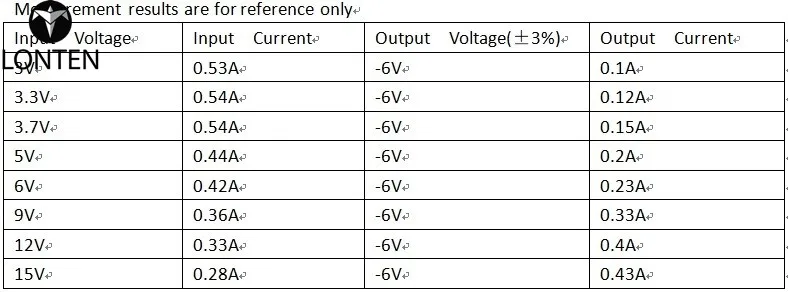

- 6V :
Input voltage DC +3~+15V,output DC -6V(Deviation is ±3%)
Maximum input current 600mA
Maximum output current : 430mA
Quiescent current: 5-11mA

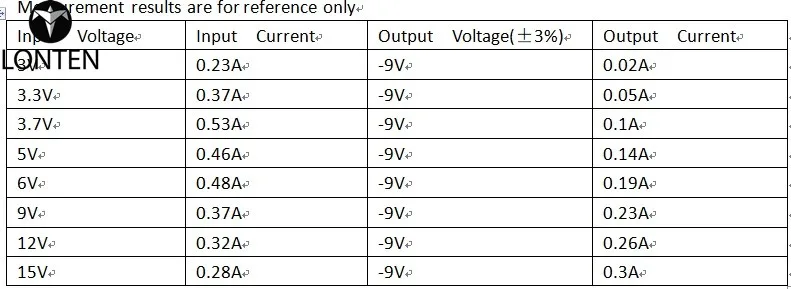

-9V :
Input voltage DC +3~+15V,output DC -9V(Deviation is ±3%)
Maximum input current 500mA
Maximum output current : 300mA
Quiescent current: 6-14mA

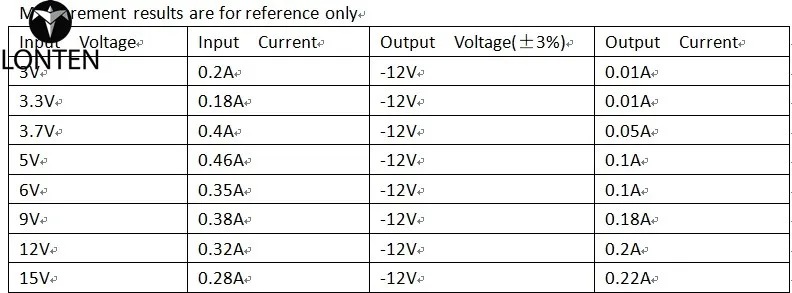

-12V :
Input voltage DC +3~+15V,output DC -12V(Deviation is ±3%)
Maximum input current 500mA
Maximum output current : 220mA
Quiescent current: 8-18mA

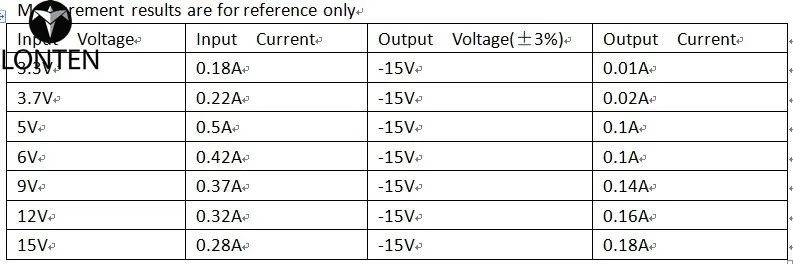

-15V :
Input voltage DC +3~+15V,output DC -15V(Deviation is ±3%)
Maximum input current 500mA
Maximum output current : 180mA
Quiescent current: 10-20mA
DC DC Boost Converter Module working frequency 100kHz.
Operating temperature range : 0~+70 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius

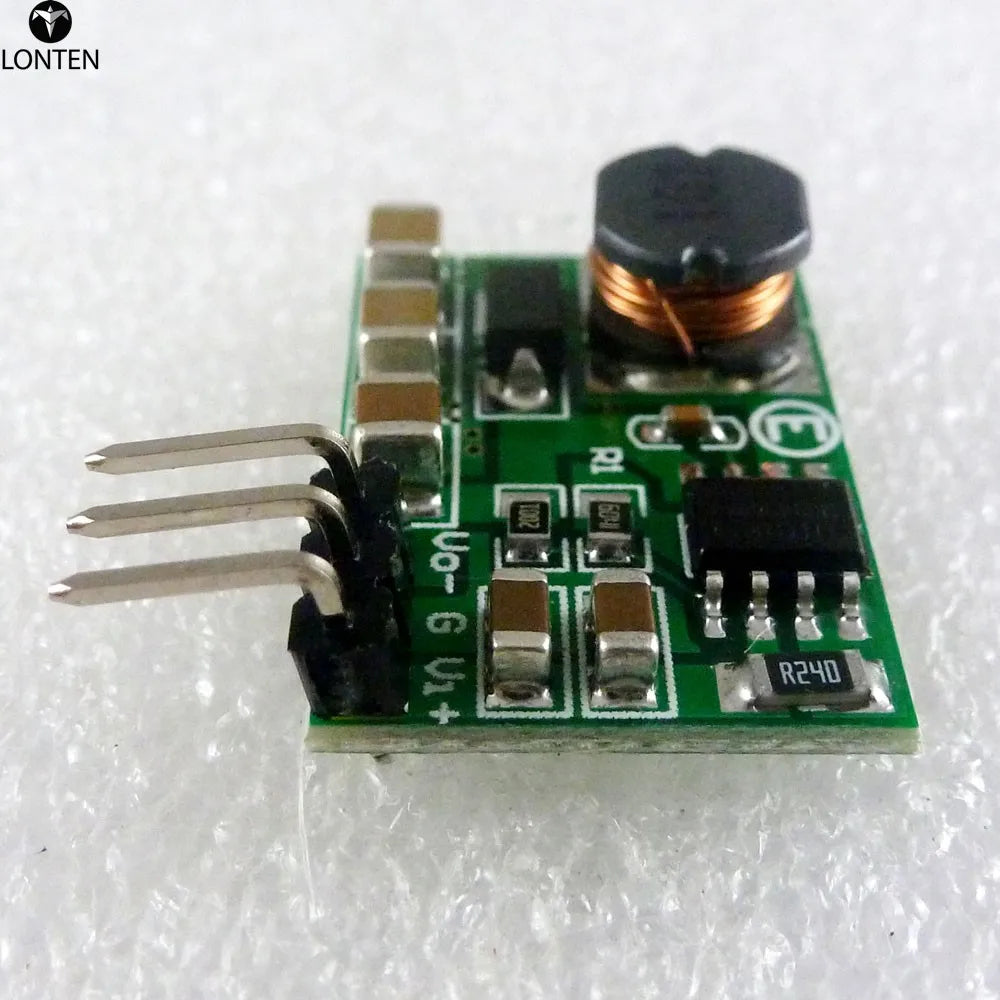

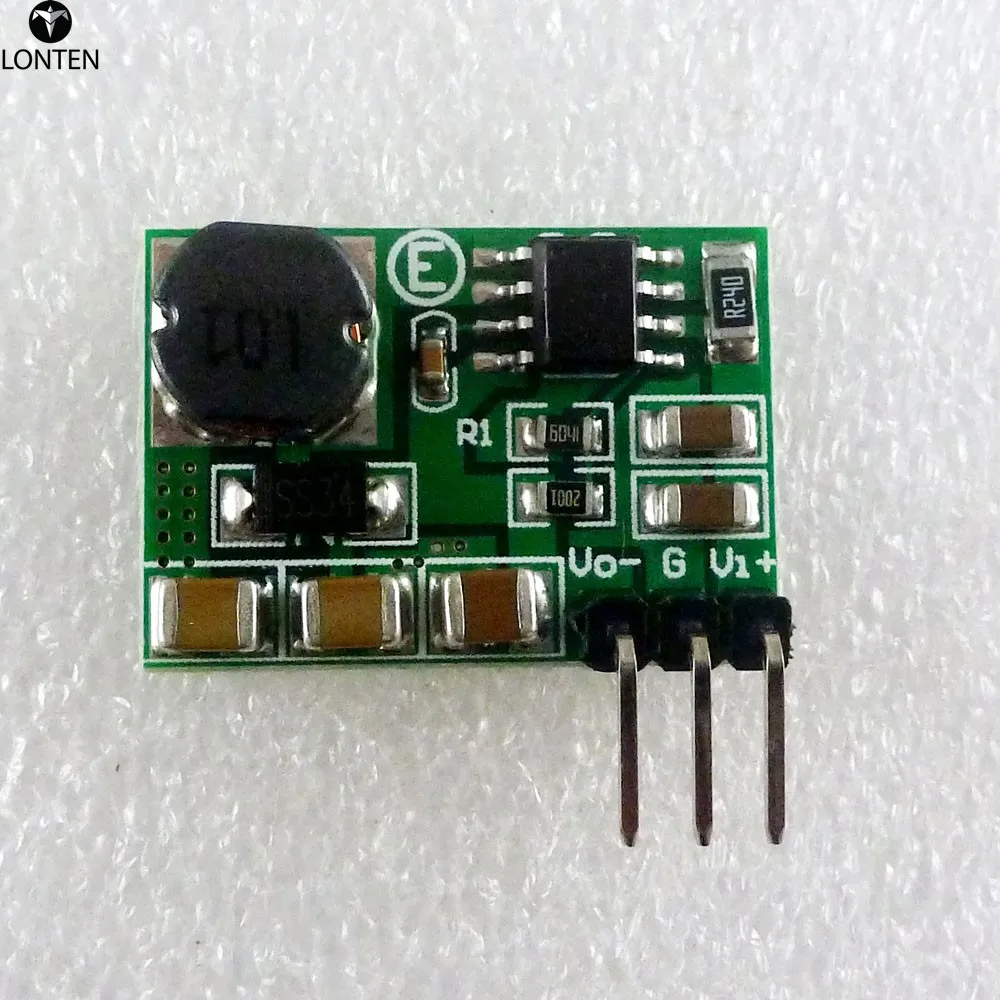

2.54mm pin pitch,for MCU Development Board Breadboard friendly.

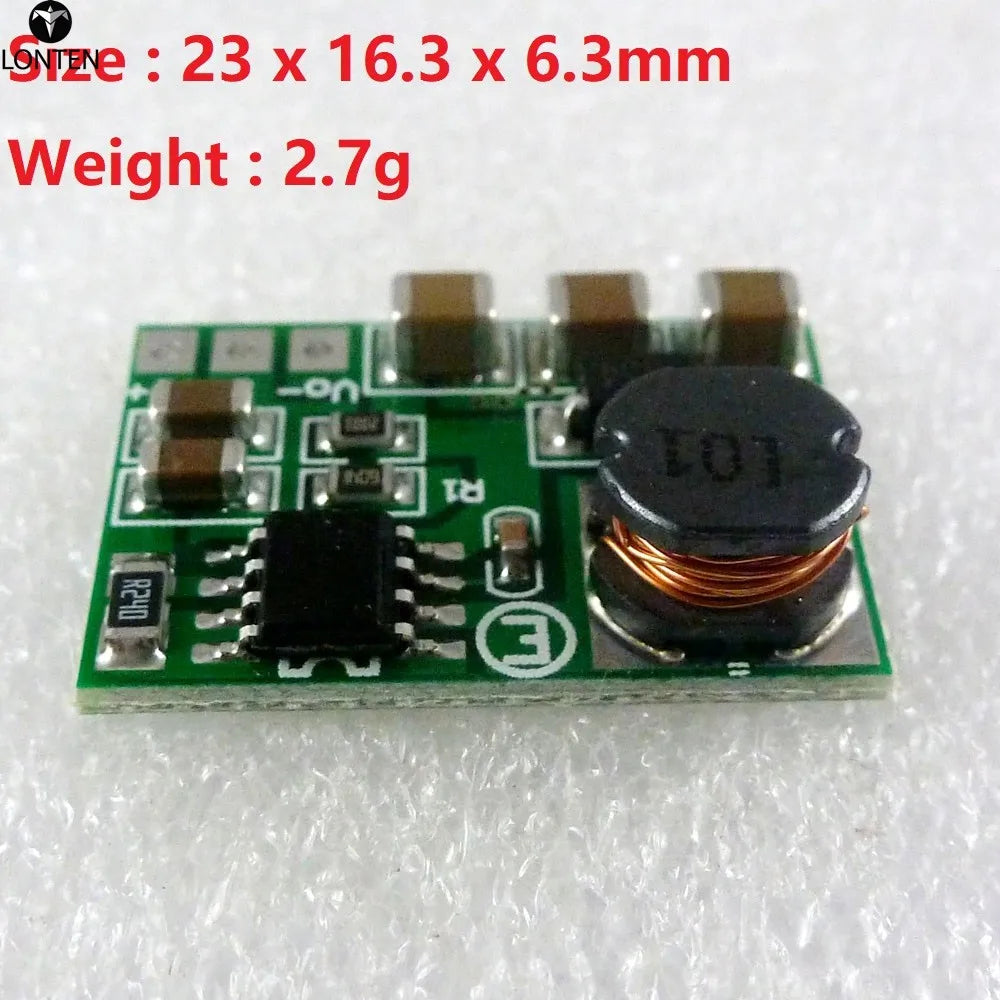

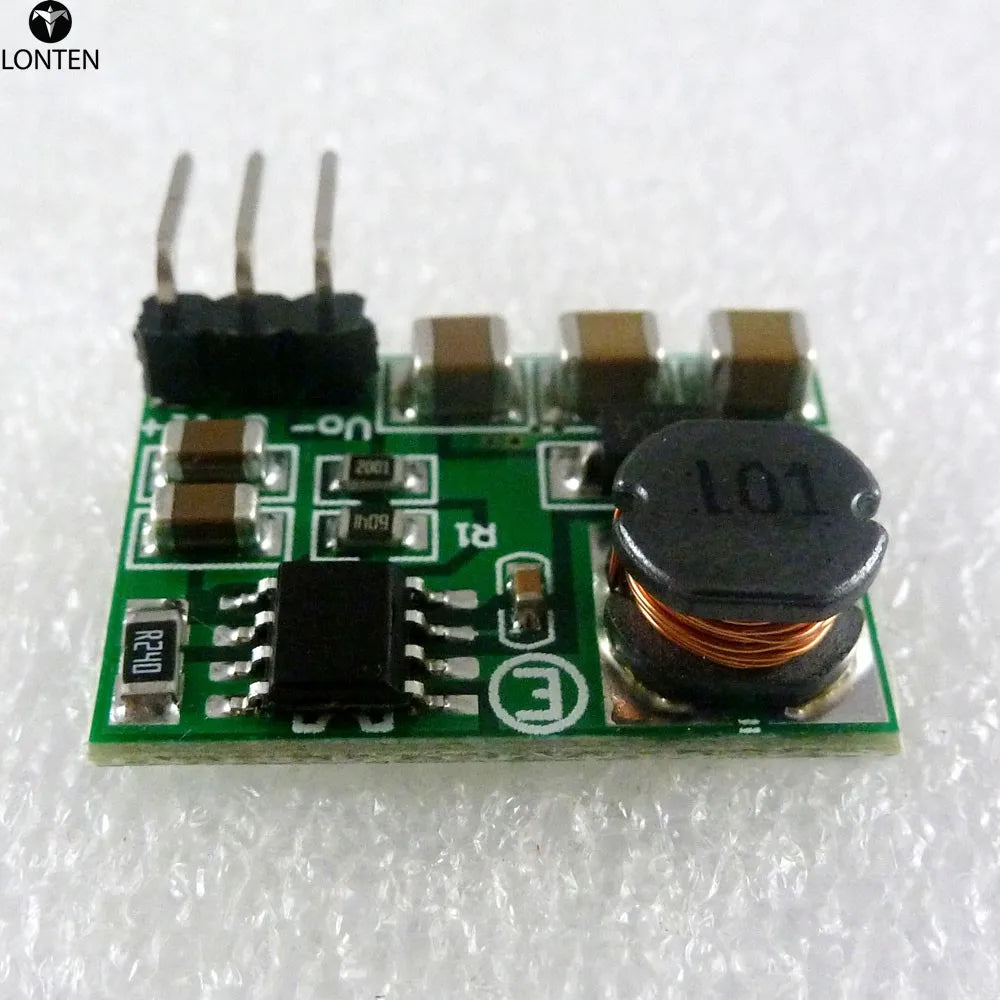

Size : 23 x 16.3 x 6.3mm

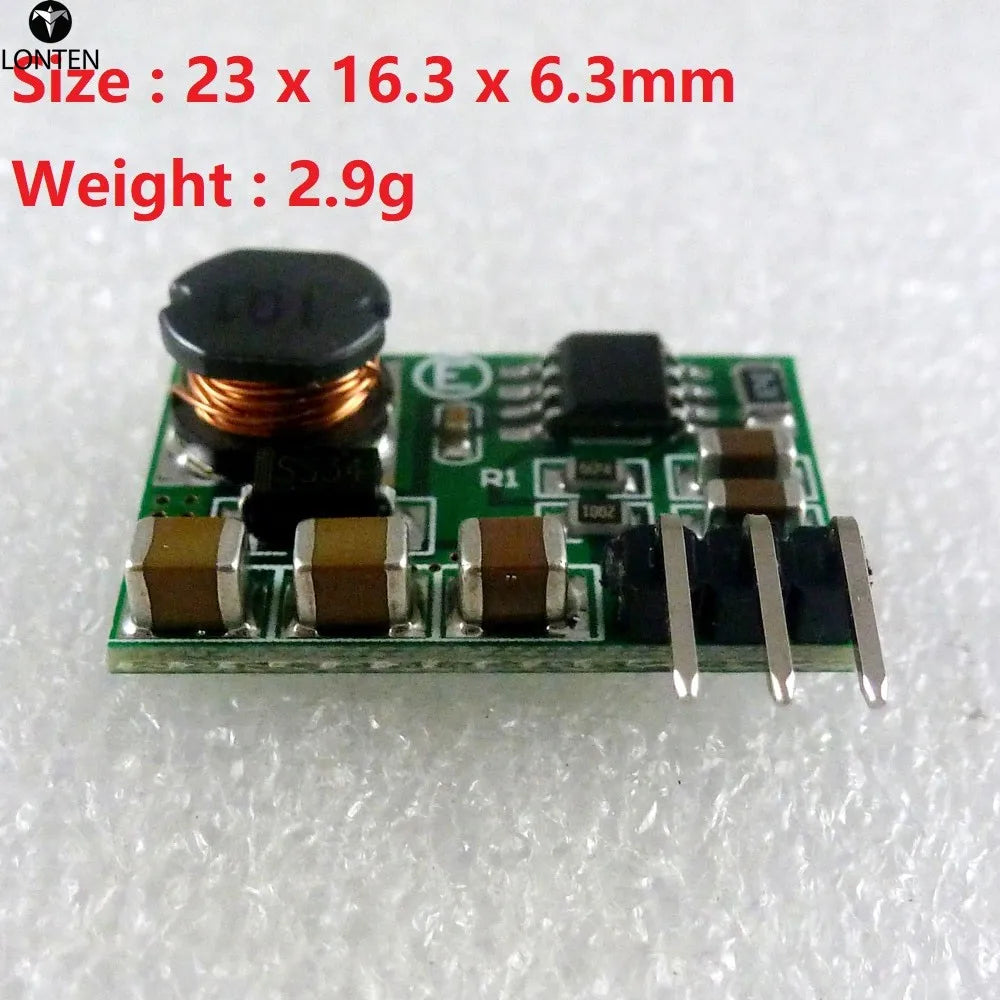

Weight :with pin 2.9g,no pin 2.7g
Applications
ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
o equipment
LCD power supply
Instrumentation equipment
MCU Board
Motor Power
Instrumentation multimeter
Wifi/Router/Ethernet devices
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
