Custom 2 Way 24V RF Smart WiFi Switch Relay Module Control by Phone On Android and IOS 433mhz rf module for Home Manufacturer
Custom 2 Way 24V RF Smart WiFi Switch Relay Module Control by Phone On Android and IOS 433mhz rf module for Home Manufacturer
Timer function: Support
Wireless Standard: IEEE 802.11 b/g/n
Support app: eWeLink
Application: Smart Home

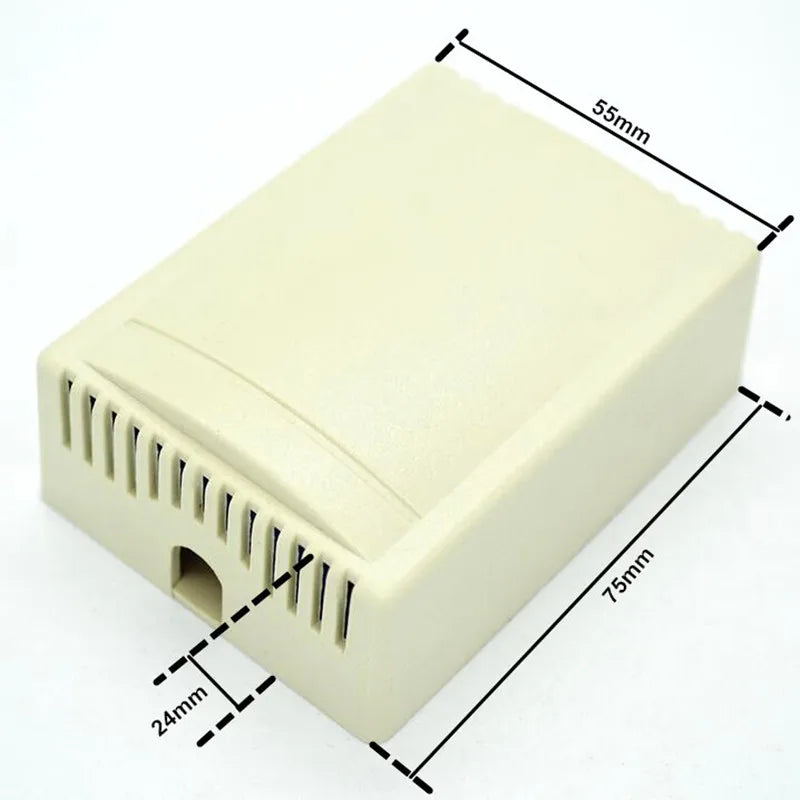

Size: 75*55*24mm
Channel: 2 Channel

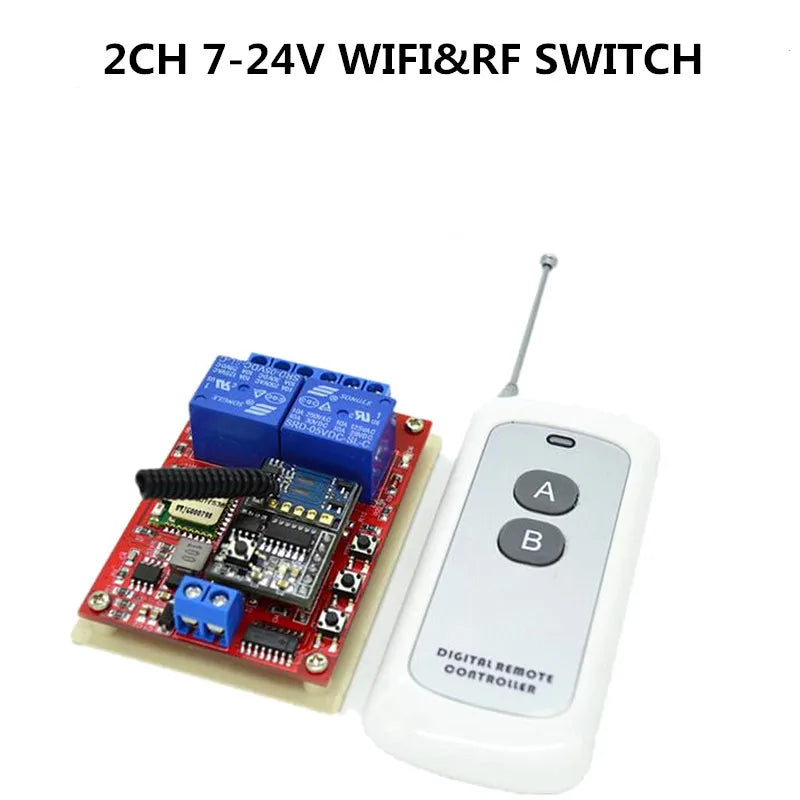

2 Way 24V RF Smart WiFi Switch Relay Module Control by Phone On Android and IOS 433mhz Remote Control Light Switch for Home
Packing List Details:
Introduction:
1 Working voltage: DC 7V-24V
2 Maximum load: 10A
3 Working temperature: 0-60 centigrade
4 Controlled method: Smartphone APP + Manual Control
5 Transmission way: WIFI
6 Transmission Distance: As far as your phone be connected with internet
7 Channels: 2 Way
8 Size: 75*55*24mm
9 Remote battery: A 23A/12V battery
How to connect phone with switch?
1 Download and install the software of eWeLink from APP store or Google play store.
2 Follow eWeLink instructions to register an account on it.
3 Log in your account of eWeLink.
4 Press any manual control button (S1,S2) for 5 seconds until you see the LED D3 light flash quickly, then release it. Now add device on mobile phone by eWeLink APP according its introduction.
5 Now you can use your phone to control the switch under 2G/3G/4G signal.
6 You can name your own device and control it only by yourself.
7 You can also share your device with your family or friends.
How to learn 433mhz transmitter?
1 Press learning button until you see LED flash 1 time, release button, then CH1 learn.
2 Press learning button until you see LED flash 2 times, release button, then CH2 learn.
After learn 433mhz signal, you still can\'t use your remote to control it. Follow below steps.
Step 1: Cut off power supply;
Step 2: Keep pressing "learning button";
Step 3: Supply power;
Step 4: The LED flash 3 times then release button. OK!
How to clear 433mhz signal?
Step 1: Keep pressing the "learning button" ;
Step 2: Supply power to switch;
Step 3: The LED light will flash 4 times slowly.
Step 4: Release the "learning button". OK.
How to set working mode?
Supply DC 7-24V power to the relay.
1: Press mode button until you see D5 flash 3 times, release button, now it is self-lock.
2: Press mode button until you see D5 flash 2 times, release button, now it is inter-lock.
3: Press mode button until you see D5 flash 1 time, release button, now it is momentary.
What is the difference between working mode?
1 Self-lock: Press remote button A , receiver CH1 ON. press button A again, then receiver CH1 OFF
2 Inter-lock: Press remote button A , receiver CH1 ON, and receiver CH2,CH3,CH4 OFF.
3 Momentary: Press remote button A, receiver CH1 ON. After 1 seconds, receiver CH1 OFF
