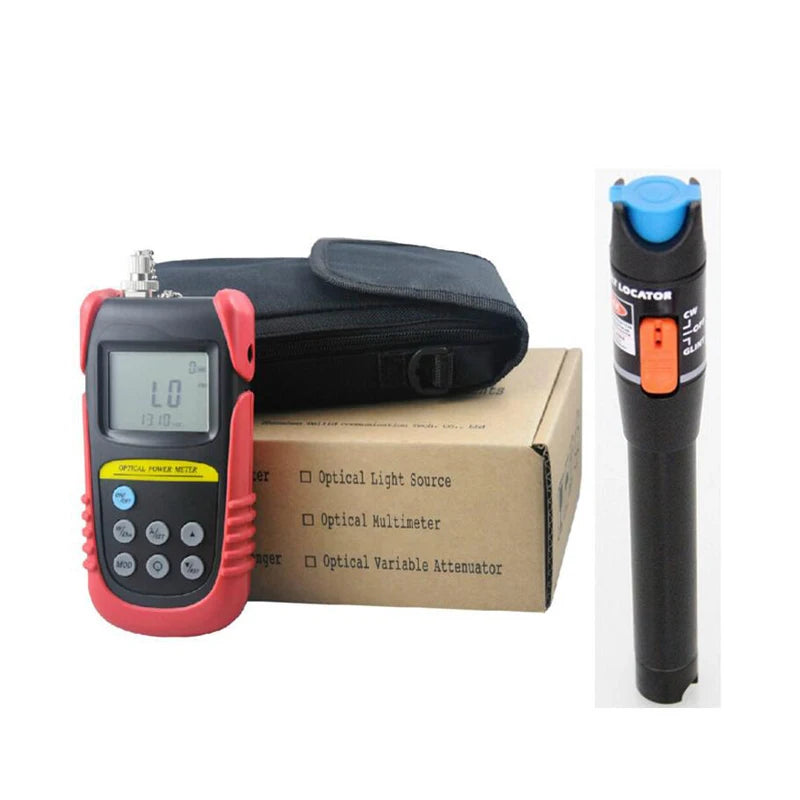

Custom 2 In 1 FTTH Fiber Optic Tool Kit with TLD6070 Optical Power Meter and 10MW Visual Fault Locator Red pen Use Ftth Manufacturer

Custom 2 In 1 FTTH Fiber Optic Tool Kit with TLD6070 Optical Power Meter and 10MW Visual Fault Locator Red pen Use Ftth Manufacturer

Regular price $43.98 USD
Regular price $43.98 USD Sale price $43.98 USD
Sale Sold out

2 In 1 FTTH Fiber Optic Tool Kit with TLD6070 Optical Power Meter and 10MW Visual Fault Locator Red pen Use Ftth

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping,  most secure way to deliver the goods to your hands!  If you have any questions after receiving the product,  or have quality problems,  please do not panic,  do feel to submit disputes, please contact our customer service,  we will give you the most satisfactory answer!  Happy shopping, thank you very much

Product Attributes

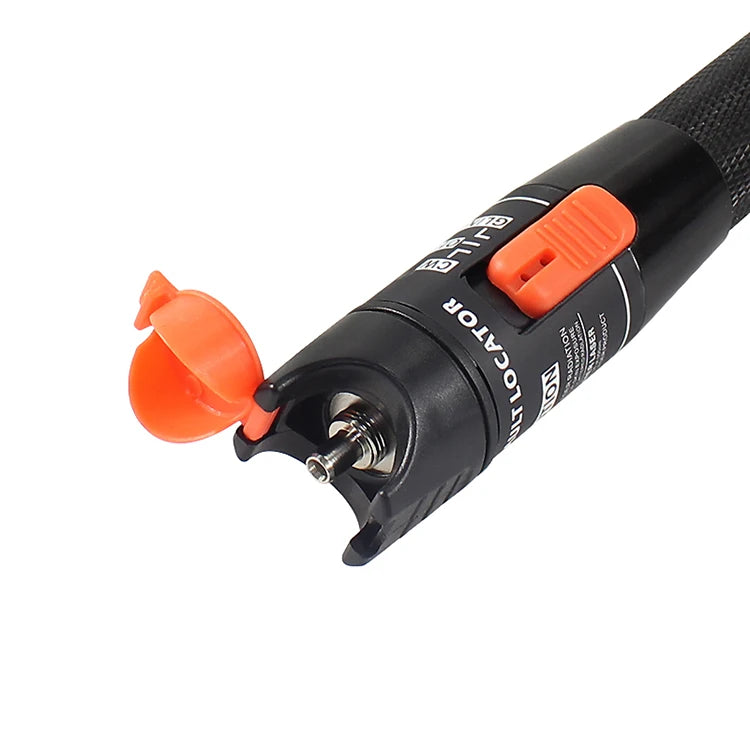

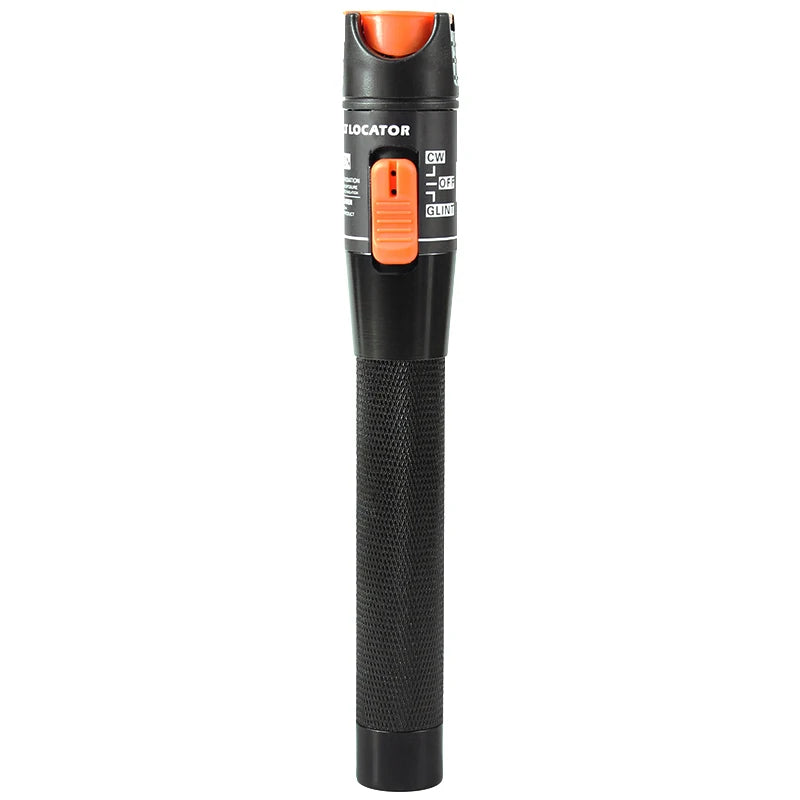

Red Laser Fiber Optic Cable Tester

1, Light source wavelength: 650 + 10NM
Applicable fiber: MM, SM
Single mode output power: 10 mW
Power: 5 battery 2 battery
Continuous working time: more than 20h power supply
Working temperature: 10-60 degrees (no dew)
Storage temperature: -40-85
Shell material: aluminum alloy
Outlook: 24*170mm (no interface)
Weight: 160g (excluding battery)

Optical Power Meter

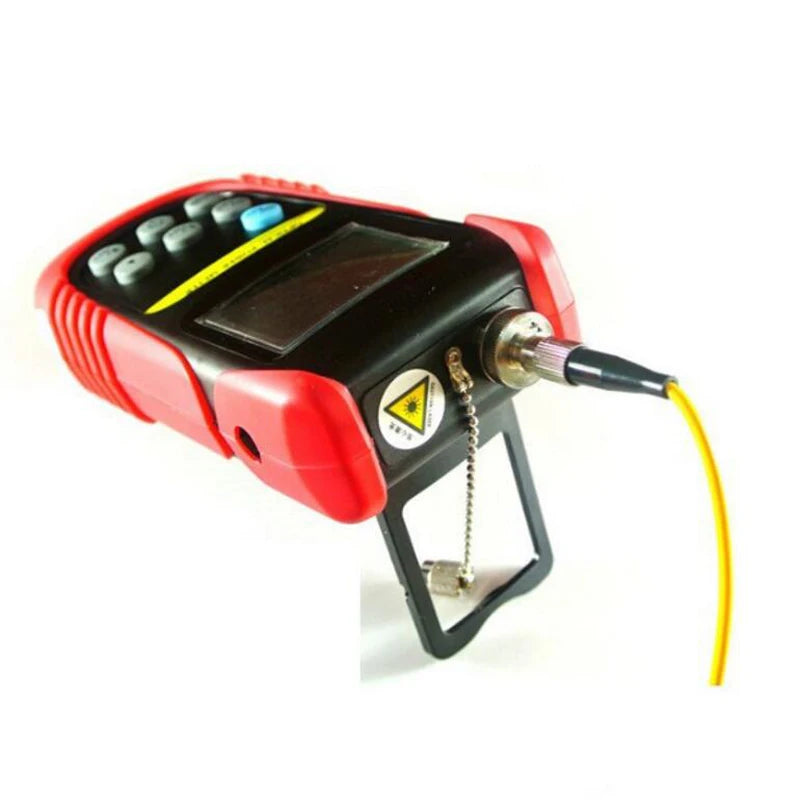

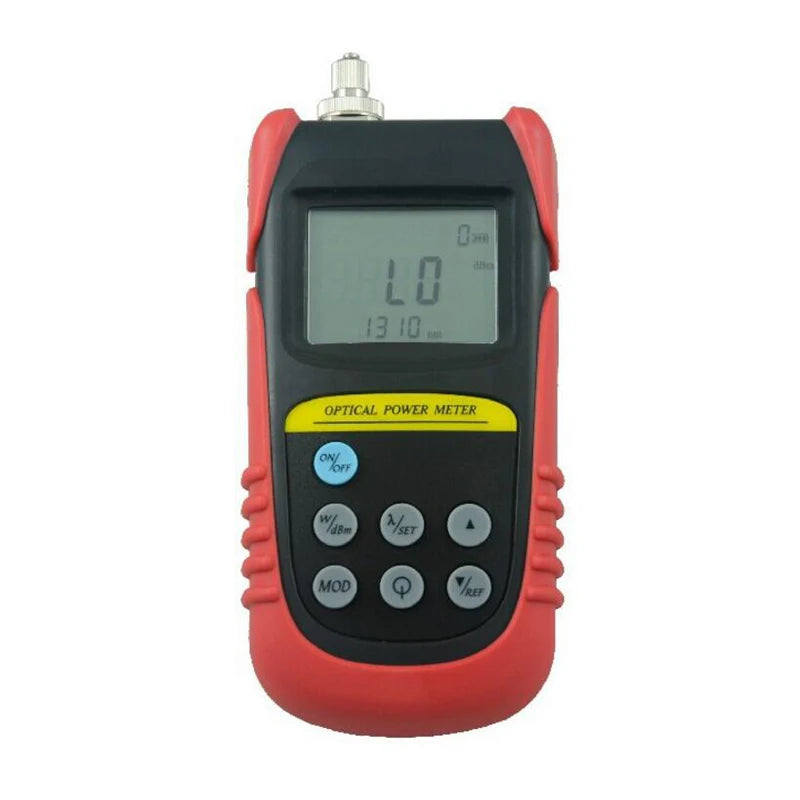

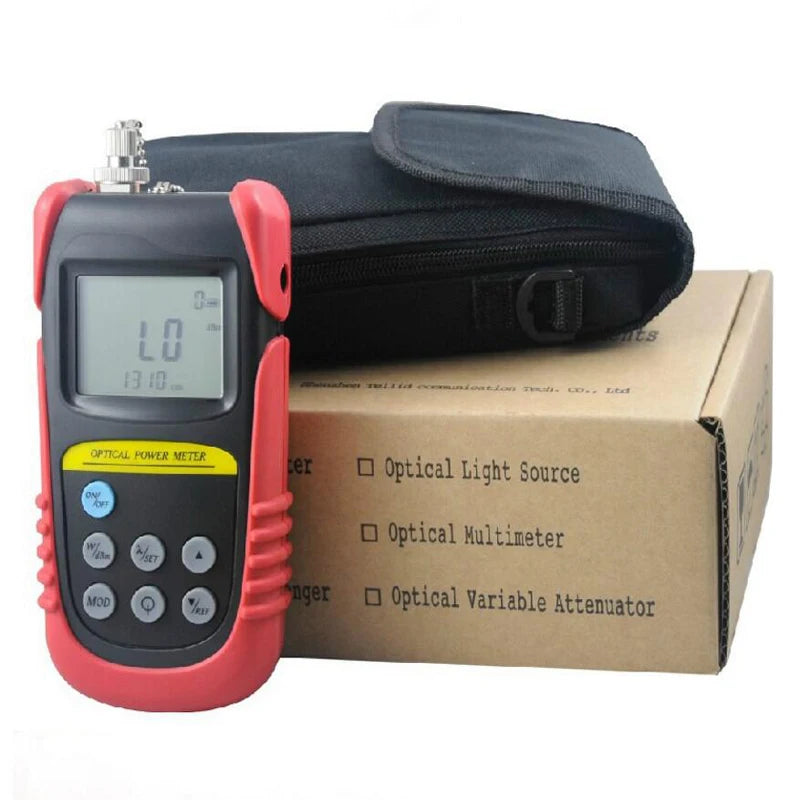

TLD6070 Optical Power Meter
Operation Manual
2 AA1.5V Batteries or (Chargable battery)
Product Warranty Cards
Certificate
Desiccant
Portable Bag
ST/SC converter (Optional)

Type

TLD6070

TLD6070B

Detector

InGaAs

Fitered  InGaAs

Wavelength Range(nm)

850,1300,1310,1490,1550,1625

850,1300,1310,1490,1550,1625

Power Measurement range(dBm)

+6 ~ -70

+26 ~ -50

Uncertainty

+5%

Resolution Ratio

0.01dBm

Power Supply

2 AA1.5V Batteries or (Chargable battery)

Optical Connector

FC-type adapter (SC,ST is optional)

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Work Humidity

<95%

APO

10min

Dimensions

16.5×8.0×3.5cm

Weight(g)

280g


10123456789
