Lonten Tech

Custom 2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and metal 1MW Visual Fault Locator 1-5KM VFL Use Ftth Manufacturer

Custom 2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and metal 1MW Visual Fault Locator 1-5KM VFL Use Ftth Manufacturer

Regular price $24.00 USD
Regular price $24.00 USD Sale price $24.00 USD
Sale Sold out

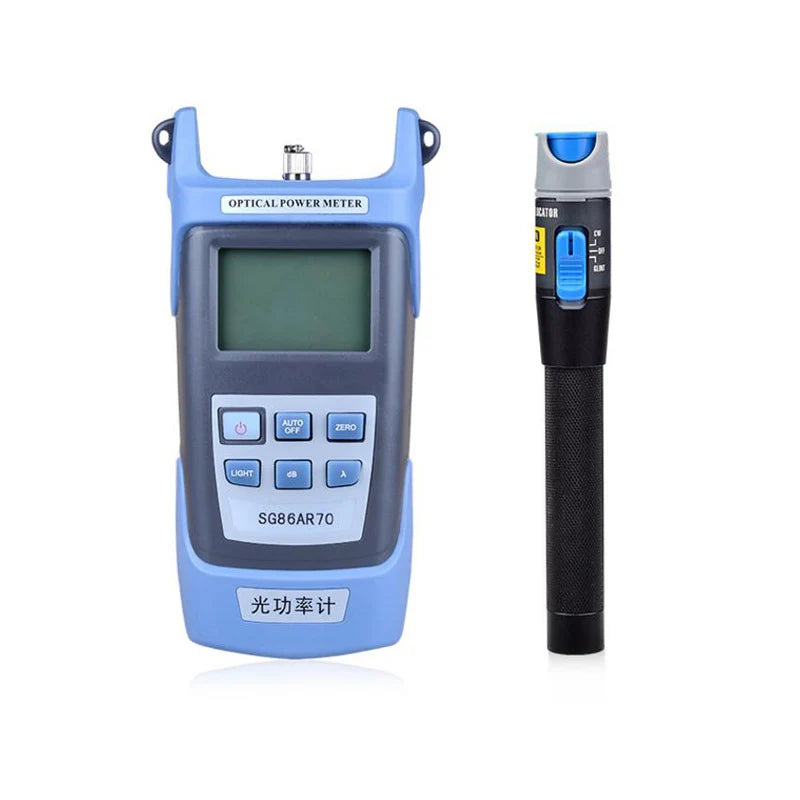

2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and metal 10MW Visual Fault Locator 10-12KM VFL Use Ftth

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping,  most secure way to deliver the goods to your hands!  If you have any questions after receiving the product,  or have quality problems,  please do not panic,  do feel to submit disputes, please contact our customer service,  we will give you the most satisfactory answer!  Happy shopping, thank you very much

Product Attributes

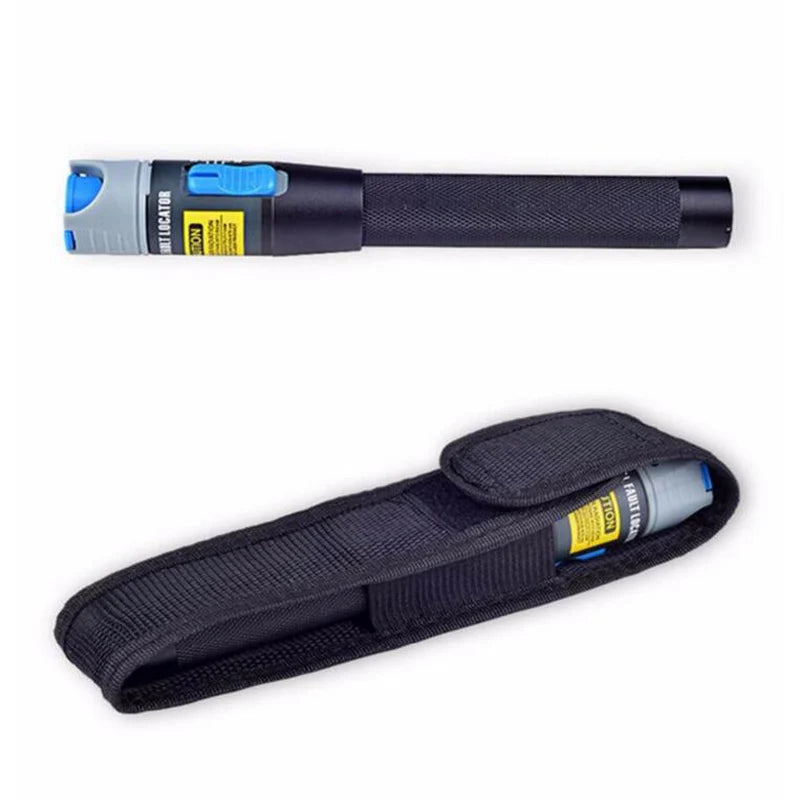

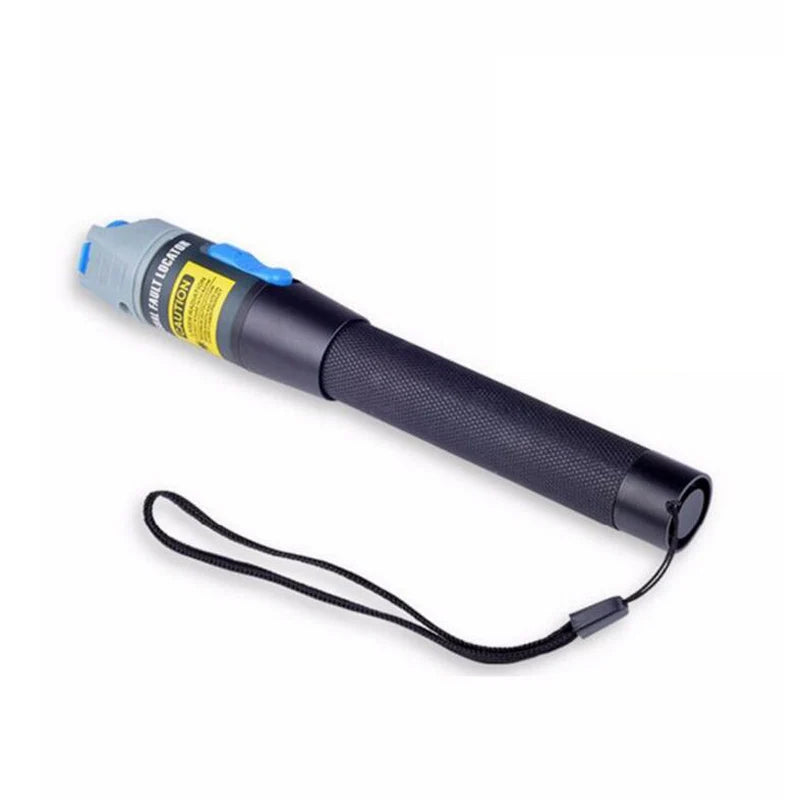

1.VFL

1, the technical indicators:
    Source wavelength: 650 ± 10NM
    Applicable fibers: SM, MM
    Single-mode output power: 10mW
    Power source: two AA batteries
    Power Continuous working time: ≥ 20h
    Operating temperature :10-60  (no condensation)
    Storage temperature: -40-85
    Body Material: Aluminum
    Dimensions: 24 * 170mm (excluding interfaces)
    Weight: 160g (without batteries)

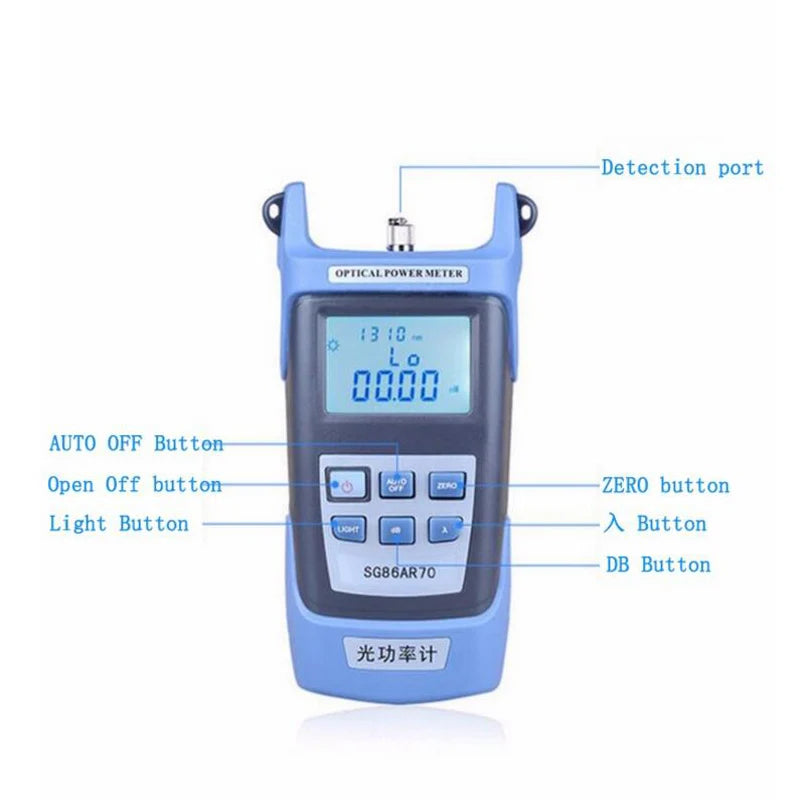

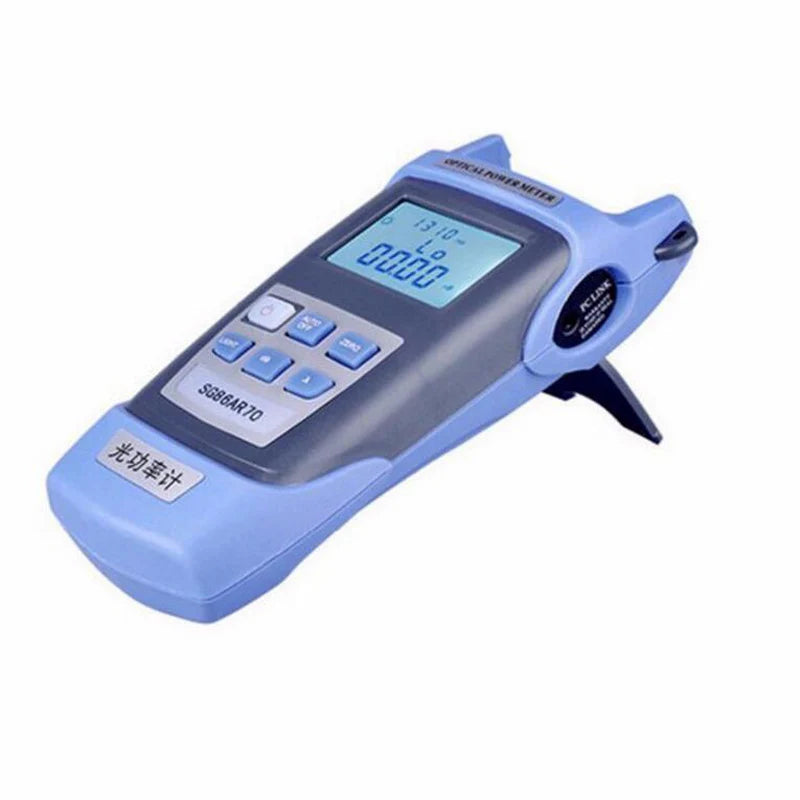

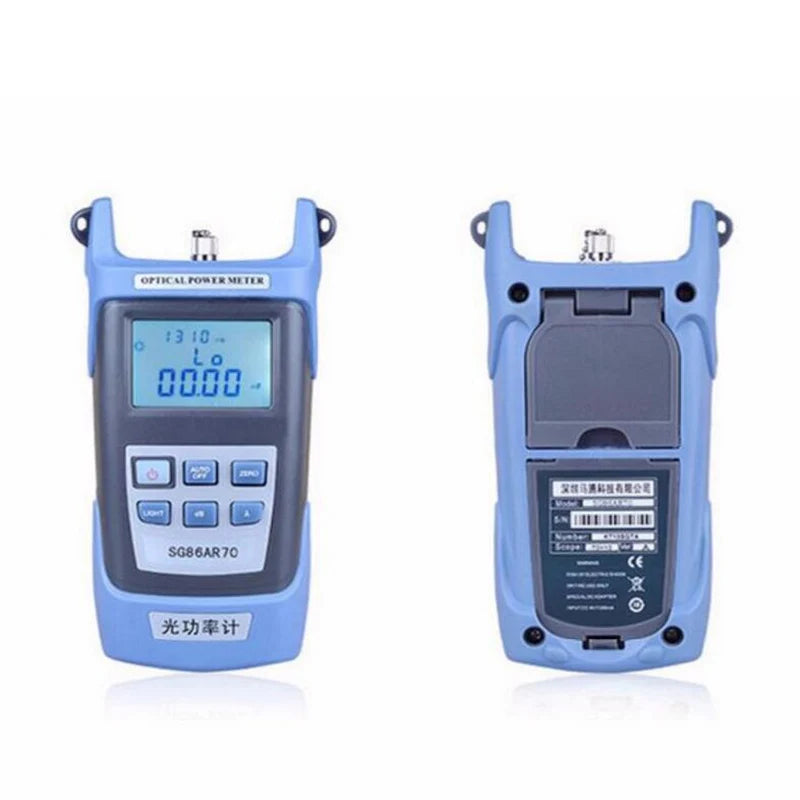

Optical Power Meter

Type: A, B
Wavelength range: 800 - 1700
Connector: FC / SC
Probe type: InGaAs
Power Measurement Range: -70 to +3, -50 ~ +26
Uncertainty: ± 5%
Standard wavelength (nm): 850,980,1300,1310,1490,1550
Display resolution: Linear Display: 0.1% of the number display: 0.01dBm
Operating Temperature : -10 ~ +60
Storage Temperature : -25 ~ +70
Automatic shutdown time (min): 10
Battery operating time (h): 240
Dimensions (mm): 172 × 82 × 33
Power: 5 batteries X2
Weight (g): 450g


2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC (Female) convertor can be provided on requests.
Operates either in CW or Pulsed
Constant output power
Lower battery warning
Long battery life (up to 60 hours)
Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing t ensur the reliability
Portable and rugged, easy to use
