Custom 2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 20MW Visual Fault Locator Use Fiber optic test pen Manufacturer
Custom 2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 20MW Visual Fault Locator Use Fiber optic test pen Manufacturer
Couldn't load pickup availability

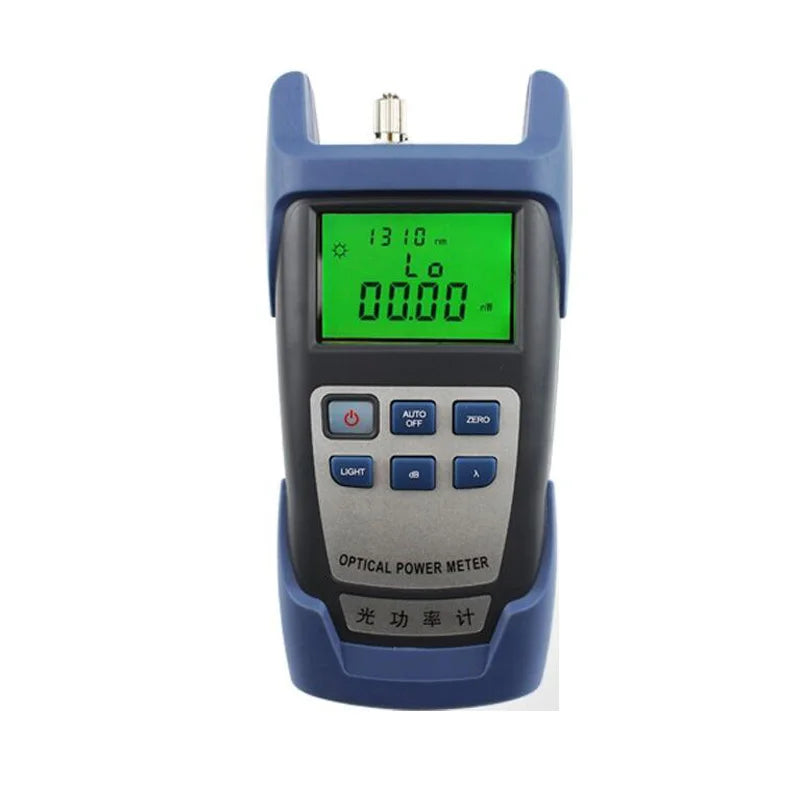

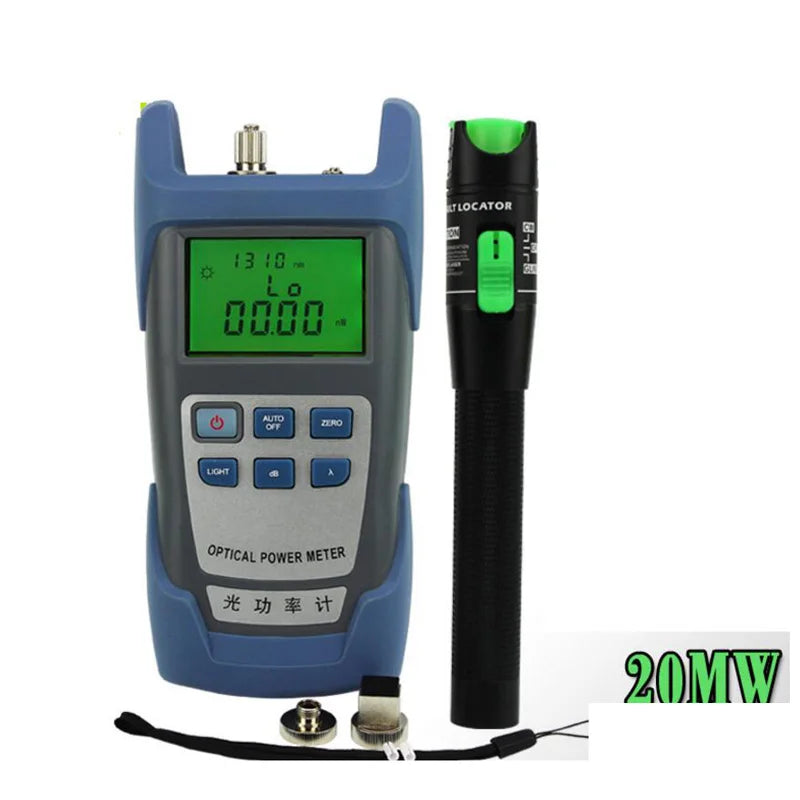

2 In 1 FTTH Fiber Optic Tool Kit with Optical Power Meter and 20MW Visual Fault Locator Use Fiber optic test pen
I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping, most secure way to deliver the goods to your hands! If you have any questions after receiving the product, or have quality problems, please do not panic, do feel to submit disputes, please contact our customer service, we will give you the most satisfactory answer! Happy shopping, thank you very much
Product Attributes
Model |
A |
B |
Measurement range |
-70~+10 |
-50~+26 |
Type of probe |
InGaAs |
|
Range of wave length |
800~1700 |
|
Uncertainty |
plusmn5% |
|

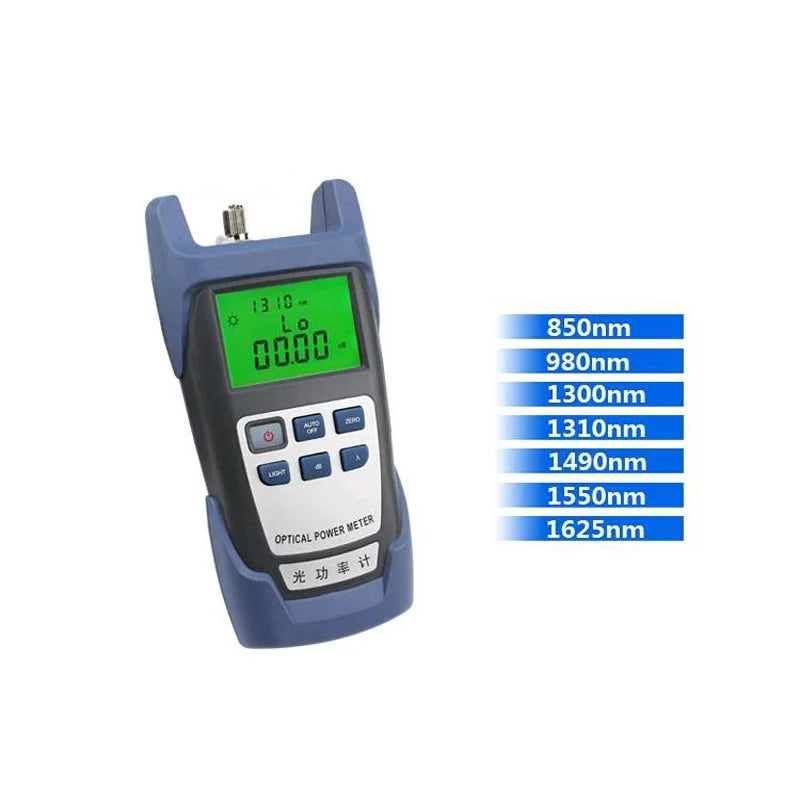

Standard wave length (nm) |
850,980,1300,1310,1490,1550 |
|
Resolution |
Linear indication: 0.1% Logarithmic indication: 0.01dBm |
|
Working temperature (degC) |
-10~+60 |
|
Storage temperature (degC) |
-25~+70 |
|
Auto power-off time (min) |
10 |
|
Continuous working hours |
At least 48 hours |
|
Dimensions (mm) |
190times100times48 |
|
Power supply |
Rechargeable lithium battery |
|
Weight(g) |
310 |
|

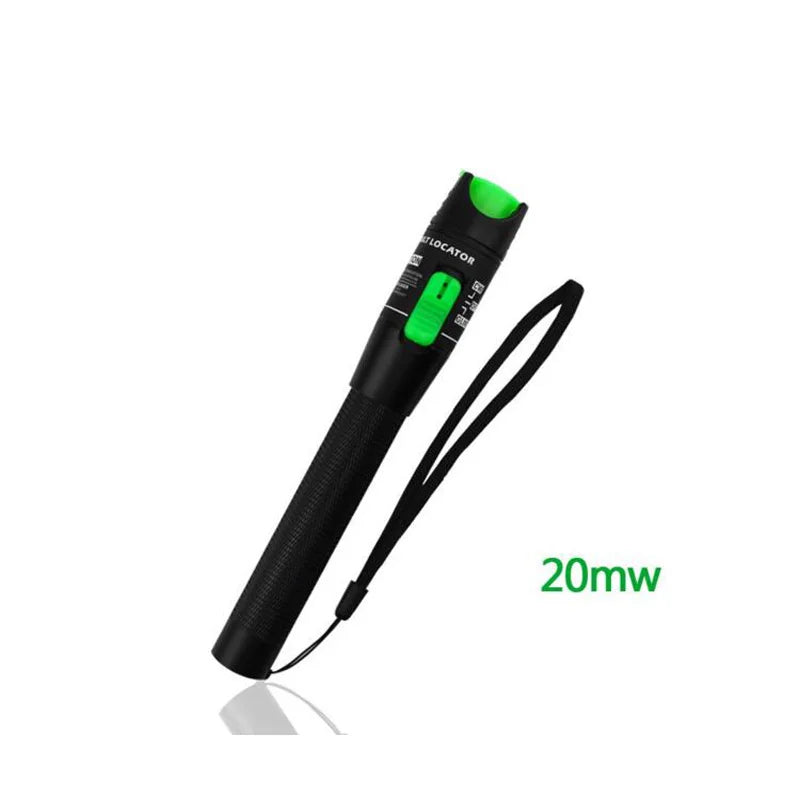

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life(up to 60 hours)
Specifications:
Central wavelength |
650nmplusmn10nm |
Emitter type |
FP-LD |
Output power |
Optional choice for 5mw, 10mw,20mw,30mw,40mw,50mw |
Optical connector |
2.5mm universal connector, or 1.25mm connectors, |
Operating model |
Both CW and Pulse available |
Pulse frequency |
3Hz to 9Hz |
Power supply |
2AA alkaline batteries |
Operating temperature |
-20degC to 60degC |
Storage temperature |
-40degC to 85degC |
Dimension |
-FL-002 Phi23 X 190 |
Weight |
110g (without battery) |
