Custom 2 in 1 8W Boost-Buck Dual +- Voltage Board 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V for ADC DAC LCD op-amp Speaker Manufacturer

Custom 2 in 1 8W Boost-Buck Dual +- Voltage Board 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V for ADC DAC LCD op-amp Speaker Manufacturer

$4.72 USD
$4.72 USD $4.72 USD
Sale Sold out

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.



Click on the picture or search SKU for product details
We are a professional manufacturer, if you don't find the product you need, please contact us directly.
Product SKU Click Picture Description
Boost-Buck
+ to - voltage		  0315NA



 Input voltage : DC +3~+15V,
Output : DC -3.3V -5V -6V -9V -12V -15V;
Maximum output current : 180-500MA
Boost-Buck
+ to - voltage		 UB12NA Input voltage : DC +4.8V-+28V,
Output : DC -5V/-10V/-12V/-15V;
Maximum output current : 250-500MA
Boost
+ to +/-voltage		 1718PA Input voltage : DC +3~+18V,
Output : DC ±5 ±6 ±9 ±12 ±15 ±24
Maximum output current : 100-200MA
Boost-Buck
+ to +/-voltage		  39AJPA Input voltage : DC +3.6~+30V,
Output : DC ±3~±30V adjustable
Maximum output current : 200-3000MA
Boost-Buck
+ to +/-voltage		 1912PA Input voltage : DC +3~+24V,
Output : DC ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V
Maximum output current : 100-1000MA
 1% +/-voltage
 reference Module		 ZD3605PA Input voltage : DC +-3.5~+-20V,
Output : DC ±2.5V ±3.3V ±5V ±7.5V ±10V ±12V
Maximum output current : 14MA



Below item is eletechsup .

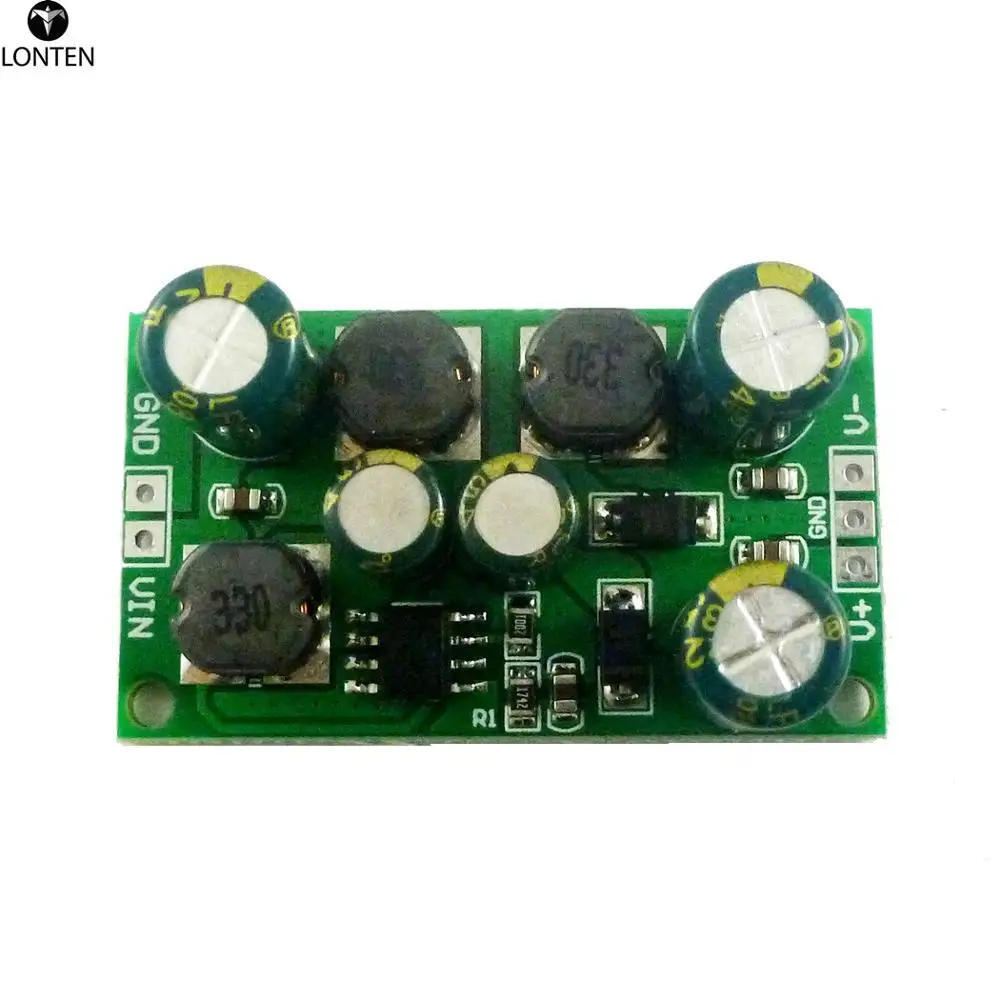

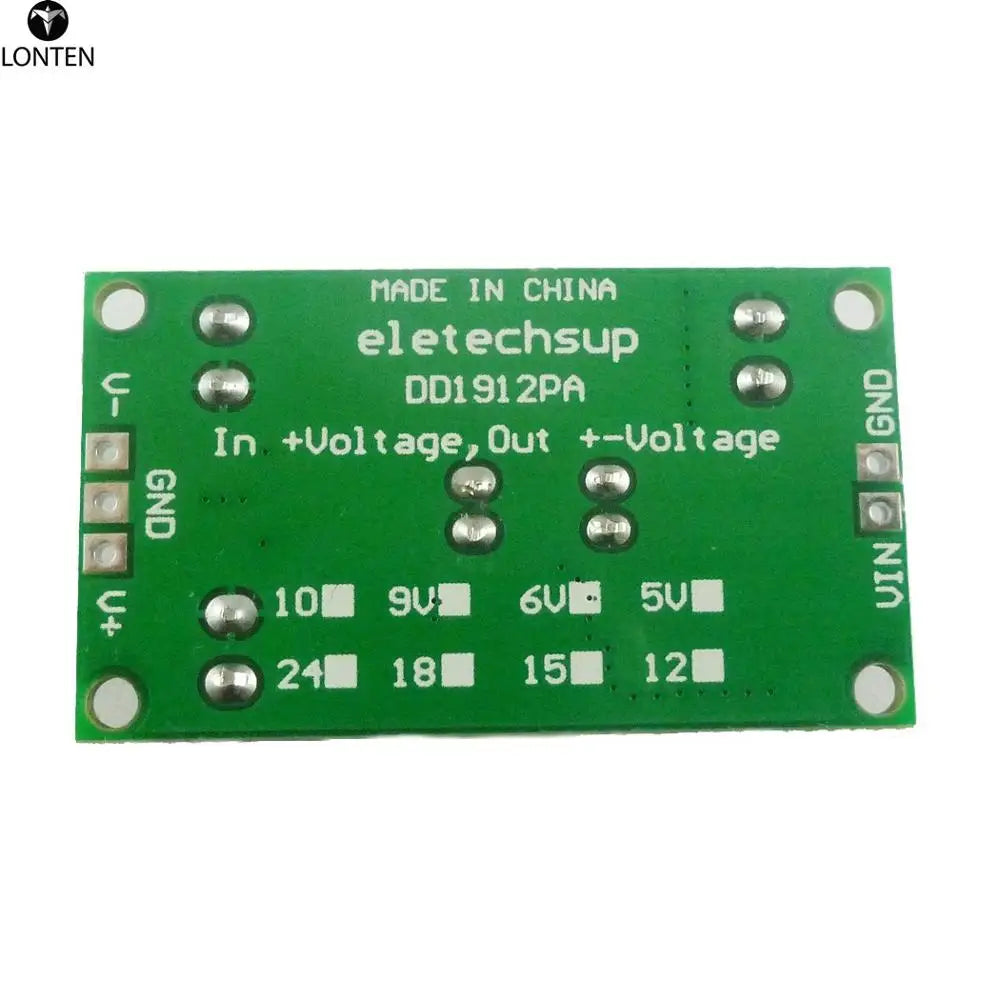

Product Name:  2 in 1 8W Boost-Buck Dual +- Voltage Board 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V for ADC DAC LCD op-amp Speaker

Packing list:

1 PCS  DC DC Boost-Buck Converter +/- voltage Dual voltage Module


Description:

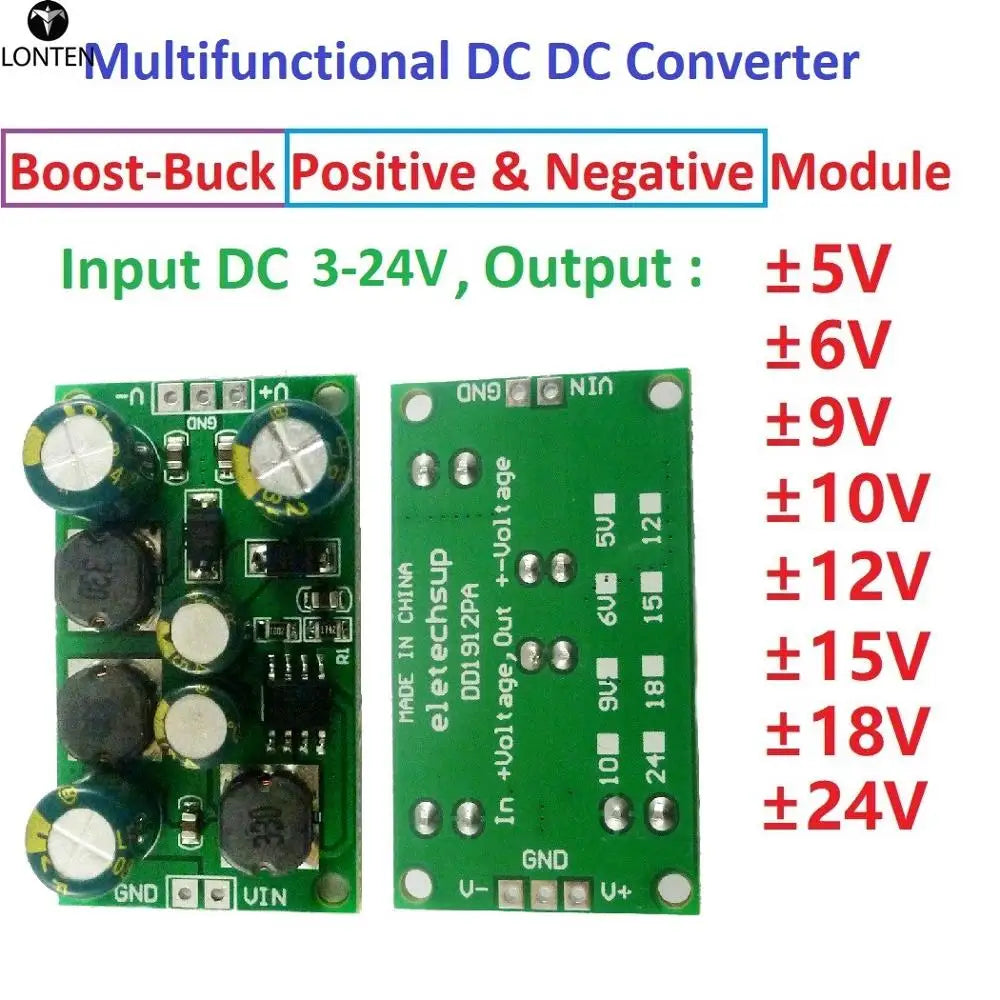

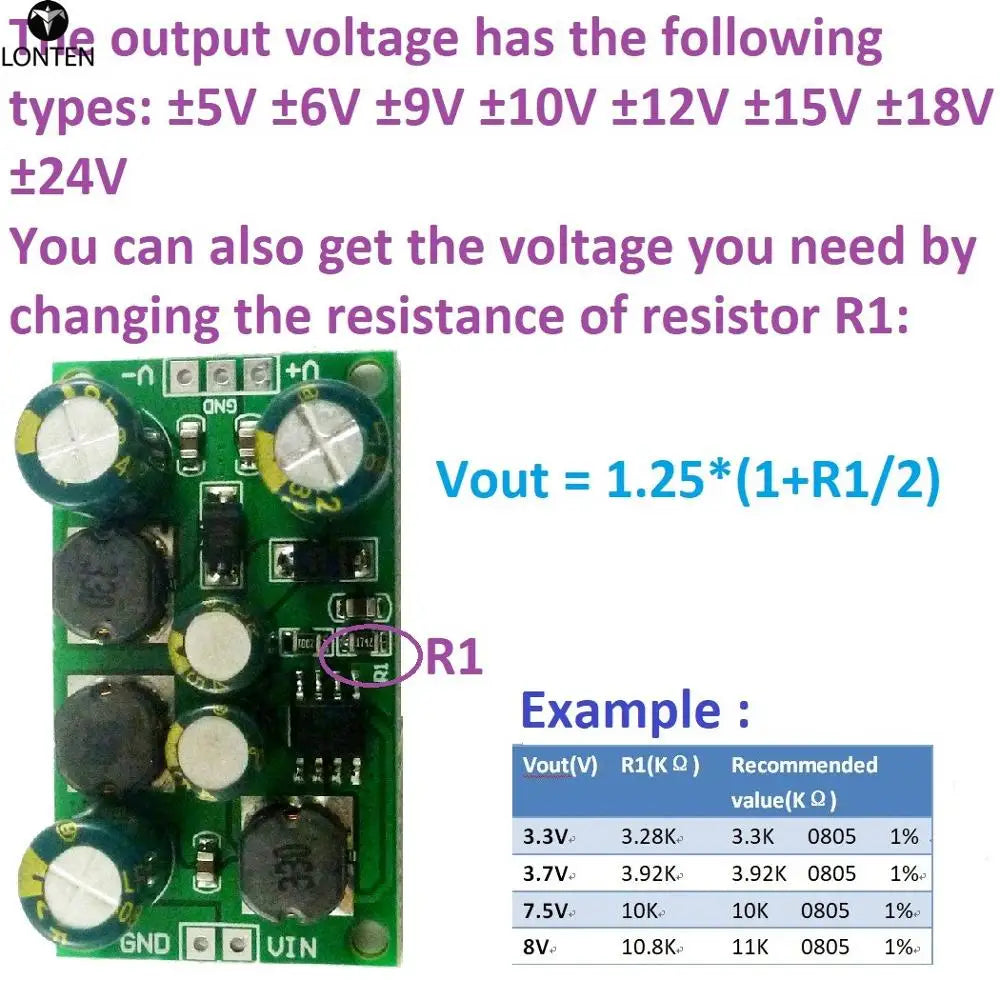

Input voltage 3~24V,output optional ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V
Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)
Conversion efficiency :70-90%
Quiescent current: 3-4mA
Accuracy : Positive voltage ±3%,Negative voltage ±5%

8W DC-DC Boost-Buck Converter working frequency 400KHZ.
Operating ambient temperature : -40~+85 Degrees Celsius

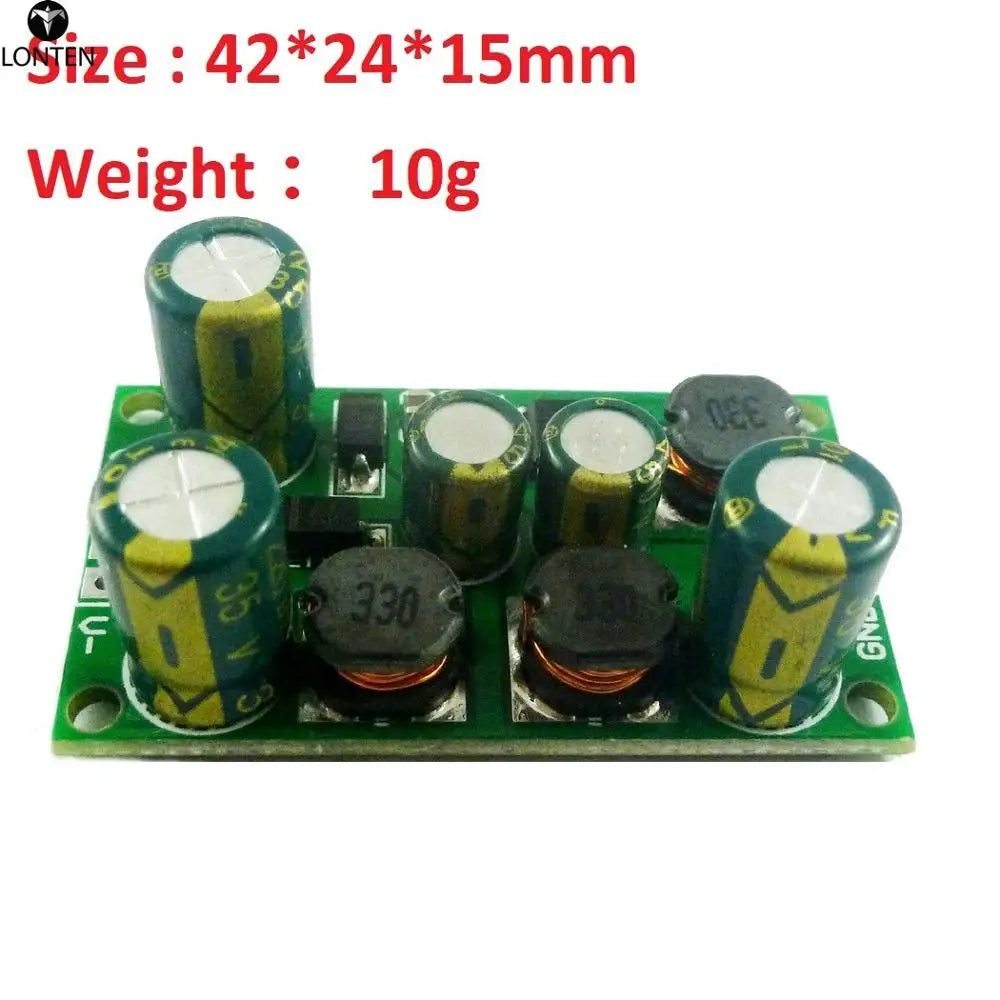

Size : 42 x 24 x 15mm
Weight :  10g

High efficiency up to 90%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function


Note:
1 In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA

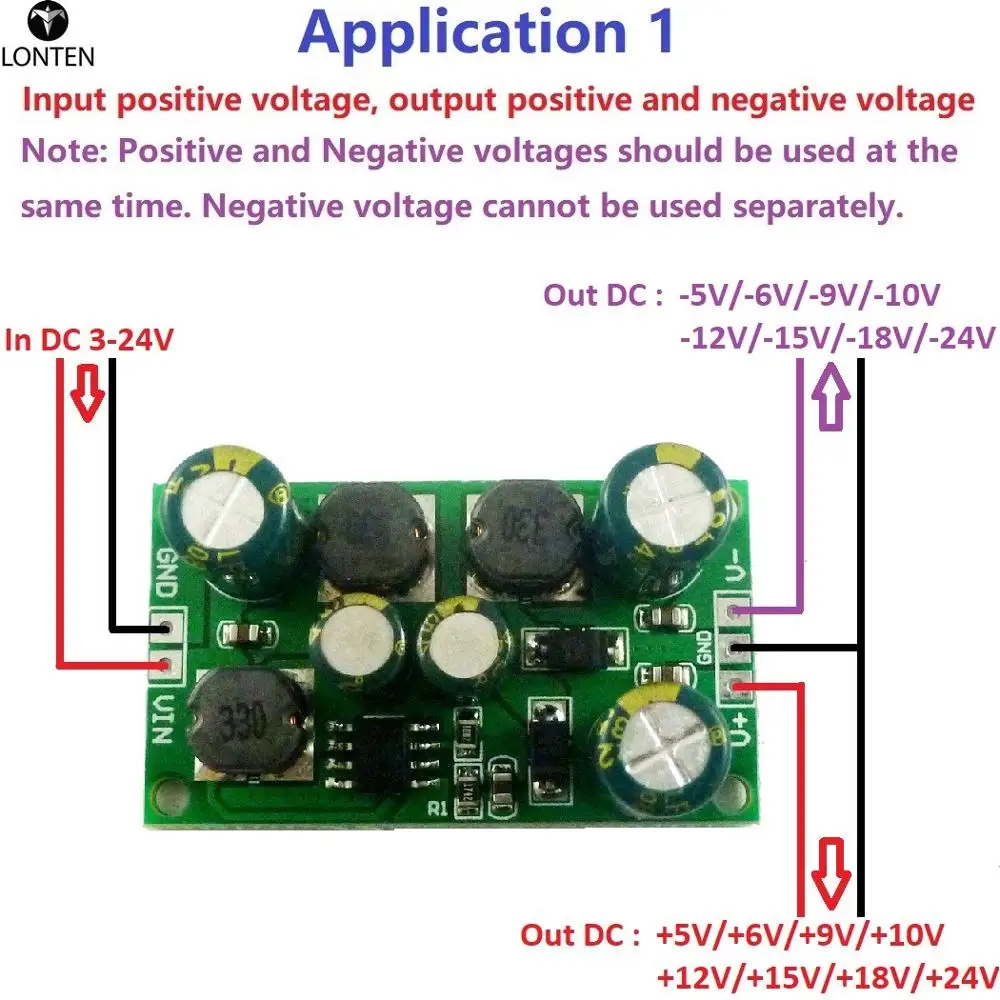

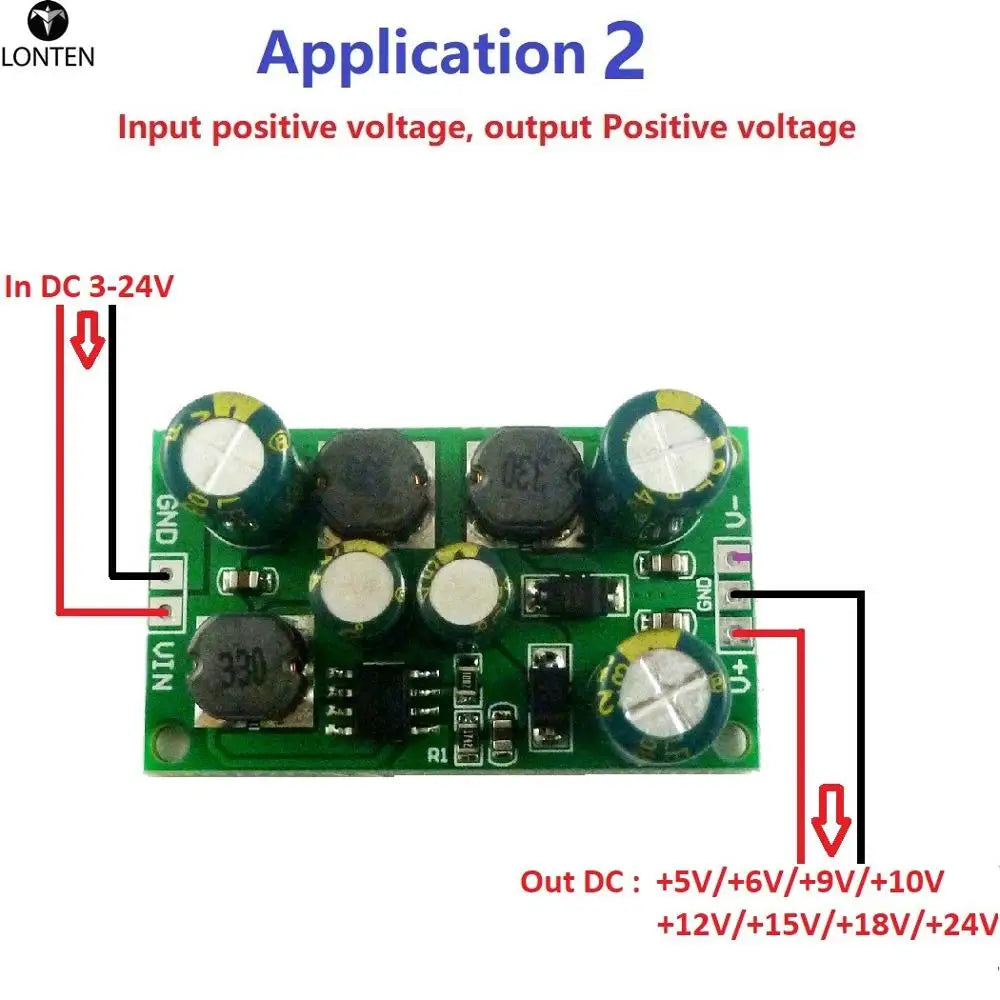

2 V- cannot be used alone, or no voltage output.But you can just use V+






Applications

ADC/DAC/Operational Amplifier Reference voltage
RS232 RS485 RS422 Bus
o equipment
Low power o power supply
Car o amplifier dual power board
LCD power supply
Instrumentation equipment


Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Q & A:

Q1 : Why output voltage is less than the nominal voltage
A1: Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Q2 : Why is the negative voltage not output or the output too low?
A2 : The negative voltage cannot be used alone. When using a negative voltage, the same load must be connected at the positive voltage terminal.

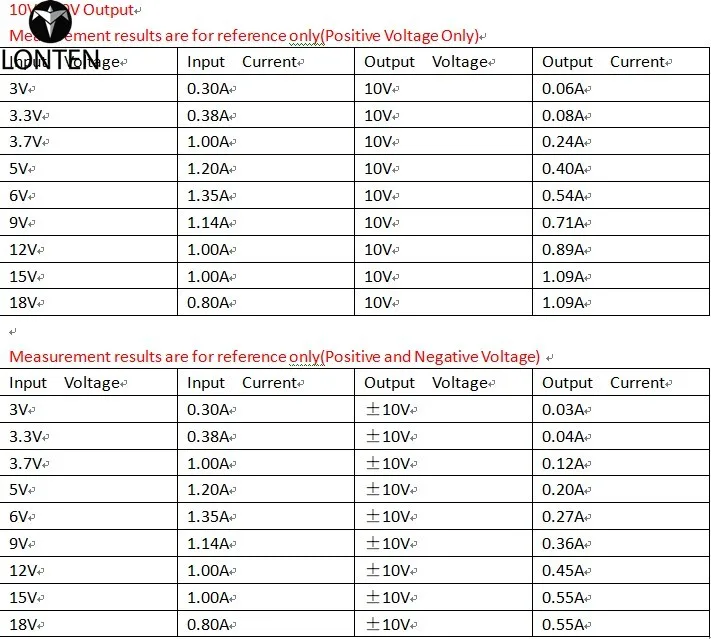

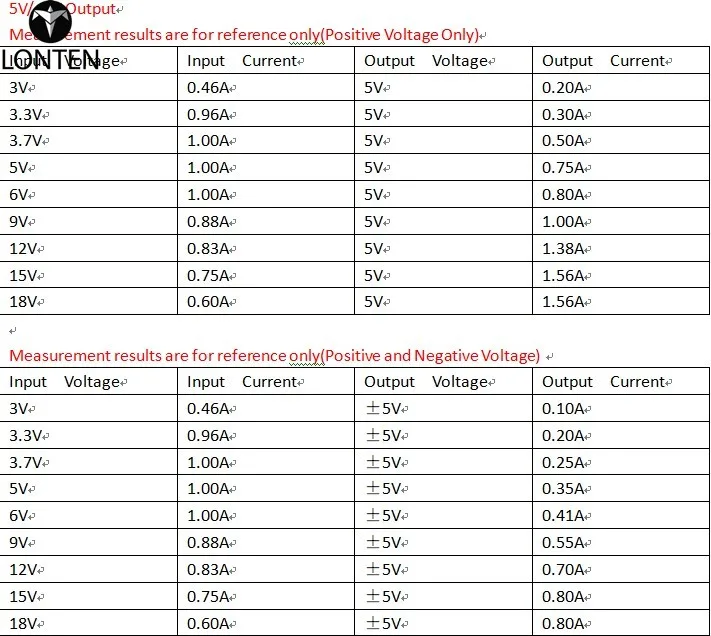

The maximum output power can reach 8W, but the maximum power will vary under different conditions. For details, please refer to the following table(10-80% of the maximum power is the most reliable):

Input DC 3-24V,Output ±5V
Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.1-0.8A

Input DC 3-24V,Output ±6V
Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.1-0.7A


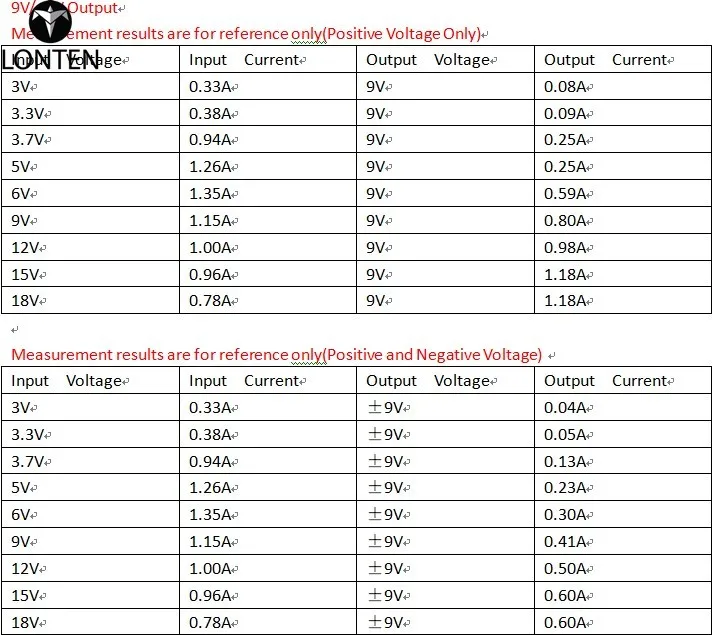

Input DC 3-24V,Output ±9V
Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.04-0.6A

Input DC 3-24V,Output ±10V
Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.03-0.55A


Input DC 3-24V,Output ±12V
Input voltage: 3V/3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.03-0.46A

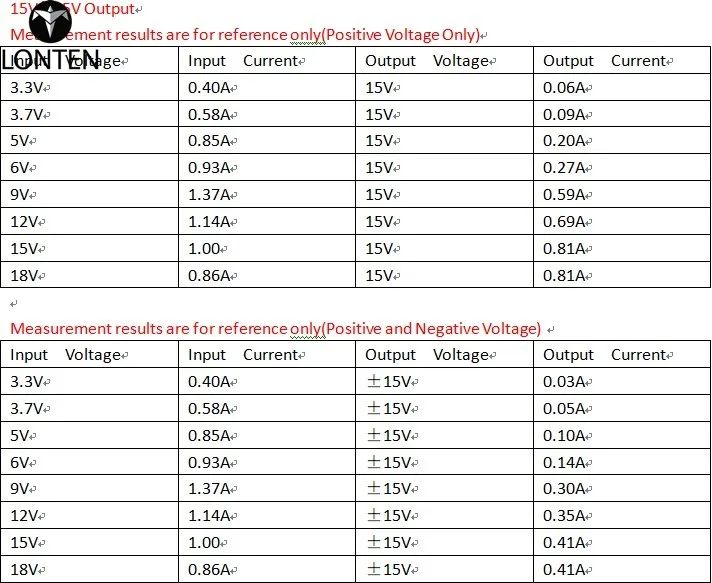

Input DC 3.3-24V,Output ±15V
Input voltage: 3.3V/3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.03-0.41A

Input DC 3.7-24V,Output ±18V
Input voltage: 3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.04-0.31A

Input DC 3.7-24V,Output ±24V
Input voltage: 3.7V/5V/6V/9V/12V/15V/18V
Maximum output current: 0.03-0.25A
