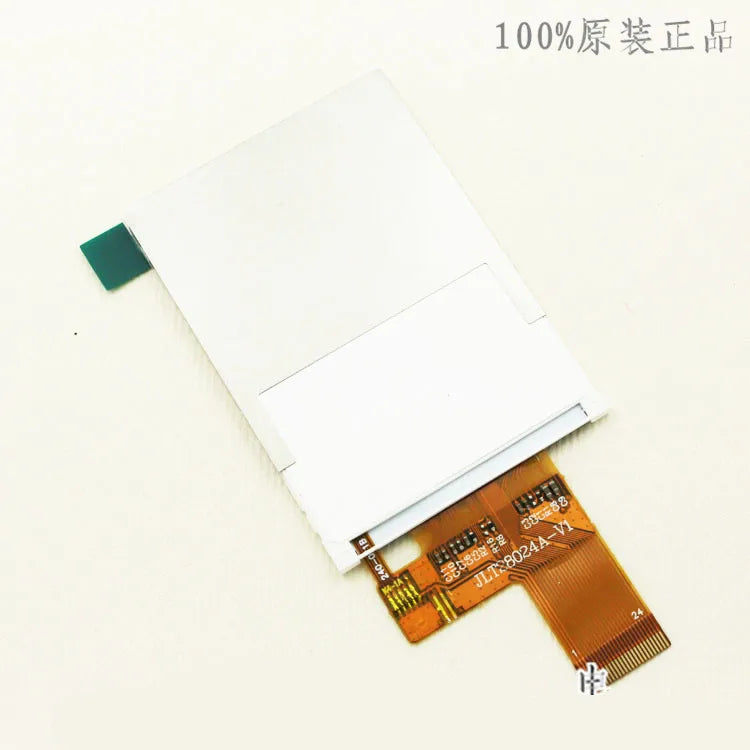

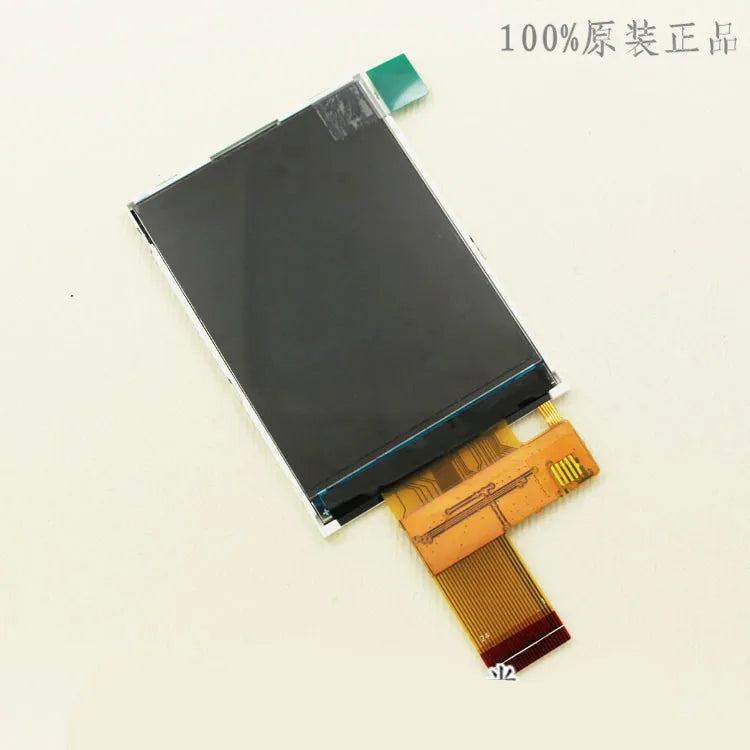

inch TFT screen ILI9341 24PIN 8/16bit QVGA 320*240 CPT LCD display



Module basic parameter configuration

Glass panel: CPT2.8 inch QVGA 320 * 240

Panel view: 12 o'clock wide viewing angle

Driver chip: ILI9341

Touch mode: none

Touch Model: None

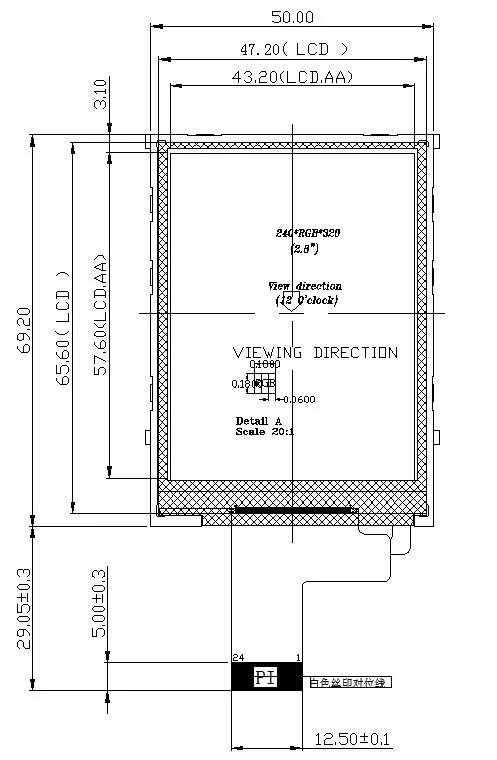

Dimensions: 50 * 69.2mm * 2.3mm

Visible area: 43.2 * 57.6mm

Number of interfaces: 24PIN 0.5mm pitch

Interface data definition

PIN

1

VCC

2

GND

3

LEDA

4

RESET

5

CS

6

RS

7

WR

8

RD

9

DB0

10

DB1

11

DB2

12

DB3

13

DB4

14

DB5

15

DB6

16

DB7

17

DB8

18

DB9

19

DB10

20

DB11

twenty one

DB12

twenty two

DB13

twenty three

DB14

twenty four

DB15

16-bit interface, the data lines DB15-DB0;

8-bit interface, the data lines DB15-DB8

 Welcome Customize Order!
