Custom 2.4g module receiving module remote control high-power cc2500 long-distance transmission DL-24PA

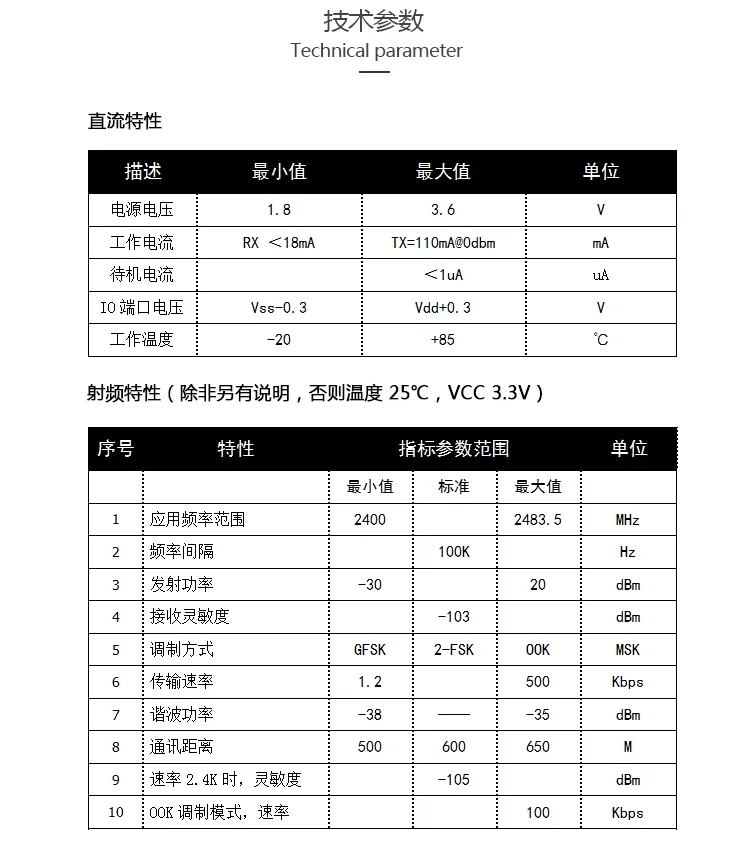

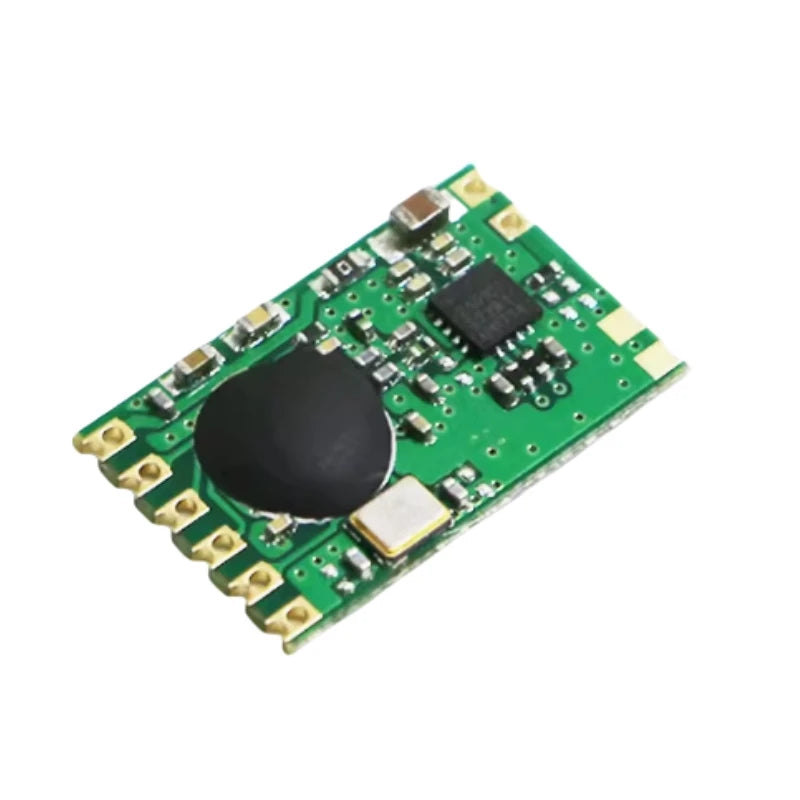

DL-24PA is a compact, cost-effective, long-distance wireless transceiver module designed based on TI Chipcon's CC2500 wireless transceiver chip. This 2.4G module is widely used in the field of smart homes, toy aviation models, and close range data transmission control. The sensitivity can reach -104dbm, and the maximum transmission rate can reach 500Kbps. The output power can be configured through registers ranging from -30dbm to 20dbm.
