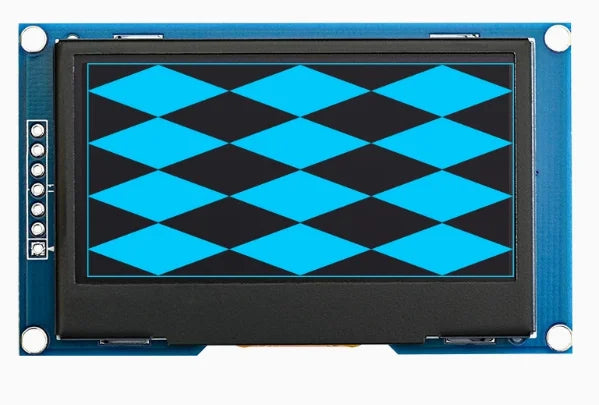

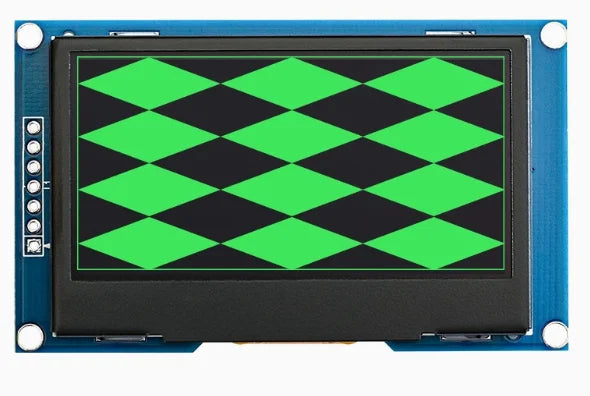

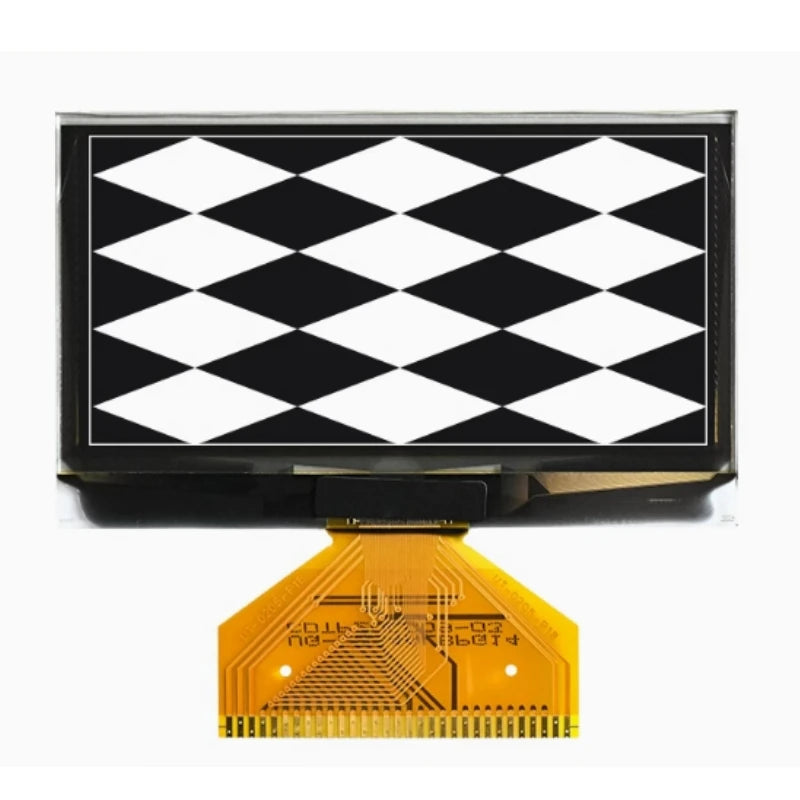

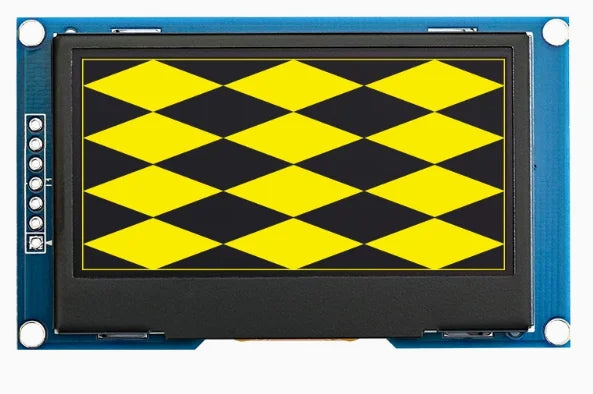

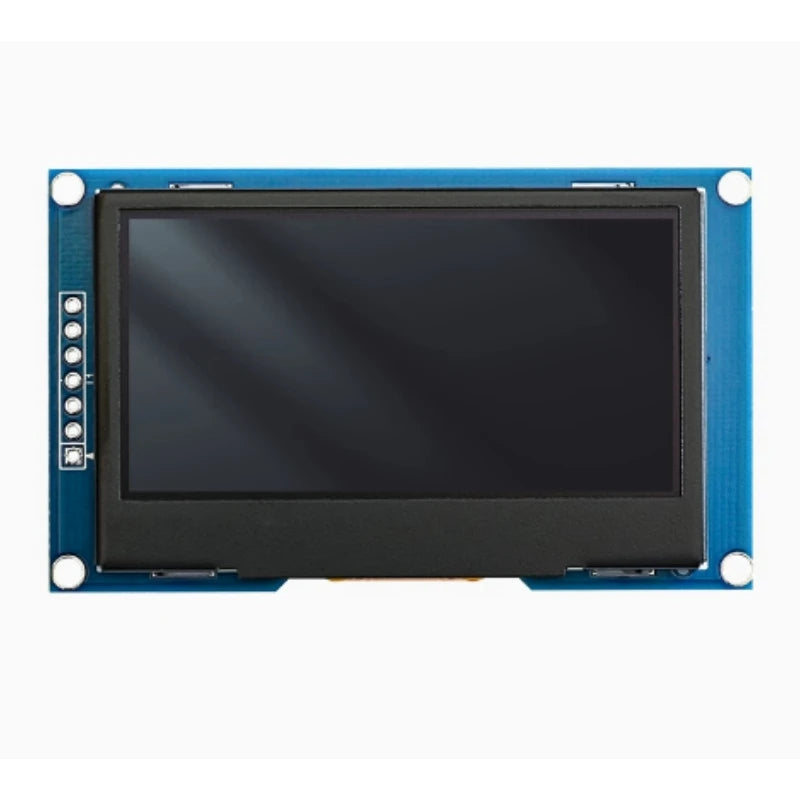

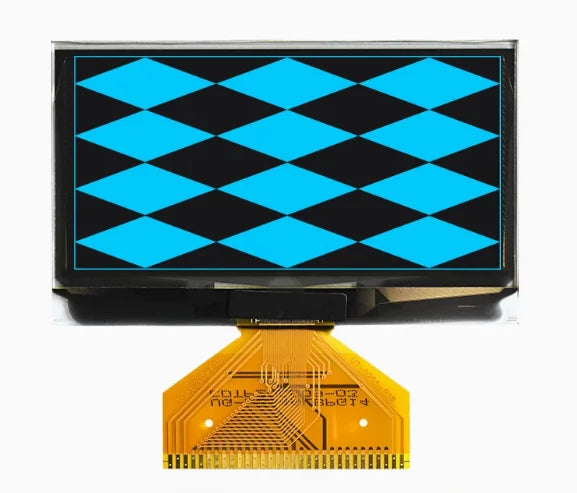

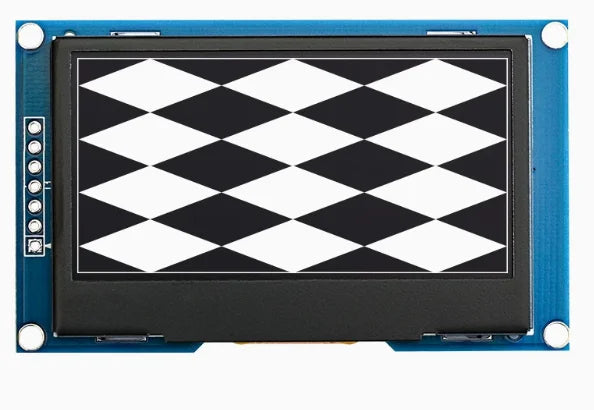

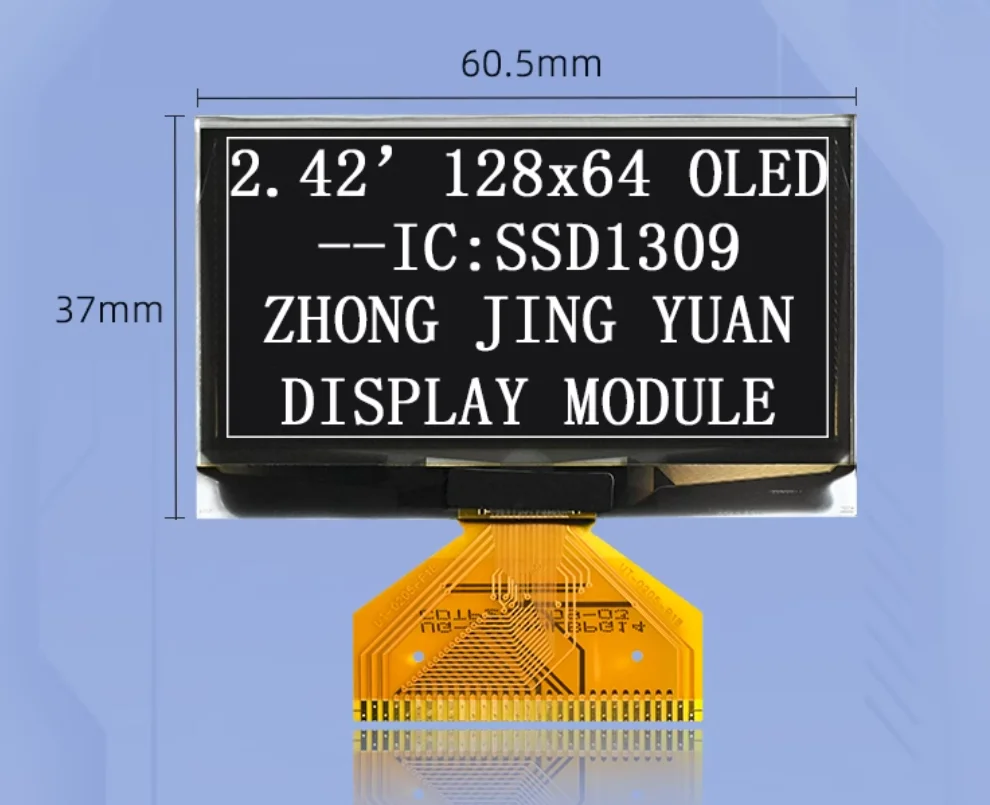

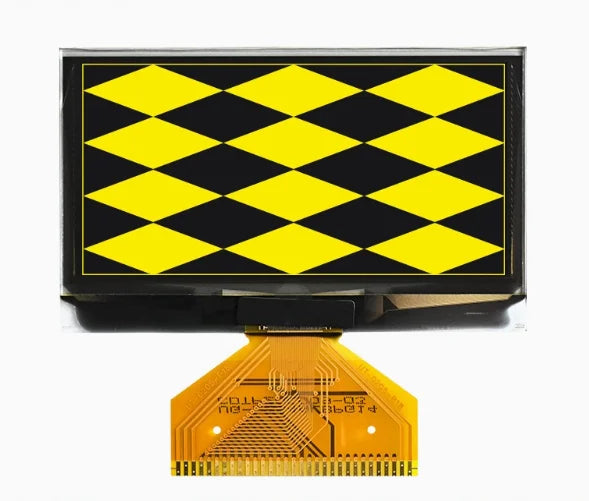

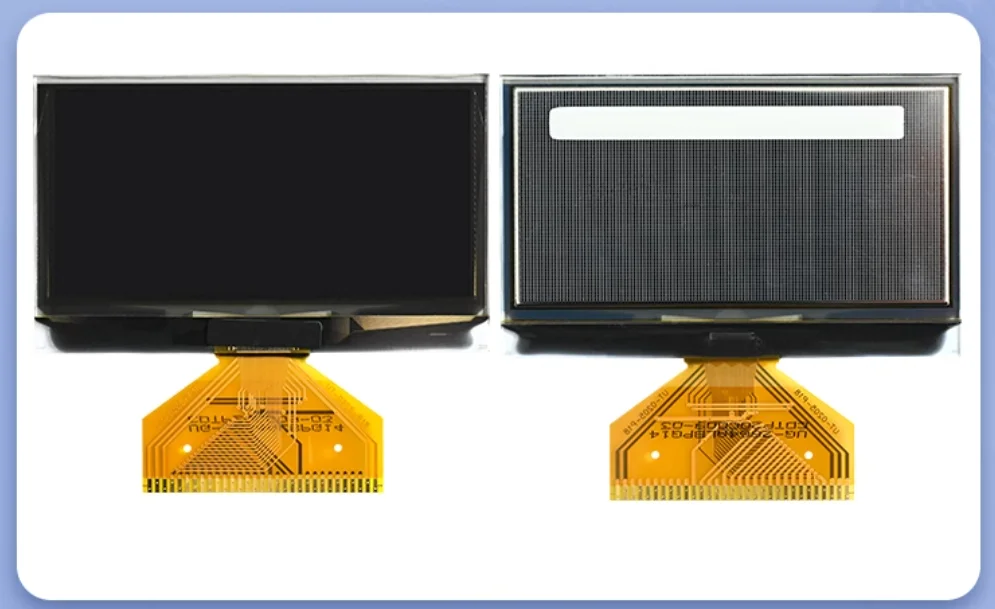

Custom 2.42-inch OLED display 12864 LCD screen SSD1309 driver OLED display high brightness industrial

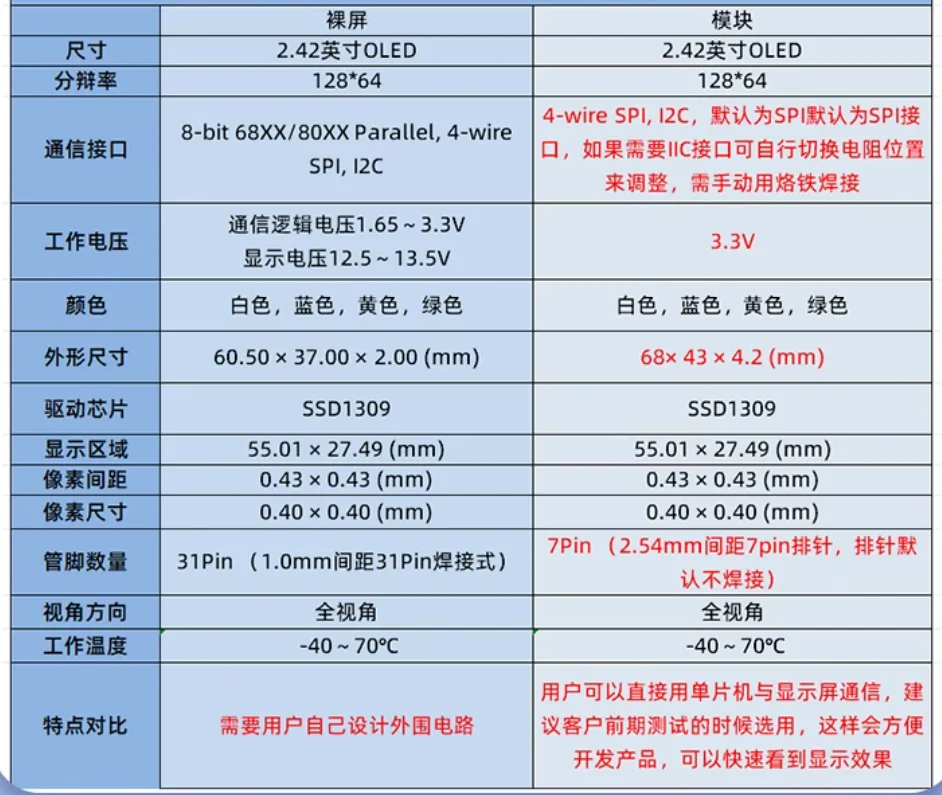

Size: 2.42 inches

Material: High brightness PM OLED

Resolution: 128 * 64

Control chip: SSD1309

Brightness adjustment: supports software brightness adjustment

Display colors: blue, yellow, white, green

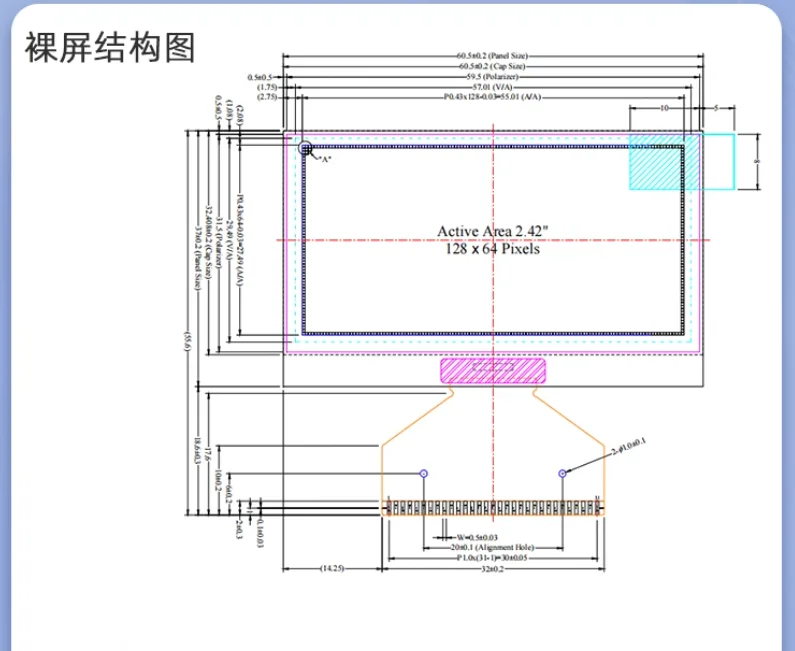

Display area: 55.01x27.49 (mm)

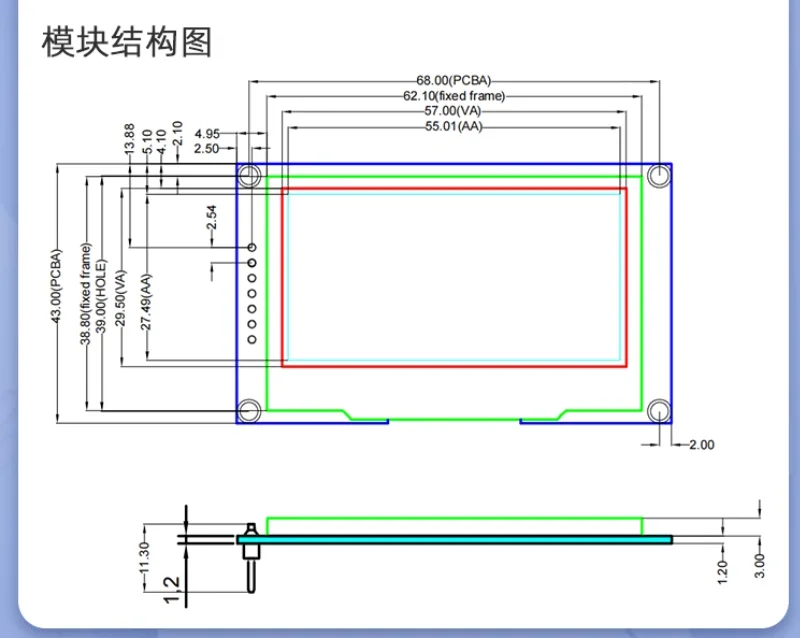

PCB size: 72 * 43 (mm)

Interface type: 4-wire SPl, I2C two configurable options; Default shipment is 4-wire SPI interface

Pixel size: 0.40x0.40 (mm)

Pixel spacing: 0.43x0.43 (mm)

Number of pins: 7 pins

Connection method: 2.54 pitch single row needle arrangement

Perspective direction: full view angle

Working voltage level: 3.3V

Working temperature: -40~85 ° C

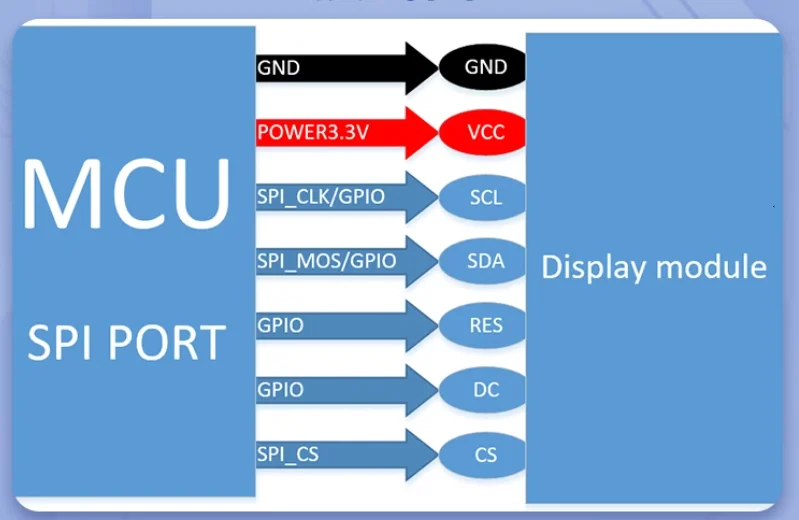

GND     Power Ground

VCC      Power supply positive 3.3V

SCL       SPI/IC clock cable

SDA      SPI/IC data cable

RES       OLED screen reset pin (needs to be reset once after power on)

DC Data/Command Control Pin

CS Chip selection (low level effective, cannot be suspended, does not require grounding)
