Custom 2.13inch e-Paper HAT (C) 212x104 E-paper for Raspberry Pi2B/3B/Zero/Zero W Yellow Black White Three-color SPI interface Manufacturer

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

2.13inch e-Paper HAT (C) Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
• Preserved solder pads for SPI interface, for connecting with other controller boards like /Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano//STM32)

2.13inch e-Paper HAT (C) Specifications

• Operating voltage: 3.3V/5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 65mm × 30.2mm
• Display size: 23.71mm × 48.55mm
• Dot pitch: 0.229 × 0.228
• Resolution: 212 × 104
• Display color: yellow, black, white
• Grey level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

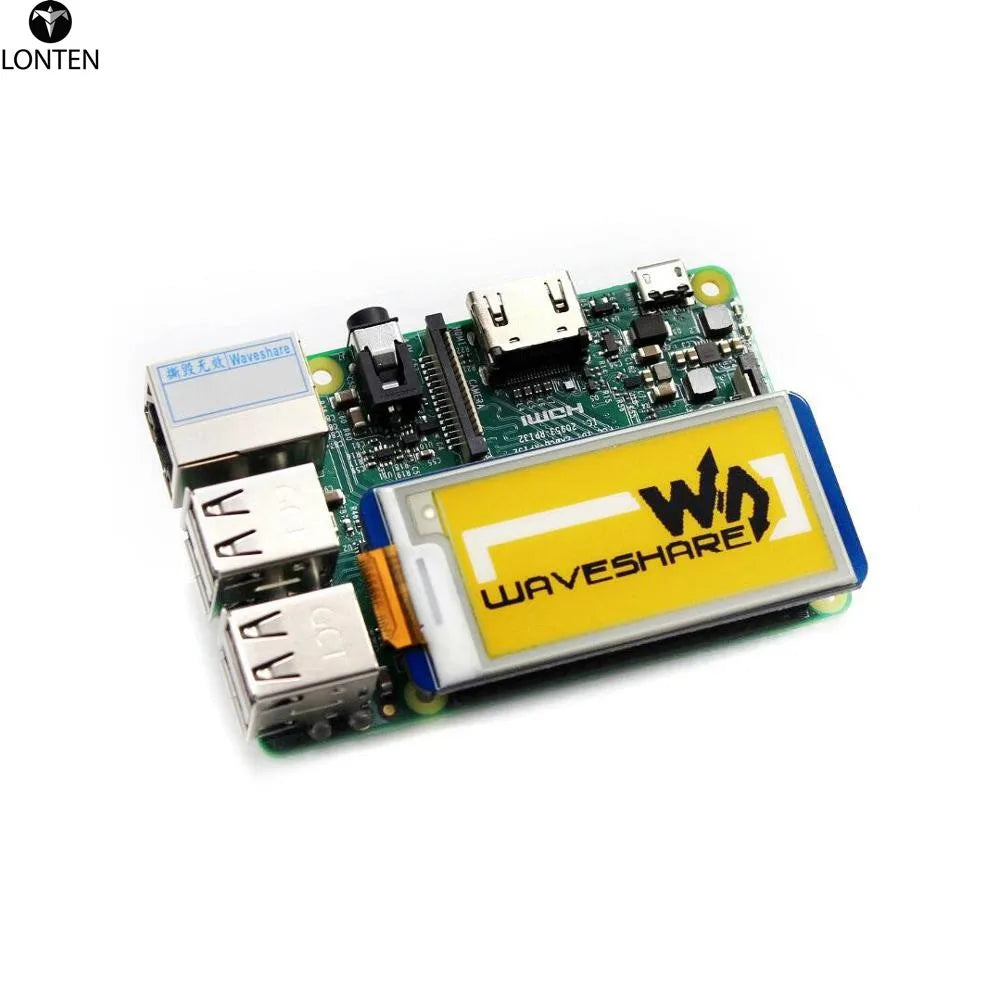

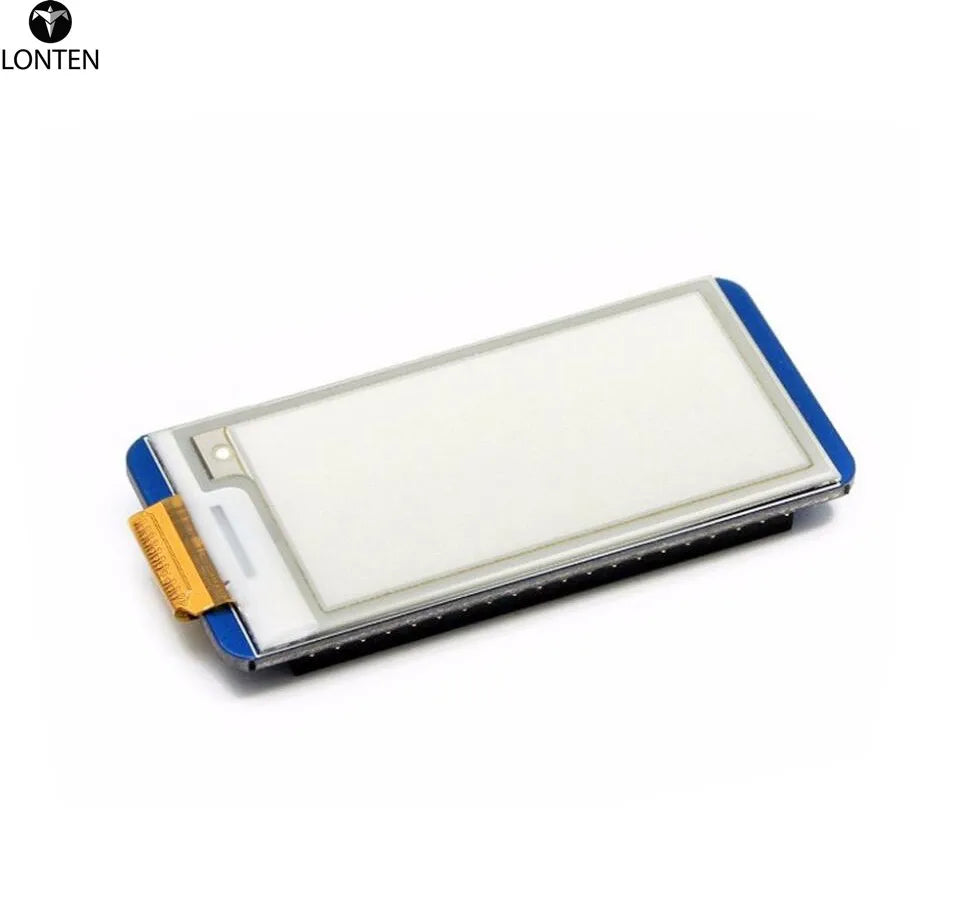

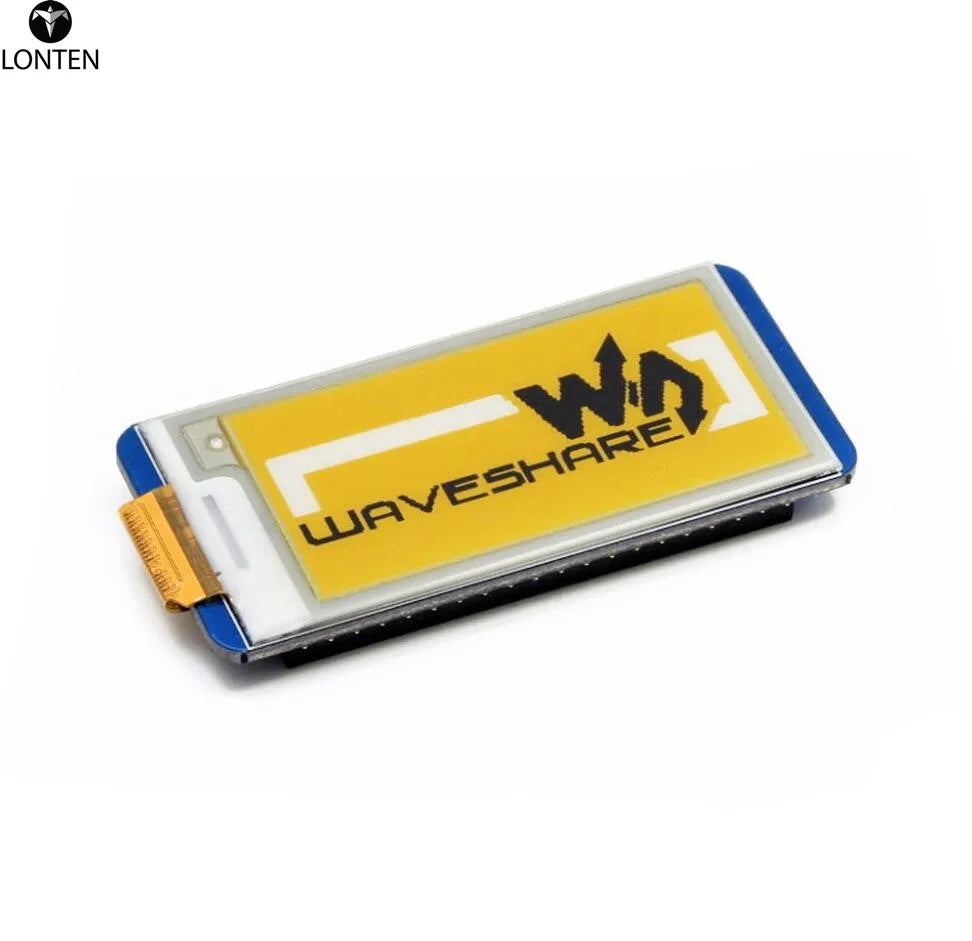

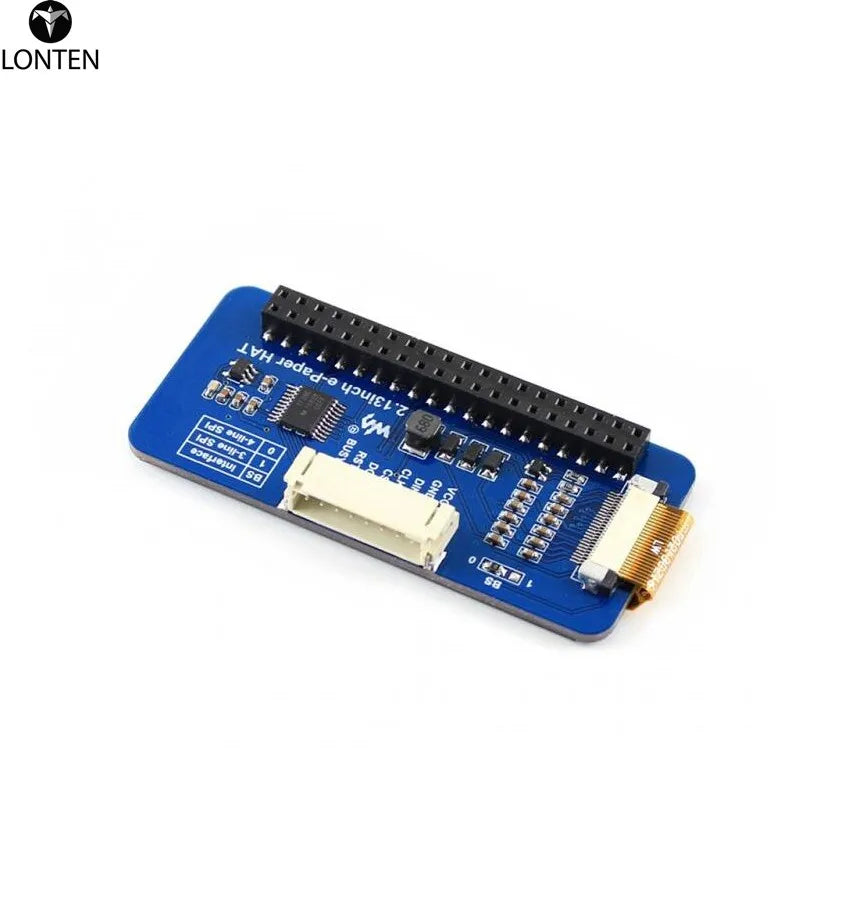

Photos

Development Resources

Wiki : www..com/wiki/2.13inch_e-Paper_HAT_(C)

Dimensions

Development Resources

Wiki : www..com/wiki/2.13inch_e-Paper_HAT_(C)

1. 2.13inch e-Paper HAT (C) x1
2. RPi screws pack (2pcs) x1
3. PH2.0 20cm 8Pin x1
