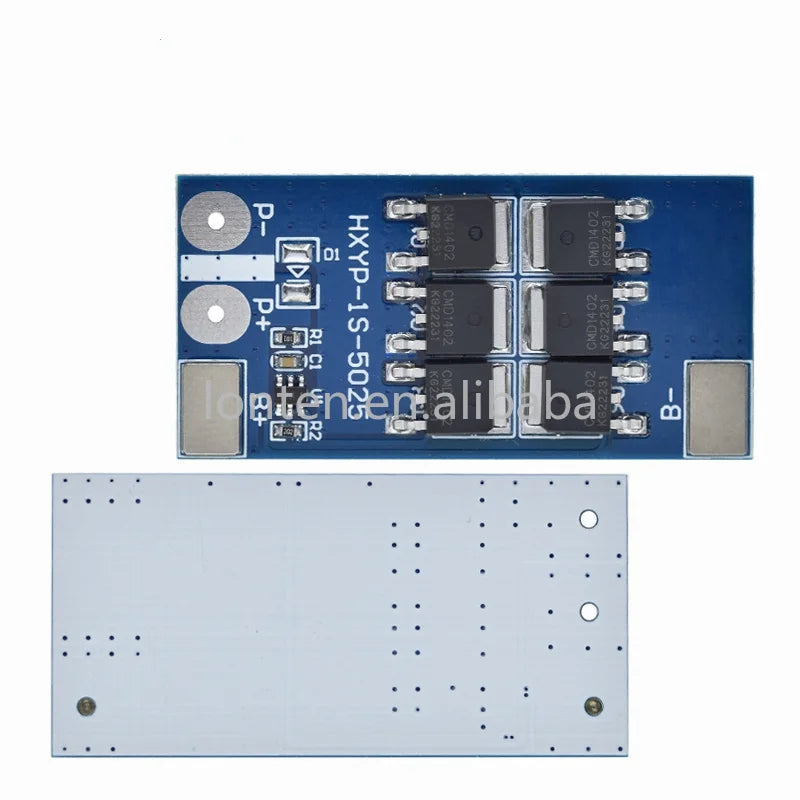

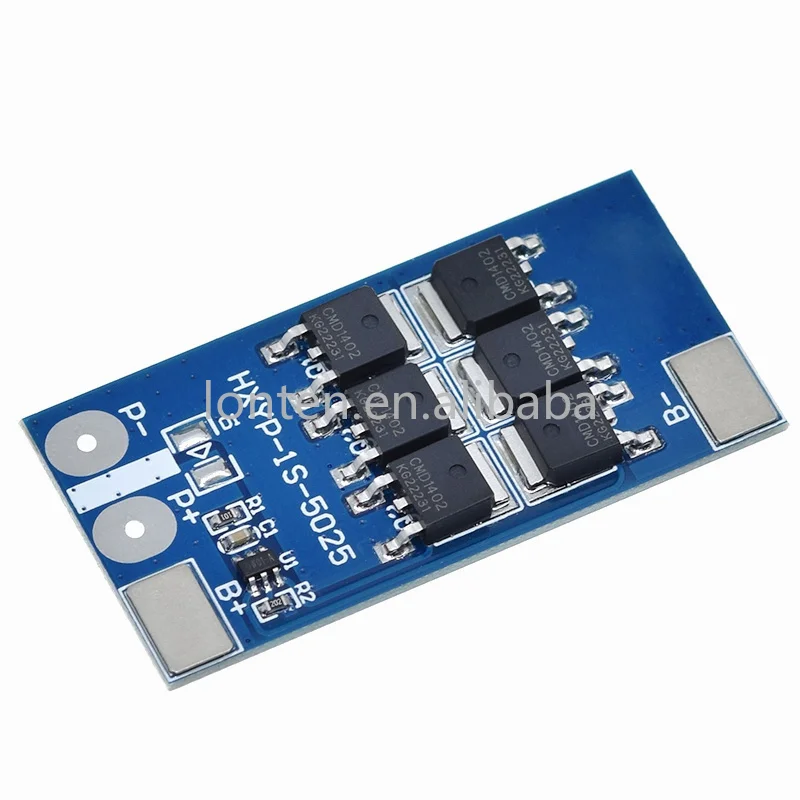

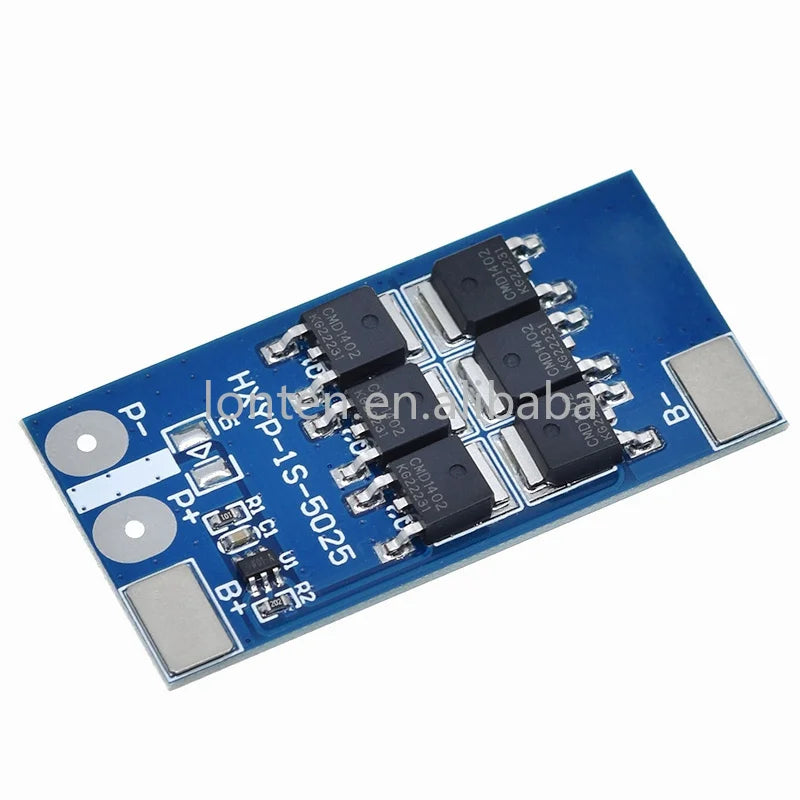

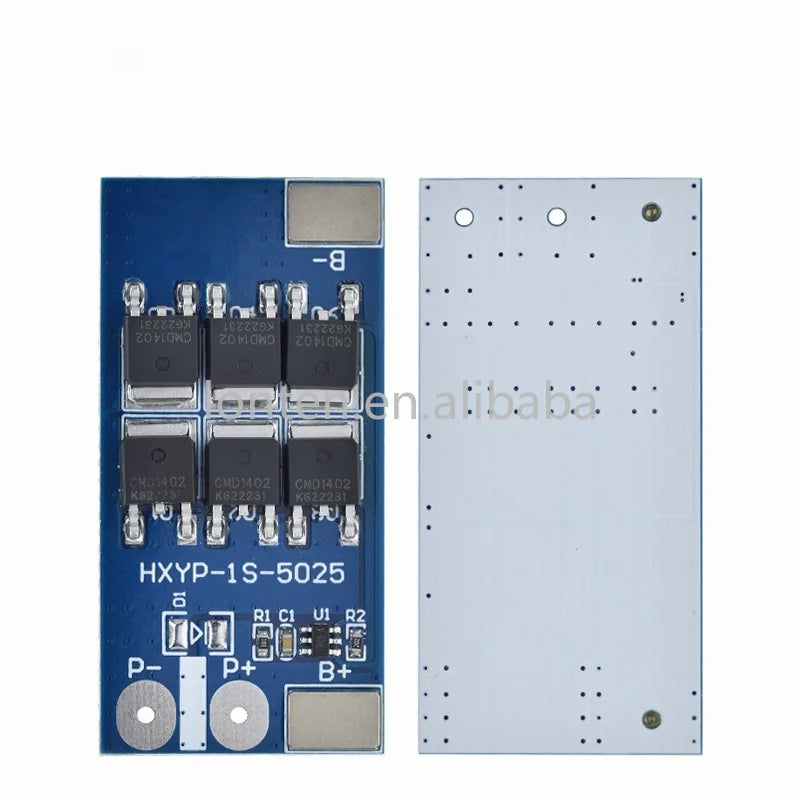

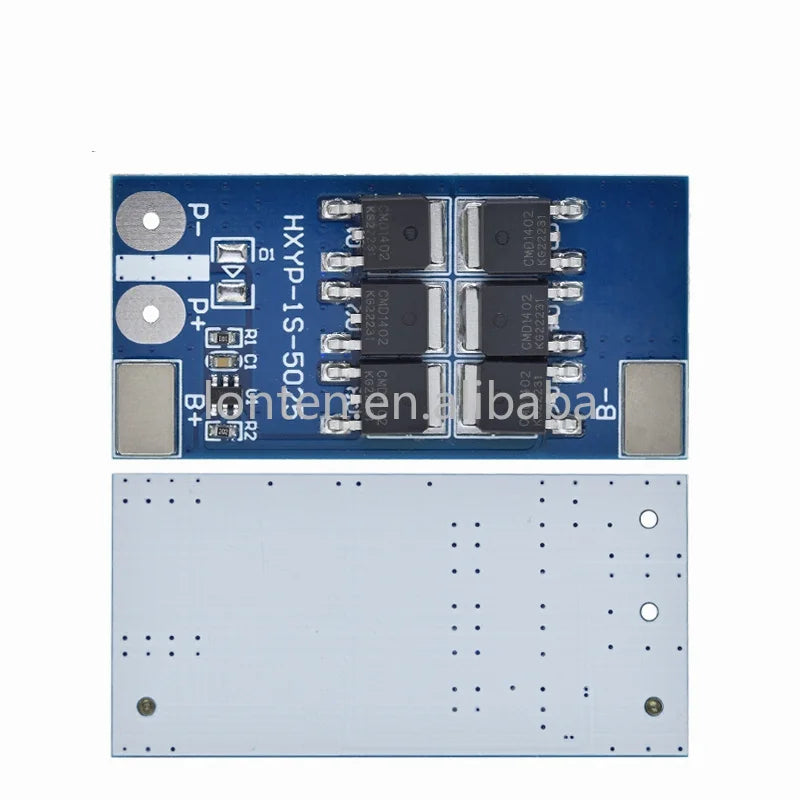

Custom 1S 3.2V 3.7V 24A Li-ion LifePo4 Lithium Iron Phosphate Protection Board BMS PCB PCM Cell Pack Overcharge Over-discharge Protect Manufacturer

Technical parameters:

Overcharge detection voltage: 3.75V±0.25V

Overcharge release voltage: 3.45V±0.25V

Over-discharge detection voltage: 2.1±0.05V

Upper limit continuous current: 24A

Overcurrent detection current: 42A

Charging voltage: 3.7-3.9V

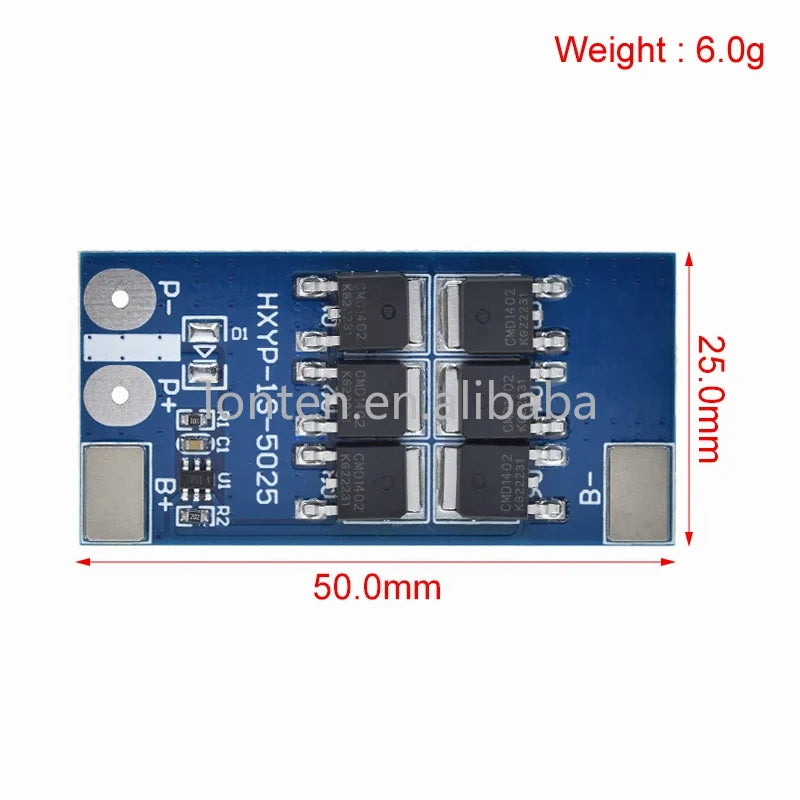

Product Size: 25*50*3.5MM

The main function:

Overcharge protection, over discharge protection, short circuit protection, over current protection.

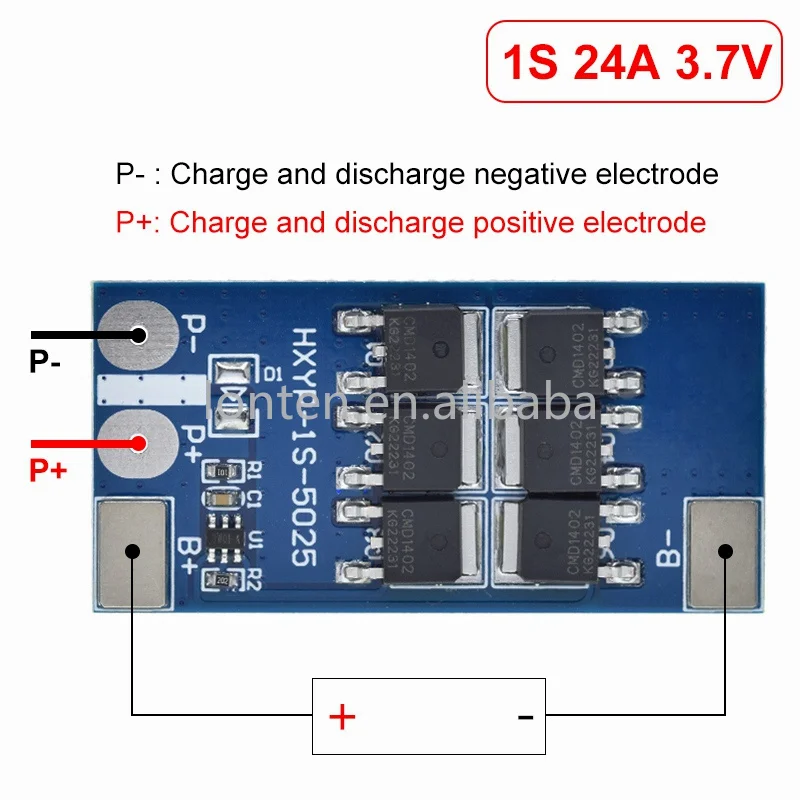

Wiring instructions:

B+ connects to the positive battery.

B-Connect the battery negative.

P+ is the battery output positive input

P- is the output negative input for the battery pack

Package included:

1X battery protection
