Custom 1S 2S 3S 4S 3A 20A 30A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board For Drill Motor Lipo Cell Module Manufacturer

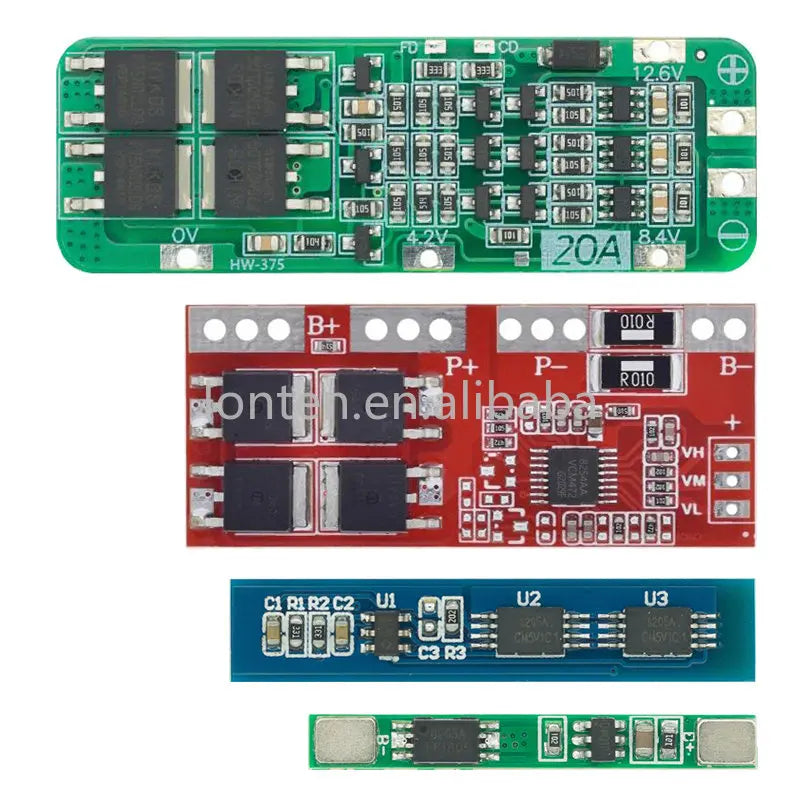

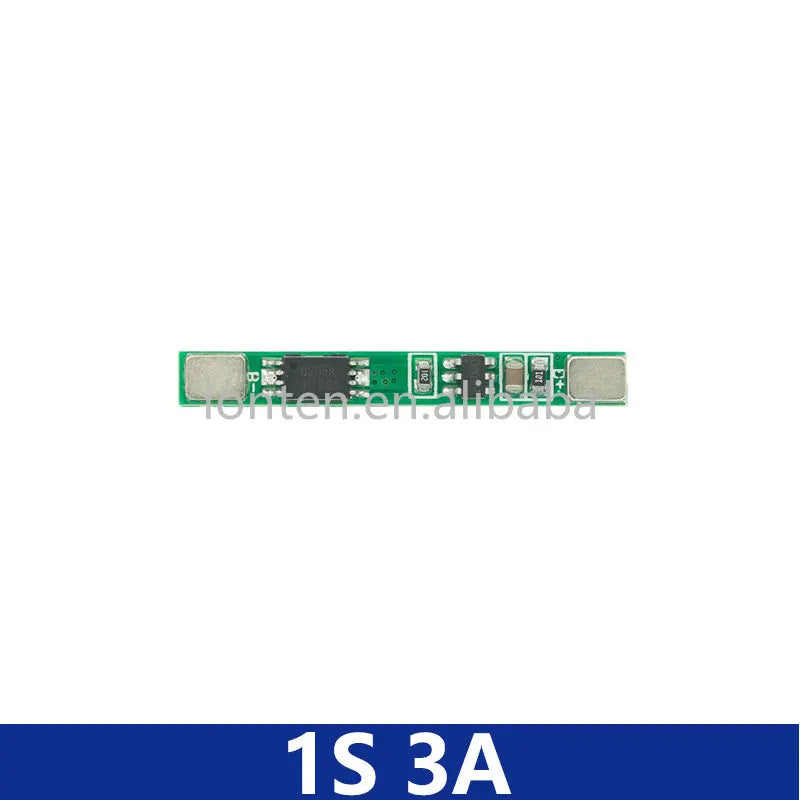

1S 3.7V 3A

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);

4) MOS transistor can control the battery charge and discharge;

Parameter:

Over charge voltage: 4.25±0.05V

Over charge release voltage:4.23±0.05V

Over discharge voltage:2.54±0.1V

Maximal continuous charging current: 2A

Maximal continuous Discharging current: 2A

Over current protection: 3A

Size: L40*W4*T3mm

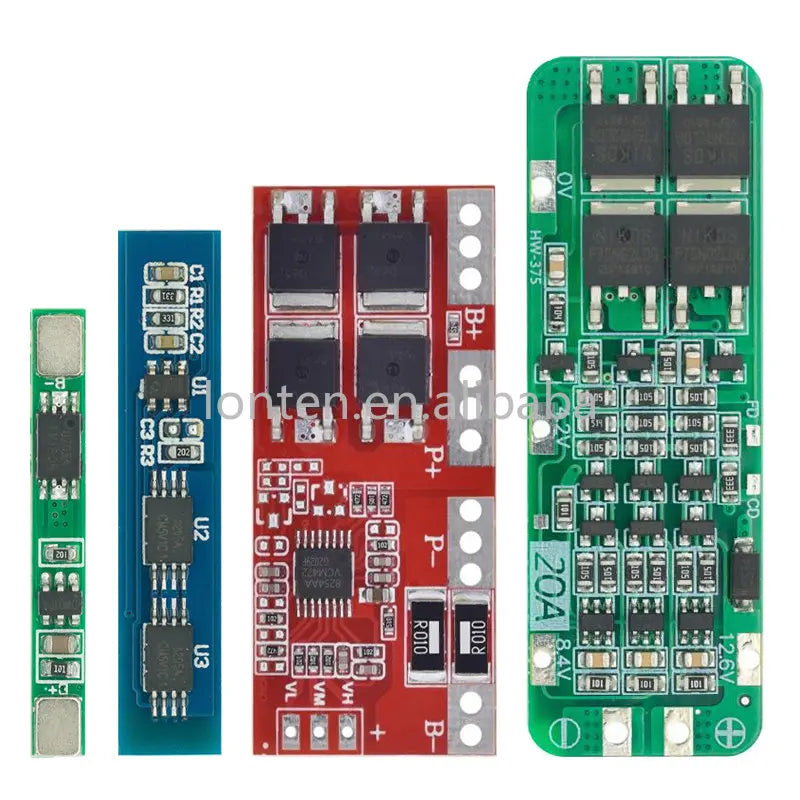

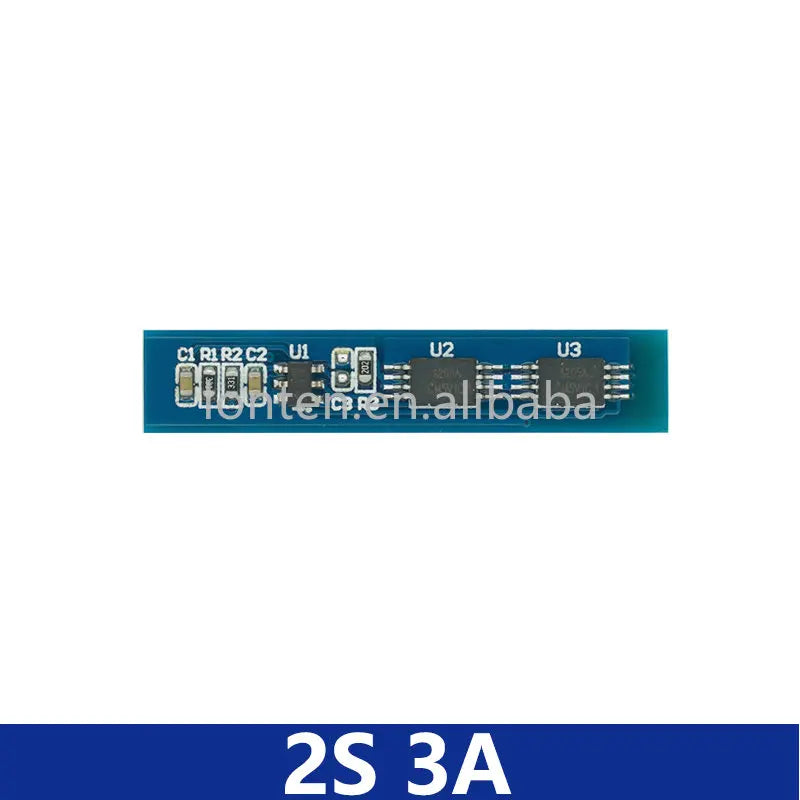

2S 7.4V 3A

Description:

Short circuit protection

Overcharge protection

Over-discharge protection

Overcurrent protection

Overcharge Detection Voltage: 4.25-4.35V±0.05V

Over Discharge Detection Voltage: 2.3-3.0V±0.05V

Maximum Working Current: 3A

Transient Current: 5A

Operating Temperature: -40-50 degree

Internal Resistance: Less than 45m Ω

B+ B-: The interface of battery core

P+ P-: The connector of battery board

MB: The connection point between the batteries

B+: Battery V+ Positive

B-: Battery V- Negative

P+: Output / Charging V+

P-: Output / Charging V-

Size: Approx. 36x6x1mm/ 1.42" x 0.24" x 0.04"

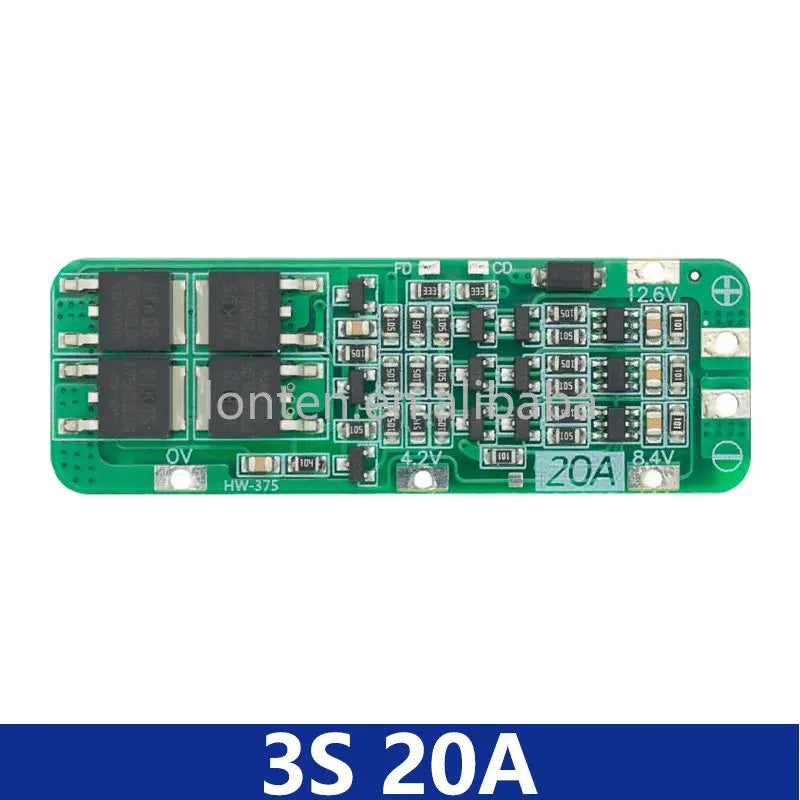

3S 12.6V 20A

Features:

Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board

Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

Product Size: 64mmx20mmx3.4mm

Material:Metal

Charging voltage: 12.6V

Maximum output current: 20A

Maximum output power / charging power: 252W

Precautions:

1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.

2.After connection,it need to first charge activation, then will have the output.

Attention:

Do not mix the good battery and poor battery to use.

The internal resistance of 3 battery capacity are closer will be better.

Please buyers know the professional knowledge of this module before buying

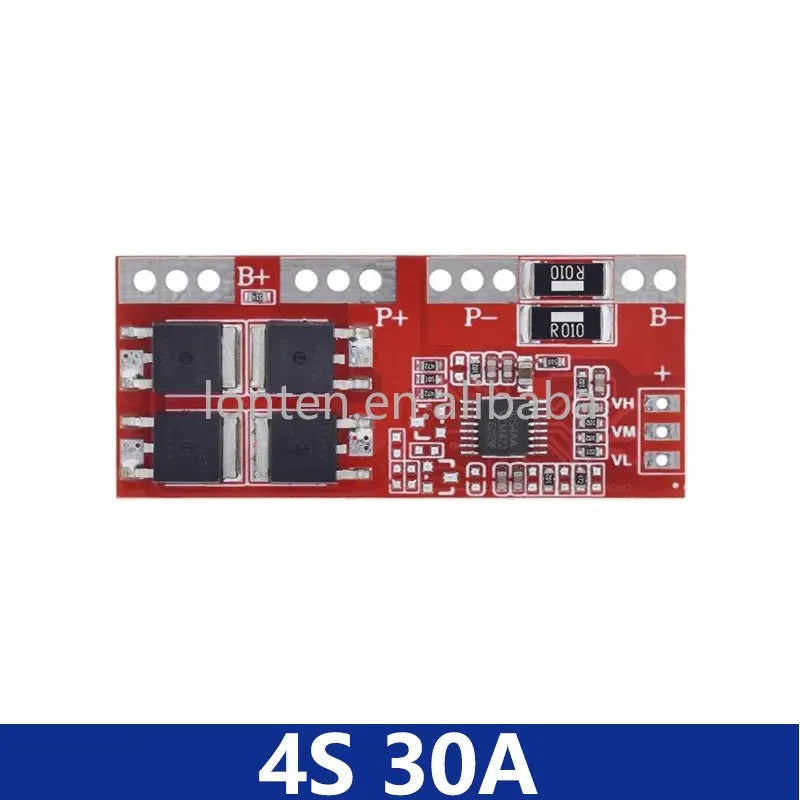

4S 30A 16.8V

Module:4S Li-ion Lithium Battery Protection Board

overcharge detection voltage :4.25±0.025V

overcharge Lift the voltage:4.15±0.05V

over discharge detection voltage :2.50±0.08V

over discharge Lift the voltage:3.00±0.1V

overcurrent current:20-30A

working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A

Remove protection condition automatic recovery, without activation

Protections:

Short circuit protection

Overcharge protection

Over-discharge protection

Over current protection

operating temperature:-40-85

Size:50*22*4mm
