Custom 1PCSSPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H Microphone Module for Arduino Raspberry Pi

Custom 1PCSSPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H Microphone Module for Arduino Raspberry Pi

Regular price $2.93 USD
Regular price $4.93 USD Sale price $2.93 USD
Sale Sold out

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product

quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

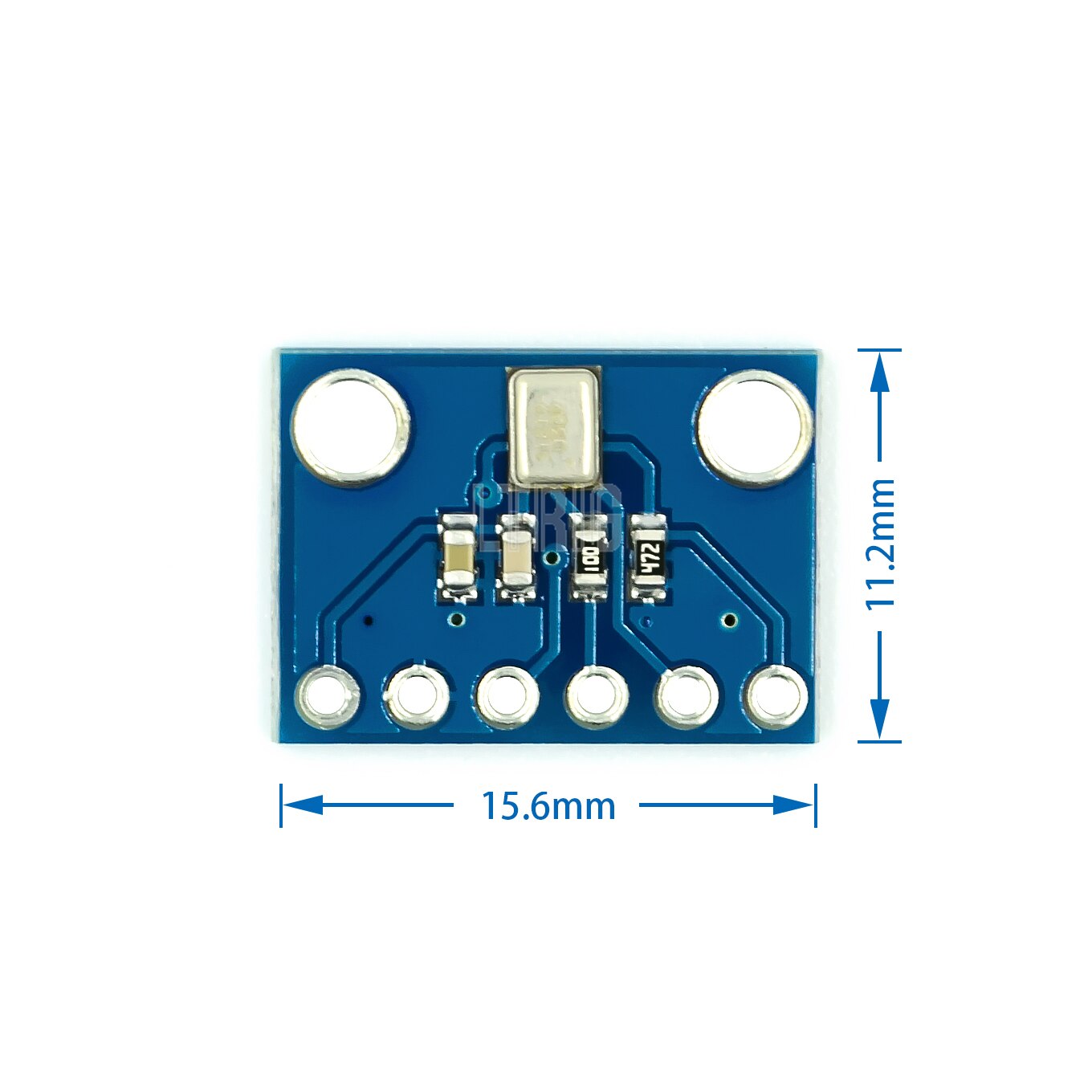

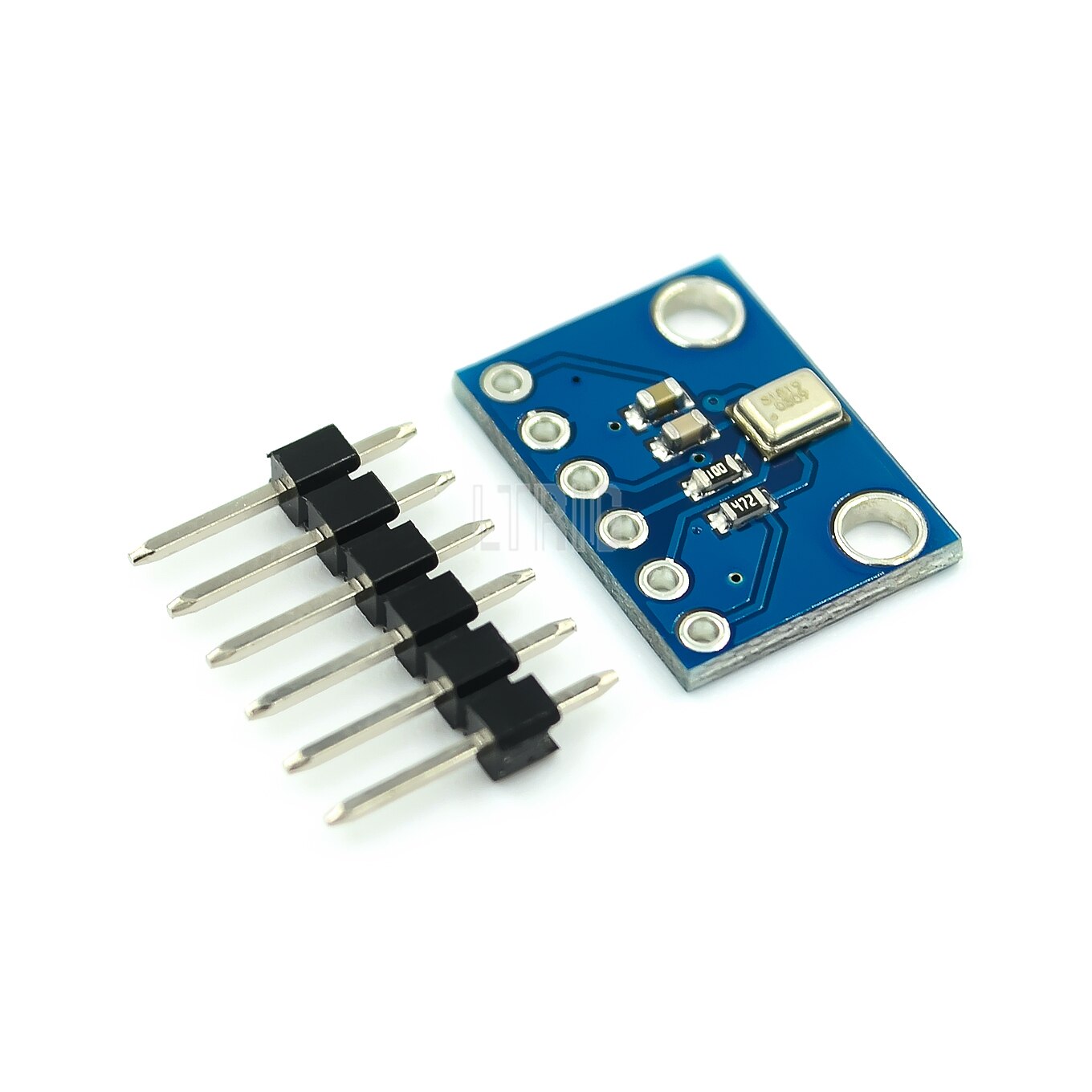

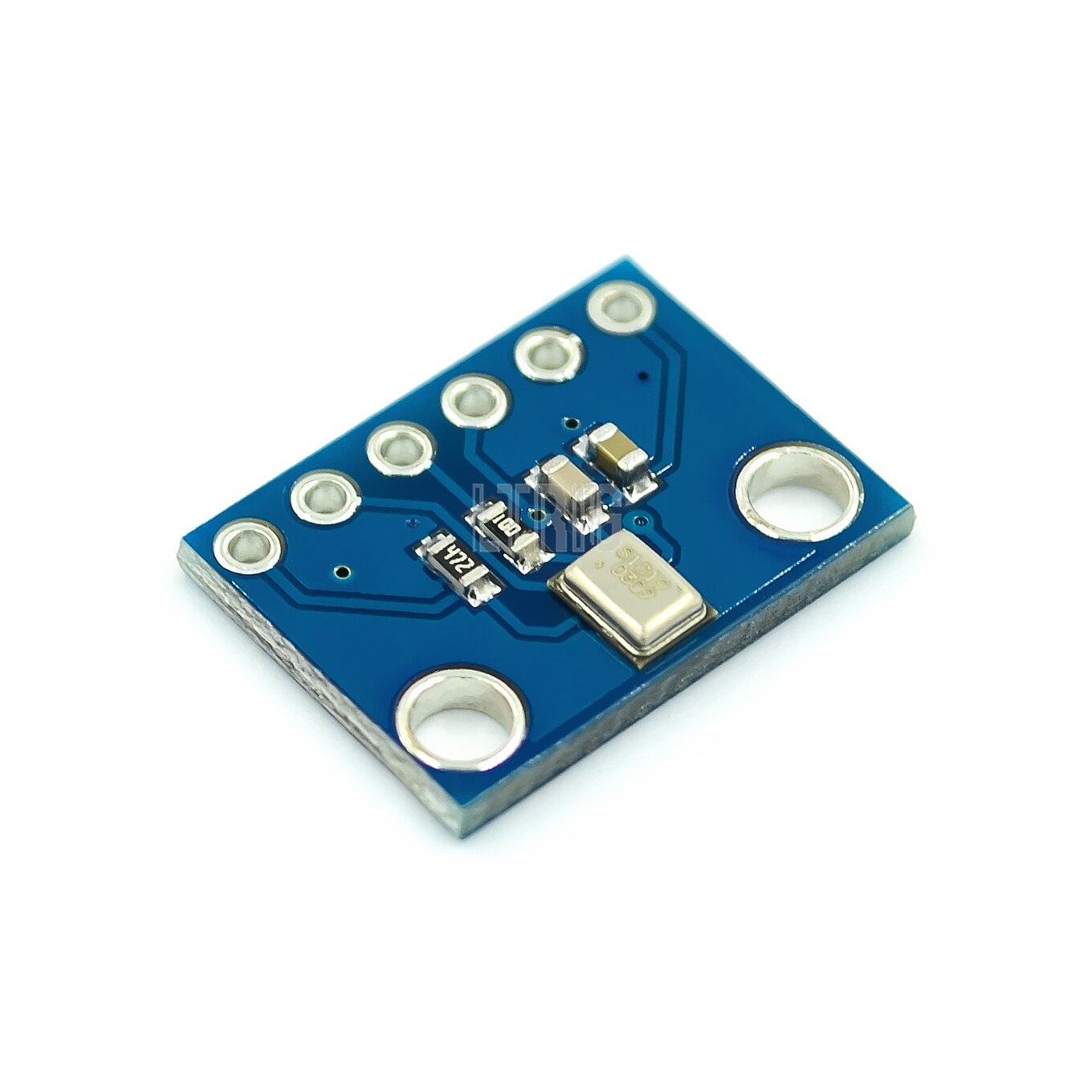

SPH0645 I2S MEMS Microphone Breakout Sensor Board Module SPH0645LM4H Microphone Module 1.6-3.6V for Arduino Raspberry Pi
Description:
The microphone is a single mono element. You can select whether you want it to be on the Left or Right channel by connecting the Select pin to power or ground. If you need stereo, pick up two microphones!
You can set them up to be stereo by sharing the Clock, WS and Data lines but having one with Select to ground, and one with Select to high voltage.

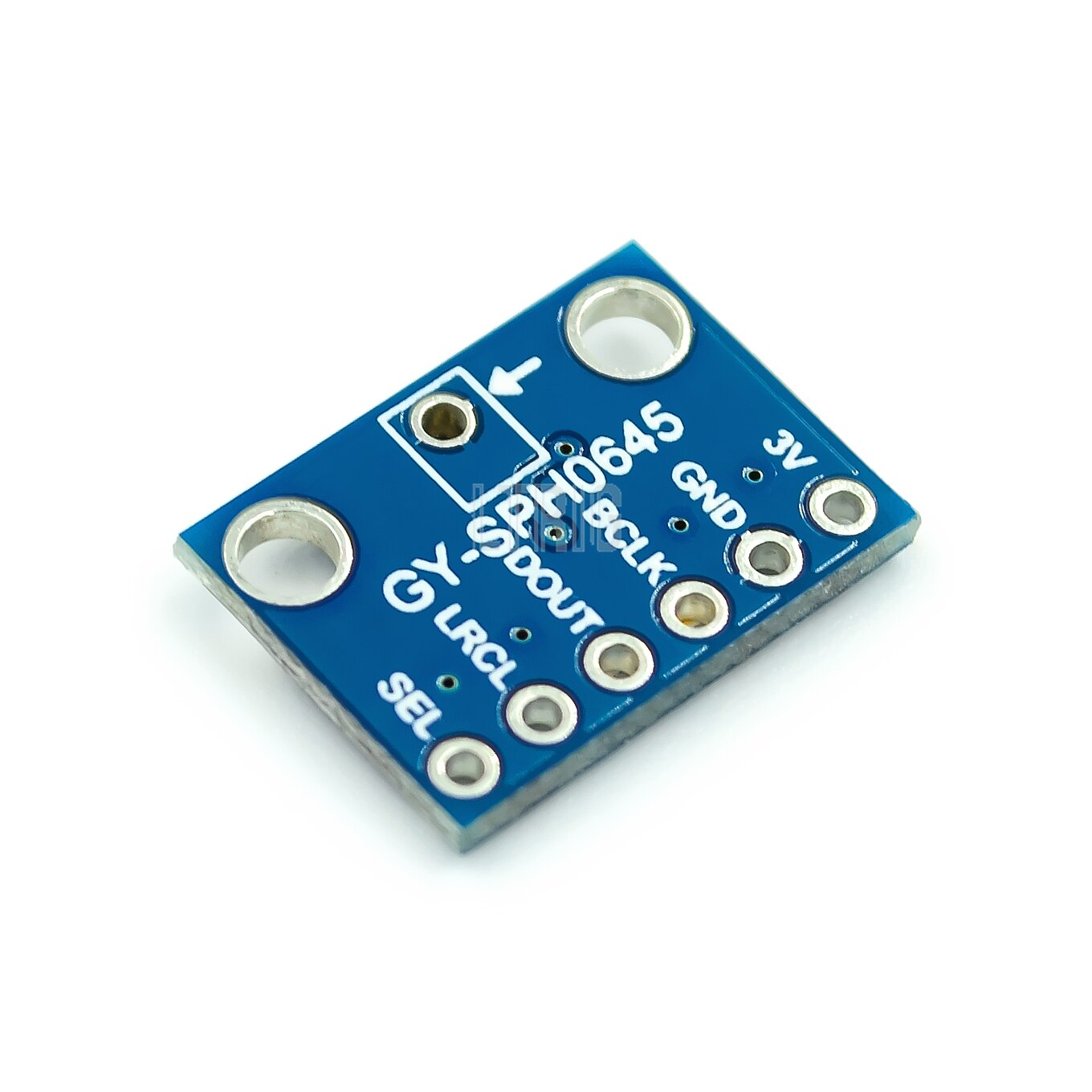

This I2S MEMS microphone is bottom ported, so make sure you have the hole in the bottom facing out towards the sounds you want to read. It's a 1.6-3.6V max device only, so not for use with 5V logic (its really unlikely you'd have a 5V-logic device with I2S anyways).
Many beginner microcontroller boards don't have I2S, so make sure its a supported interface before you try to wire it up! This microphone is best used with Cortex M-series chips like the for Arduino Zero, for Feather M0, or single-board computers like the for Raspberry Pi.
