Custom 1Pcs YLY-2088 double 2 way 400W Adjustment treble/bass frequency divider speaker audio crossover filter modules Manufacturer
Custom 1Pcs YLY-2088 double 2 way 400W Adjustment treble/bass frequency divider speaker audio crossover filter modules Manufacturer
Regular price
$3.32 USD
Regular price
$3.32 USD
Sale price
$3.32 USD
Unit price
per
Couldn't load pickup availability
Specifications:
Model: YLY-2088

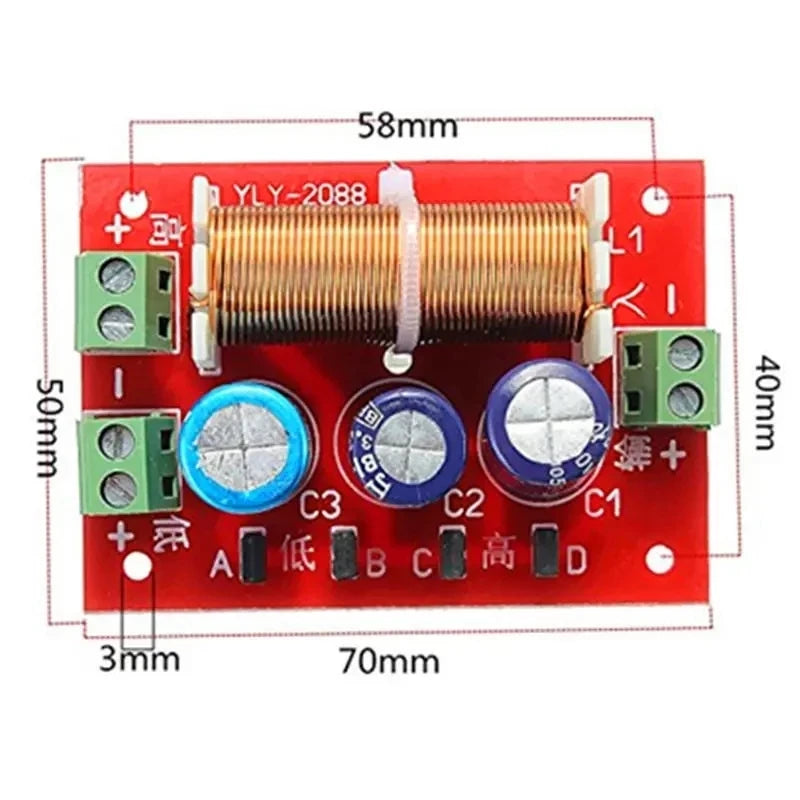

Size: 7 x 5 x 2.5cm
Power: 400W or lower
Resistance: 4-16ohm
Frequency: Adjustable

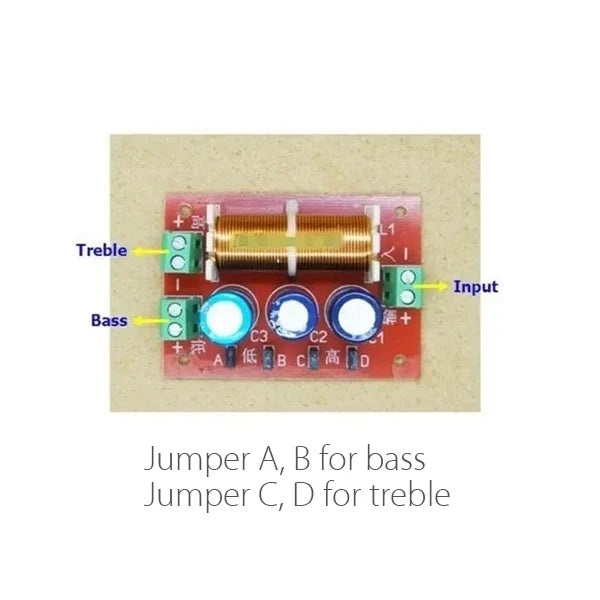

With 4 jumpers onboard to optimize your audio effect: Jumper A, B for bass; Jumper C, D for treble (for setting details, please
see below).
Details about jumpers:
Jumper A, B are used to control audio effect of bass range. A for lower limit while B for upper limit of the bass audio range. For
some speakers, when Bass is turned up too much, the speaker will show distortion. When that happens: we remove the jumper cap of
jumper A to limit super low Bass to bring distortion lower. When we remove the cap of jumper B, Bass is increased while cap of
Jumper B is on, Bass is decreased. Jumper C and D are used to control Treble range. When cap of both jumper C and D are on, the
sound of treble is loudest. When only cap C is on, the treble sound is lower. When only cap D is on, further lower. When both caps
of C and D are removed, there is no treble sound. (Generally speaking, with the four jumpers, you'd sooner or later find your best
sound effect. Anywya, all effects still depend on your actual test.)
How to use the splitter board:
First connect as per our diagram above (Treble, Low, Input), connect to speaker, seal air gap, we can begin to hear music while
optimize.
Normally we use jumper A and let B idle. For jumper C and D: we need to hear the actual effect of treble. A general formula is:
A+D = better Bass; A+C = clear Treble and Bass; A+CD = clear Treble and Bass (the overall effect inclined towards Treble); AB+CD =
more mediant frequency. When Bass effect is unnecessarily high, we can remove cap A. Please optimize until you think the sound is
best, and then fix the board with your speaker unit.
Package includes:
1 x Audio Speaker Frequency Divider
Model: YLY-2088
Size: 7 x 5 x 2.5cm
Power: 400W or lower
Resistance: 4-16ohm
Frequency: Adjustable
With 4 jumpers onboard to optimize your audio effect: Jumper A, B for bass; Jumper C, D for treble (for setting details, please
see below).
Details about jumpers:
Jumper A, B are used to control audio effect of bass range. A for lower limit while B for upper limit of the bass audio range. For
some speakers, when Bass is turned up too much, the speaker will show distortion. When that happens: we remove the jumper cap of
jumper A to limit super low Bass to bring distortion lower. When we remove the cap of jumper B, Bass is increased while cap of
Jumper B is on, Bass is decreased. Jumper C and D are used to control Treble range. When cap of both jumper C and D are on, the
sound of treble is loudest. When only cap C is on, the treble sound is lower. When only cap D is on, further lower. When both caps
of C and D are removed, there is no treble sound. (Generally speaking, with the four jumpers, you'd sooner or later find your best
sound effect. Anywya, all effects still depend on your actual test.)
How to use the splitter board:
First connect as per our diagram above (Treble, Low, Input), connect to speaker, seal air gap, we can begin to hear music while
optimize.
Normally we use jumper A and let B idle. For jumper C and D: we need to hear the actual effect of treble. A general formula is:
A+D = better Bass; A+C = clear Treble and Bass; A+CD = clear Treble and Bass (the overall effect inclined towards Treble); AB+CD =
more mediant frequency. When Bass effect is unnecessarily high, we can remove cap A. Please optimize until you think the sound is
best, and then fix the board with your speaker unit.
Package includes:
1 x Audio Speaker Frequency Divider
