custom 1Pcs XL7015 DC-DC Dc converter Step-down module 5V-80V Wide voltage input 7005A LM2596

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

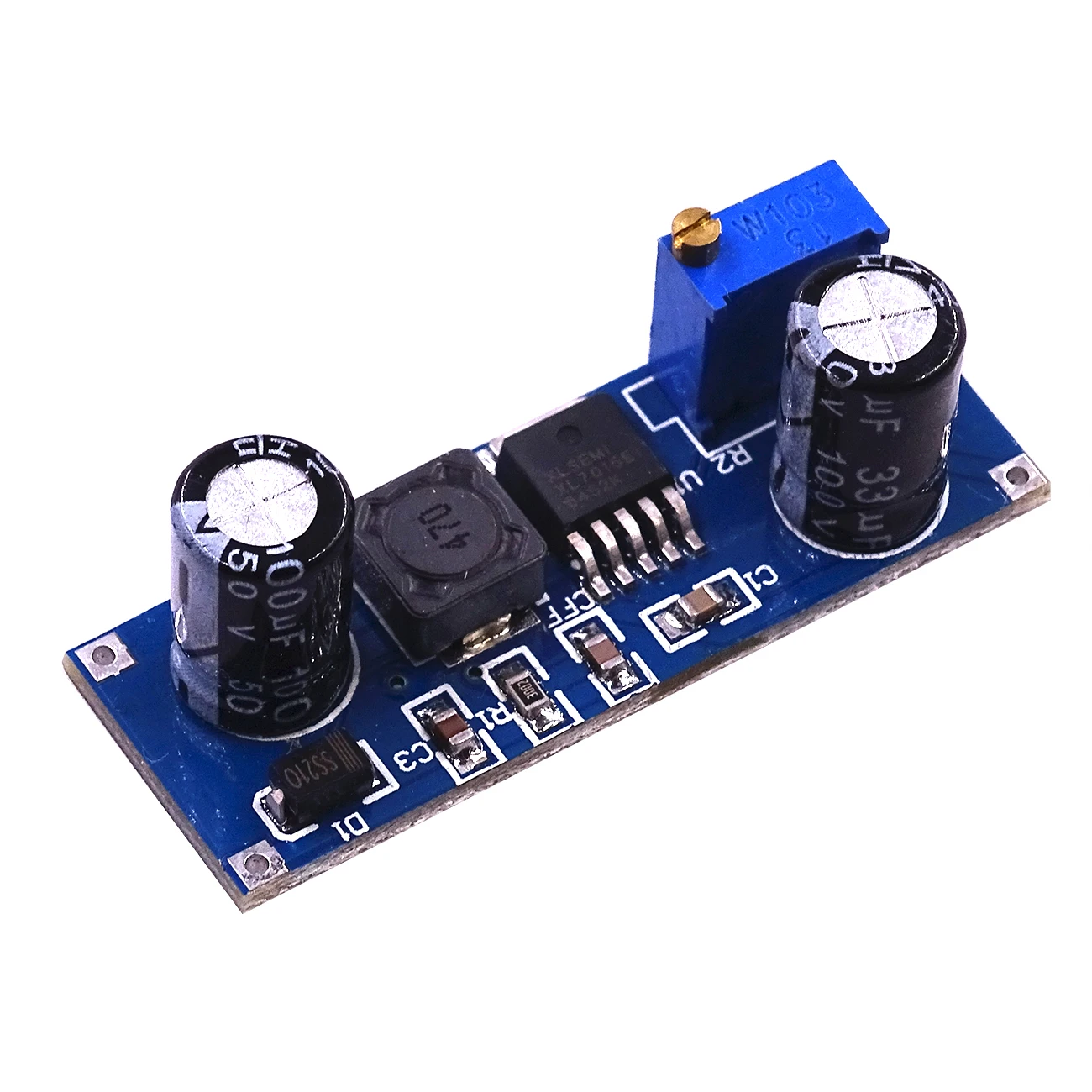

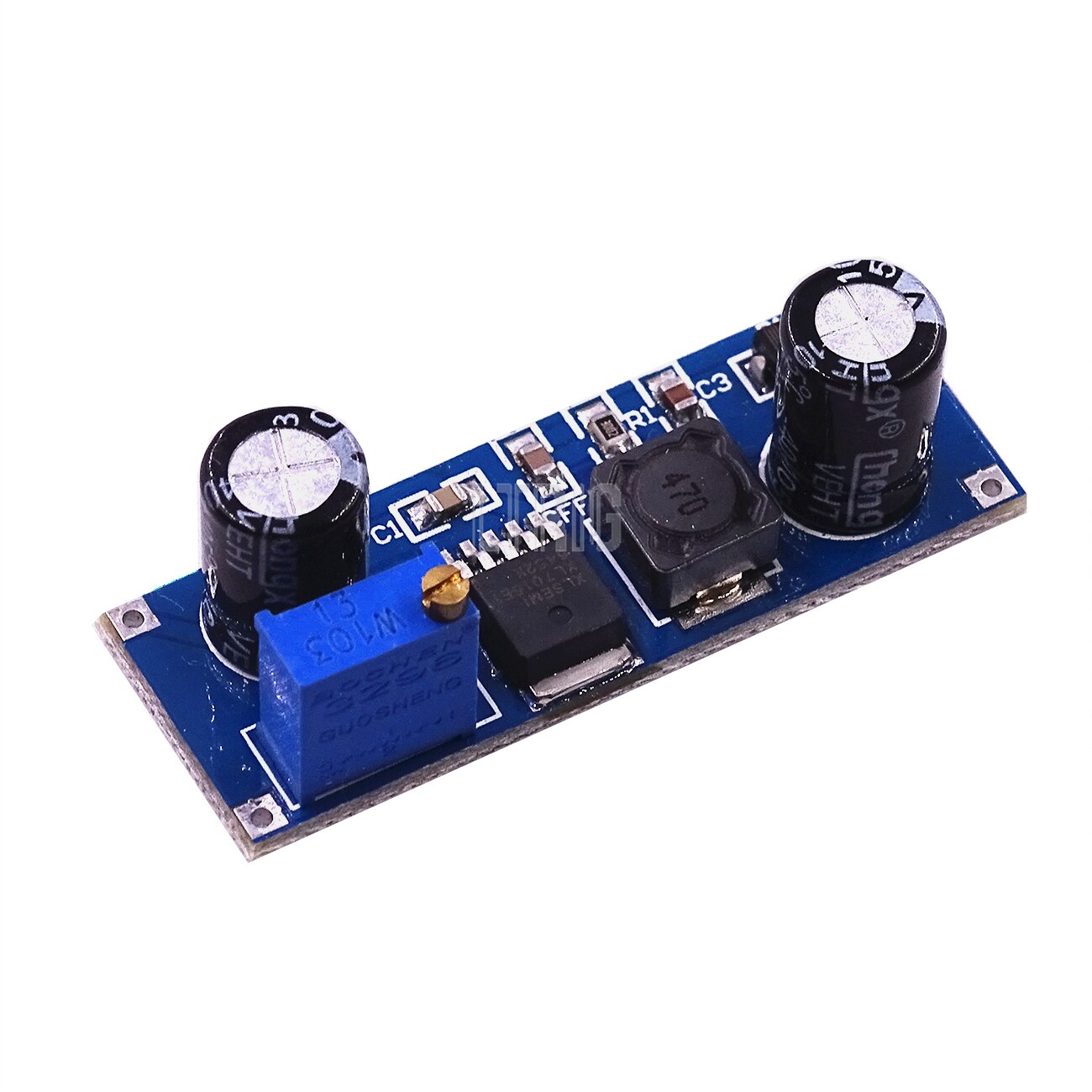

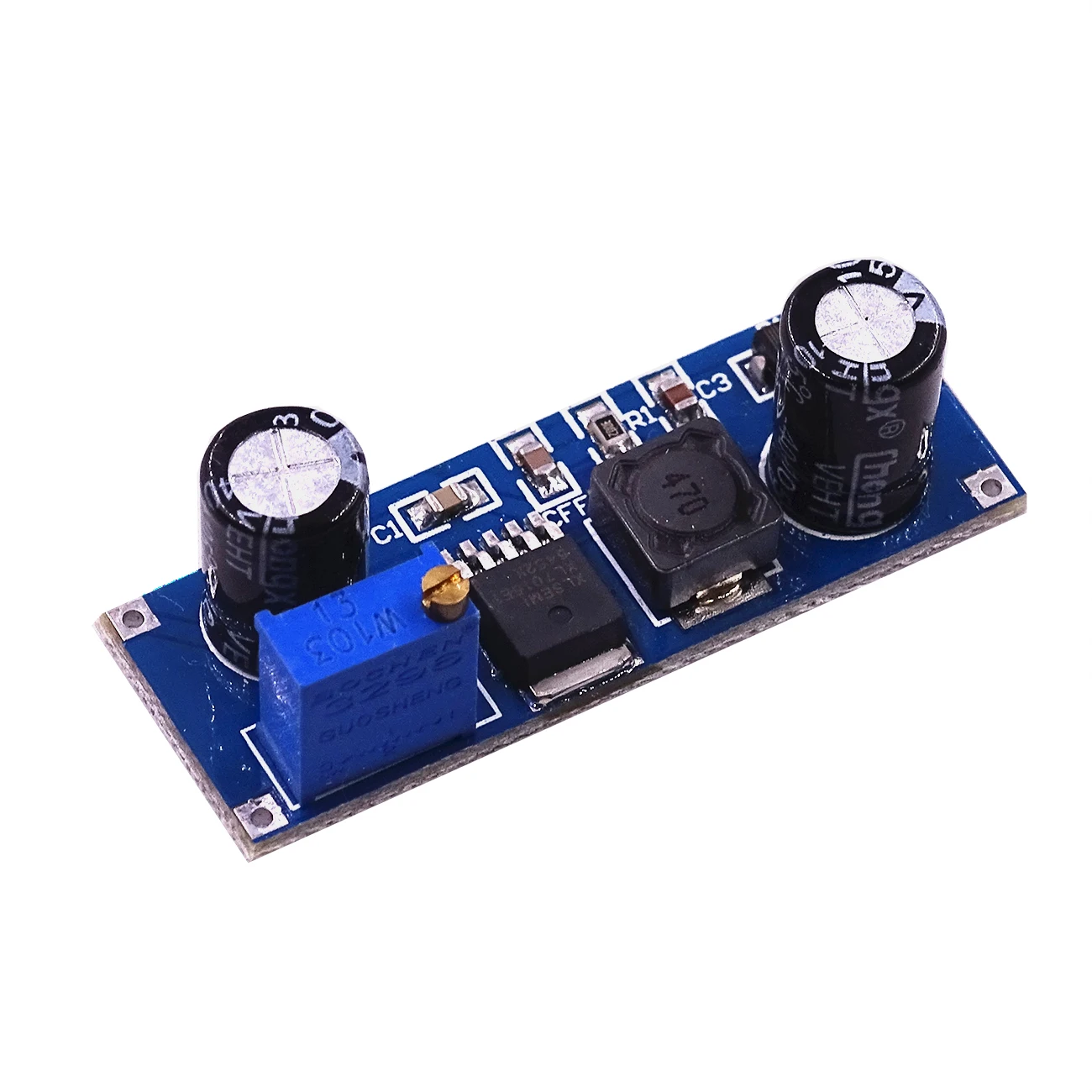

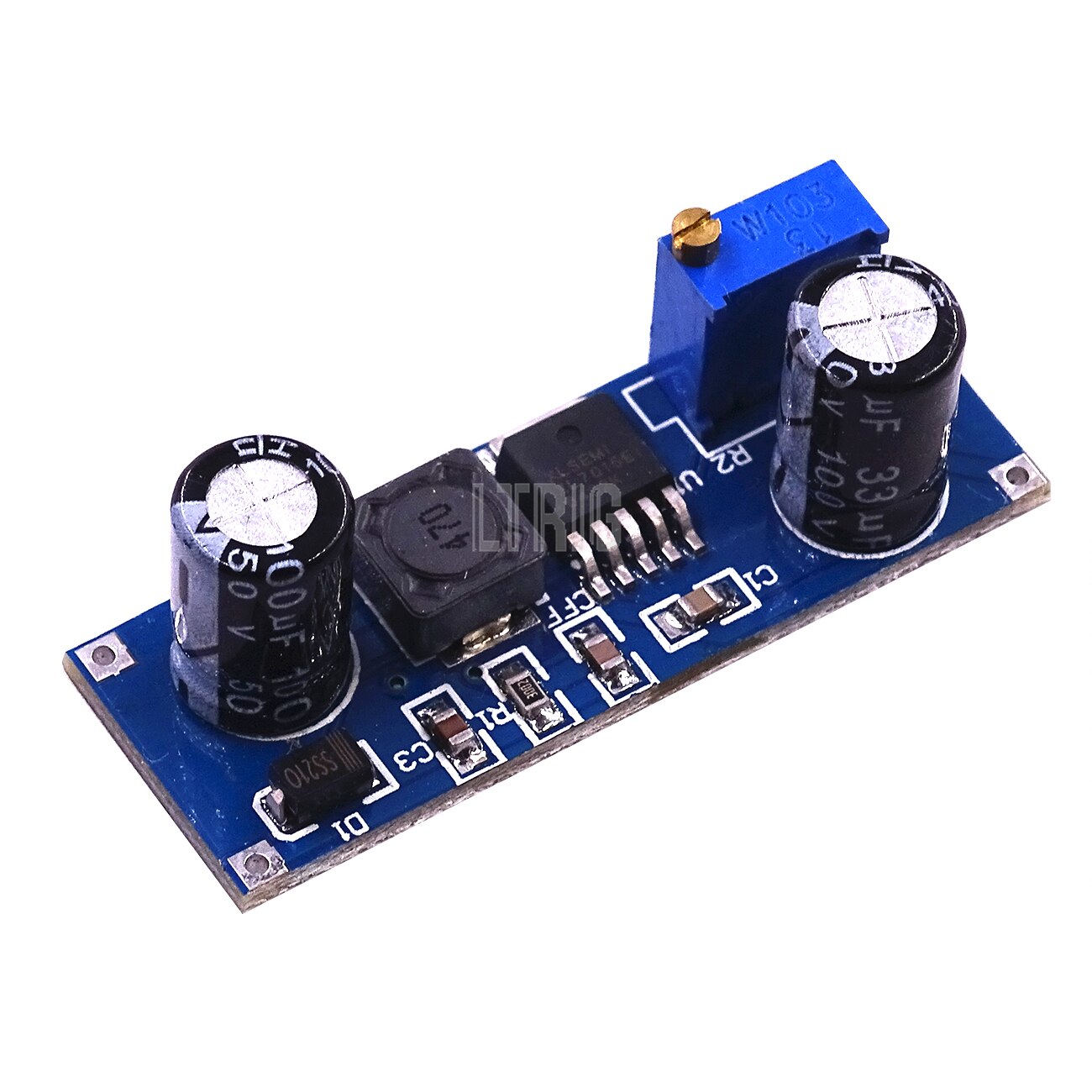

XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

1. 5 v to 80 v input voltage range wide;

2. The output voltage from 5 v to 20 v adjustable;

3. The minimum pressure drop 1 v.

4. 0.8 A biggest switch current;

5. Recommend the output power is less than 7 w;

6. Shut off built-in overheating protection, output short circuit protection, over current protection;

7. Good linear with load regulation;
The board size: 16 mm * 44 mm;

Wiring instructions
1. VIN: input voltage (5 v - 80 - v);

2. The GND: input voltage side;

3. The VOUT: output voltage (5 v - 20 v);

4. The GND: output voltage to end;

Package list:

XL7015 DC - DC DC converter  x 10
