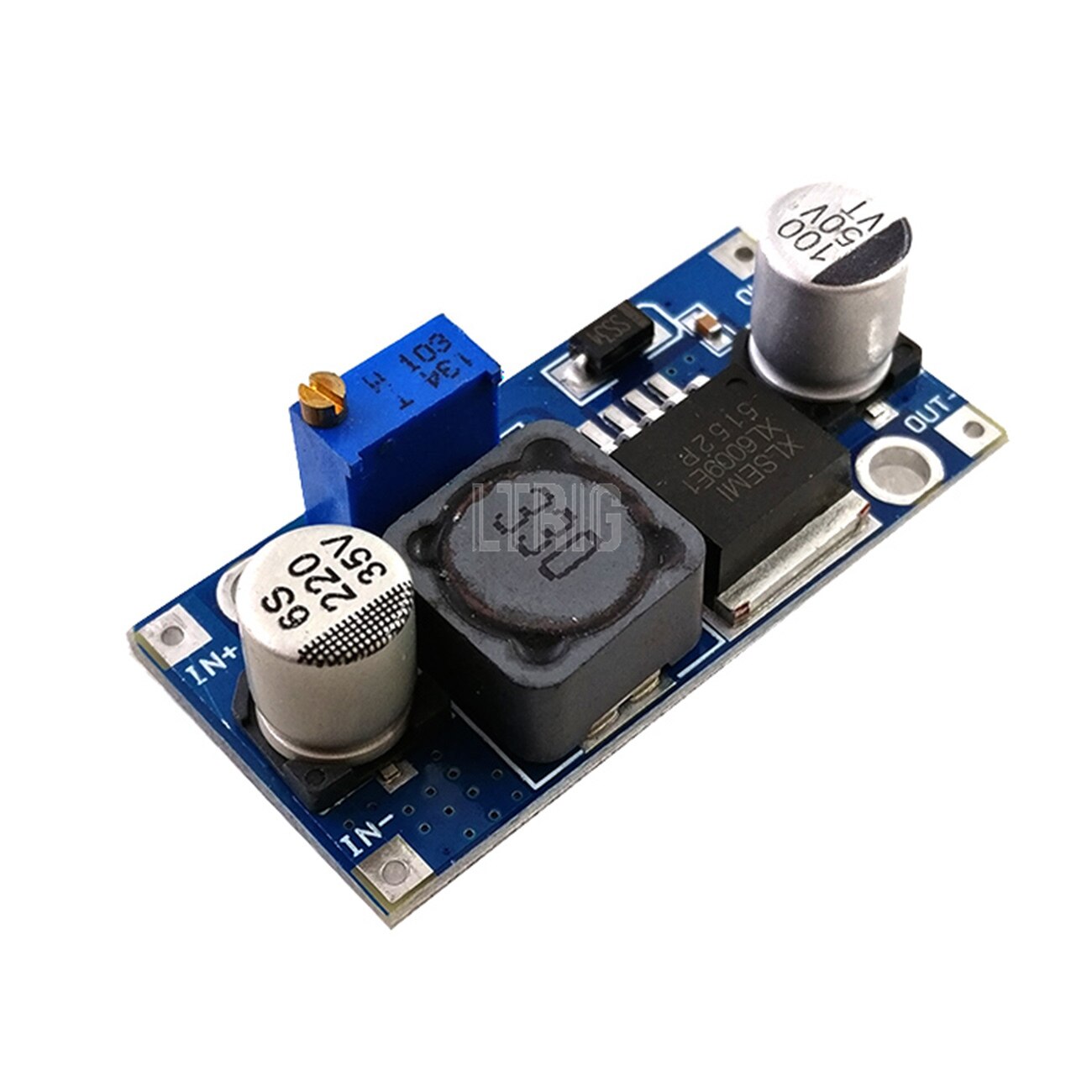

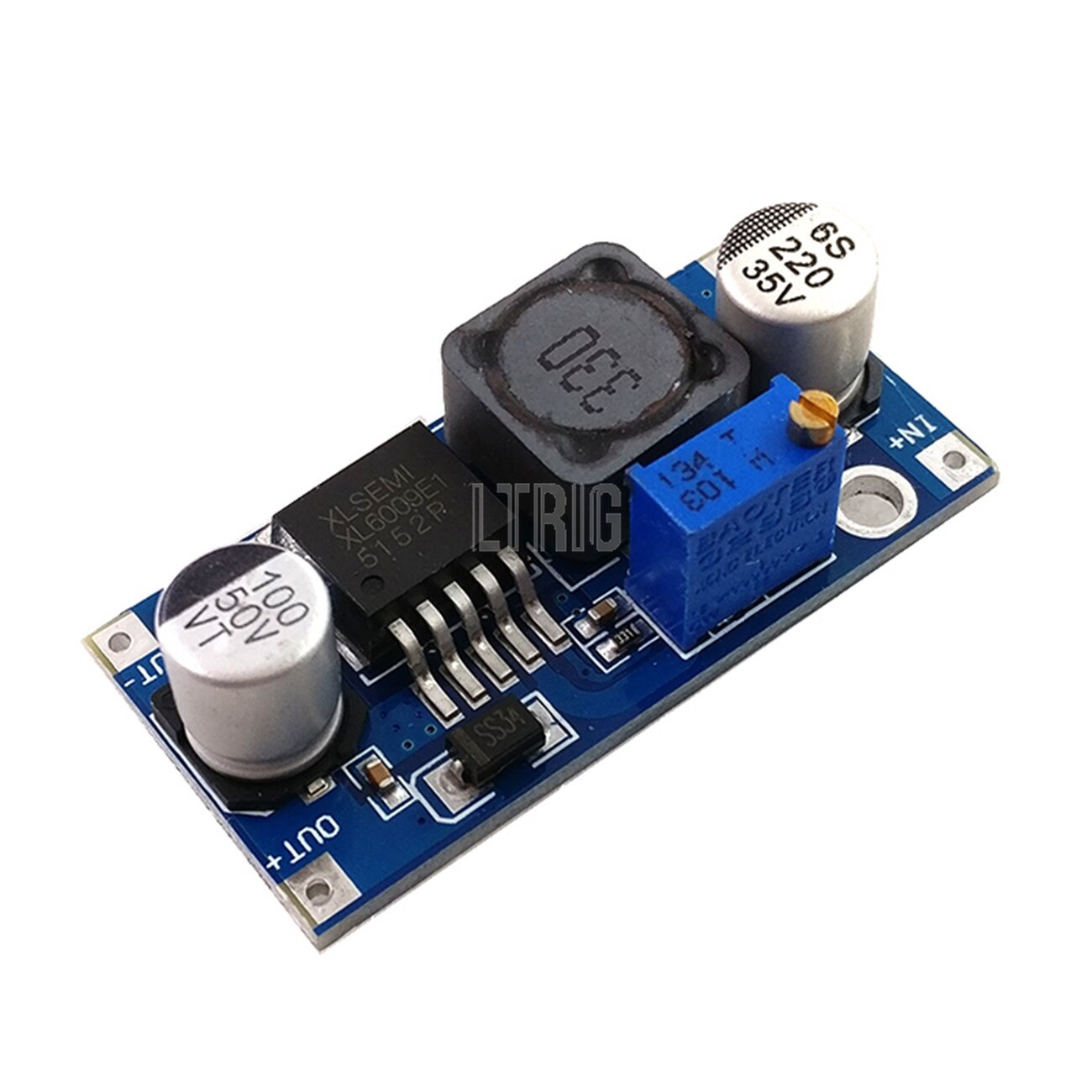

custom 1Pcs xl6009 DC-DC booster power module output module is adjustable super lm2577 step-up module

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


Our products are independent research and development and production, sophisticated technology, each product is through rigorous testing before sent to the user. And can meet the demand of the lot.

32 v-3.2 v highest output input 38 v
Output voltage range: 4 v to 38 v dc continuously adjustable voltage, high efficiency (96%) of maximum output current for 4a.
Advantage: Use high quality dual thick black oil pcb, all use imported smd aluminum electrolytic capacitors, high value q power inductors. And each piece of board passes through rigorous technical testing, thoroughly test using separate antistatic protection bag packaging.

note:
Does this modules compared to lm2577 triode mode conversion efficiency is higher
This module is adjustable booster module, can adjusting the accuracy of the modules above the most adjustable potentiometer circle.
To change the output voltage. The highest output voltage is the 38 v chronological booster, reverse-time recoil.

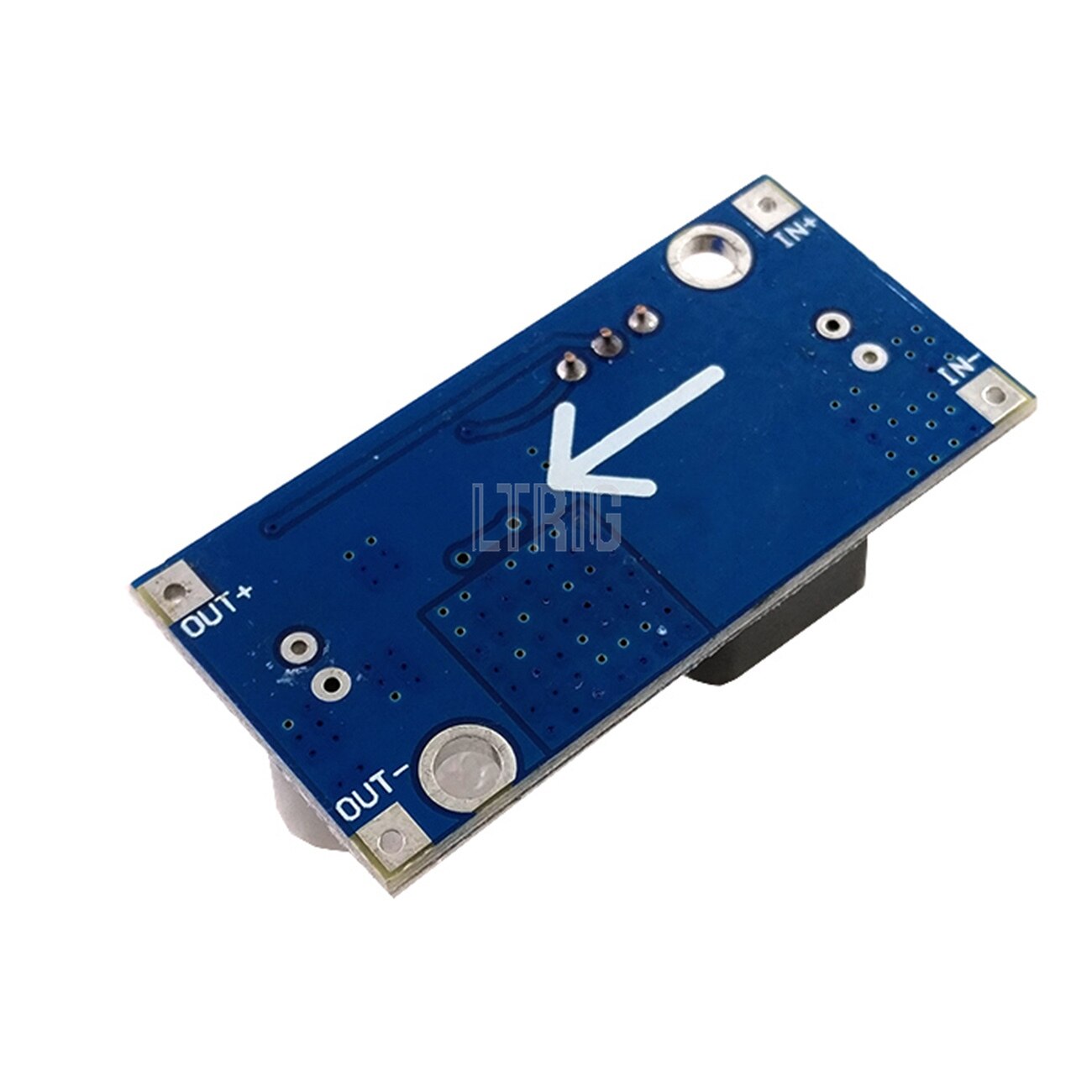

Does the above module marked gnd (input), in + (input), gnd (output), out + (output)

Working temperature :: industrial grade 40 to + 85 (-) (ambient temperature more than 40 degrees, please reduce energy use, or increase heat dissipation)
