custom 1Pcs W5500 Ethernet network module hardware TCP / IP 51 / STM32 microcontroller program over W5100

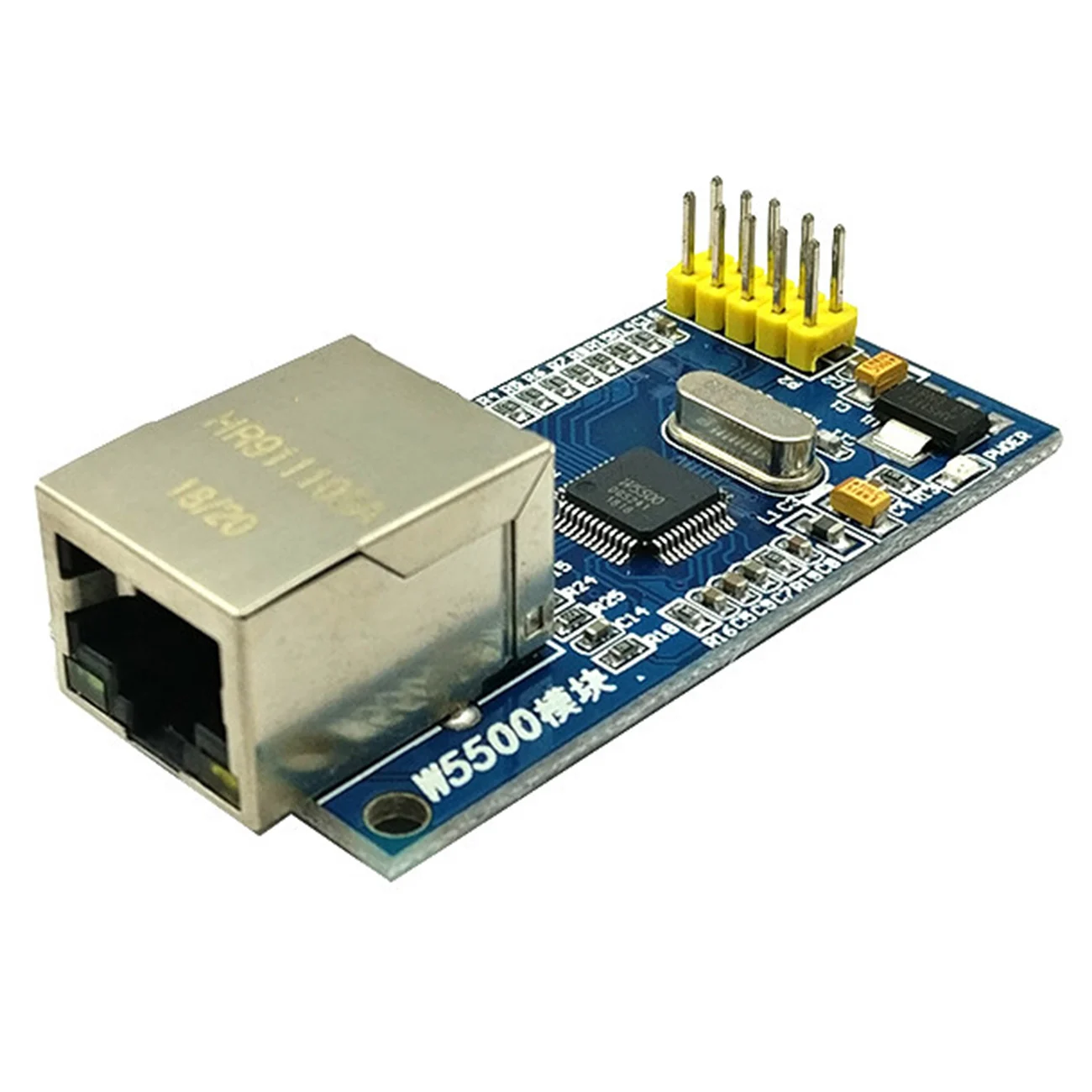

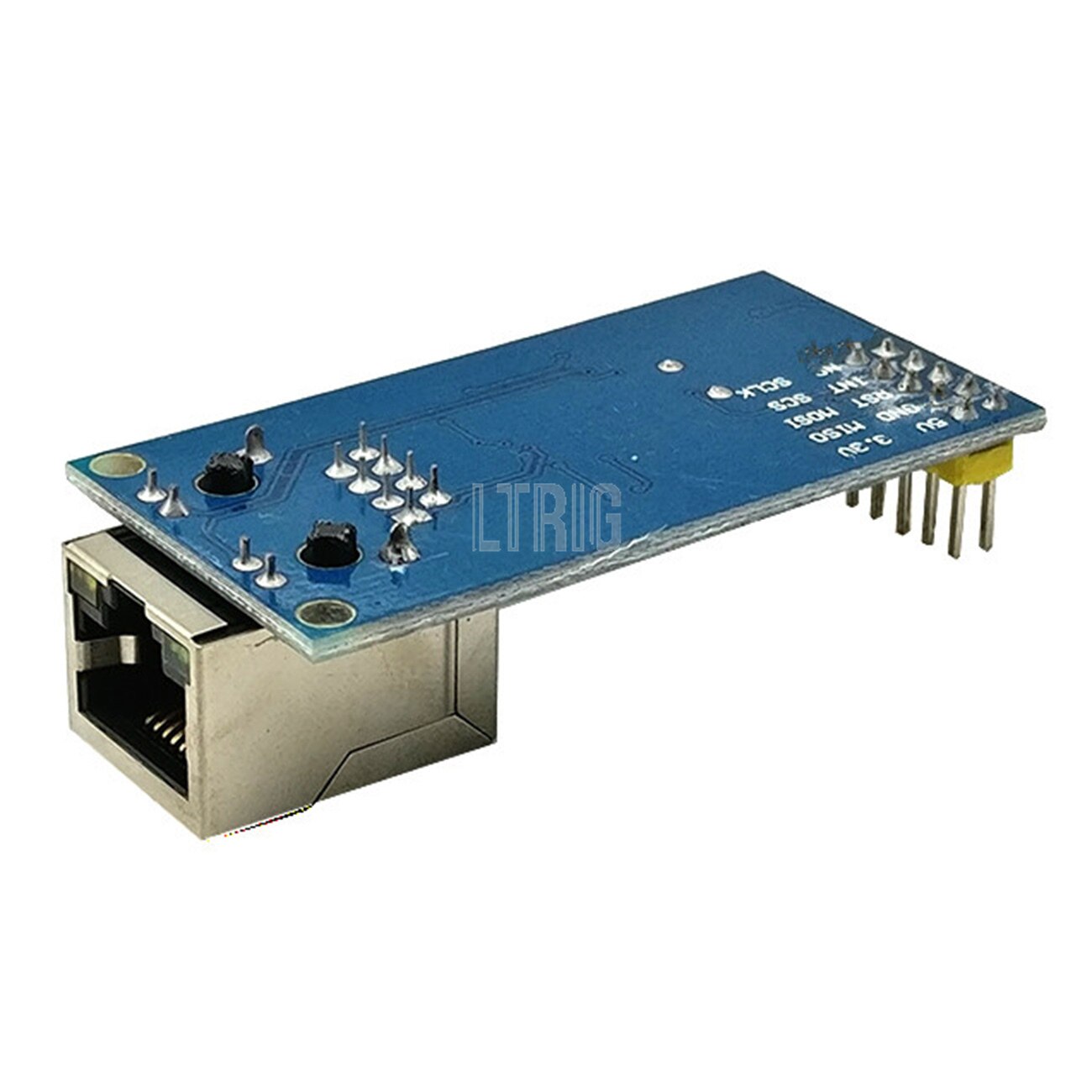

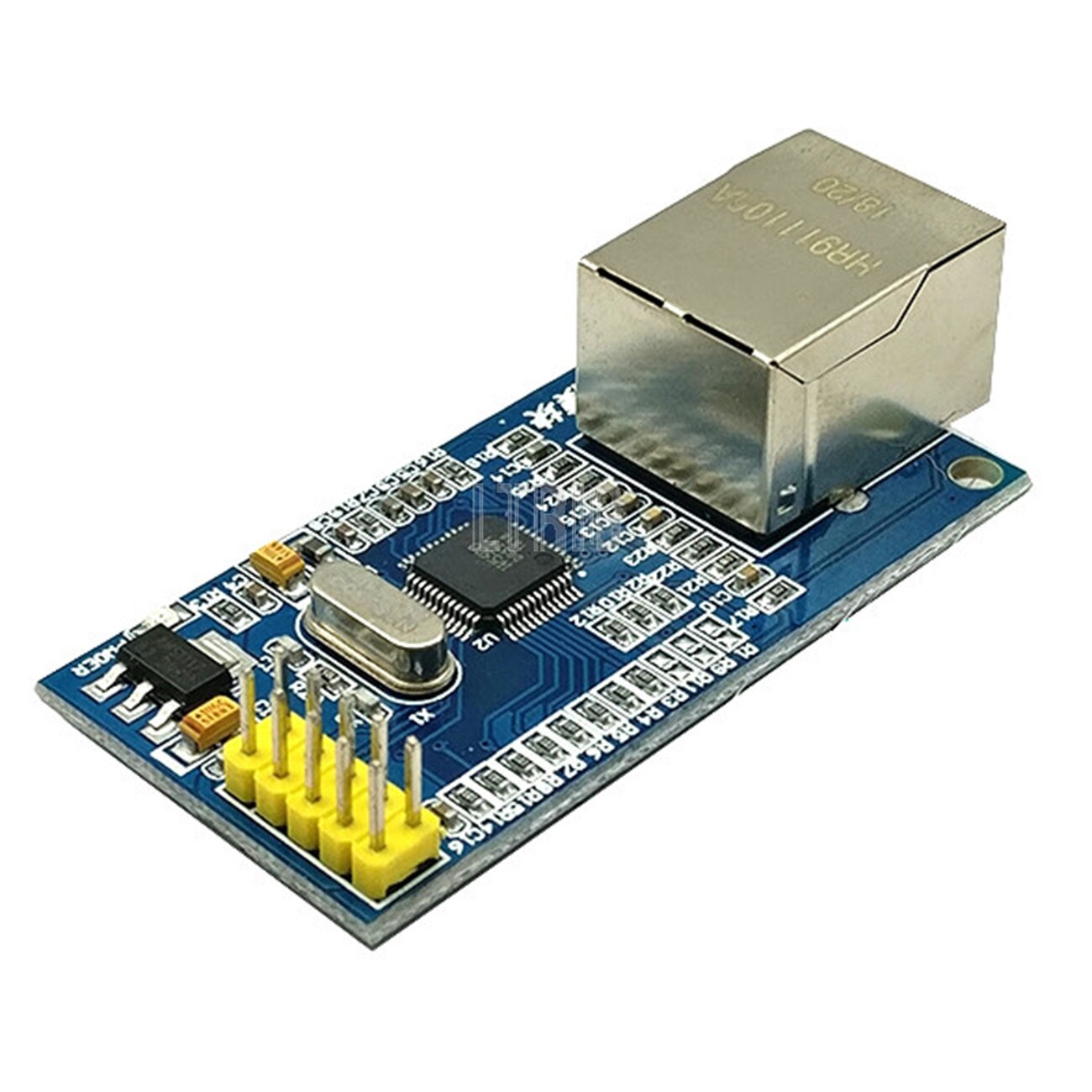

Name: custom 1Pcs W5500 Ethernet network module hardware TCP / IP 51 / STM32 microcontroller program over W5100
Brand: Raspberry Pi Case-LTRIG
Price: 5.29 USD
Availability: InStock

$5.29 USD

~~$7.29 USD~~ $5.29 USD

Sale Sold out

Quantity

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

\Description:
Support hardware TCP protocol: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Support 8 independent sockets simultaneously
Support energy mode
Support for waking up UDP on LAN
Support for high-speed peripheral serial interfac (MODE SPI 0, 3)
Internal 32 memory for TX / RX kilobyte buffer
10 BASET Embedded 100 / 100BaseTX Ethernet PHY
Support auto-negotiation (full and half duplex, 10 and 100)
IP fragmentation is not supported
Operates with a 3.3 VI operation with a 5 VI / O tolerance signal
LED output (full/half duplex, link, speed, active)
48-lead LQFP lead-free package (7x7mm, pitch 0.5mm)

Product specifications:
Chip Type: W5500
Support 3.3 V&5V
Hardware TCP protocol: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
10 100 embedded BASET / 100BaseTX Ethernet PHY
Support automatic response (full duplex / half duplex mode)
Support 8 independent sockets simultaneously
Internal memory 32 KB for Tx / Rx buffer
Break mode: support
Wake on LAN: Support
SPI interface (SPI mode 0, 3) is easy to connect to MCU
Size: 55 mm X 28 mm

Weclome Customize Order!
