custom 1Pcs USB QC2.0-3.0 DC-DC Buck Converter Charging Step Down Module 6-32V to Fast Quick Charger Circuit Board 5V

$2.56 USD

~~$4.56 USD~~ $2.56 USD

Sale Sold out

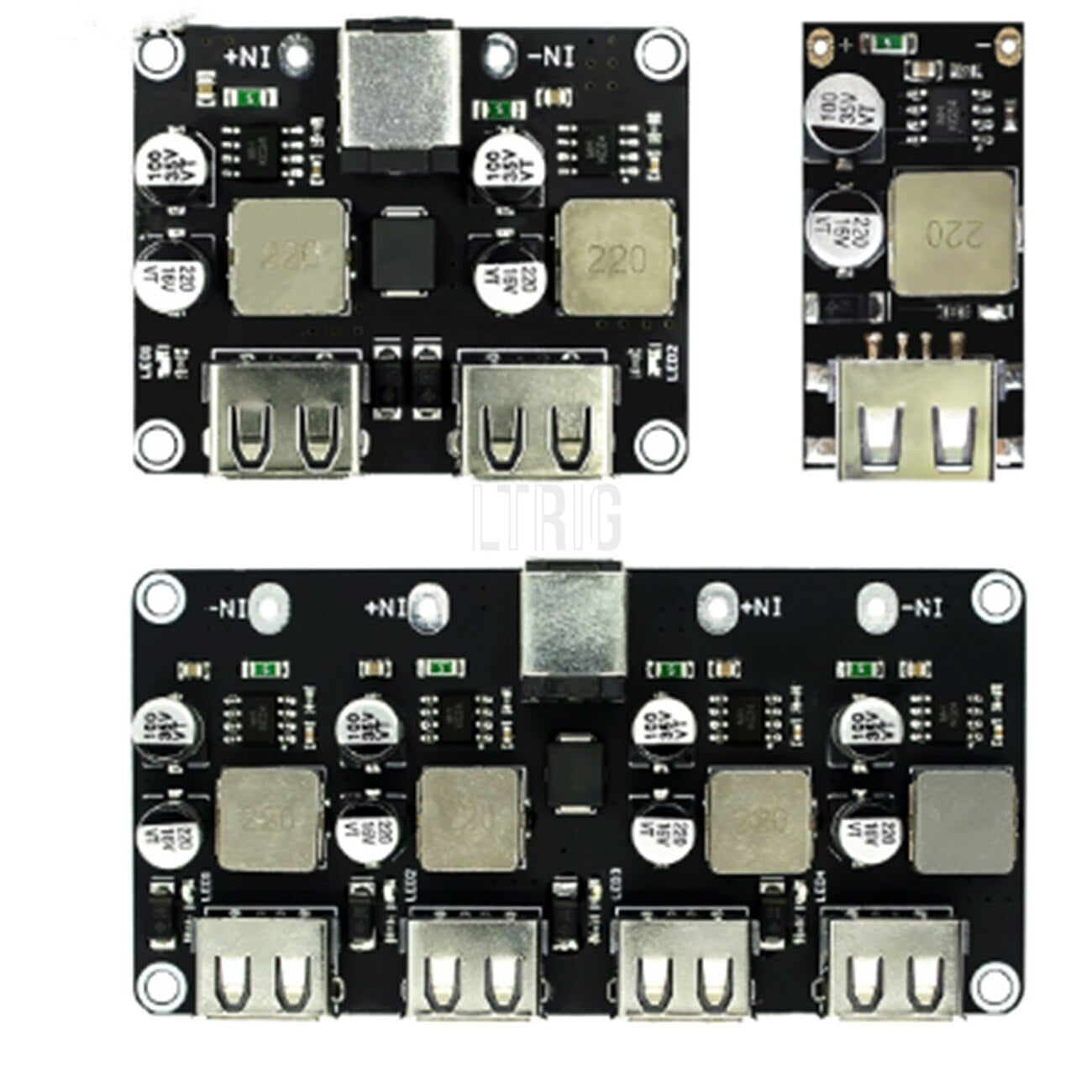

Color QC3.0 2usb QC3.0 1usb QC3.0 4usb

Quantity

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

MTKPEI.1/PE2.O
Fast Charge Protocol FCP
Star Fast Charge Protocol AFC
Spreadtrum Fast Charge Agreement SFCP

Applications
Solar panel to mobile phone charging
Car charging retrofit
Driving recorder power supply
Home power conversion
nput voltage range: 6V to 32V
Output voltage: The default is 5V.
After the fast charge is triggered, it is automatically adjusted between 3 and 12V.
Output Power. 24W (5V, 3.4A, 9V, 2.5A, 12V, 2A, etc.)
Output voltage wired compensation
Conversion efficiency: 90% to 97%
Supports multiple fast charging protocols
Input overvoltage, undervoltage protection
Input over-current protection
Output overcurrent and short circuit protection
Over temperature protection

Package included:

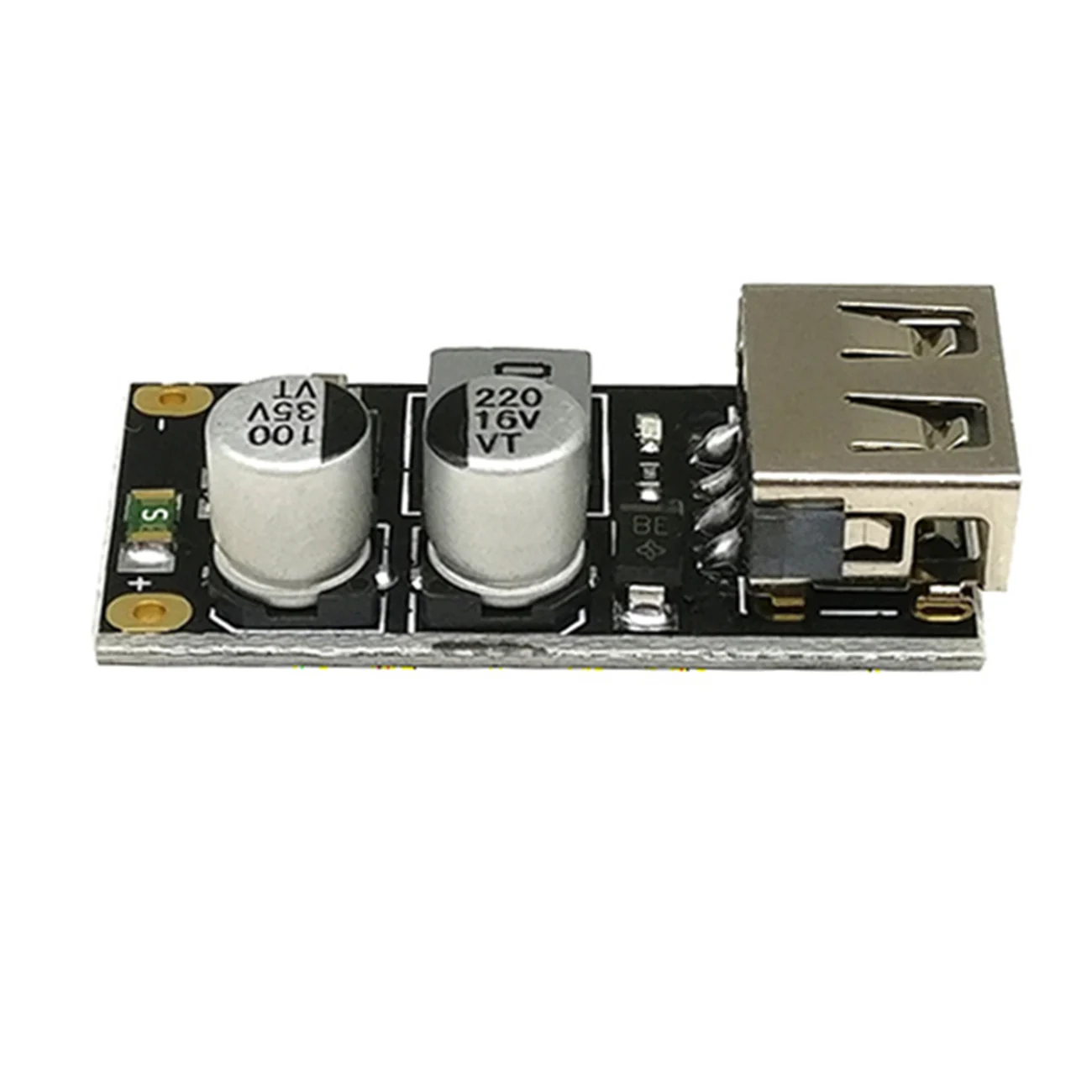

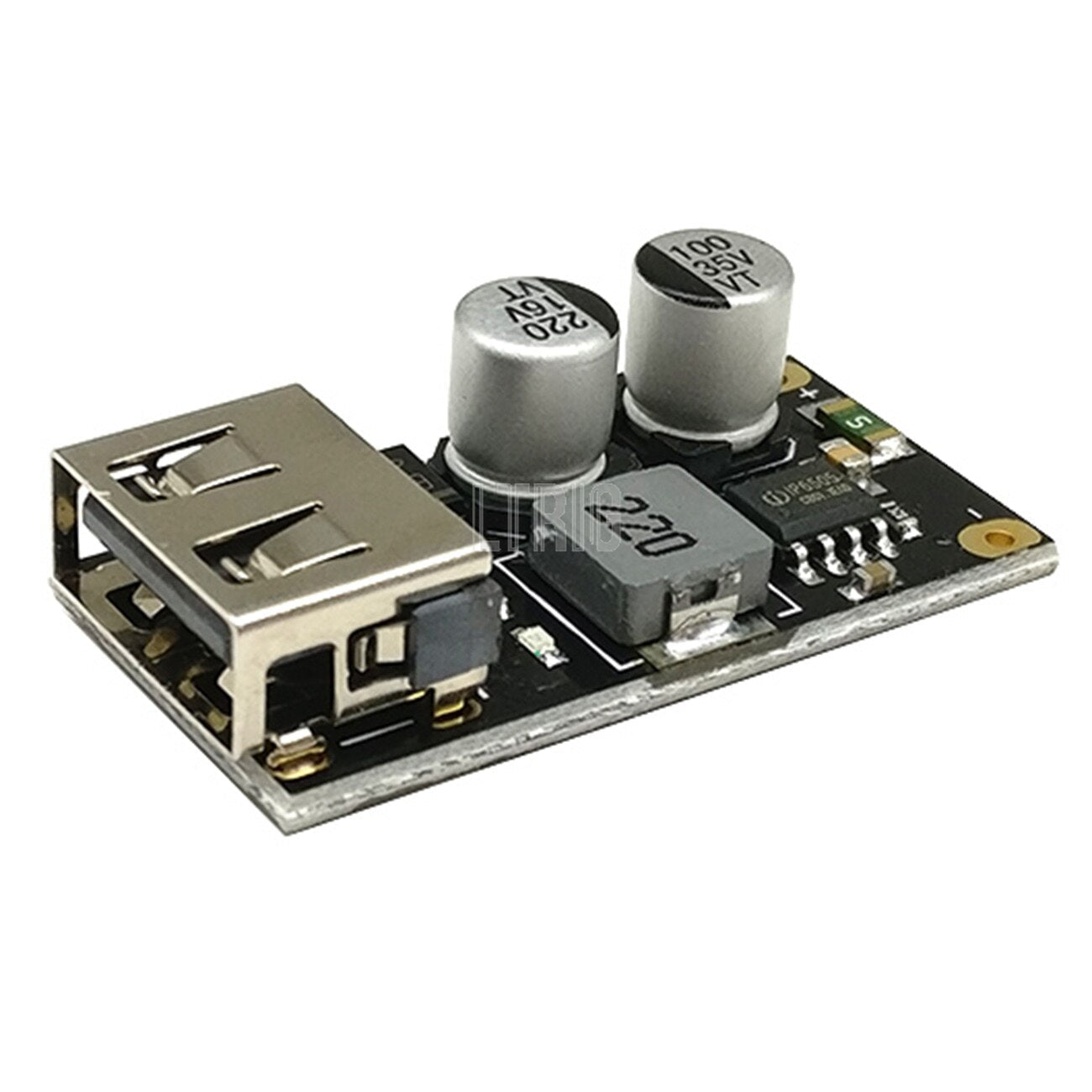

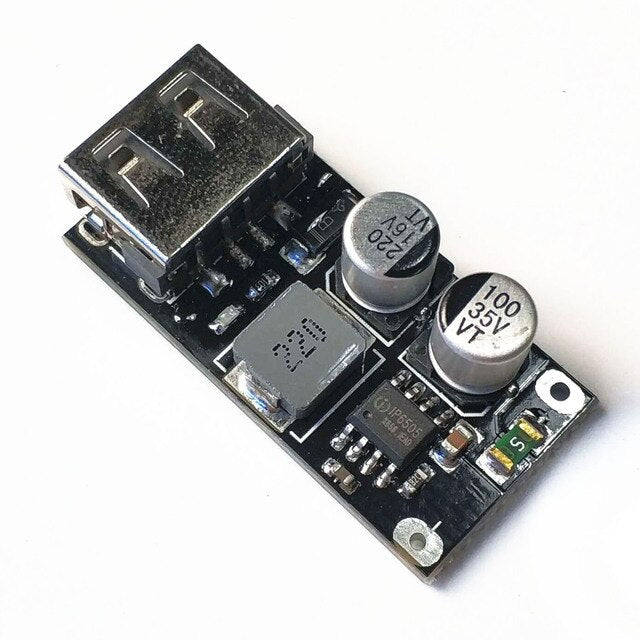

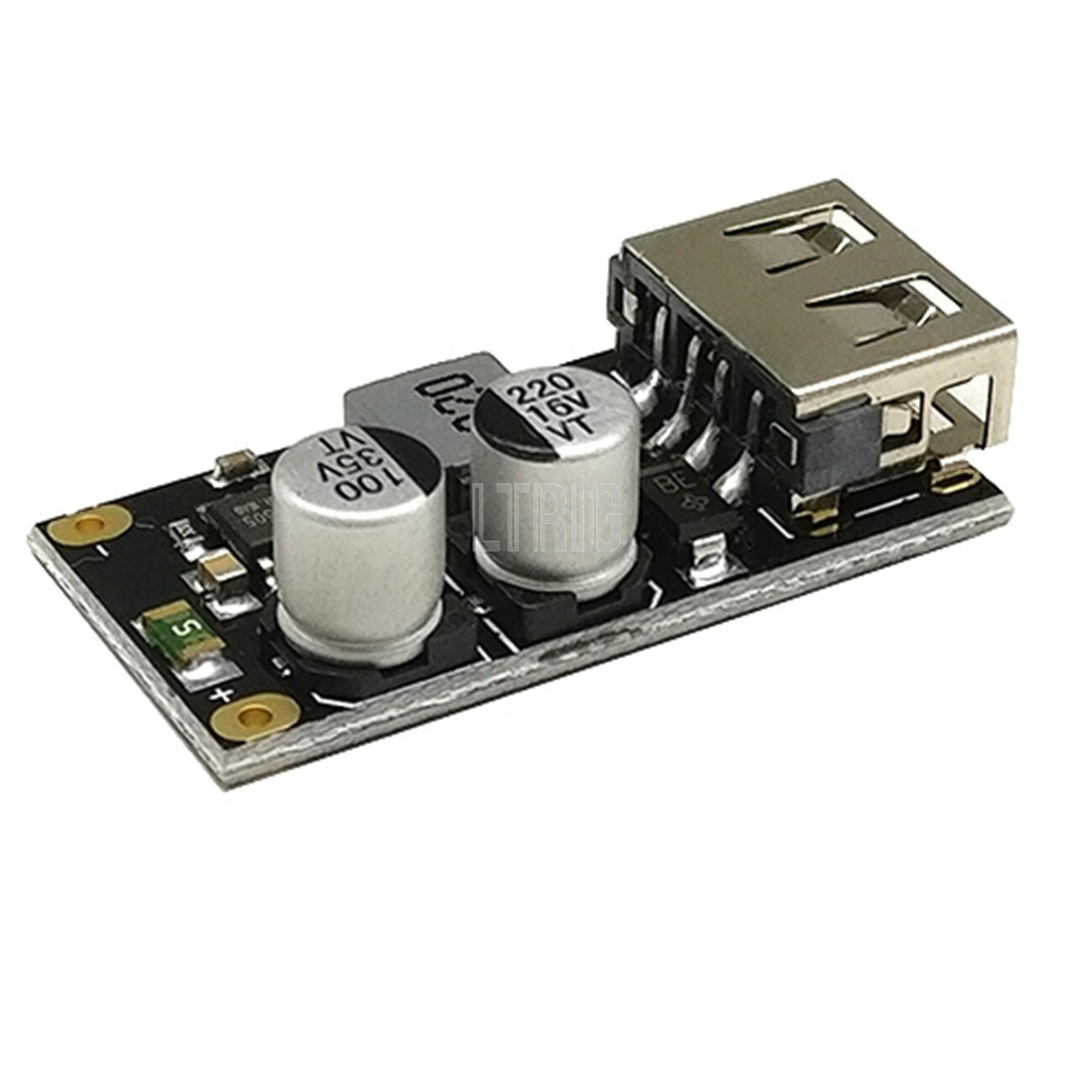

1 Pcs DC-DC Step Down Buck Converter Charging Module

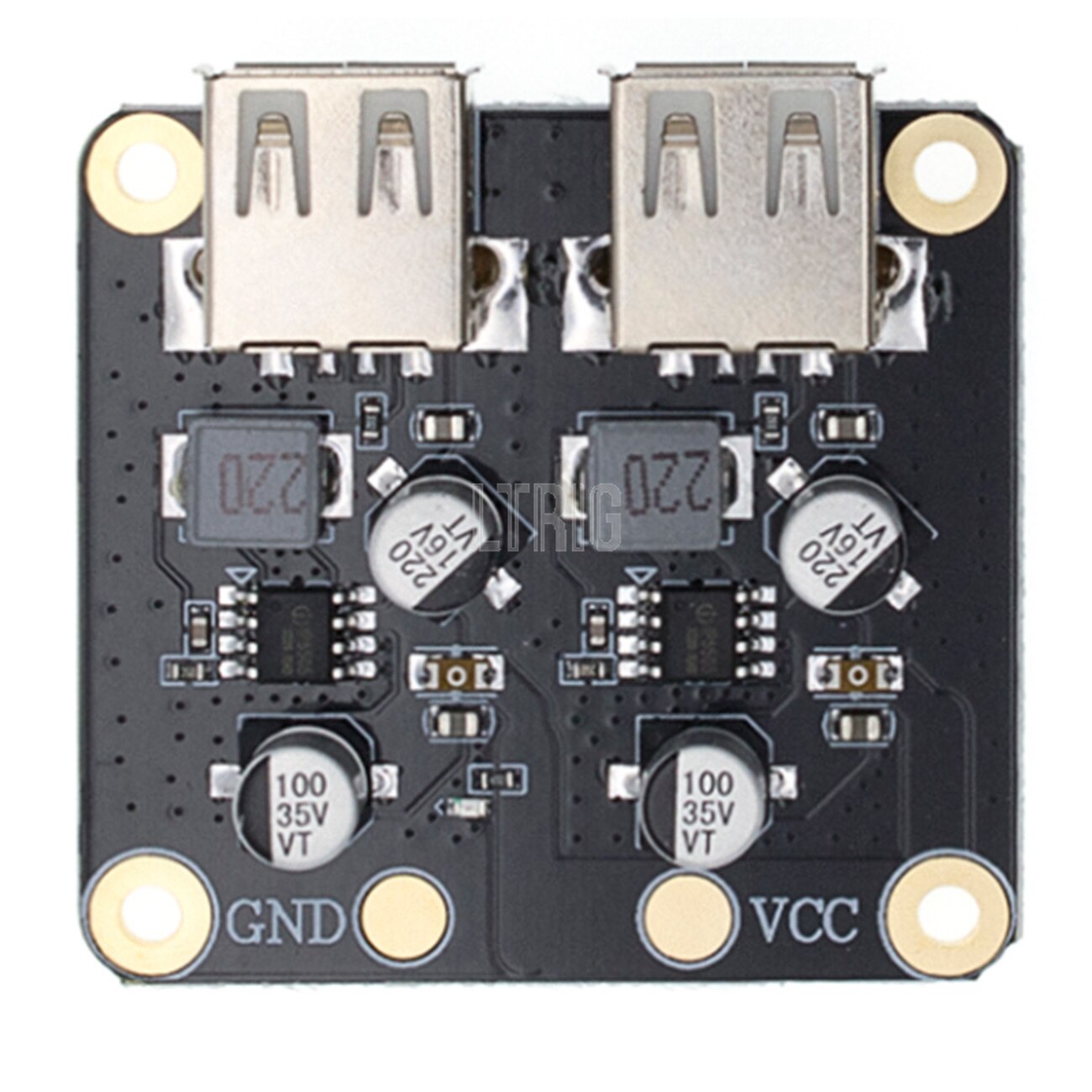

2 USB:

Dual-port independent output, support protocol: QC2.0, QC3.0, MTK PE1.1/2.0, FOR Apple, FOR Samsung AFC,FOR Huawei FCP, FOR Spreadtrum SFCP

Input voltage: DC 6~30V

Output voltage: default 5V, adjust range 3~12V according to fast charging protocol

Output capacity: single-port rated current 2.4A, rated power 24W

Protection measures: Output overvoltage protection, limit the output voltage does not exceed 13V (in the case of chip failure); input with a fuse.

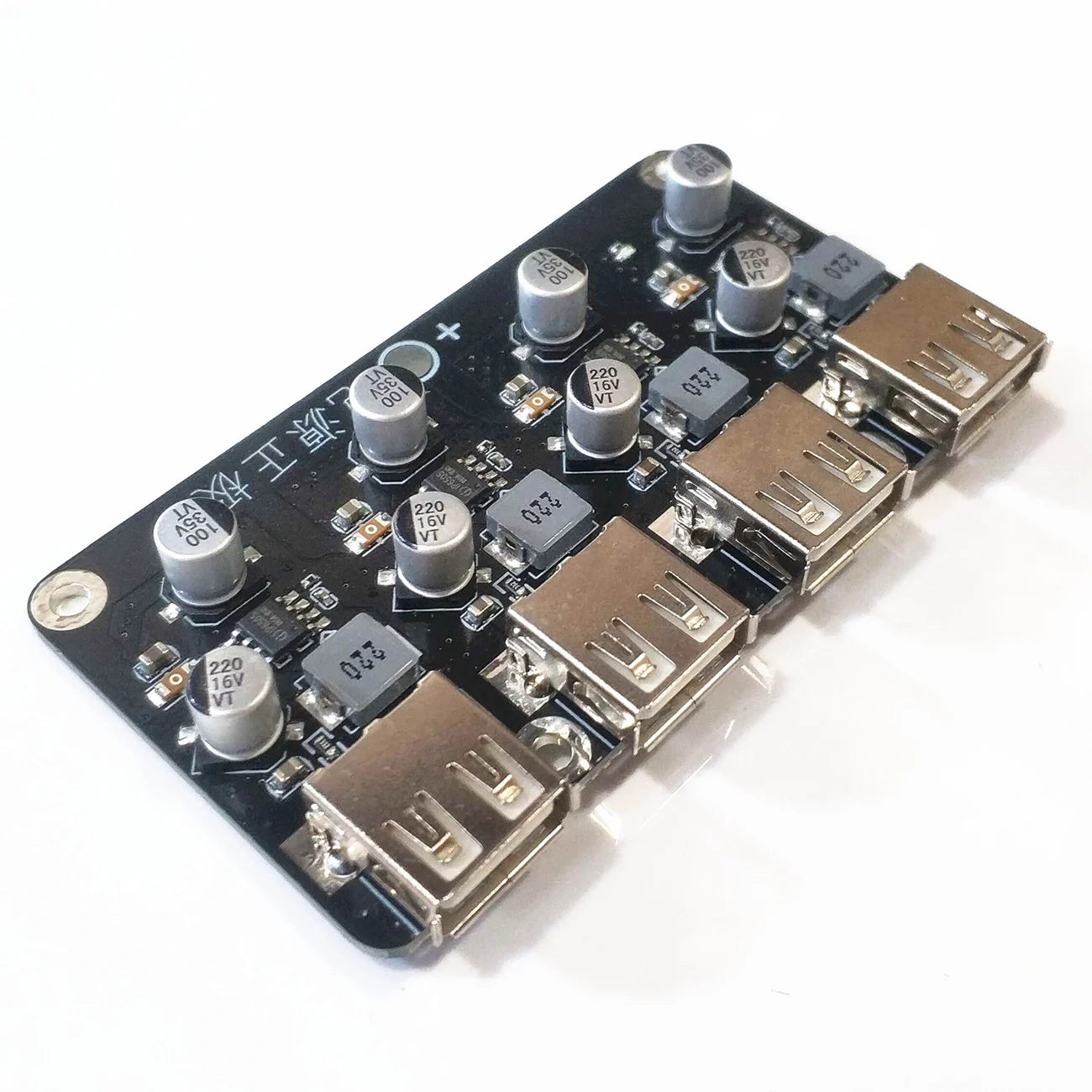

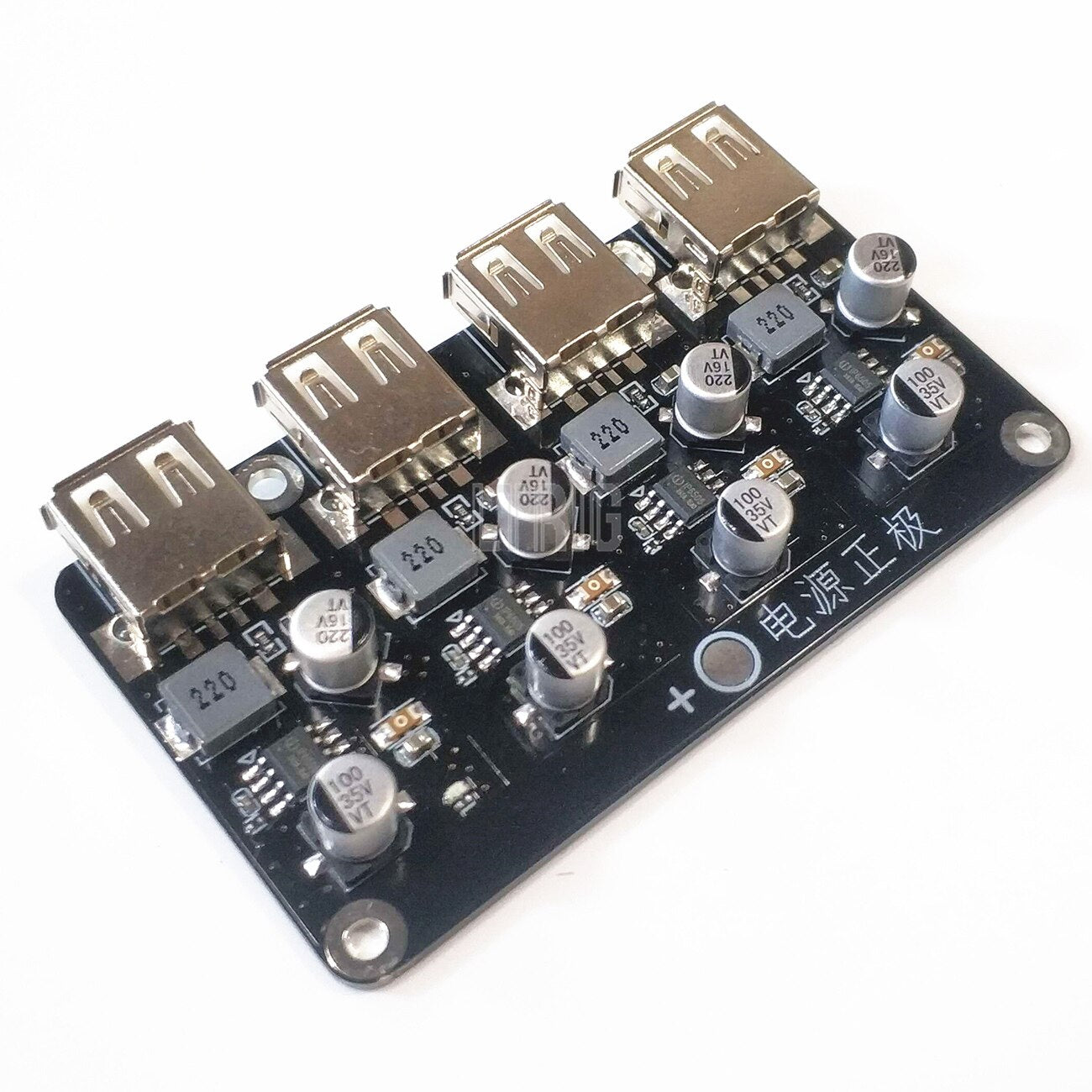

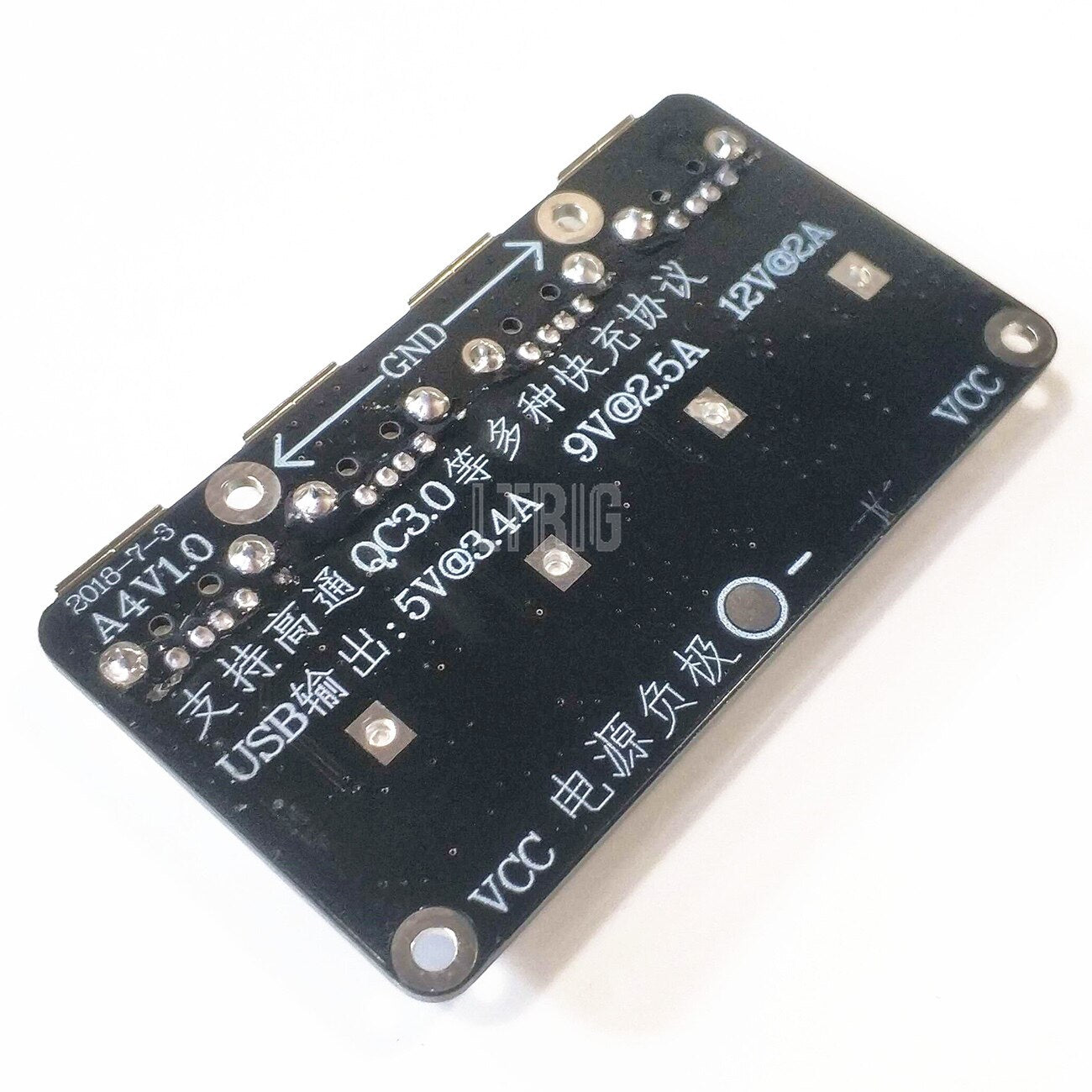

4 USB:

Features: four road every support QC 3.0 quick charge agreement, all the way to support fast filling at the same time, can output 5 v and 9 v 12 v (mobile phone protocol support) voltage, output current adaptive, single channel power 24 w, 4-way module maximum power 96 w, PCB the FR - 1.6 4 mm thickness design, optimize the layout, design the beat, the back window cooling, full load working temperature is low, standby current is 0.013 A, the module has the function of the output voltage compensation.

Note: this module is a 4-way voltage drop type quick charge module, please use 12v-30v DC power supply, positive and negative poles can not be connected in reverse.

Weclome Customize Order!
