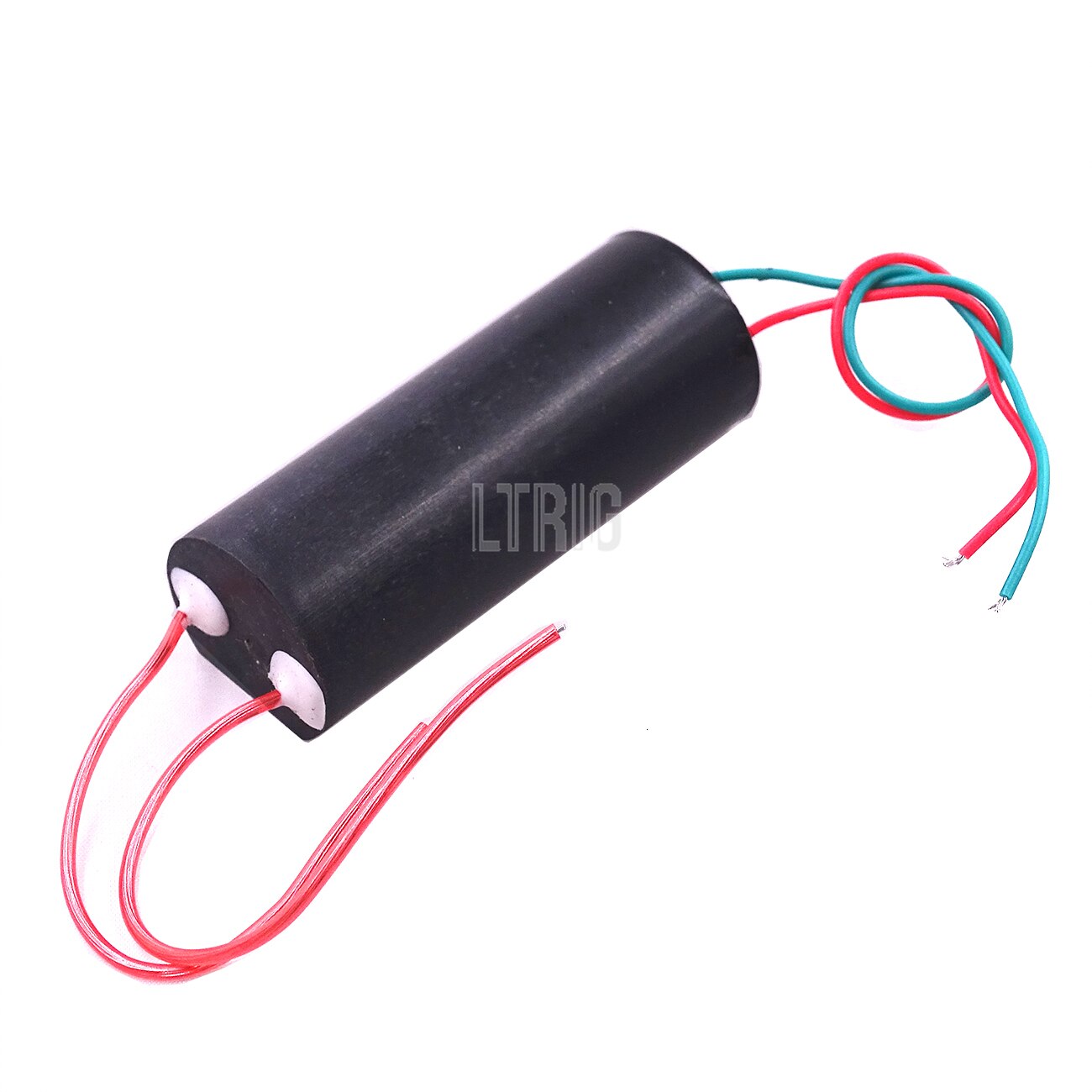

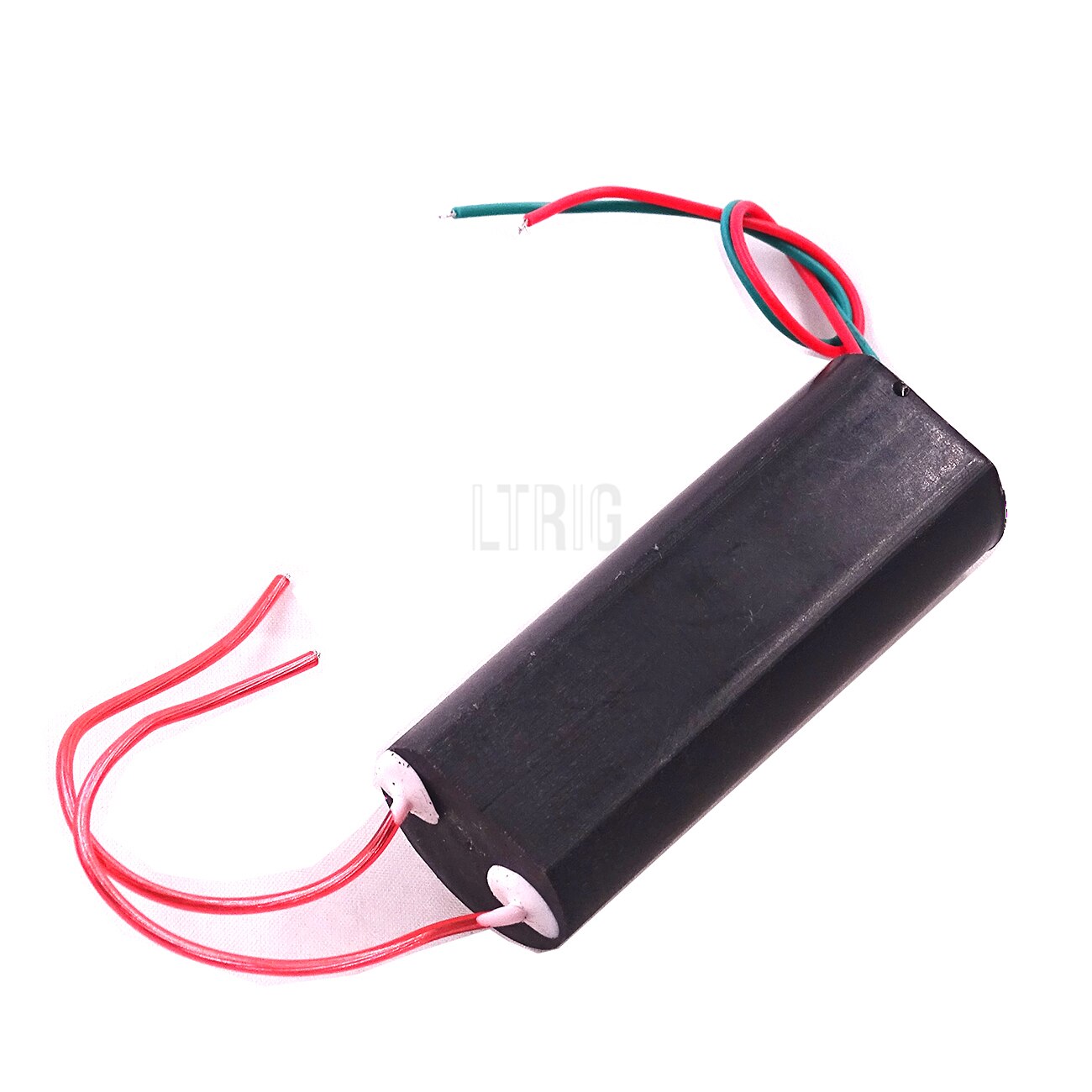

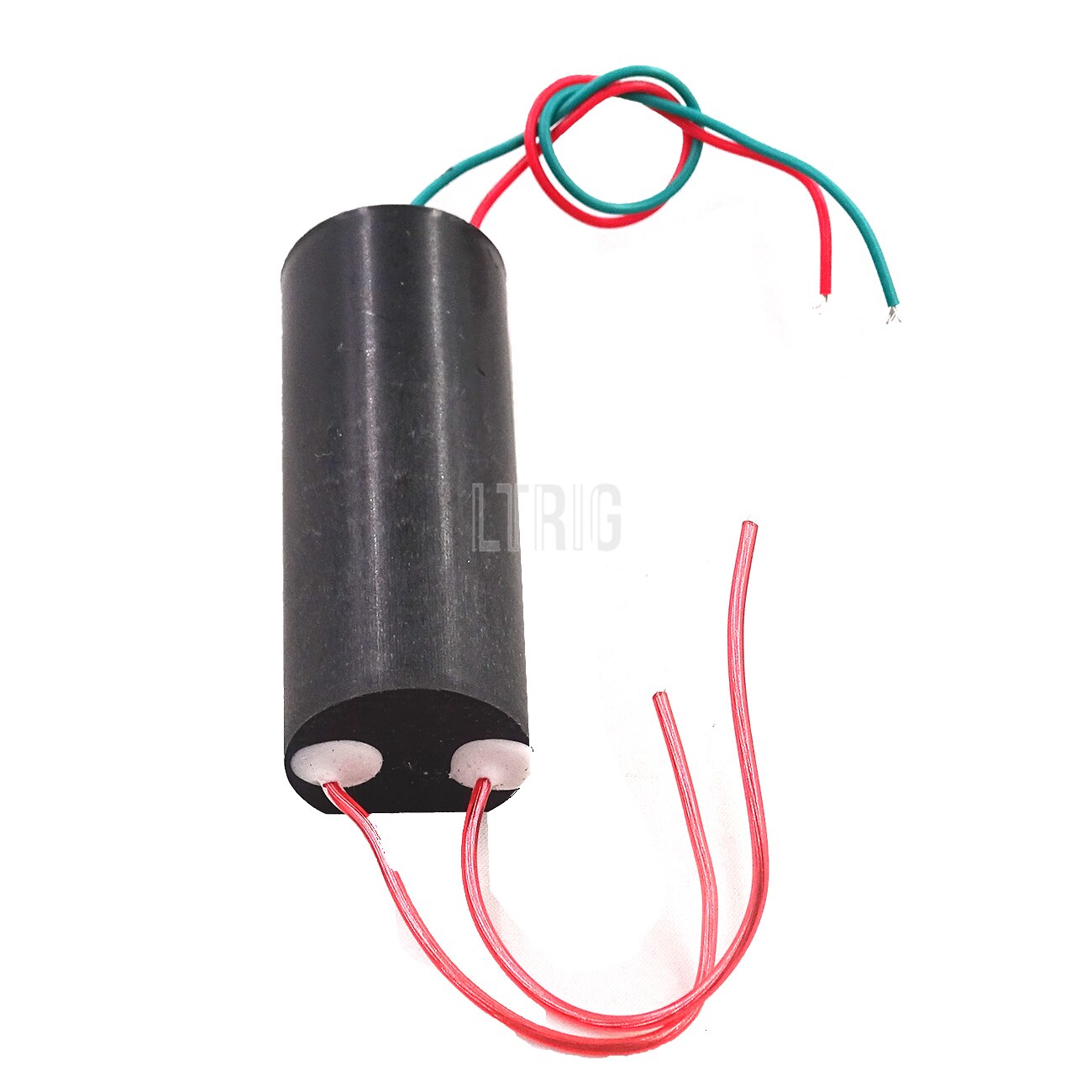

custom 1Pcs Ultra high voltage arc block 3-6V 400KVV / 1000kvv generator module inverter transformer pulse module

custom 1Pcs Ultra high voltage arc block 3-6V 400KVV / 1000kvv generator module inverter transformer pulse module

$2.24 USD
$4.24 USD $2.24 USD
Sale Sold out
              We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

      • Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want

      •

      • a full tracking info.


        Tracking info of  China Post Ordinary Small Packet Plus can be check here : www.17track.net/en

      •

    • Description:




    input voltage: DC 3 V to 6 V
    Input current: 2 A - 5 A
    High pressure type: the type of pulse current
    Output voltage: 400000 v(Please pay attention to safety)
    High pressure discharge distance between: 10 mm - 20 mm
    The output high voltage wire length: 100 mm
    Input power cord length: 100 mm (the red line is positive)
    Wiring:
    Red and green power connection red line:"+" green line "-"
    output : the other side ,same color cable
    please notice:
    the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )
    Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily
    damaged module


    •











Package includes:




1 x DC Boost Step-up Power Module High-voltage Generator








 Weclome Customize Order!
View full details
