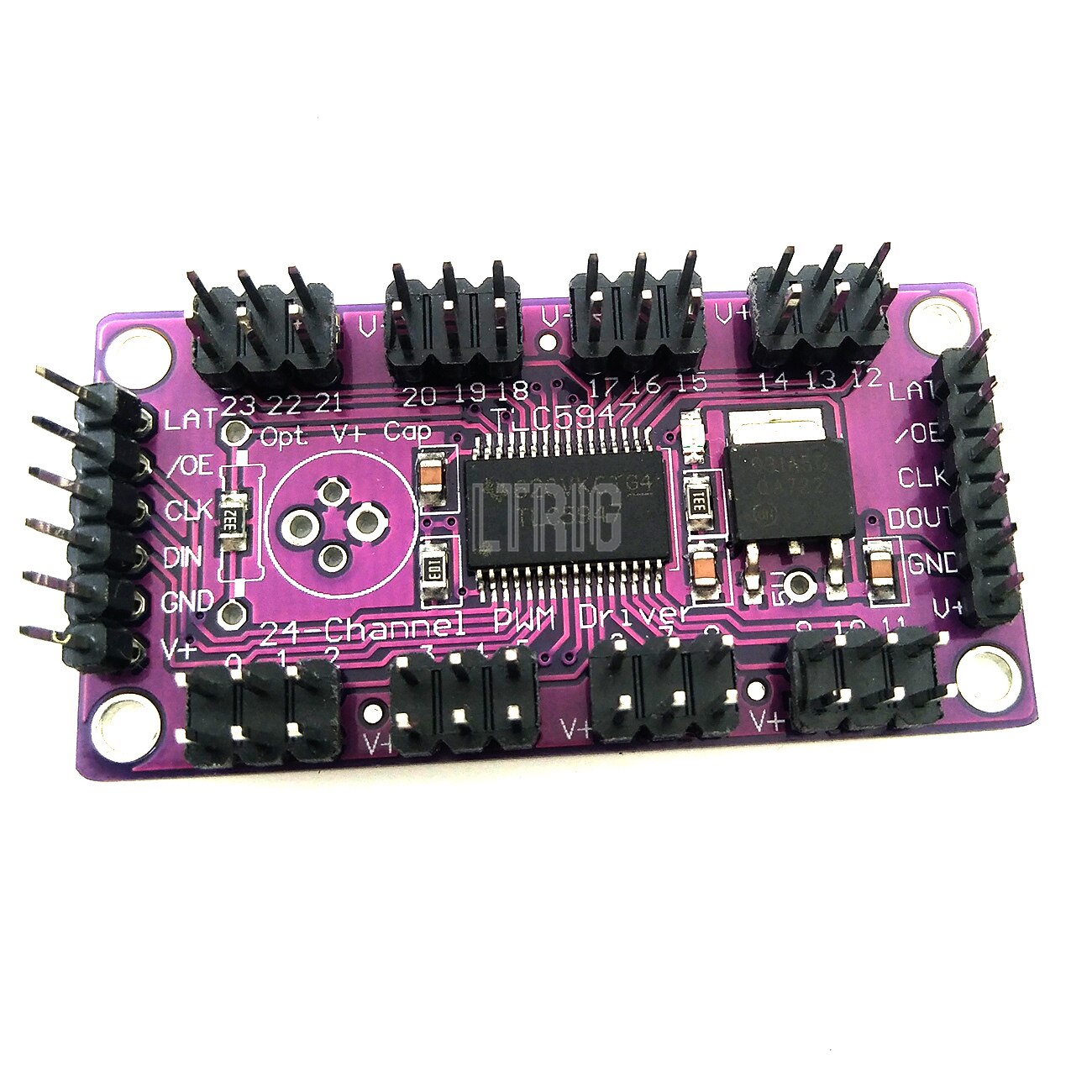

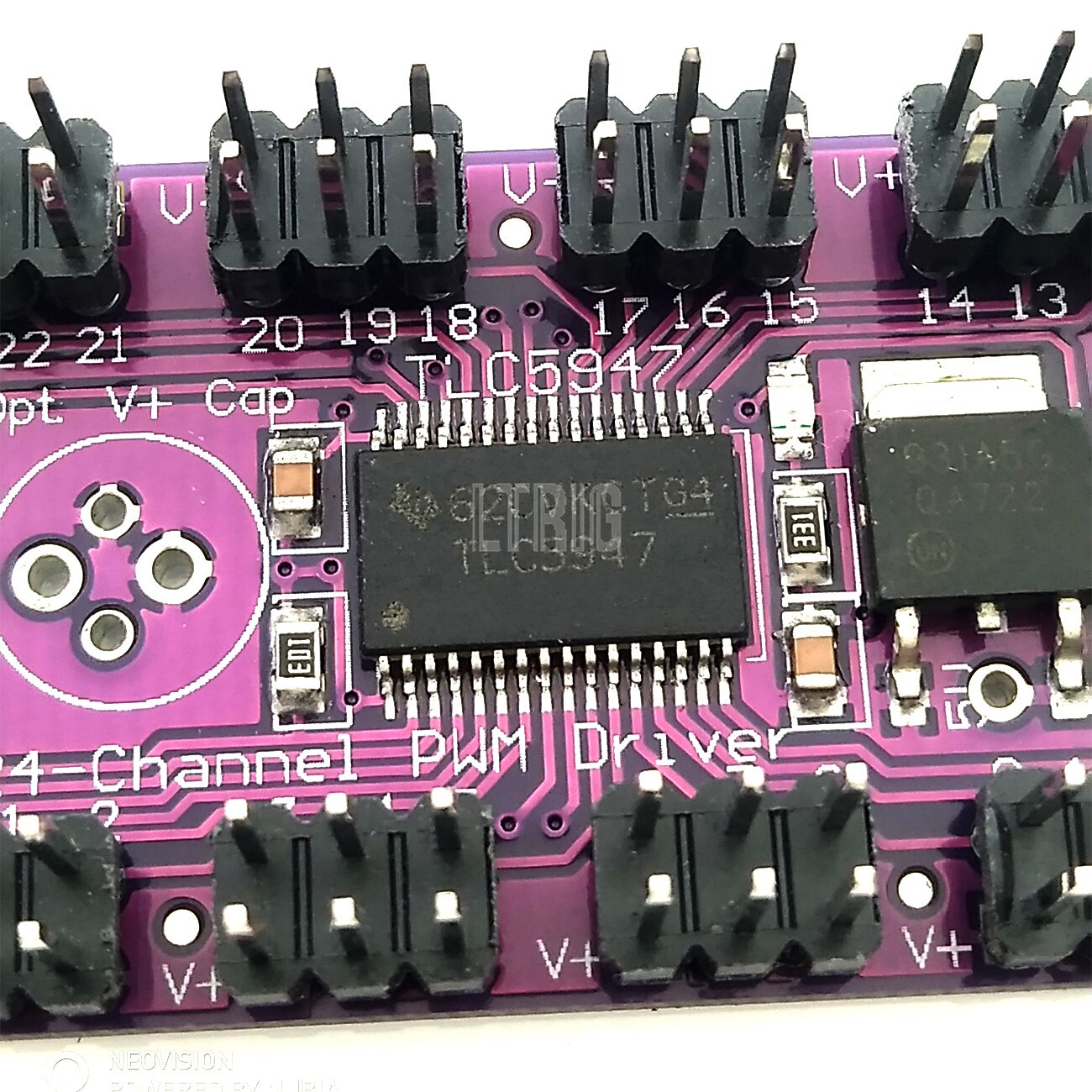

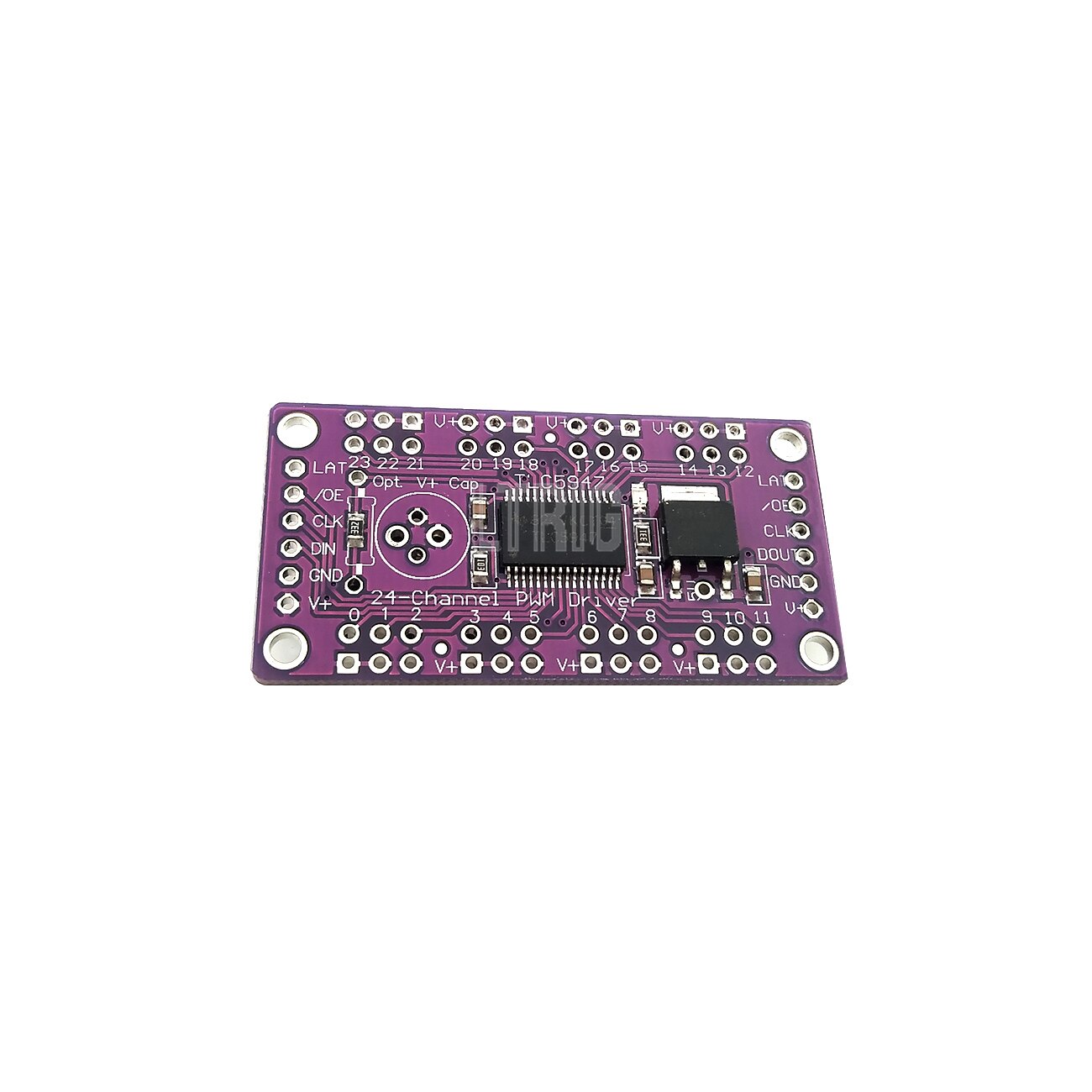

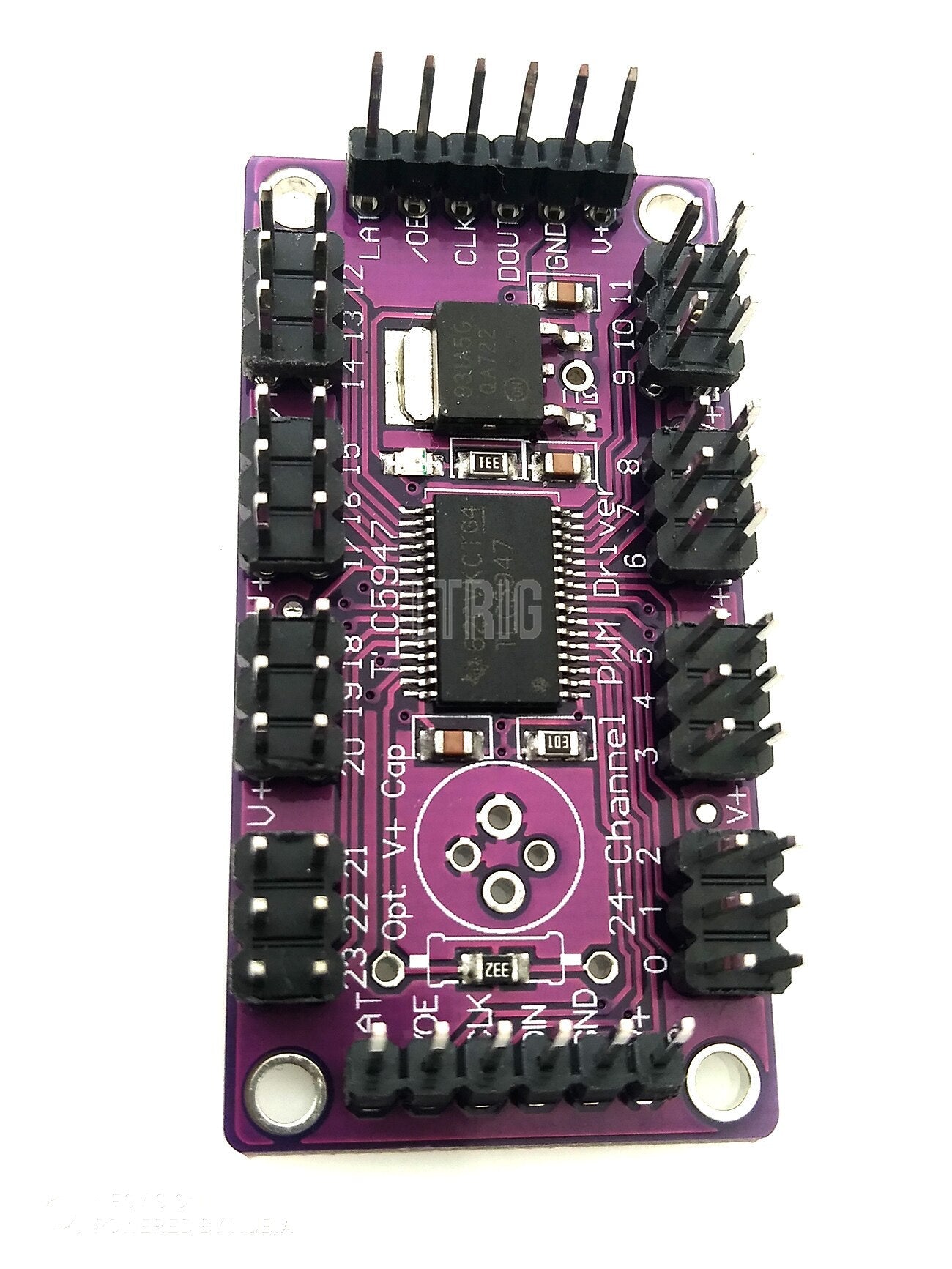

custom 1Pcs TLC5947 12bit PWM Pulse Width Modulation 24 Output Channels LED Driver Module
custom 1Pcs TLC5947 12bit PWM Pulse Width Modulation 24 Output Channels LED Driver Module
Regular price
$5.19 USD
Regular price
$7.19 USD
Sale price
$5.19 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
5947 is a 24-channel, constant-current sink LED driver. Each channel is individually adjustable with 4096 pulse-width modulated (PWM) steps. PWM control is repeated automatically with the programmed grayscale (GS) data. GS data are written via a serial interface port. The current value of all 24 channels is set by a single external resistor.
5947 is a 24-channel, constant-current sink LED driver. Each channel is individually adjustable with 4096 pulse-width modulated (PWM) steps. PWM control is repeated automatically with the programmed grayscale (GS) data. GS data are written via a serial interface port. The current value of all 24 channels is set by a single external resistor.
5947 has a thermal shutdown (TSD) function that turns off all output.
Characteristic:
- 24 Channels, Constant-Current Sink Output
- 30-mA Capability (Constant-Current Sink)
- 12-Bit (4096 Steps) PWM Grayscale Control
- LED Power-Supply Voltage Up to 30 V
- VCC = 3.0 V to 5.5 V
