custom 1Pcs NodeMCU Motor Shield Plate L293D for ESP-12E ESP8266 ESP 12E DIY Kit RC Toy RC Smart Wifi Remote Control Car

custom 1Pcs NodeMCU Motor Shield Plate L293D for ESP-12E ESP8266 ESP 12E DIY Kit RC Toy RC Smart Wifi Remote Control Car

Regular price $1.81 USD
Regular price $3.81 USD Sale price $1.81 USD
Sale Sold out
Color

Features:

l ESP12 DEV KIT development board expansion module;

l Lead all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;

l Expand two-way motor drive to directly drive two motors;

l Onboard power switch;

l Motor power supply range: 4.5V~36V;

l Control power supply range: 4.5V~9V;

l Motor power supply and control power supply are separated. In the experiment, VIN and VM can be short-circuited by short-circuit block combination, and the motor and control board can be supplied with power.

Product specifications:

~ Motor power supply (VM): 4.5V ~ 36V, can be powered separately;

~ Control power supply (VIN): 4.5V ~ 9V (10VMAX), can be powered separately;

~ The module provides short circuit (short circuit VM and VIN), which can conveniently use one power supply (must be 4.5V ~ 9V) to complete the drive and control of the motor at the same time;

Logical operating current Iss: ≤ 60mA (Vi = L), ≤ 22mA (Vi = H);

Driving part operating current Io: ≤ 1.2A;

Maximum power dissipation: 4W (T=90°C)

Control signal input level: high level: 2.3V ≤ VIH ≤ VIN; low level: -0.3V ≤ VIL ≤ 1.5V

Working temperature: -25 ° C ~ +125 ° C

Drive form: dual high power H-bridge drive

ESP12E Dev Kit control port: D1, D3 (A motor); D2, D4 (B motor)

Module weight: about 20g

 Precautions:

l When inserting an ESP-12E module, pay attention to the direction of the antenna and the direction of the expansion board.

l With the shorting module, the control board and the motor can be powered at the same time.


Shipping list

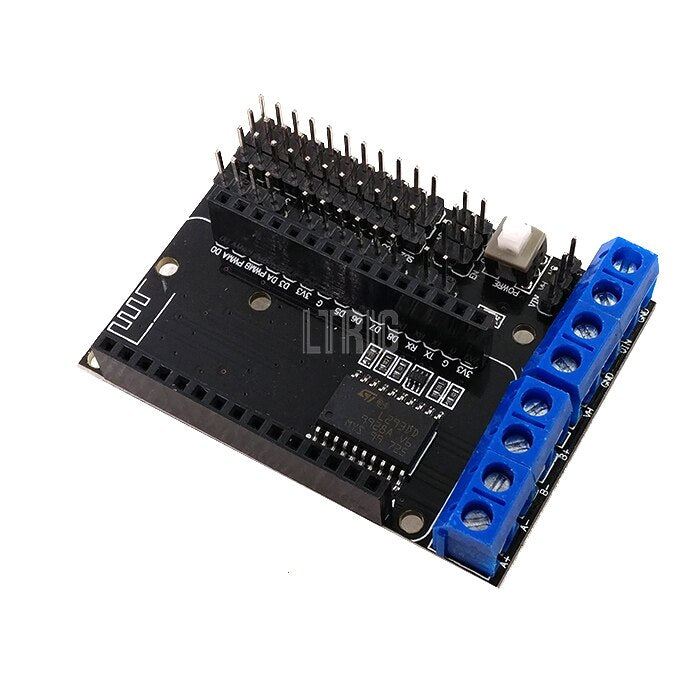

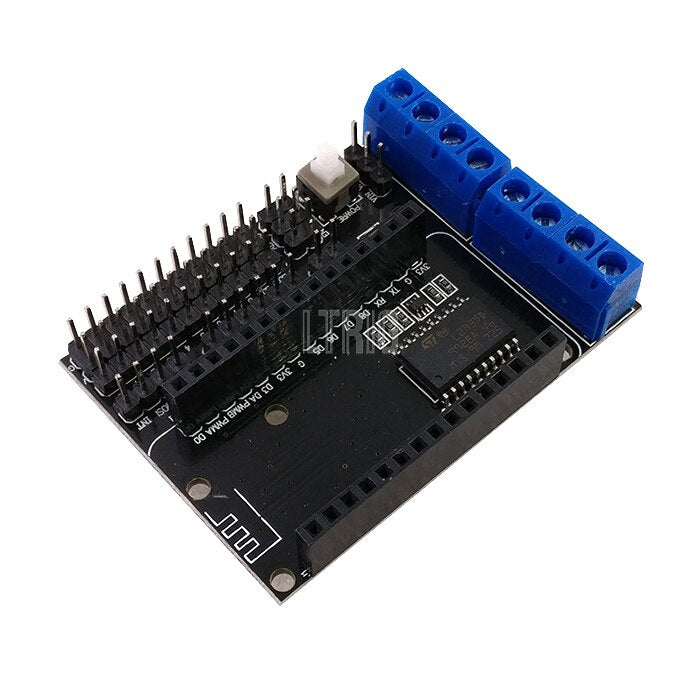

ESP-12E expansion board: 1 block

L293 Sheild Module DC Motor Stepper Motor



Simultaneous control of 4 DC motors and 2 stepper motors and 2 servo motors (steering gear)
