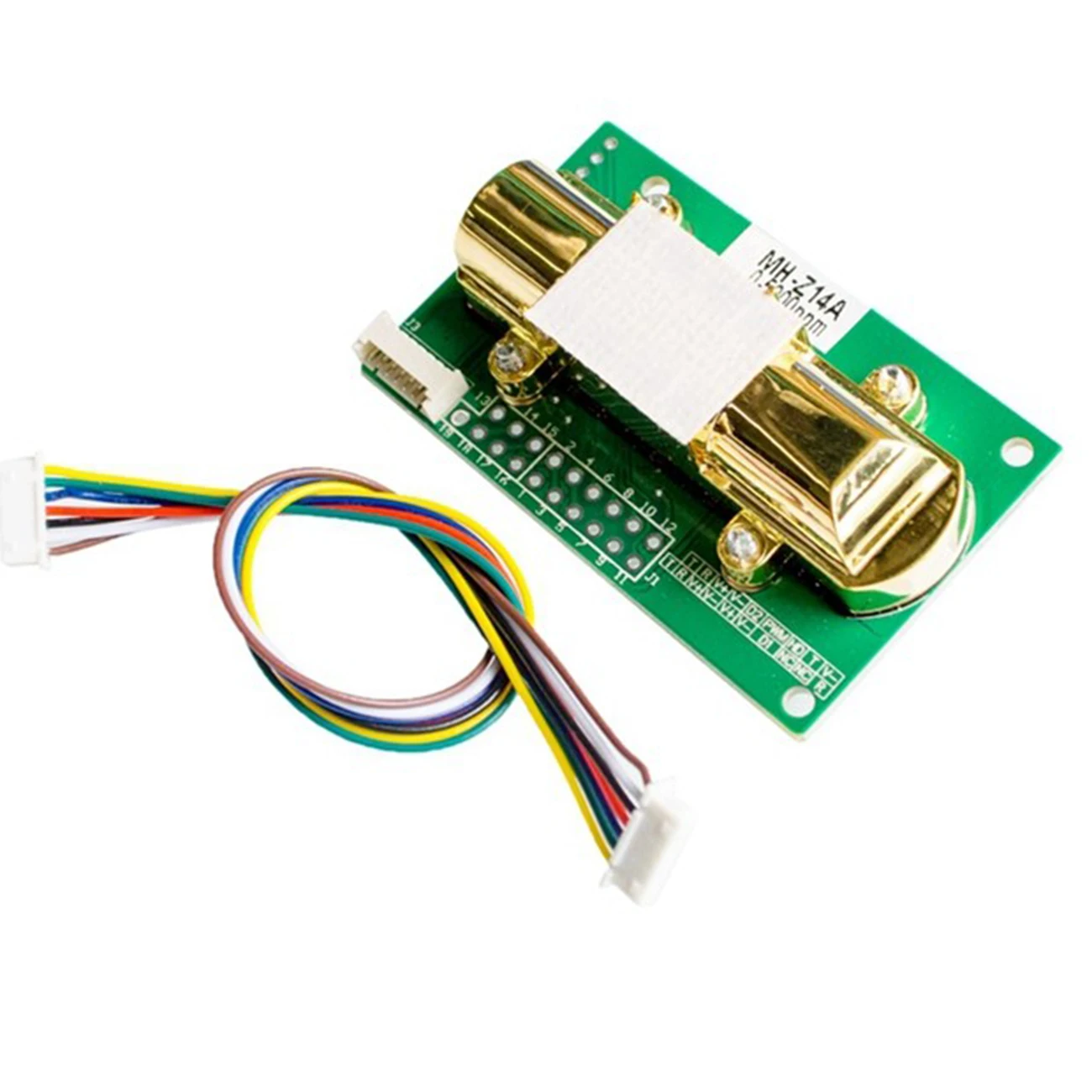

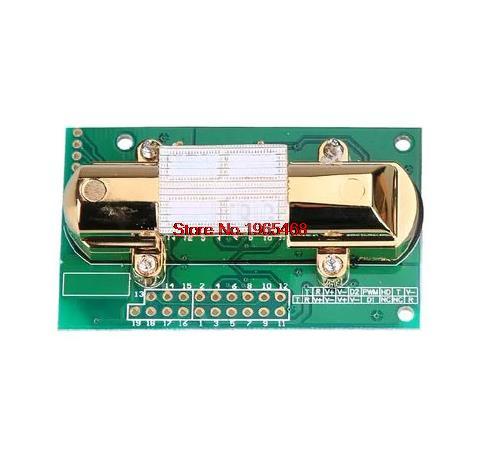

custom 1Pcs NDIR CO2 SENSOR MH-Z14A infrared carbon dioxide sensor module,serial port, PWM, analog output cable

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Product description:
1, working voltage: DC4-6 v
2, working current: 50 ma mean | - 100 ma peak
3, detection range: 0-5000 PPM
4, the detection precision: plus or minus 50 PPM
5, the preheating time: 180 s
6, analog output voltage: 0.4 2 v (linear output)
7, digital output: serial data output (9600, N, 8, 1)
8, response time: 30 s or less
9, working temperature: 0 ~ 60 °
10, work humidity: 0 ~ 90% RH
11, storage temperature: - 20 ~ 60 °
12, the service life: 5 years
13, size: 57 mm * 35 mm * 15 mm
14, weight, size: 17 g

Features:
1, three ways signal output; (analog output/serial UCHAR output)
2, a serial port Uchar signal may meet microcontroller IO serial port; (TTL level 9600, N, 8, 1)
3, 0.4 2 v analog linear output, the higher the concentration, the higher the voltage;
4, with PWM waveform output, it is more convenient to read;
5, module adopts infrared (NDIR) technology for carbon dioxide has a very good choice;
6, modules, light weight, small size, long service life, good stability, etc.
