custom 1Pcs MS5837-30BA pressure sensor MS5837-02BA water pressure air pressure sensor I2C 0.2 mbar high resolution module
custom 1Pcs MS5837-30BA pressure sensor MS5837-02BA water pressure air pressure sensor I2C 0.2 mbar high resolution module
Regular price
$11.48 USD
Regular price
$13.48 USD
Sale price
$11.48 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
The MS5837 is a new generation of high resolution pressure sensors with an I2C bus interface with a water depth resolution of 2 mm for depth measurement systems.
Overpressure 50 bar
Sensor Type Digital Pressure and Height Sensor Module
Type absolute pressure
Output / Span 24-bit ADC
The sensor module includes a high linear pressure sensor and an ultra low power 24-bit ΔΣ ADC with internal factory calibration coefficients. Provides accurate 24-bit digital pressure and temperature values and different operating modes, allowing users to configure conversion speed and current consumption as needed. The high resolution temperature output allows you to implement deep measurement systems and thermometers without the need for additional sensors.
The MS5837 can be connected to almost any microcontroller. The communication protocol is simple and there is no need to program the internal registers in the device. The gel protection and anti-magnetic stainless steel caps ensure that the sensor module is water resistant. This new sensor module is based on advanced MEMS technology and benefits from MEAS Switzerland's proven experience and expertise in high volume manufacturing over the past decade
Advantage

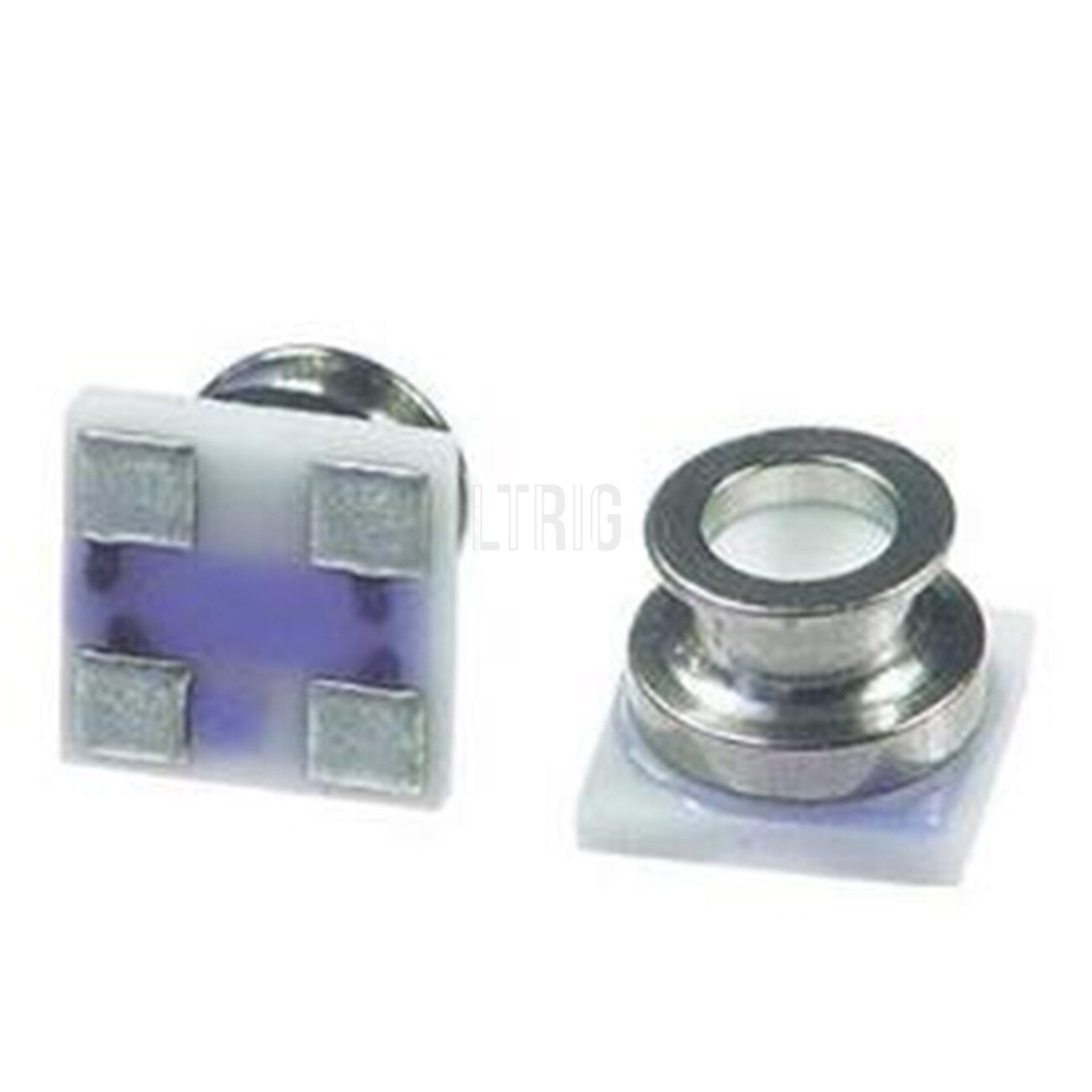

Ceramic-to-metal package, 3.3 x 3.3 x 2.75 mm
High resolution module, 0.2 mbar
Fast conversion up to 0.5 ms
Low power, 0.6 μA (standby power < 0.1 μA at 25°C)
Integrated digital pressure sensor (24-bit ΔΣ ADC)
Supply voltage: 1.5 to 3.6 V
Temperature range: 20 to +85 ° C
I2C interface
No external components (internal oscillator)
Ceramic-to-metal package, 3.3 x 3.3 x 2.75 mm
High resolution module, 0.2 mbar
Fast conversion up to 0.5 ms
Low power, 0.6 μA (standby power < 0.1 μA at 25°C)
Integrated digital pressure sensor (24-bit ΔΣ ADC)
Supply voltage: 1.5 to 3.6 V
Temperature range: 20 to +85 ° C
I2C interface
No external components (internal oscillator)
Excellent long-term stability
Fully sealed for outdoor equipment
Sealed design for 1.8 x 0.8 mm O-rings
Most customers of this product are sounding:

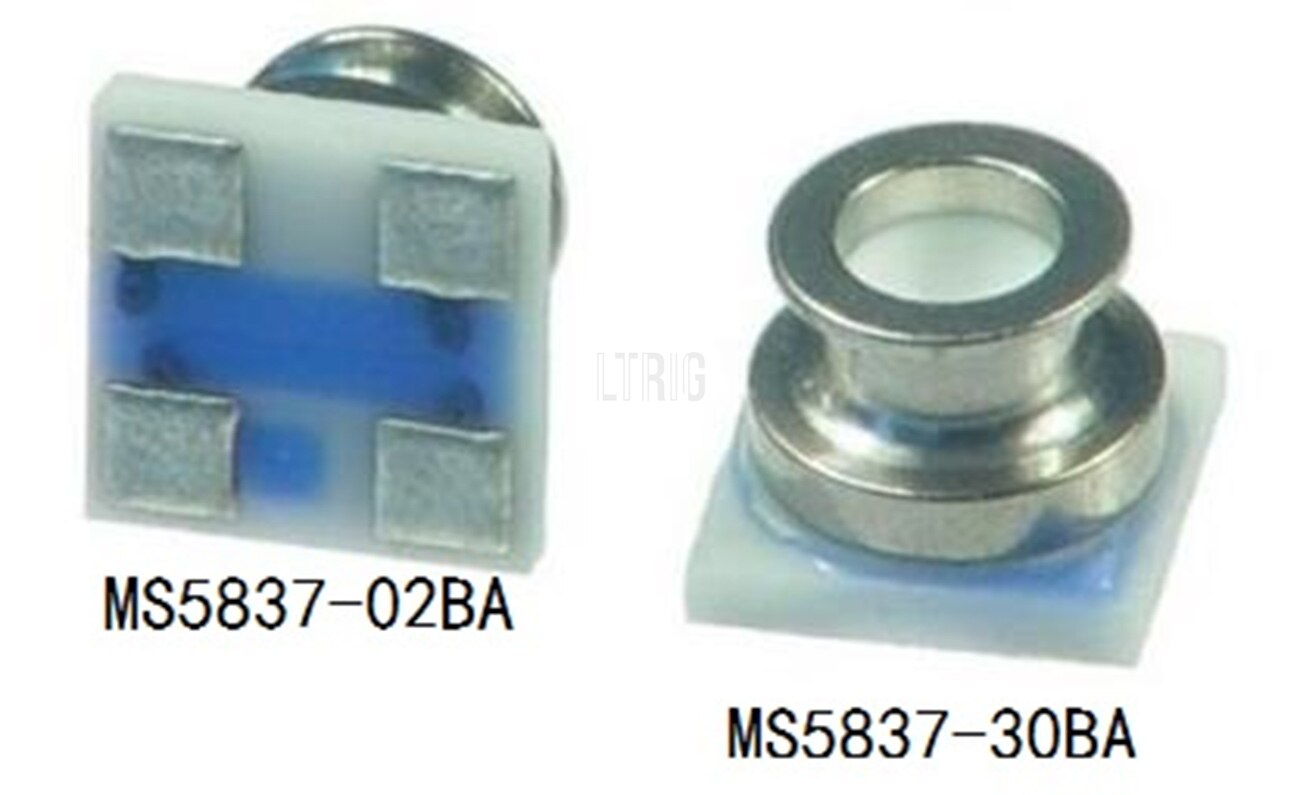

02 represents the measuring range, which is 2 kg, corresponds to a water depth of 20 meters, and can measure up to 100 meters.
30 represents the measuring range, which is 30 kilograms, corresponding to a water depth of 300 meters, and the maximum measurement is 500 meters
Many customers only measure tens of meters, but he chose 30BA, which is 300 meters. Use a 300-meter sensor to monitor a depth of tens of meters, which will sacrifice resolution and accuracy, and will not be accurate. Need to choose 02BA, choose according to requirements
If you choose to test the air pressure, then 02BA and 30BA can be
02 represents the measuring range, which is 2 kg, corresponds to a water depth of 20 meters, and can measure up to 100 meters.
30 represents the measuring range, which is 30 kilograms, corresponding to a water depth of 300 meters, and the maximum measurement is 500 meters
Many customers only measure tens of meters, but he chose 30BA, which is 300 meters. Use a 300-meter sensor to monitor a depth of tens of meters, which will sacrifice resolution and accuracy, and will not be accurate. Need to choose 02BA, choose according to requirements
If you choose to test the air pressure, then 02BA and 30BA can be
