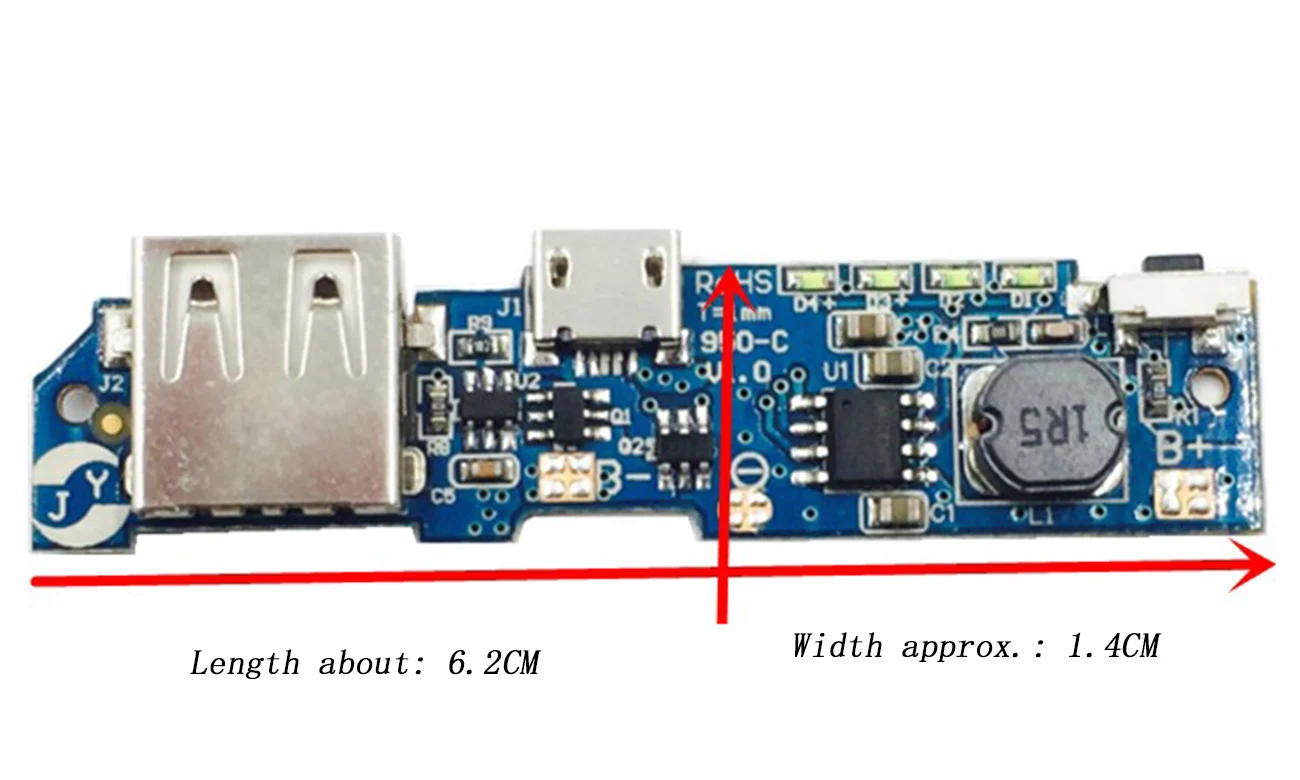

custom 1Pcs Mobile power charging treasure circuit board lithium battery charger PCB boost board module diy kit

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


Performance introduction
PB0052E imported chip is a complete single-chip mobile power solution with 2.1A switch charging and discharging. The standard lithium battery has three-stage charging, constant voltage and constant current output function, so the whole machine has simple periphery, high reliability and very beautiful performance index. PB0052E's high integration and rich functions, synchronous boost system supports 2.1A output current, conversion efficiency up to 96%, and with constant current output function, when no load, automatically enters sleep state after 8 seconds, quiescent current drops to 20UA Within. Using switch charging technology, providing 2.1A charging current, charging efficiency up to 94%, using standard three-stage, (turbulent / constant current / constant voltage) charging, and built-in IC temperature and input voltage intelligently adjust the charging current, compatible with various Current adapter

main feature
1 2.1A synchronous boost conversion, 2.1A synchronous switch charging
2 boost efficiency up to 96%
3 charging efficiency up to 94%
4 Press the button to turn it on, press and hold for 5 seconds to shut down, standby power          consumption is less than 20ua
5 Adopt patented double pipe structure to support side punching
6 constant pressure - constant current standard discharge curve
7 turbulent-constant current-constant voltage standard charging curve
