Raspberry Pi Case-LTRIG

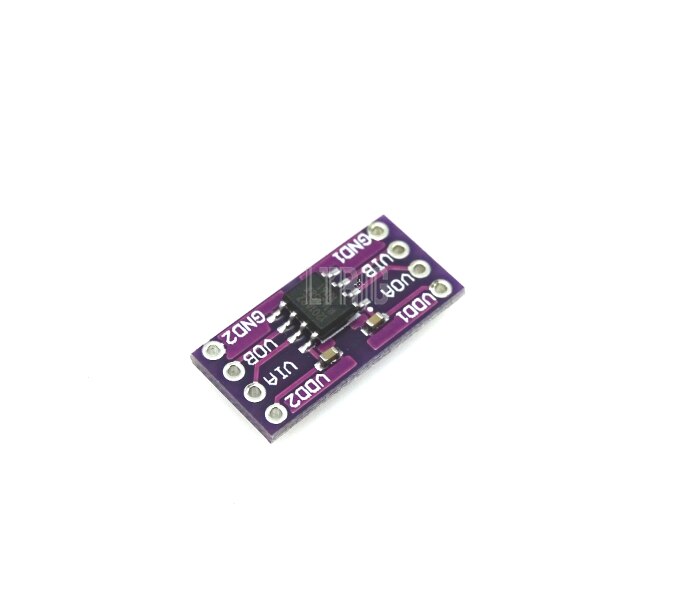

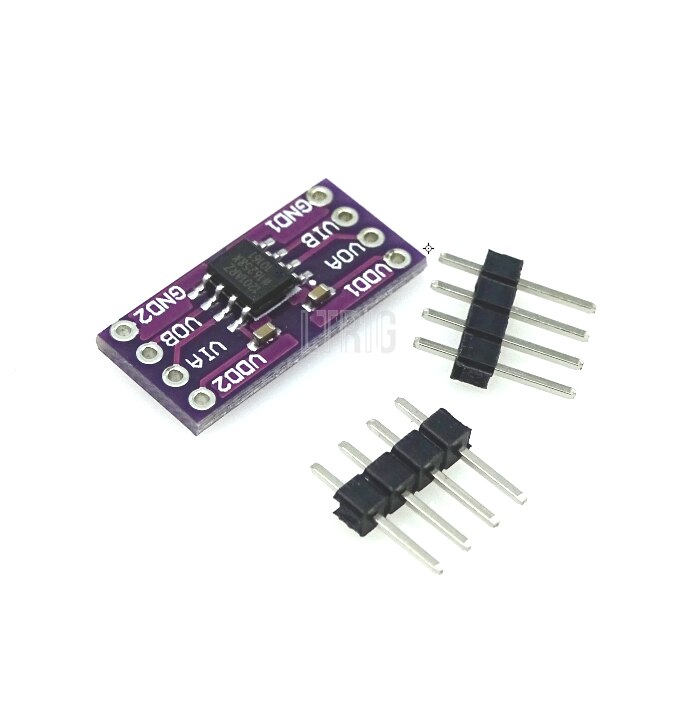

custom 1Pcs Magnetic Isolator Sensor Module ADUM1201ARZ Isolator Board Module Replace 8 Optocouplers DIP Interface SPI

custom 1Pcs Magnetic Isolator Sensor Module ADUM1201ARZ Isolator Board Module Replace 8 Optocouplers DIP Interface SPI

Regular price $1.61 USD
Regular price $3.61 USD Sale price $1.61 USD
Sale Sold out

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


FEATURES:
1. Narrow body SOIC 8-lead package
2. Low power operation
--5V operation
----1.1 mA per channel maximum / 0 Mbps to 2 Mbps
----3.7 mA per channel maximum / 10 Mbps
----8.2 mA per channel maximum / 25 Mbps
--3V operation  0.8 mA per channel maximum / 0 Mbps to 2 Mbps
----2.2 mA per channel maximum / 10 Mbps
----4.8 mA per channel maximum / 25 Mbps
3. Bidirectional communication
4. 3V/5V level translation
5. High temperature operation: 105 °
6. High data rate: dc to 25 Mbps (NRZ)
7. Precise timing characteristics
----3 ns maximum pulse-width distortion
----3 ns maximum channel-to-channel matching
8. High common-mode transient immunity: > 25 kV/us
9. Safety and regulatory approvals
--UL recognition
----2500 V rms for 1 minute per UL 1577
--CSA component acceptance notice #5A
--VDE certificate of conformity
----DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
----DIN EN 60950 (VDE 0805): 2001-12; DIN EN 60950: 2000
----VIORM = 560 V peak

APPLICATIONS:
1. Size-critical multichannel isolation
2. SPI interface/data converter isolation
3. RS-232/RS-422/RS-485 transceiver isolation
4. Digital field bus isolation


Package Included
10x  CJMCU-1201 Magnetic Isolator Board
