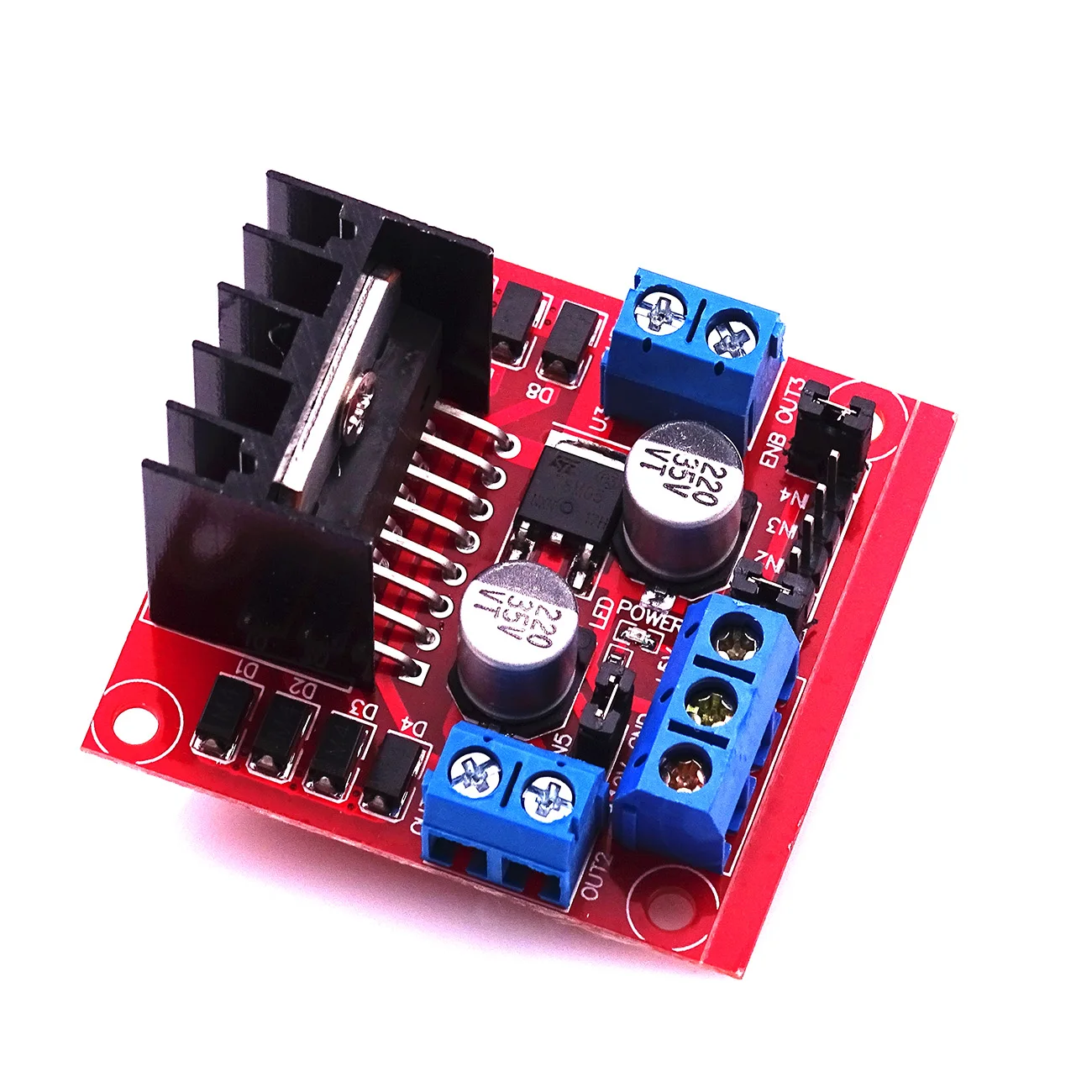

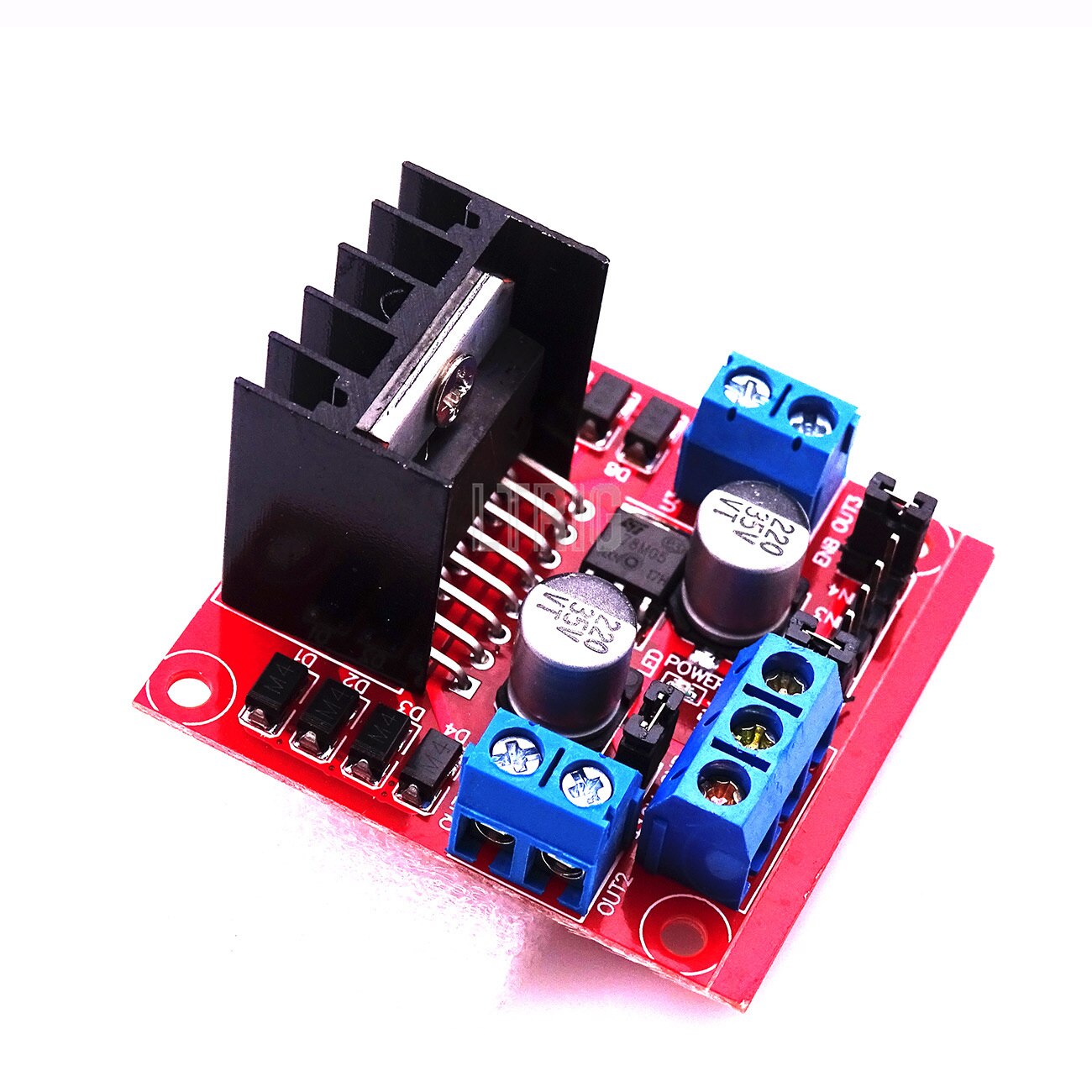

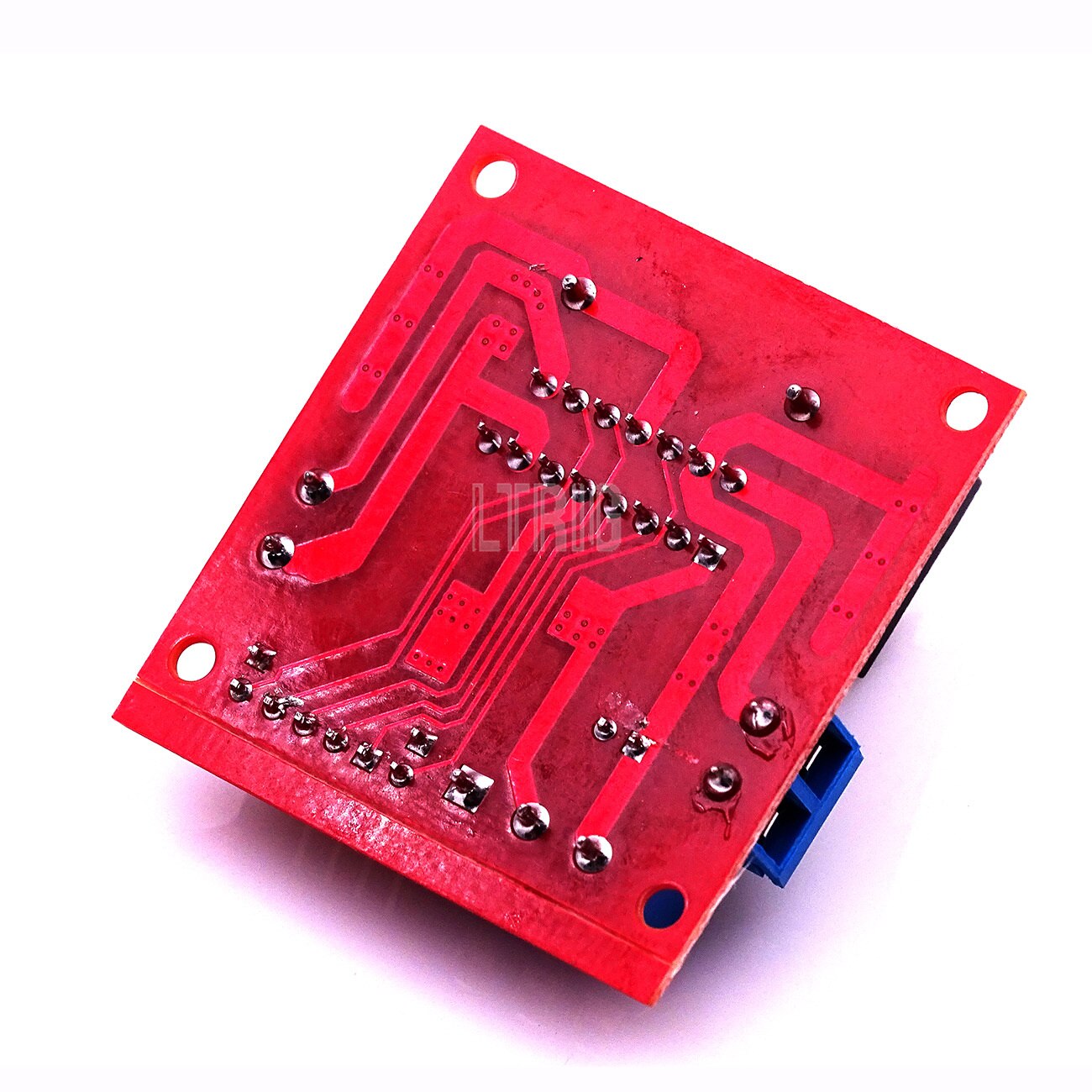

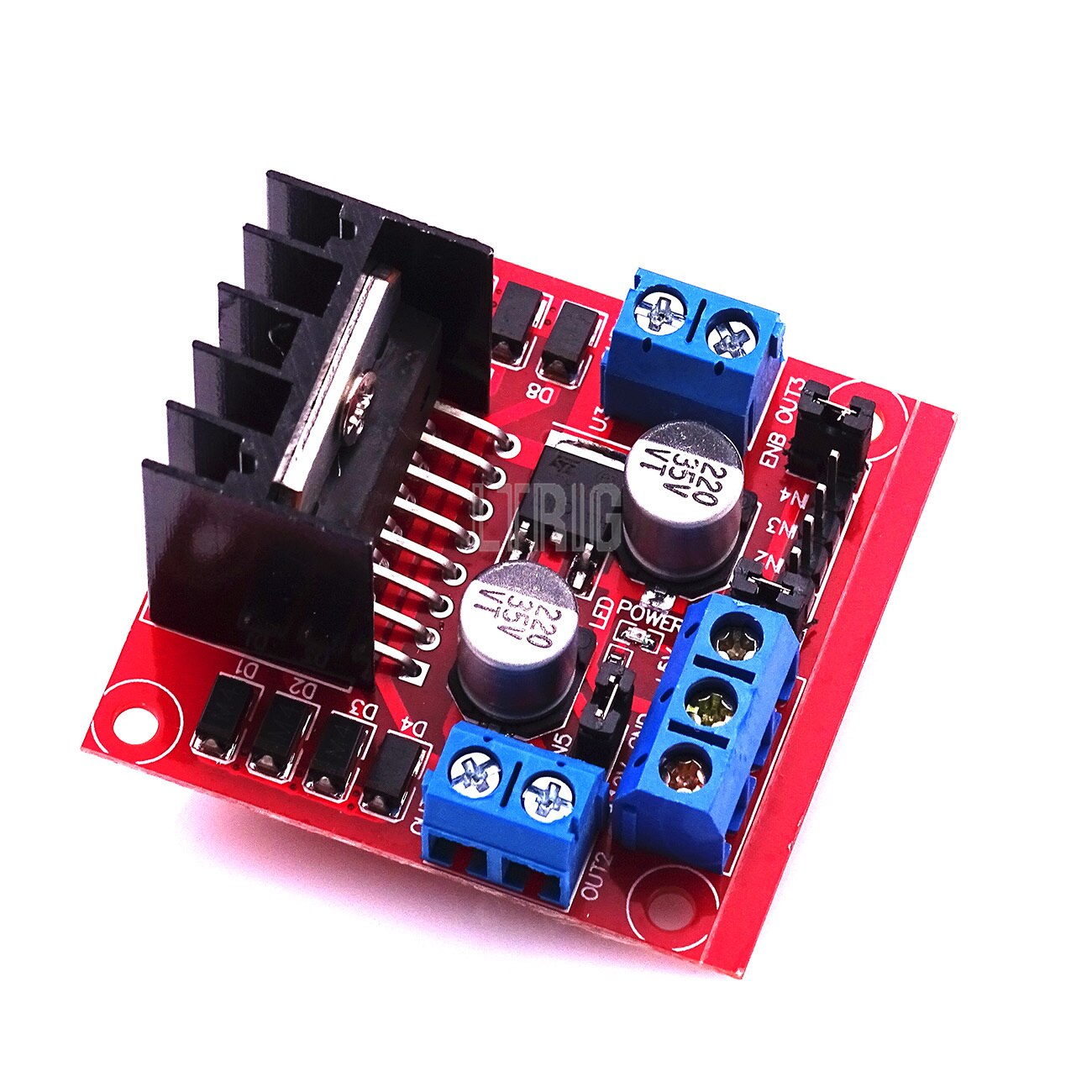

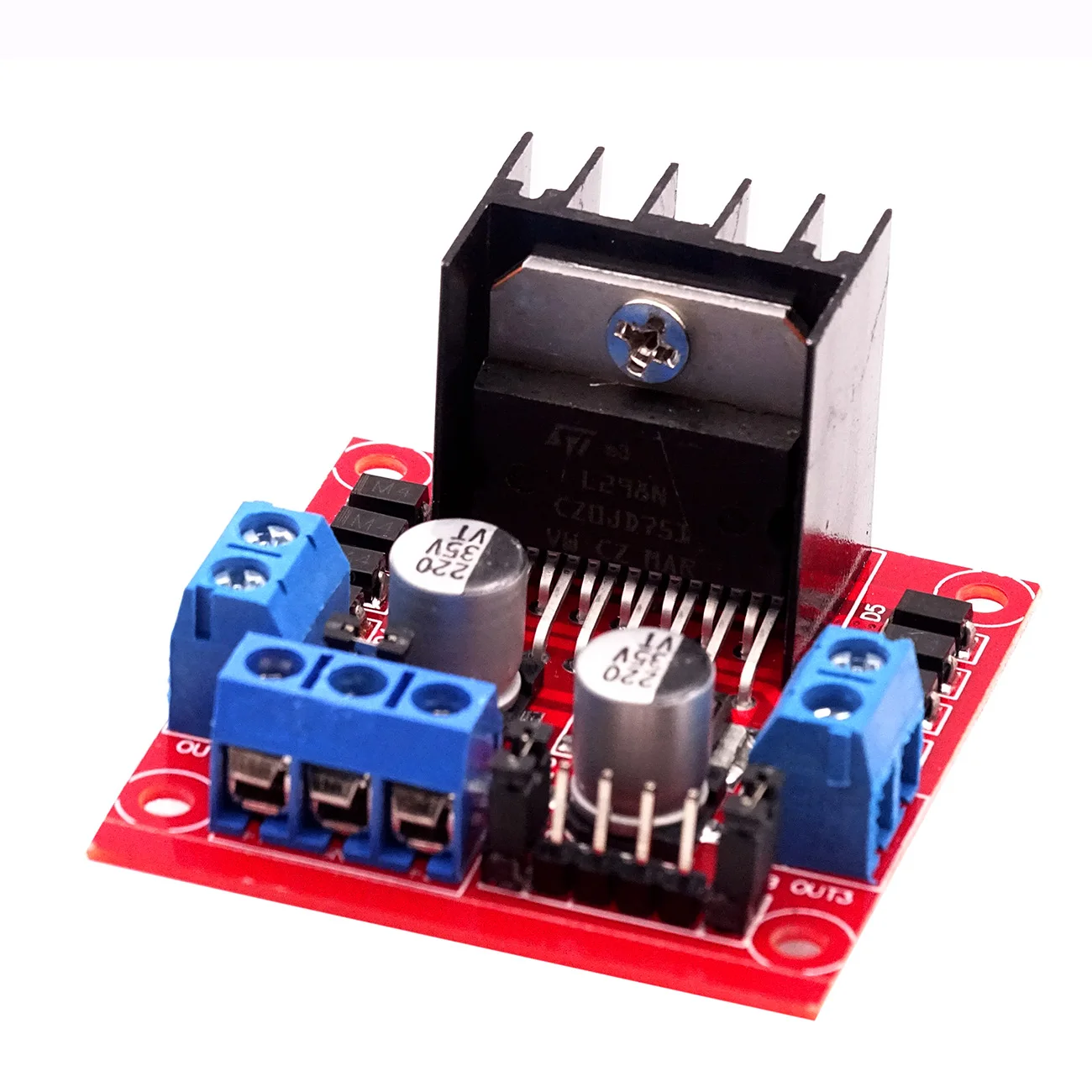

custom 1Pcs l298n driver board module l298 stepper motor robot smart car breadboard peltier high power

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.



L298N is a high voltage, high current motor drive chip. The chip is packaged in 15 feet. The main features are: high working voltage, maximum working voltage of 46V; The output current is large, the instantaneous peak current can be triple-a, and the constant current is 2A. Rated power 25W. The high voltage large current full bridge drive with two H Bridges can be used to drive the inductive load such as dc motor and stepper motor and relay coil. Adopting standard logic level signal control; Having two enabling control terminals that allow or prohibit device work without the influence of input signals with a logical power input terminal that enables the internal logic circuit to work under low voltage; Electrical resistance can be detected and the change is feedback to the control circuit. Using the L298N chip drive motor, the chip can drive a two-phase stepping motor or four-phase step motor, and can also drive two dc motors.

Product description:
Work mode: H bridge drive (double road)
Main control chip: L298N
Logical voltage: 5V
Drive voltage: 5v-35v
Logical current: 0mA - 36mA
Driving current: 2A (MAX single bridge)
Storage temperature: - 20 ° to + 135 °
Maximum power: 25W
Weight: 30 g
Peripheral dimensions: 43 * 43 * 27mm

You can enter the speed and direction of the PWM signal from IN1 IN2
The speed and direction of the motor 2 can be driven from IN3 IN4 input PWM signal
