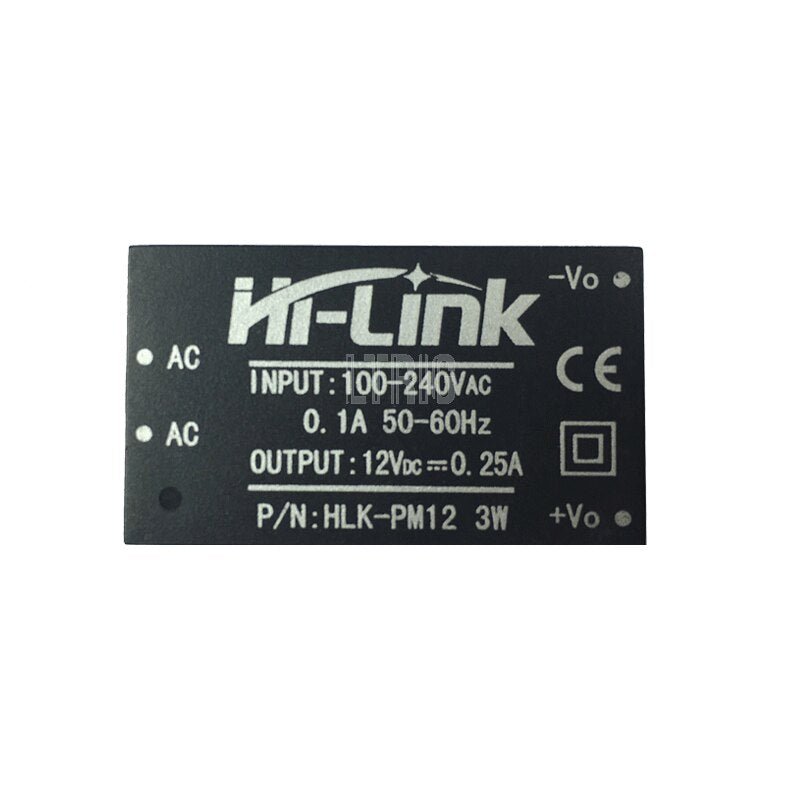

custom 1Pcs HLK-PM01 HLK-PM03 HLK-PM12 AC-DC 220v to 5v / 3.3v / 12v mini power supply module, smart home switch

$2.37 USD

~~$4.37 USD~~ $2.37 USD

Sale Sold out

Color HLK-5M05 HLK-5M12

Quantity

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Product characteristics:
1. the ultra-thin, subminiature
2. the complete voltage input (90 vac 264 vac)
3. low ripple and low noise
4. output overload short circuit protection function
5.high efficiency and power density
6. product design to meet the requirements of electronic compatibility and safety testing.
7. low power consumption, green environmental protection, pressure loss <0.1 w
Aging and Aging
8.100% load test
9. meet the requirements of ul, ce,
The 10.1 year quality warranty period
2. environmental conditions
Project name is
Technical Indicators: Single Bit
Working Temperature: -20-60 + Degree
Storage Temperature: + 80-40-degree
Relative humidity: 5-95.%
The Cooling Way: Natural Cooling

The atmospheric pressure: 80-106kpa
Altitude: 2000 m or less
Vibration
Vibration coefficient 10 hz 500 hz, 2 g10min. / 1 cycle, 60 min. each along the x, y, z axes

3. the electrical characteristics

1.The input characteristics (test) at room temperature.
Project name is
Technical requirements: single bit
The rated input voltage: 100-100.vac
Input voltage range: 90-90.vac
Maximum input current: 0.2 or less a.
Input pulse current; 10 or less a.
Maximum input voltage: vac 270 or less
Soft start input: 50 or less ms
Low input voltage efficiency: vin = 110 vac, 69% or more output
High input voltage: vin = 220 vac, output at 70% or more
Long term reliability: mtbf 100000 or more h.
No load rated output voltage: + 5 +/- 0.1 vdc
Full rated output voltage: + 5 +/- 0.2 vdc a
Maximum output current of short time: p 1000 ma
The maximum output current for a long time: p 600 ma
Voltage regulation: +/- 0.2%
Loading Regulation: +/- 0.5%
Output ripple and noise: (mvp-p) 50 or less
The rated input voltage and the output load. with 20 MHz bandwidth oscilloscope,
Load is 10 uf and 0.1 uf capacitance test. Mv is a
Switching machine overrun
(Rated input voltage, output and 10% load) 5 or less% vo
Overcurrent protection output
150-200% Max Load Output
THE.
Output Short Circuit Protection
Directly to normal short circuit output, short circuit automatically resume normal work after removal
4.Safety Features:
4.1 product design to meet the requirements of safety certification ul, ce.

4.2 safety and electromagnetic compatibility
The input design uses a safe 0.5 ul;
PCB board made of double-sided copper-clad plates material is 94-where the fire rating level of v0;
Safety regulations according to ul1012 en60950, ul60950
Insulation voltage i / p-o / p: 2500 vac
Insulation Resistance I / P-O / P> 100m Ohms / 500VDC 25 Degree 70% RH
Conduction and radiation in line with en55011, en55022 (cispr22)
Electrostatic discharge iec / en 61000-4-2 level 4 8 kv / 15 kv
Immunity to radiofrequency radiation iec / en 61000-4-3 can be found in the application
Safety Design Temperature 4.3
At normal temperature in our power capacitor, main converter so on the surface temperature does not exceed 90 degrees; the biggest
The maximum surface temperature of the shell does not exceed 60 degrees;

Weclome Customize Order!
