custom 1Pcs GSM/GPRS/3G internal antenna FPC soft board antenna CDMA WCDMA TDSCDMA module antenna

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

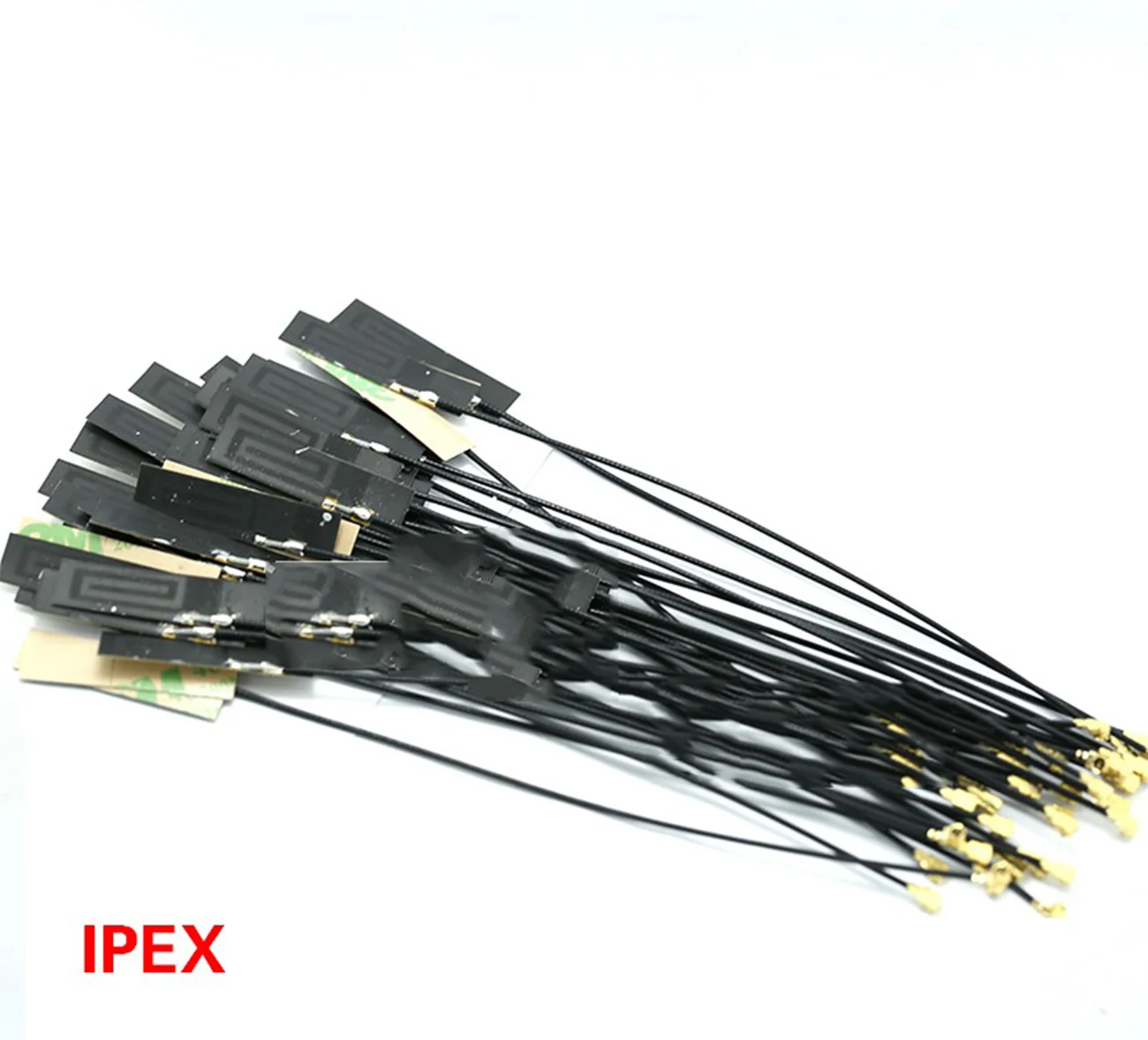

This FPC flexible soft-board antenna supports mobile multi-frequency antennas such as GSM/3G WCDMA CDMA TDSCDMA. FPC soft board design defaults to double-sided adhesive.

Suitable for: Mobile Unicom Telecom GSM/GPRS/3G



Connector type: IPX13

Line length: 12CM or so Total length: 15CM or so.



S.W.R. <= 2.0 @ 780~960 MHz &

<=1.5 @ 1710~2170 MHz

Antenna Gain +2.0 ± 0.7 dBi @ 880 MHz

+2.0 ± 0.7 dBi @ 1800 MHz

Impedance 50 Ohm

B. Material

Material of Radiator FPC

Connector Type I-Pex or I-Pex compatible

C. Environmental

Operation Temperature - 30 °C ~ + 85 °C

Storage Temperature - 30 °C ~ + 85 °C

 Weclome Customize Order!
