Raspberry Pi Case-LTRIG

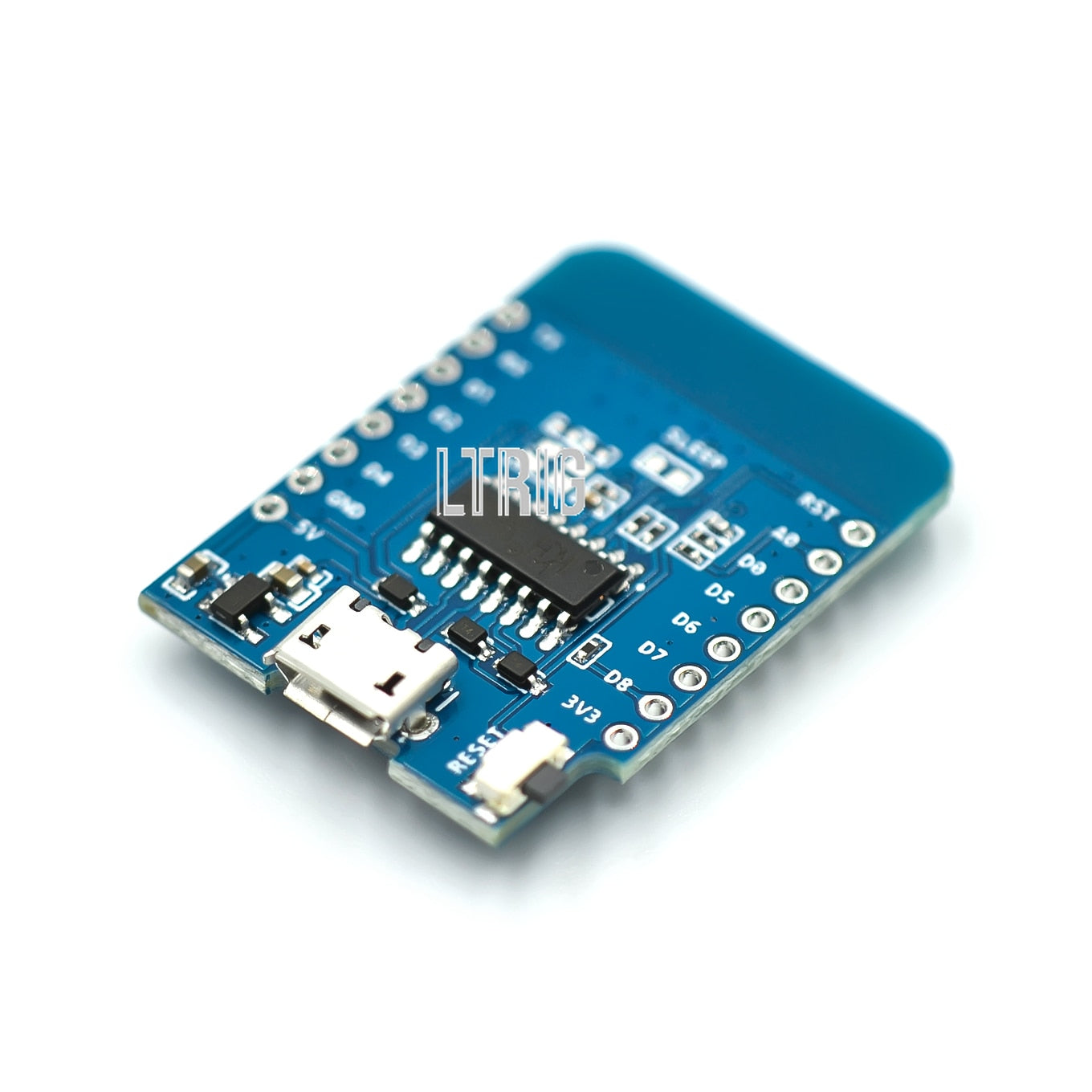

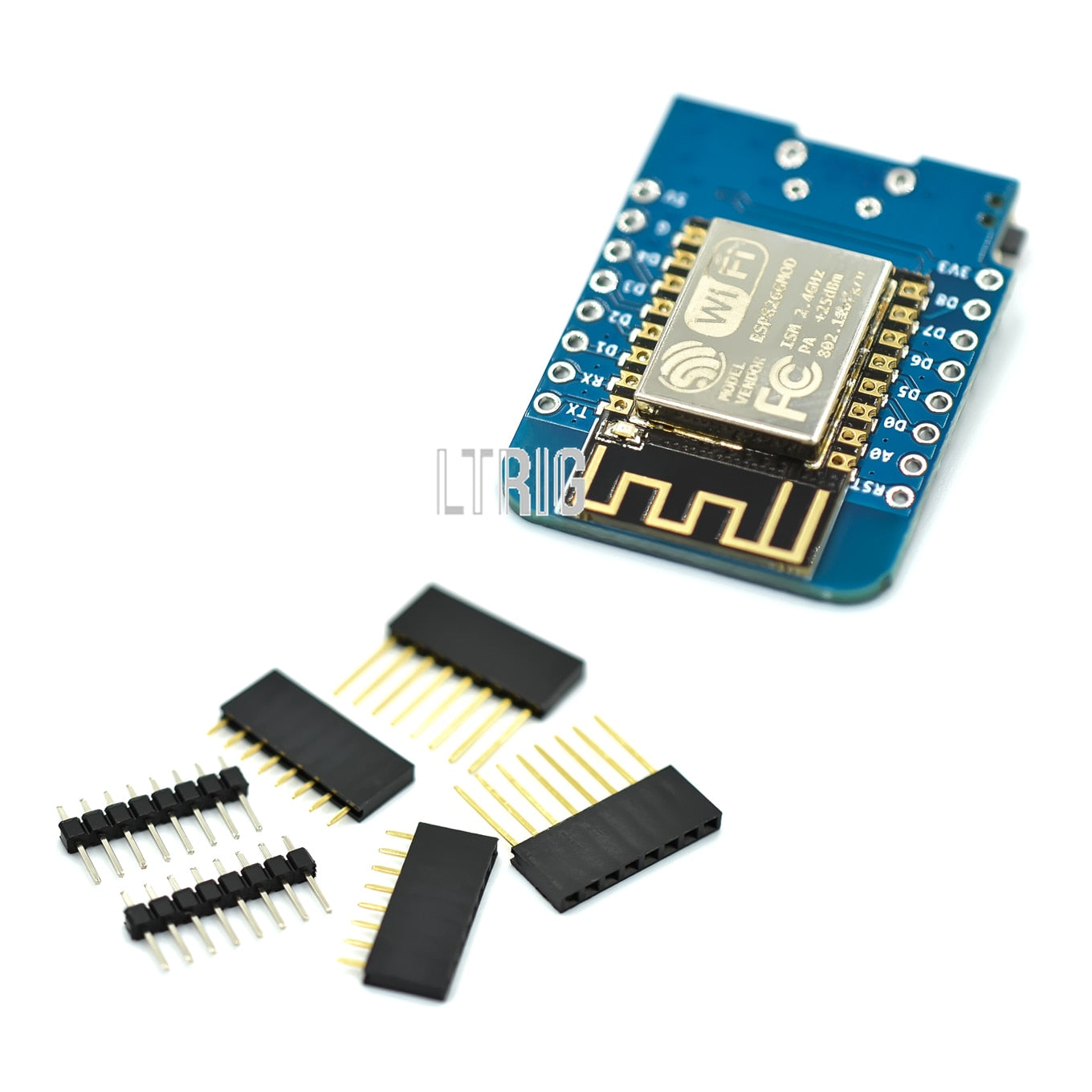

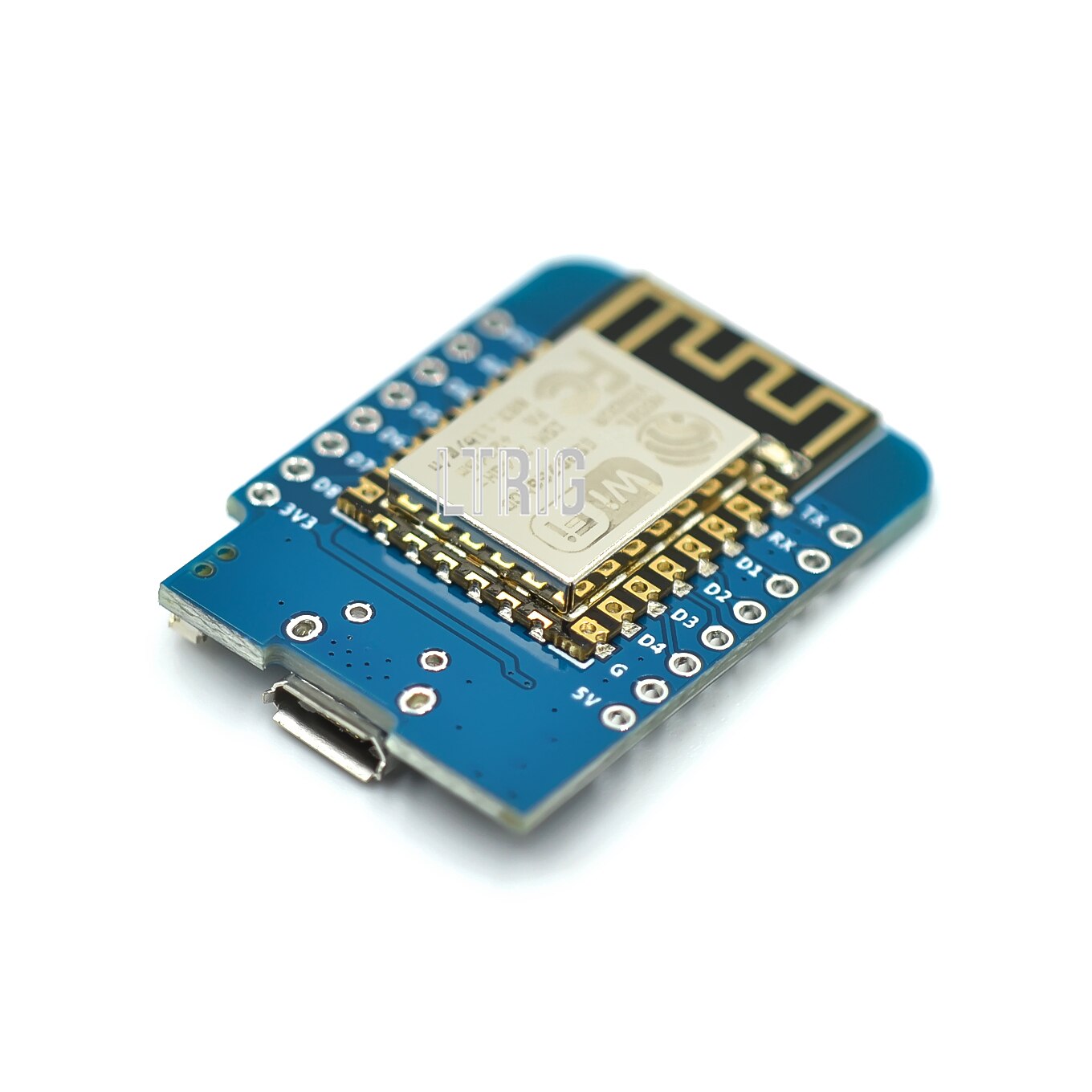

Custom 1PCS ESP8266 ESP-12 ESP12F CH340 V2 USB WeMos D1 Mini WIFI Development Board NodeMCU Lua IOT Board 3.3V With Pins

Custom 1PCS ESP8266 ESP-12 ESP12F CH340 V2 USB WeMos D1 Mini WIFI Development Board NodeMCU Lua IOT Board 3.3V With Pins

Regular price $1.89 USD
Regular price $3.89 USD Sale price $1.89 USD
Sale Sold out

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Pin

Function

ESP-8266 Pin

TX

TXD

TXD

RX

RXD

RXD

A0

Analog input, max 3.3V input

A0

D0

IO

GPIO16

D1

IO, SCL

GPIO5

D2

IO, SDA

GPIO4

D3

IO, 10k Pull-up

GPIO0

D4

IO, 10k Pull-up, BUILTIN_LED

GPIO2

D5

IO, SCK

GPIO14

D6

IO, MISO

GPIO12

D7

IO, MOSI

GPIO13

D8

IO, 10k Pull-down, SS

GPIO15

G

Ground

GND

5V

5V

-

3V3

3.3V

3.3V

RST

Reset

RST


All IO have interrupt/pwm/I2C/one-wire supported(except D0)

Programming

The D1 mini has a micro USB for auto programming.
Also you can programming it using OTA.

Warnings

All IO is work at 3.3V.



Installing Hardware package

There is two ways to install hardware package, Boards Manager and git.

Installing with Boards Manager

Starting with 1.6.4, Arduin allows installation of third-party platform packages using Boards Manager. We have packages available for Windows, Mac OS, and Linux (32 and 64 bit).






aeProduct.getSubject()





Upload Using:

Serial - Use USB port on board to upload flash

OTA - Use OTA to upload flash



CPU Frequency:

80MHz

160MHz



Flash Size:

4M (3M SPIFFS) - 3M File system size

4M (1M SPIFFS) - 1M File system size



Upload Speed:

921600 bps - recommend

Installing Examples

Simple Way

· Download Examples files form here.

· Rename the uncompressed directory to D1_mini_Examples

· Move directory to Sketchbook_directory

· The path will look like Sketchbook_directory/D1_mini_Examples

· Restart the Arduin IDE

· All examples are under File→Sketchbook→D1_mini_Examples

Git Way (Recommend)

We recommend using git to install Examples, you can always get the latest version of it.

· Clone repository into Sketchbook_directory directory (or clone it elsewhere and create a symlink).

cd Sketchbook_directory









Features:

1. Based on ESP-8266EX

2.Arduin compatible, using the Arduin IDE for programming

3.11XI / O pin

4.1XADC pin (input 0-3.3V)

5. Support OTA on line

6. Onboard 5V 1A switching power supply (maximum input 24V)





 Weclome Customize Order!
