custom 1Pcs Dual BTS7960 43A-H Bridge High-power Motor Driver / Smart Module DIY Diagnostic Car Current

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

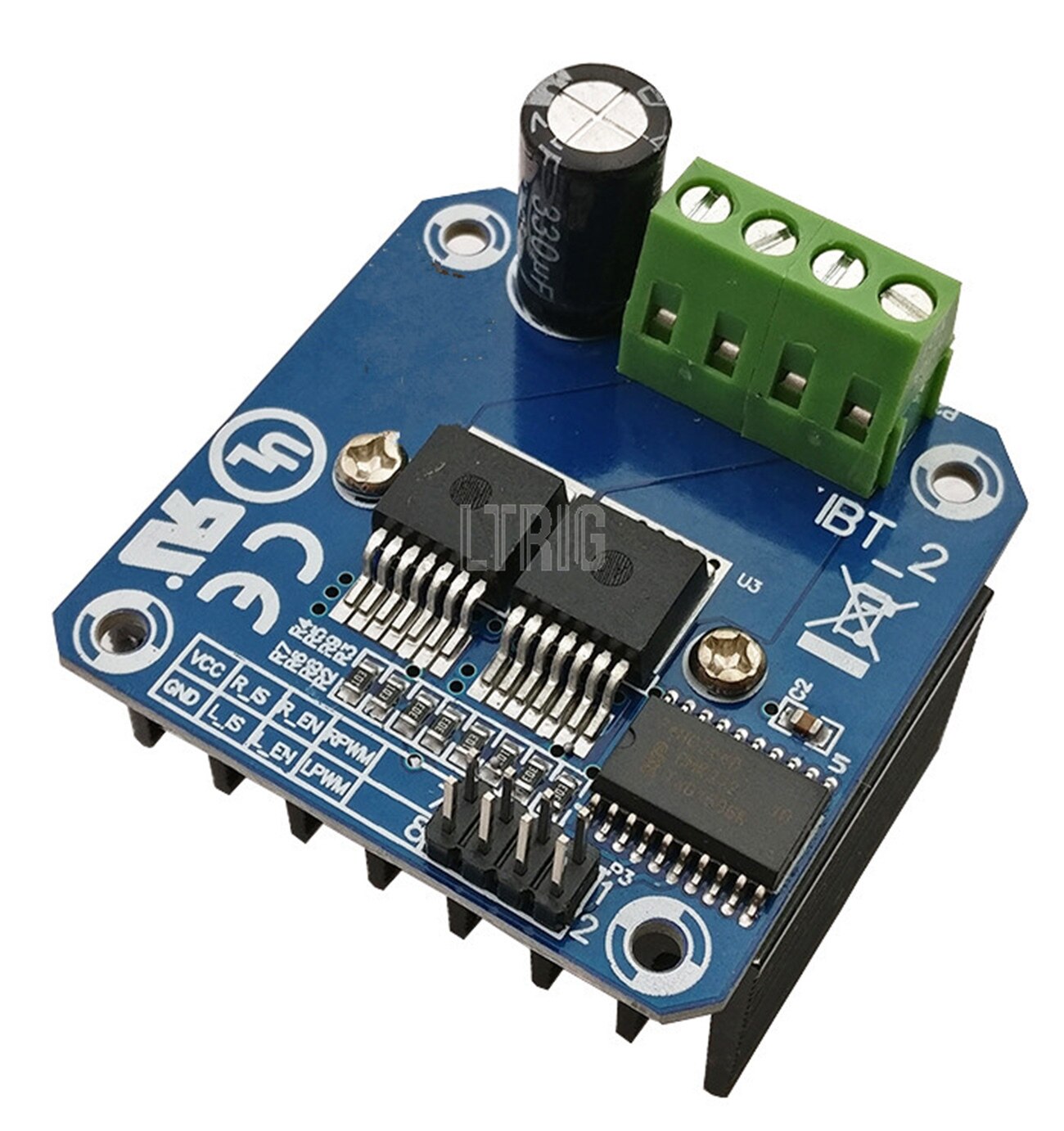

BTS7960B-H-bridge 43A high-power motor driver Module Overview:

This driver uses BTS7960 chipset composed of high-power full-bridge H driver module with thermal over-current protection. BTS7960-H bridge dual circuit driver, with a strong boost and braking, effectively isolate the microcontroller and motor driver! High-current 43A

Characteristics:

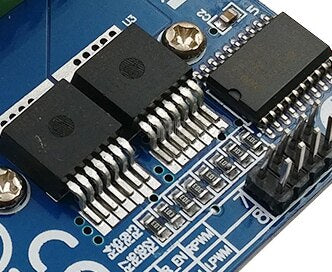

Double BTS7960 large chain (43 A) H driver bridge;

5 v isolate with MCU, and effectively protect MCU;

5 v onboard power indicator;

Indication of the output voltage of the final motor driver;

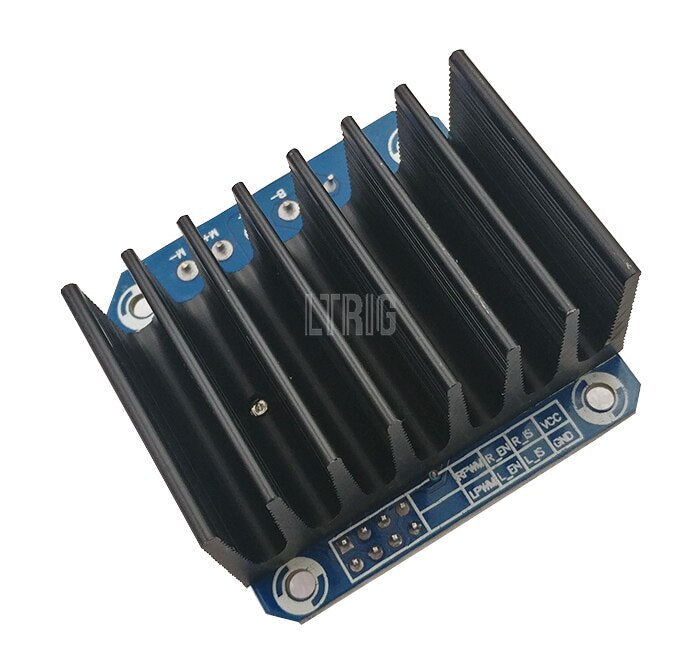

Can weld heat sink;

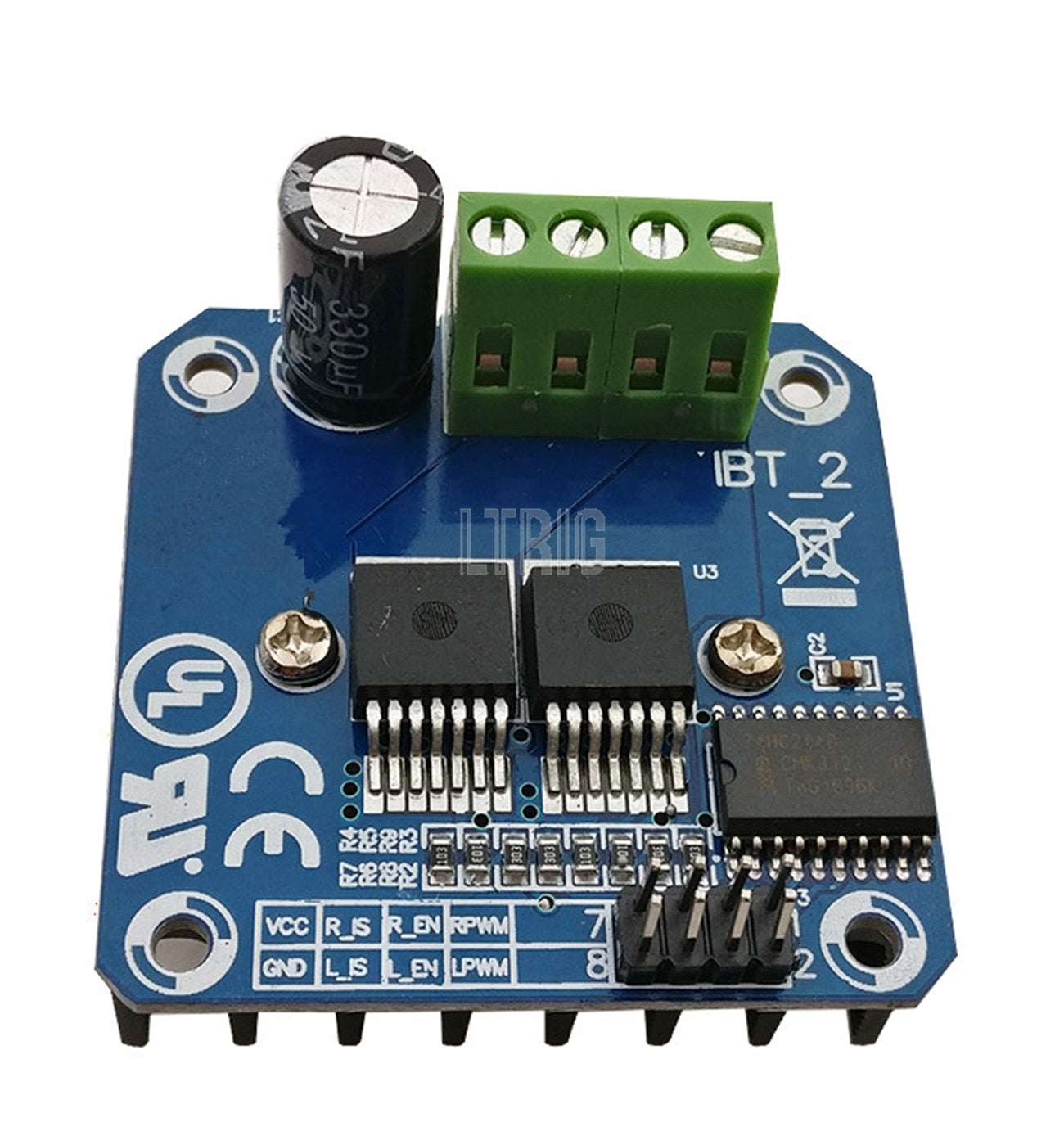

PIN setting:

1. RPWM: Turn Right PWM

2. LPWM: Turn Left PWM

3. R_EN: Turn Right Enable (High Active)

4. L_EN: Turn Left Enable (High Active)

5. R_IS: Turn Right Current Warning (May Leave Floating)

6. L_IS: Turn Left Left Notice (May Leave Floating)

7. VCC: (5 v)

8. GND



connection:

method 1:

VCC: 5 V Microcontroller (MCU)

GND: GND of the microcontroller (MCU)

L_PWM: PWM or 5 V microcontroller (MCU) for CCW (CW) conversion

R_PWM: PWM or 5 V microcontroller (MCU) for CW (CCW) conversion

R_EN and L_EN: 5 V microcontroller (MCU)

Method 2:

VCC: 5 V Microcontroller (MCU)

GND: GND of the microcontroller (MCU)

L_PWM: 5 V microcontroller (MCU) for CCW (CW) conversion

R_PWM: 5 V microcontroller (MCU) for CW (CCW) conversion



R_EN and L_EN: Microcontroller PWM (MCU)





The driver module only needs four rows of MCUs (GND 5 v.PWM1, PWM2);

Insulated chip 5v power supply (can share 5v with MCU);

Size: 4 * 5 * 1.2 cm;

Ability to reverse motor forward with two input PWM frequencies up to 25 kHz;

Two heat current outputs pass the error signal;

Isolation of 5V chip power supply (can share 5V with MCU), can also use 5V onboard power supply;

Supply voltage 5.5 V to 27 V;

 Weclome Customize Order!
