custom 1Pcs DIY KRC-86B Bluetooth V4.0 Stereo Headset Audio Receiver Board Module

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

Bluetooth Stereo Audio Modules Modification Wireless Speaker Amplifier Audio KRC-86B V4.0



Description:



The British imported CSR Bluetooth chip, complete package designed to connect peripherals using the latest smartphones, perfectly compatible with 3.0, 4.0, Bluetooth phone and Bluetooth adapter



Password, enter 0000

High quality Bluetooth chip, Bluetooth version V2.1 + EDR

Receive up to 20 meters distance of about 10 m, unobstructed case

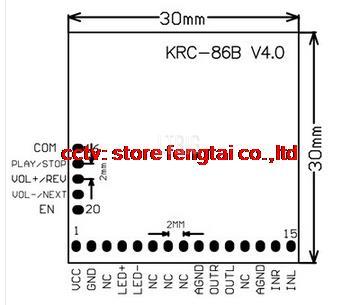

Small size: 32MM * 32MM

Power: 3V-5.5V

A set of stereo AUX audio input

A set of stereo audio output

A Bluetooth indicator

A Bluetooth status control output

5 key ports



Workflow Module

Automatic power-on, the status of AUX output

After the module is powered, automatic initialization, probably completed around 5S

After initialization, automatically connect back to the last connected device, LED starts flashing

If you are not connected to a device, the module automatically enters pairing mode

Namely: to search for other Bluetooth devices to this device, the device name is: KRC-86B V3

Once connected, LED from flashing to long bright, turn Bluetooth output output output +3.3 V while the EN pin high

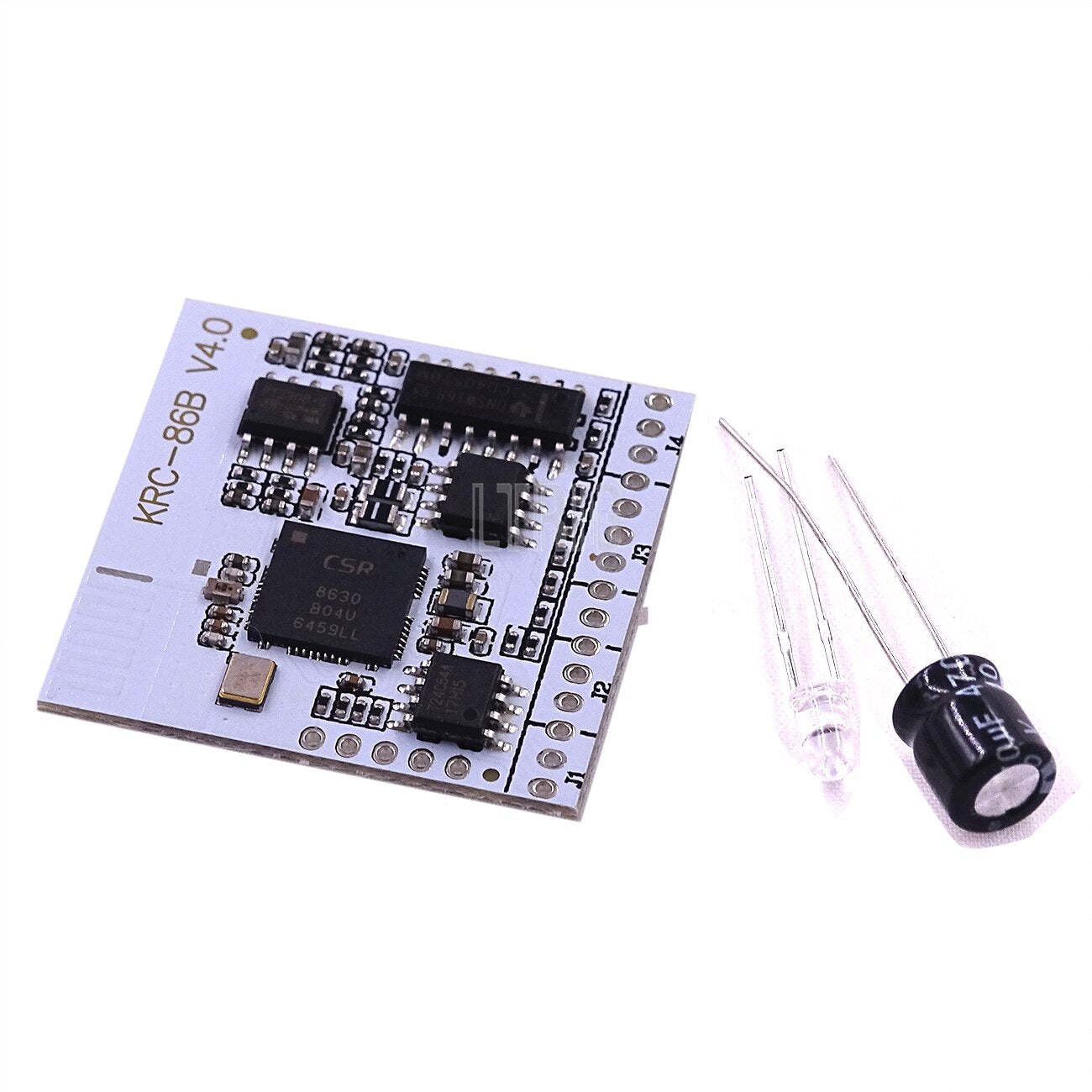

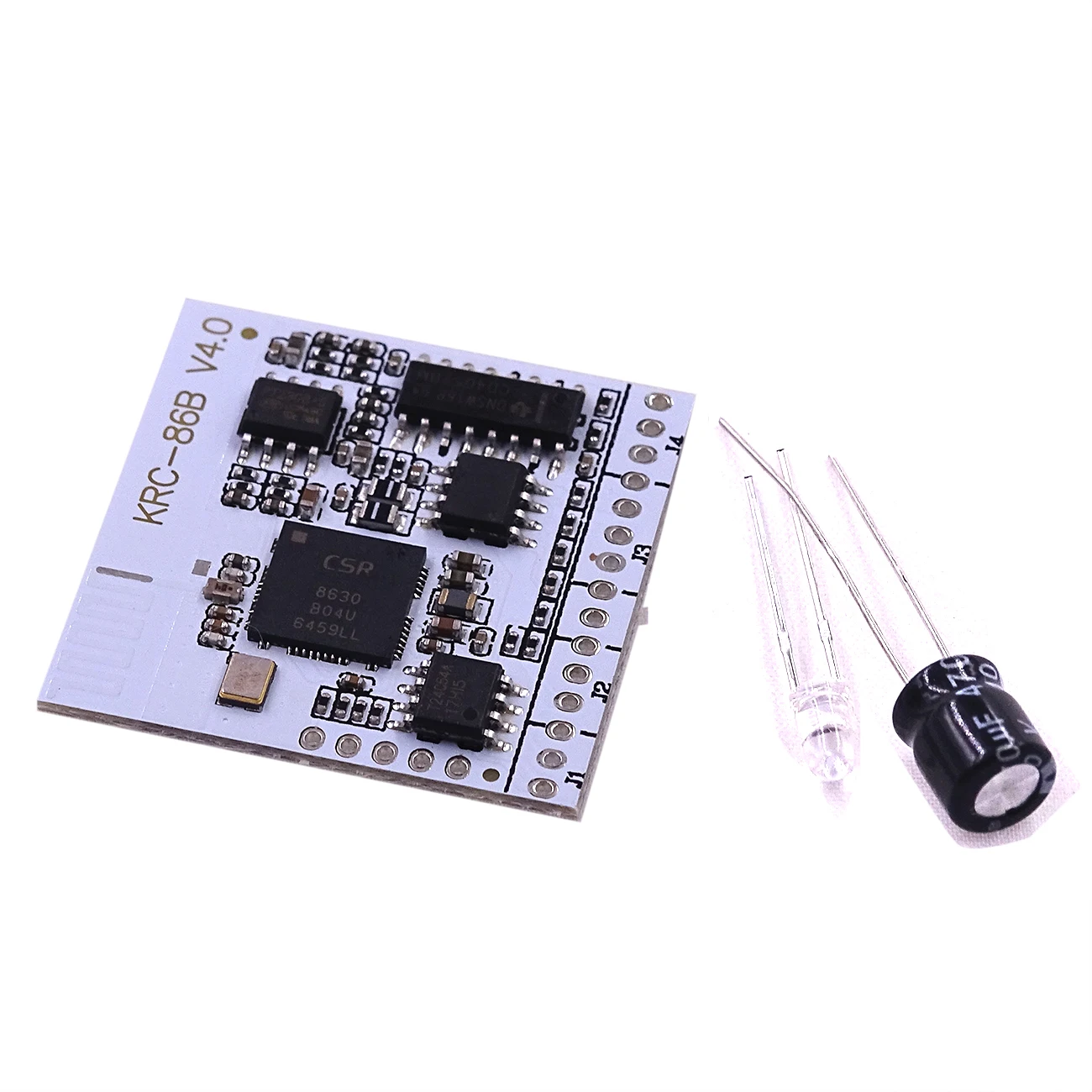

Package Included:

1 X Bluetooth Stereo Audio Modules
