custom 1Pcs Digital power amplifier board module 35w mono amplifier module TDA8932 high power low power consumption

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

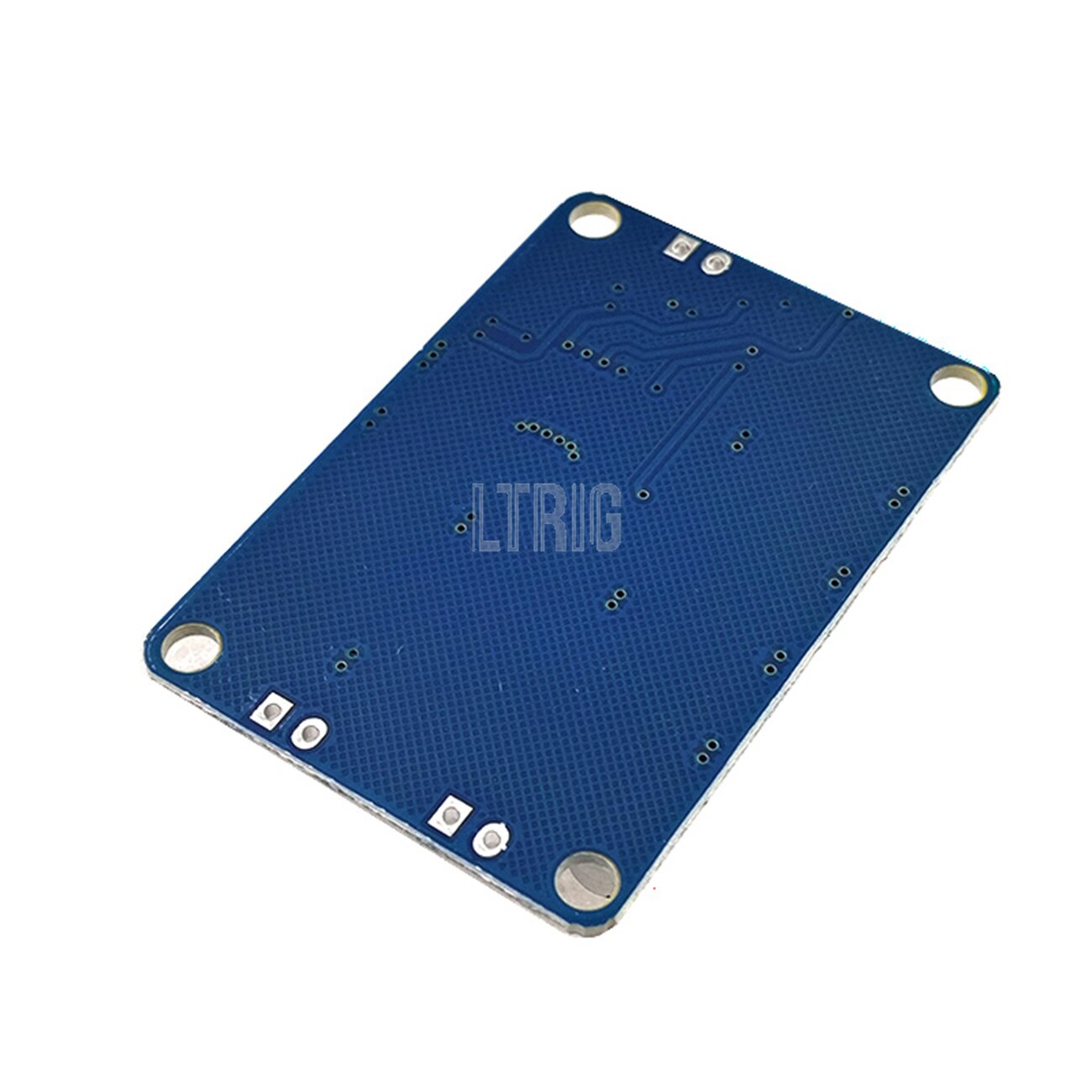

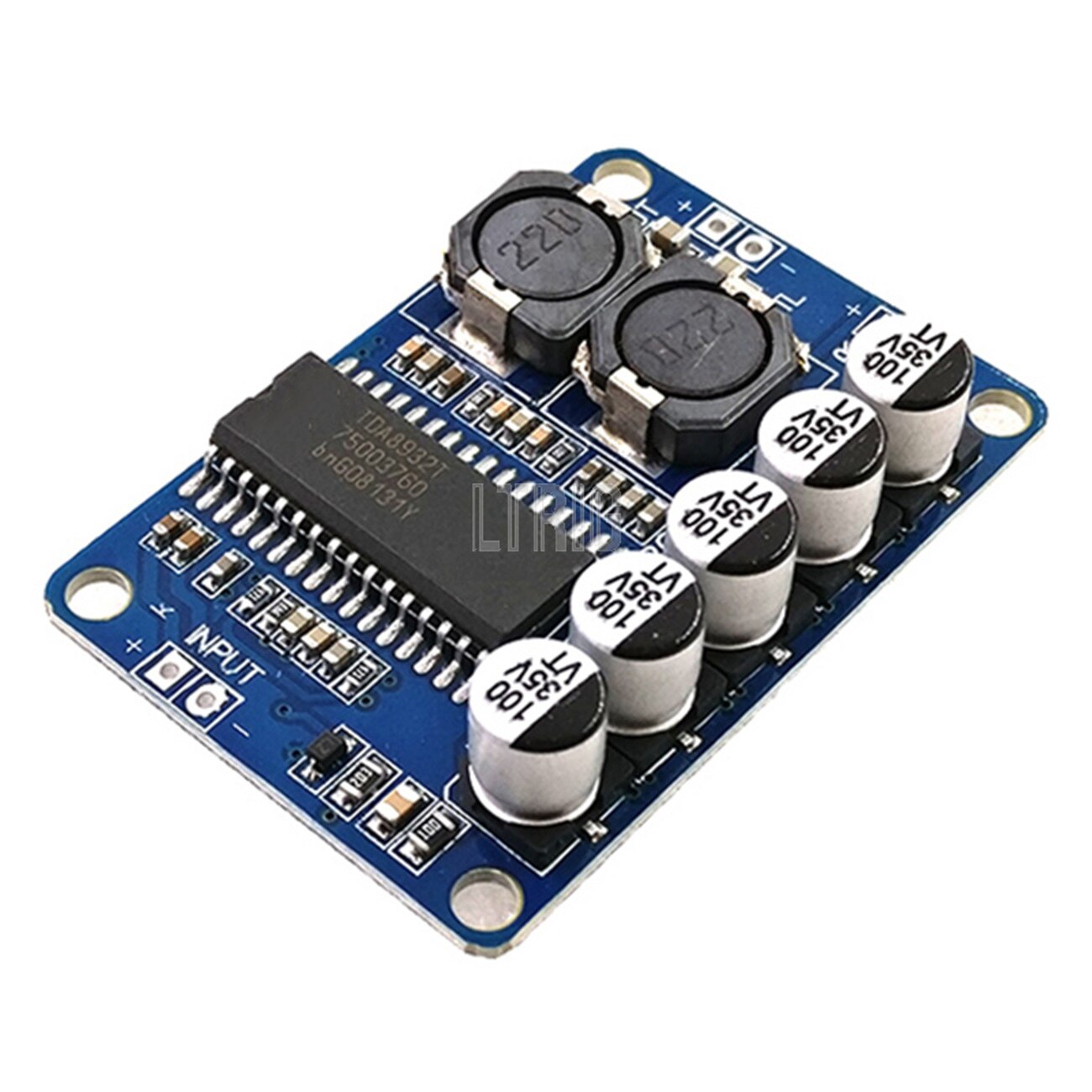

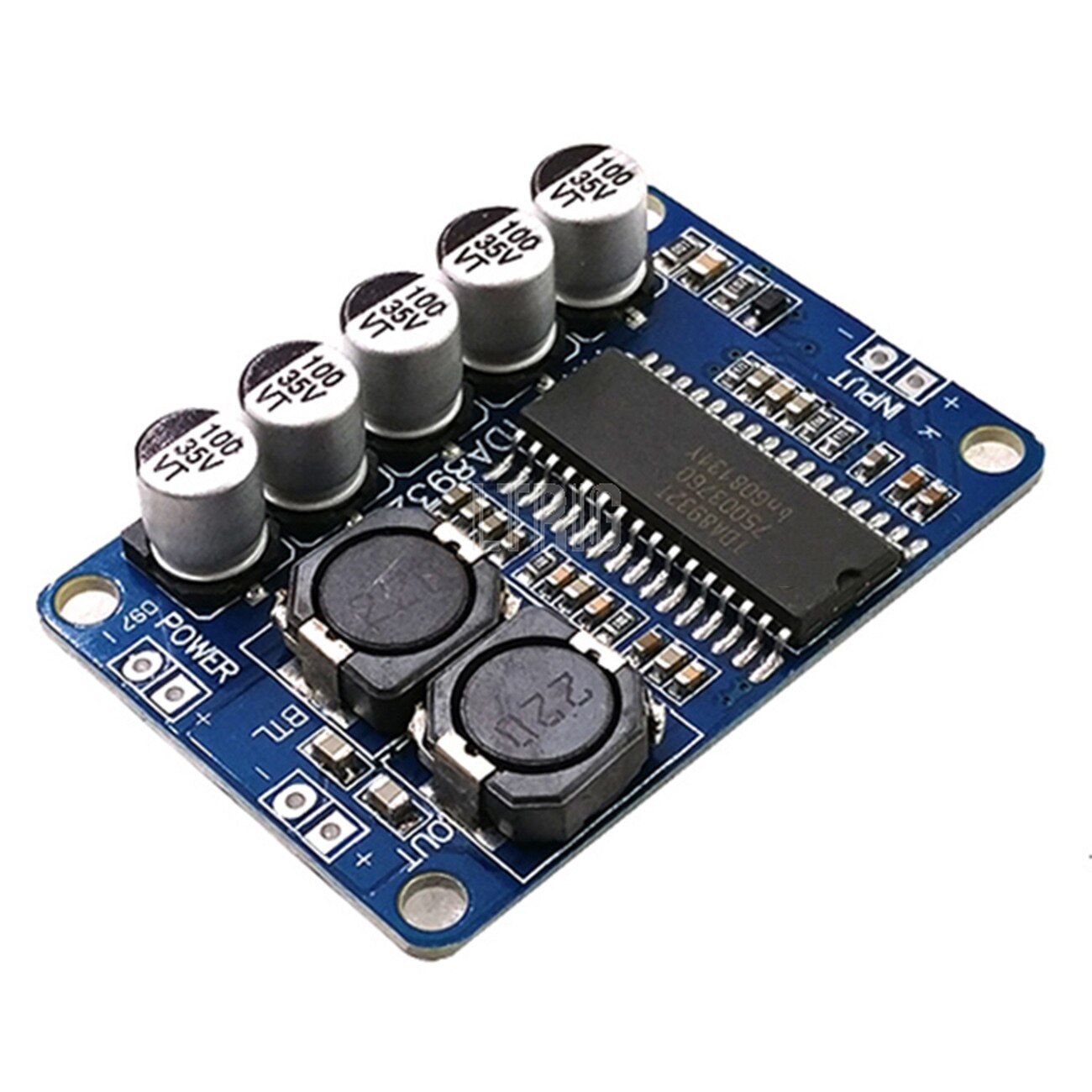

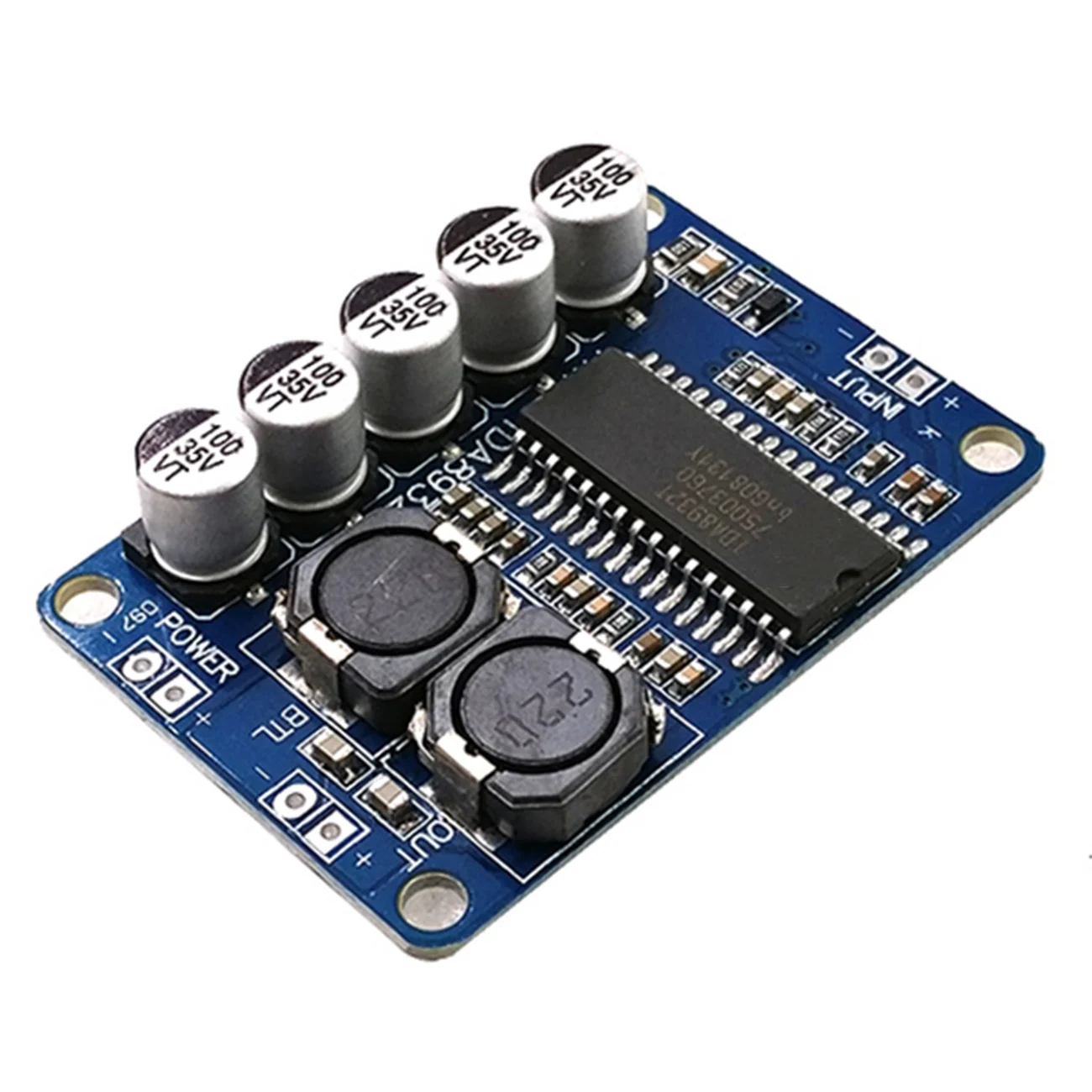

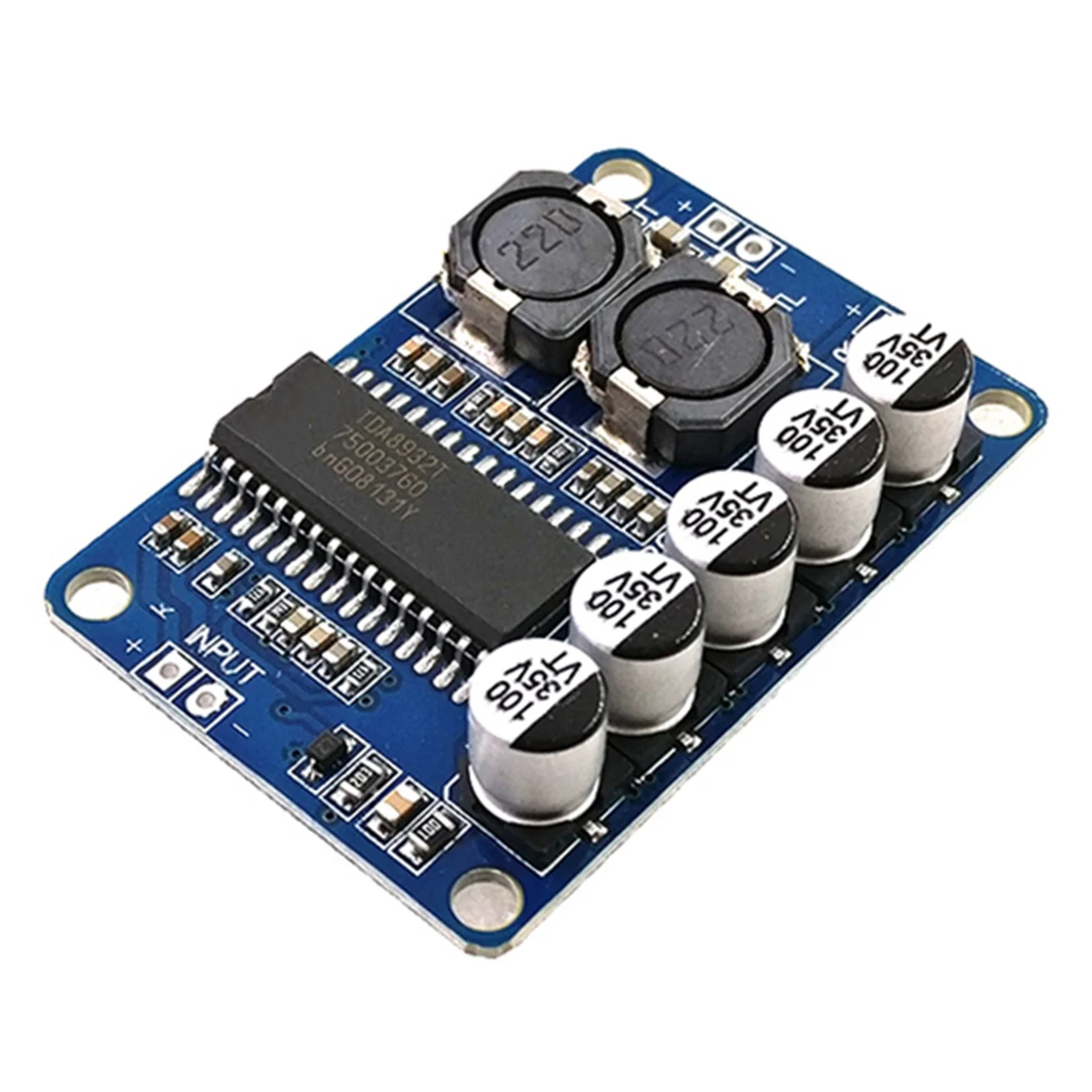

Mono digital amplifier module TDA8932 35 W

The board uses a high-performance digital amplifier chip TDA8932, a small size, high efficiency, high power, good sound quality, no additional installation of the radiator, very suitable for the transformation of active speakers, application of electroacoustic projects, product development and other audio applications.

Product description:

Operating voltage: single DC10-30V, 24V recommended voltage, current above 2 a Switching power supply
Output Power: 35w * 1
Speaker impedance: 4-8 ohm, 8 ohm better
Circuit configuration: Mono BTL output

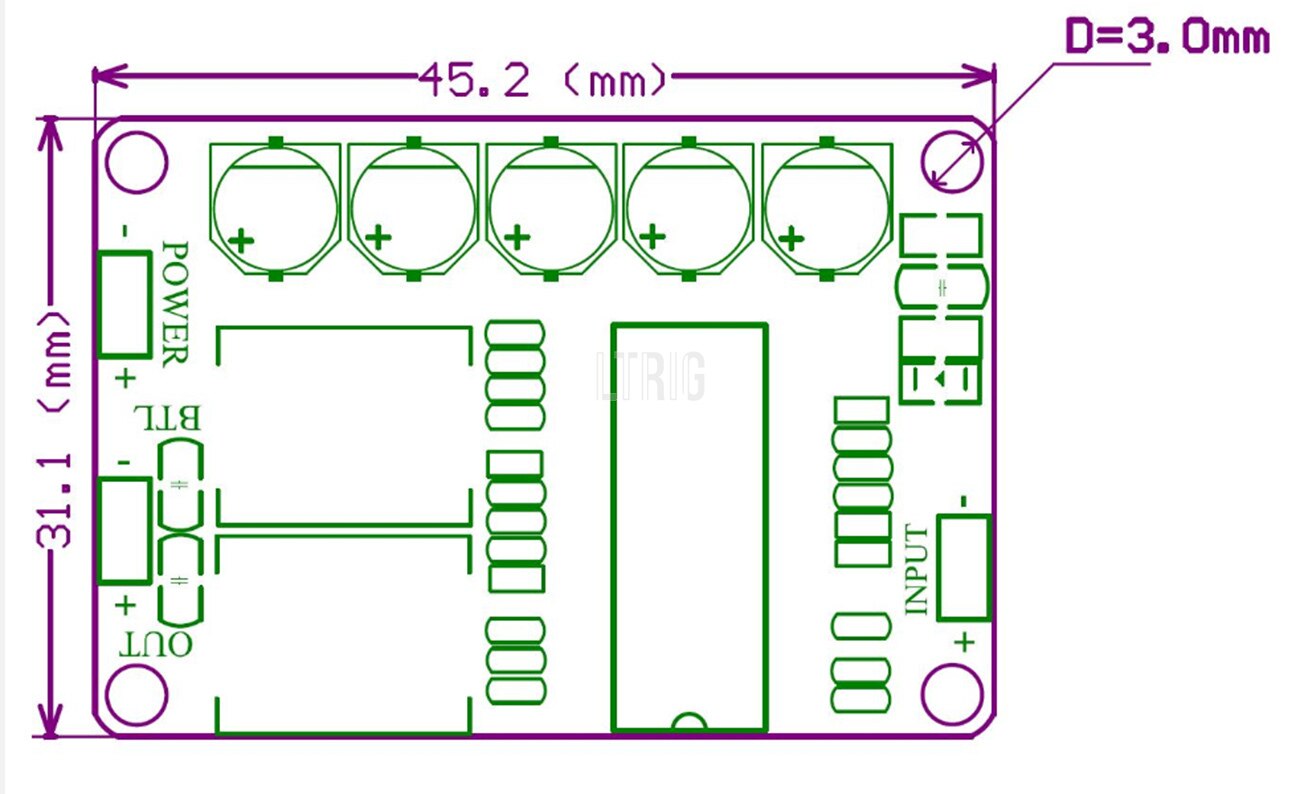

PCB board size: 45 * 31 MM
