custom 1Pcs DC-DC 5V to 3.5V / 12V USB Step UP / Down power supply module adjustable boost converter DC 1.2V-24V

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.

1. Description:
USB boost / buck power module, powered by USB, set the potentiometer to get the required voltage.

2. Features:

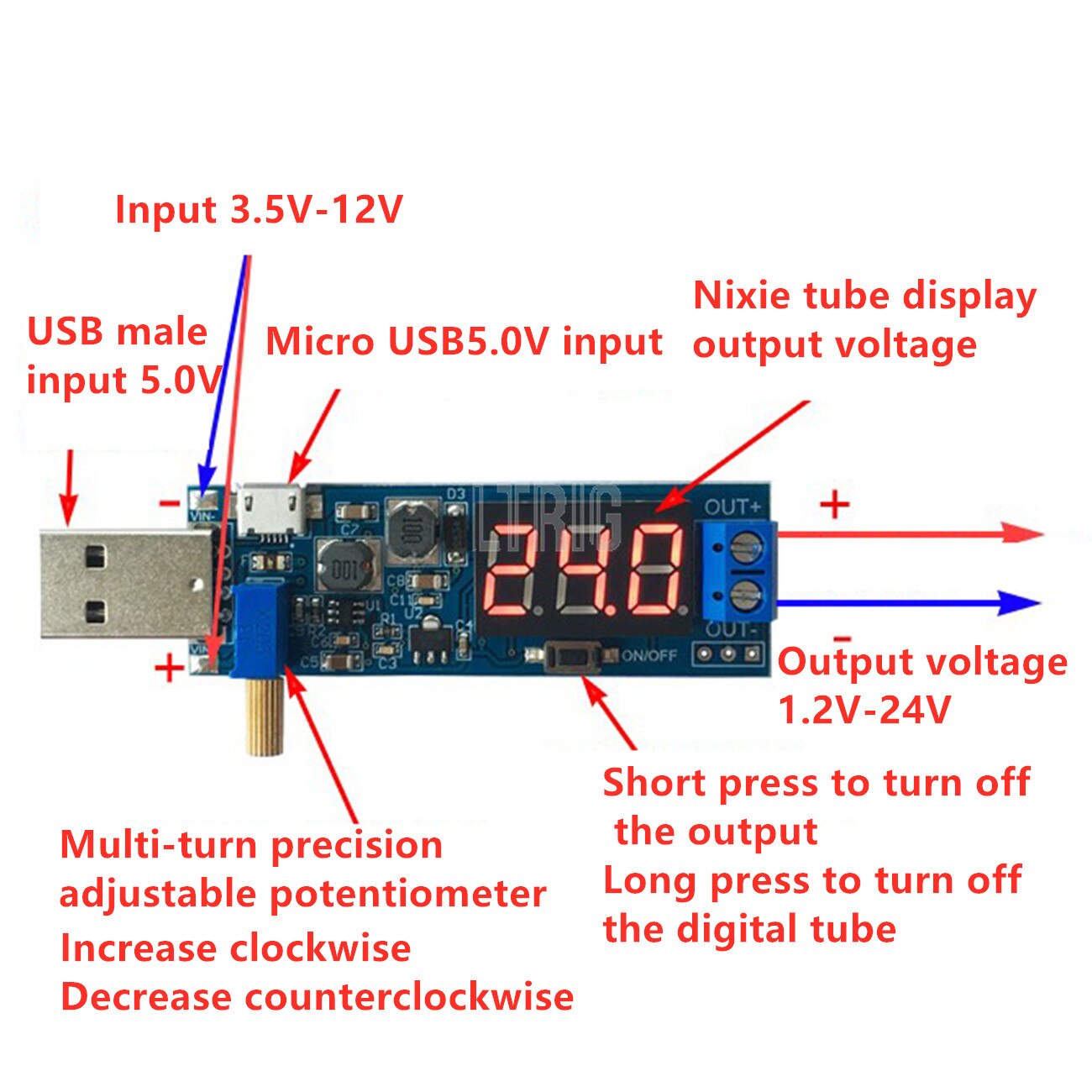

1>. One button to turn off the output;
2>. Turn on / off the display screen;
3>. Supports low power mode;
4>. Support sleep mode;
5>. Support both standard USB and Micro USB and washer input voltage;
6>. Potentiometer with rotary handle.

3. Parameters:
1>. Input Voltage: DC 3.5-12 V;
2>. Output voltage: DC 1.2-24 V;
3>. Output power:
1.2-2 V input, output power Within 2 W;
2 V-20 V input, output power Within 3 W;
20 V-24 V input, output power W 2.5 W;
4>. Display: 3Bit tube digital display;
5>. Size: 80 * 20 * 14mm.

4. Use the steps:
1>. Input voltage from standard USB or Micro USB or "vin +" and "vin-";
2>. Turn on the display screen;
3>. Adjust the potentiometer to get the required voltage;
4>. Connect the load.

5. Application:
1>. Normal power supply;
2>. Battery charger;
3>. Diode power supply controller;
4>. Instrument voltage indicator;
5>. Test meter;
6>. Circuit test;
7>. Power conversion.

6. Note:
1>. This is not a large power supply, use it in the power range.

7. Packaging:

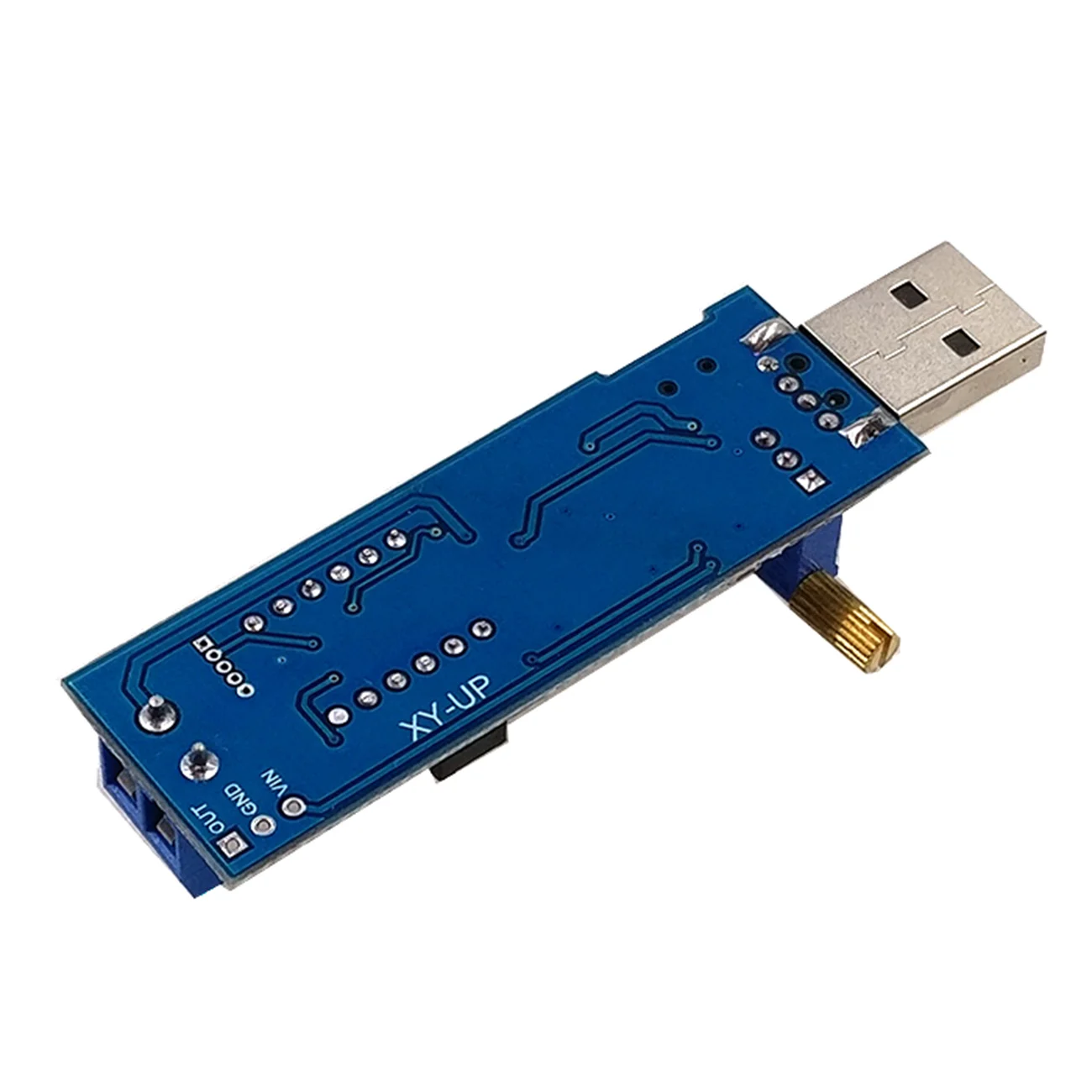

1>. 1 pcs XY-UP USB boost / buck power module
