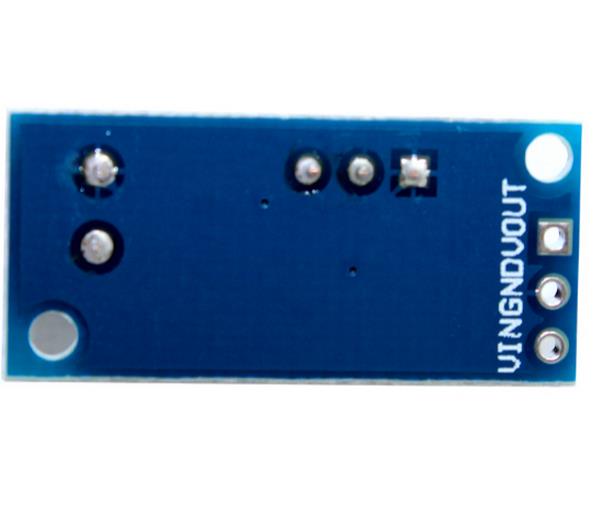

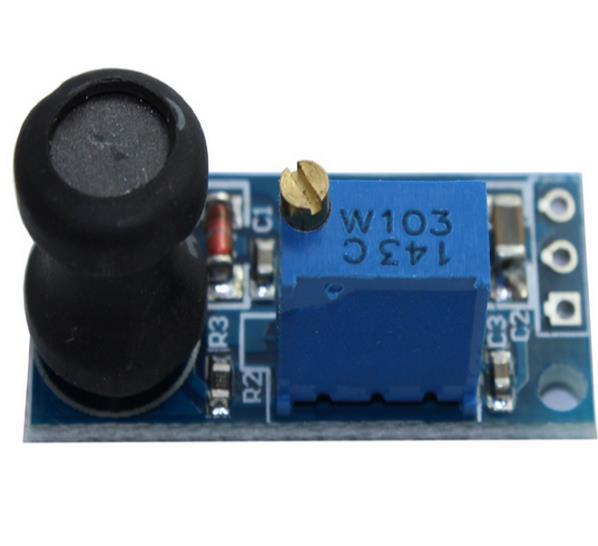

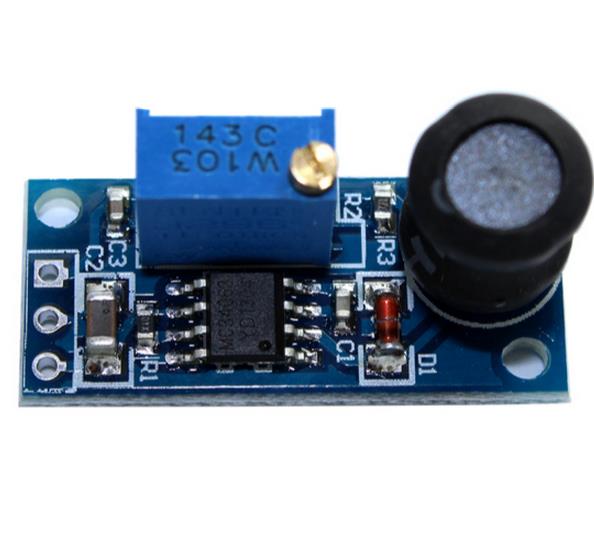

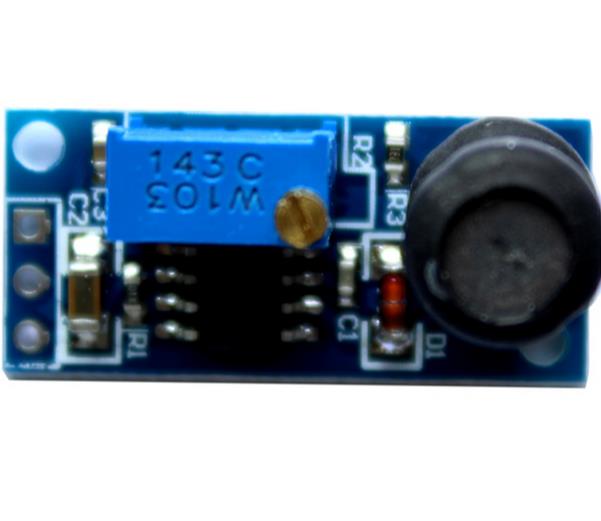

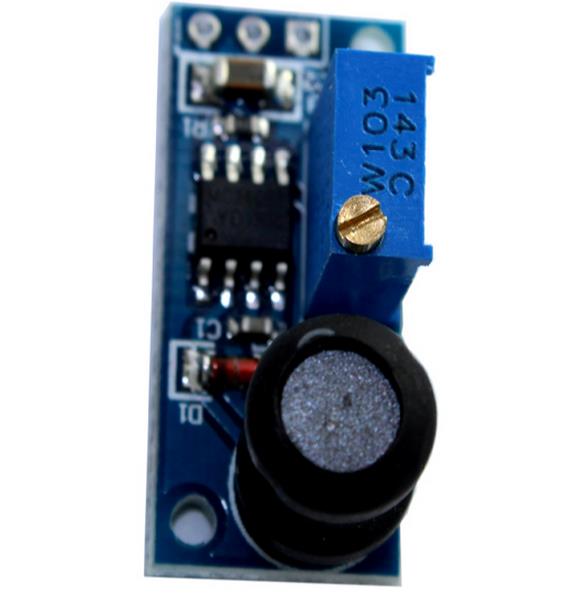

custom 1Pcs DC converter MC34063A boost module 3.6V-30V to 3.8V-36V adjustable boost module board

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


The reverse voltage module MC34063A_NV is a chip based MC34063A for providing reverse voltage, negative voltage modules. The +5V voltage can be converted to a voltage output of -5V. The output voltage can be adjusted by adjusting the potentiometer as required.

1. Adopt embedded technology of single chip microcomputer.

2. Input a positive voltage and output a negative voltage.

3. Easy to operate, the potentiometer can be used to adjust the output voltage.

4. The module is small, easy to carry and use in various occasions.

    Technical Parameters:

1. Input voltage range: 3.6V-36V.

2. Output voltage range: negative 1.5V to negative 36V. Output voltage regulation characteristics; load regulation rate is less than 5%.

3. Output current. The IC internal switch of this module is 1.5A, but for the safety and heat generation, the load power consumption of this module is recommended.

4. Within 0.5W. That is, when the output is negative 5V, the load is within 100MA, and it is recommended to be 50MA.

Note: The higher the negative pressure of the output, the lower the load capacity.
