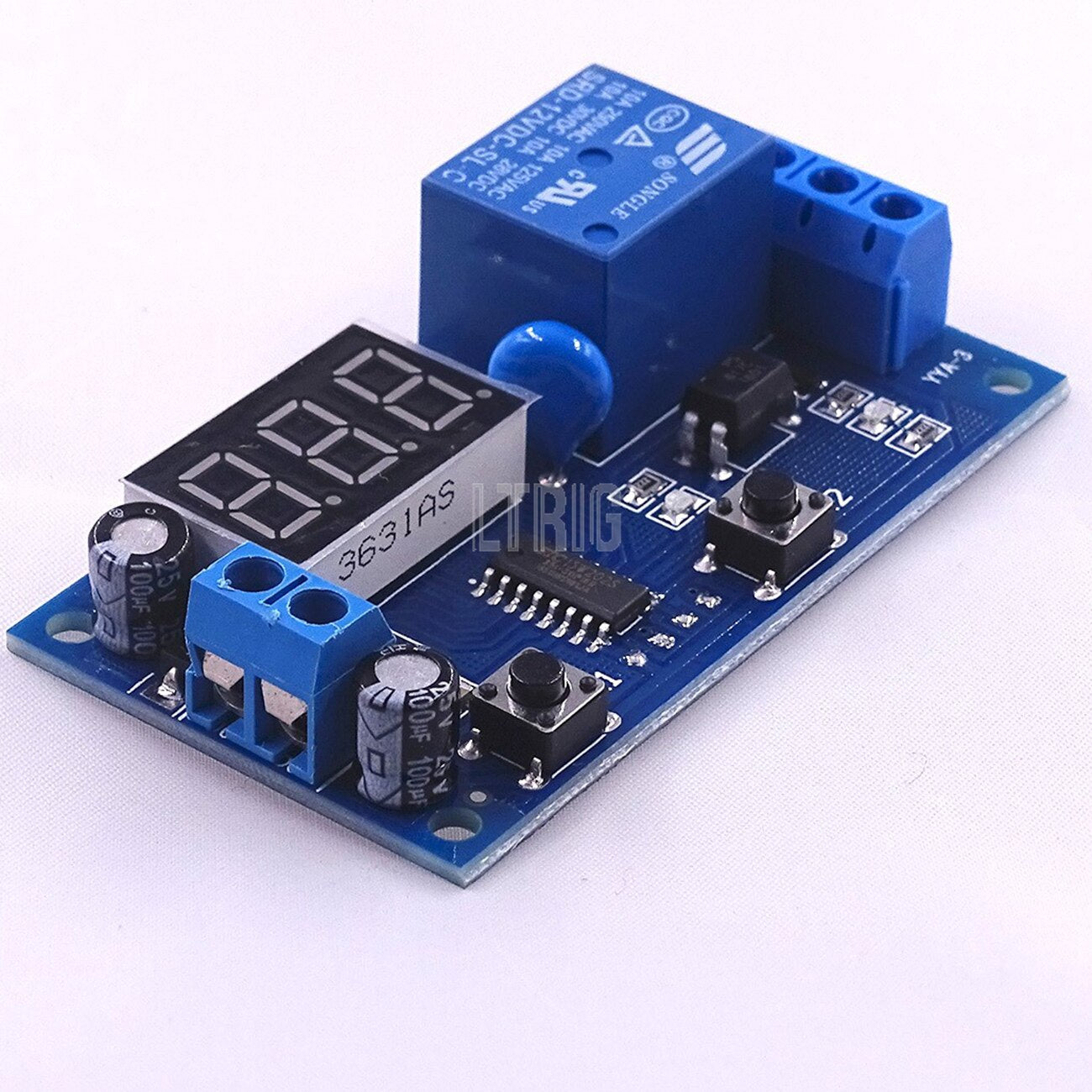

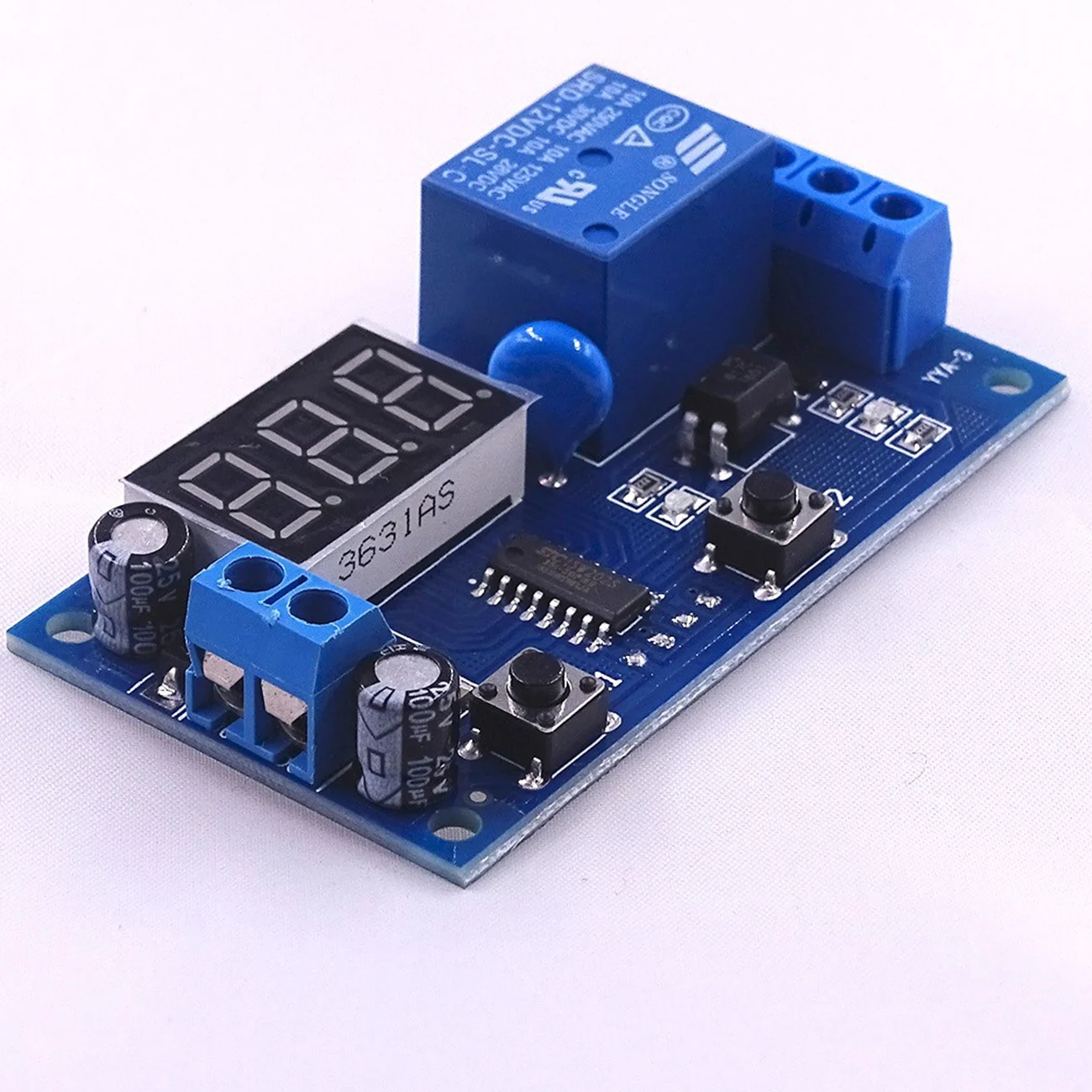

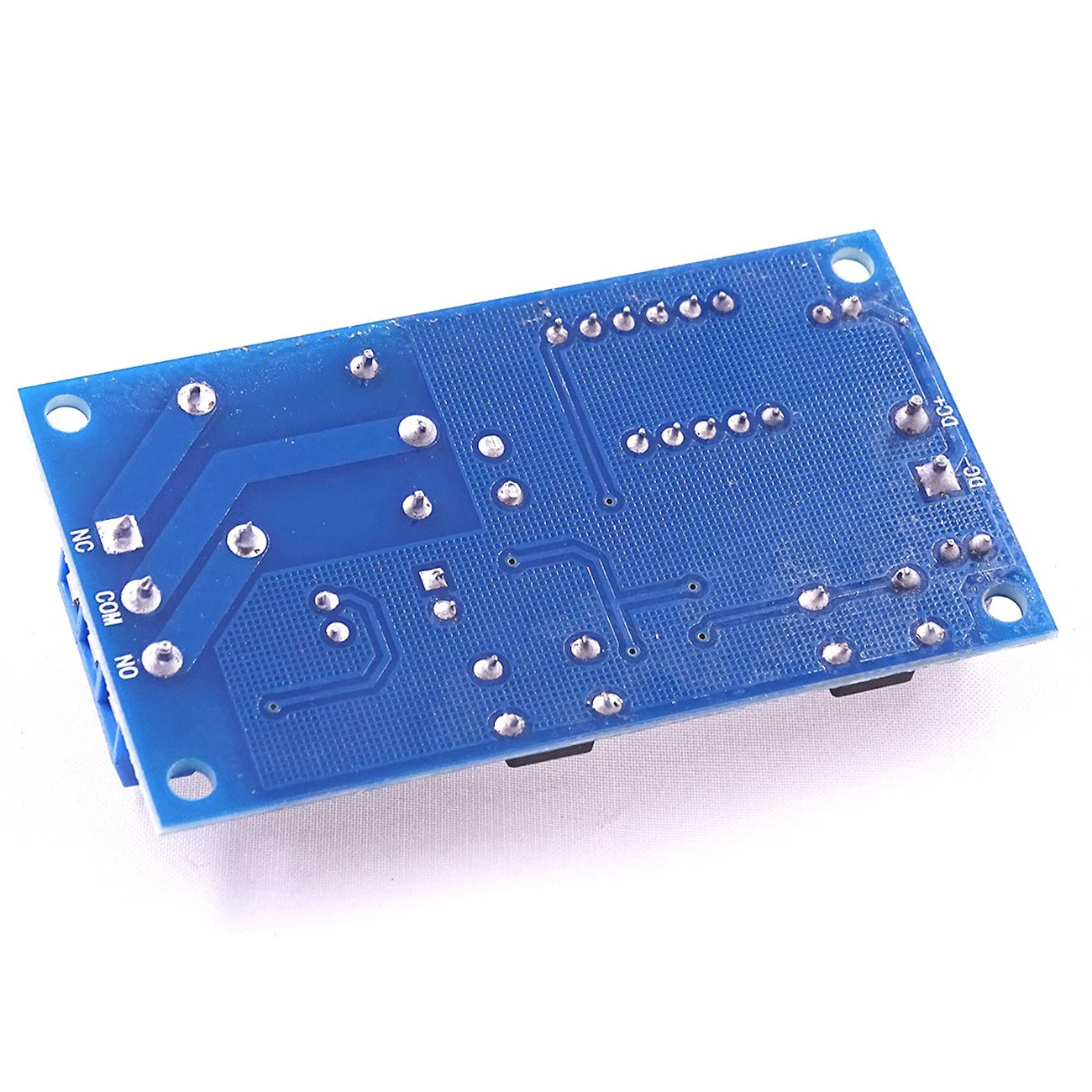

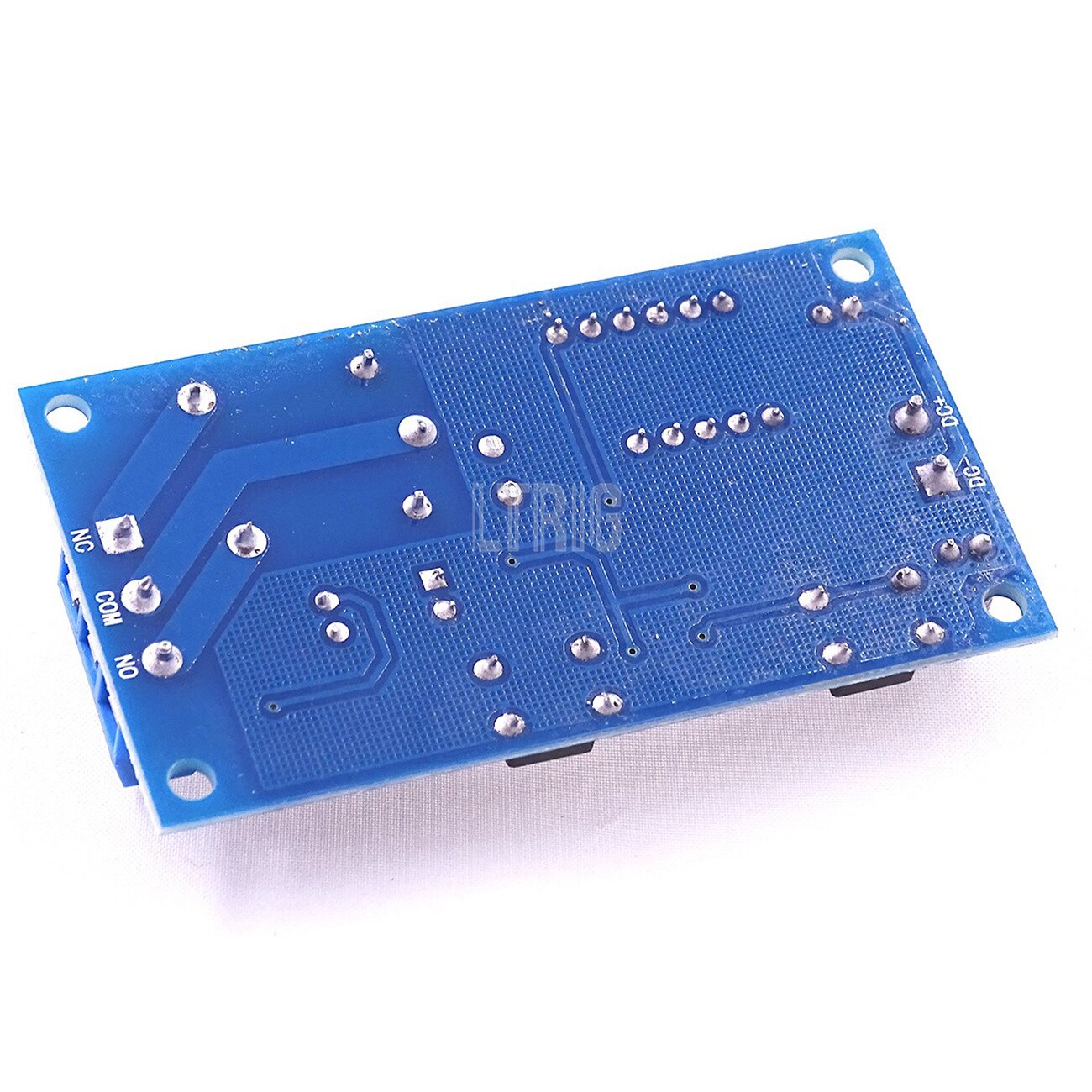

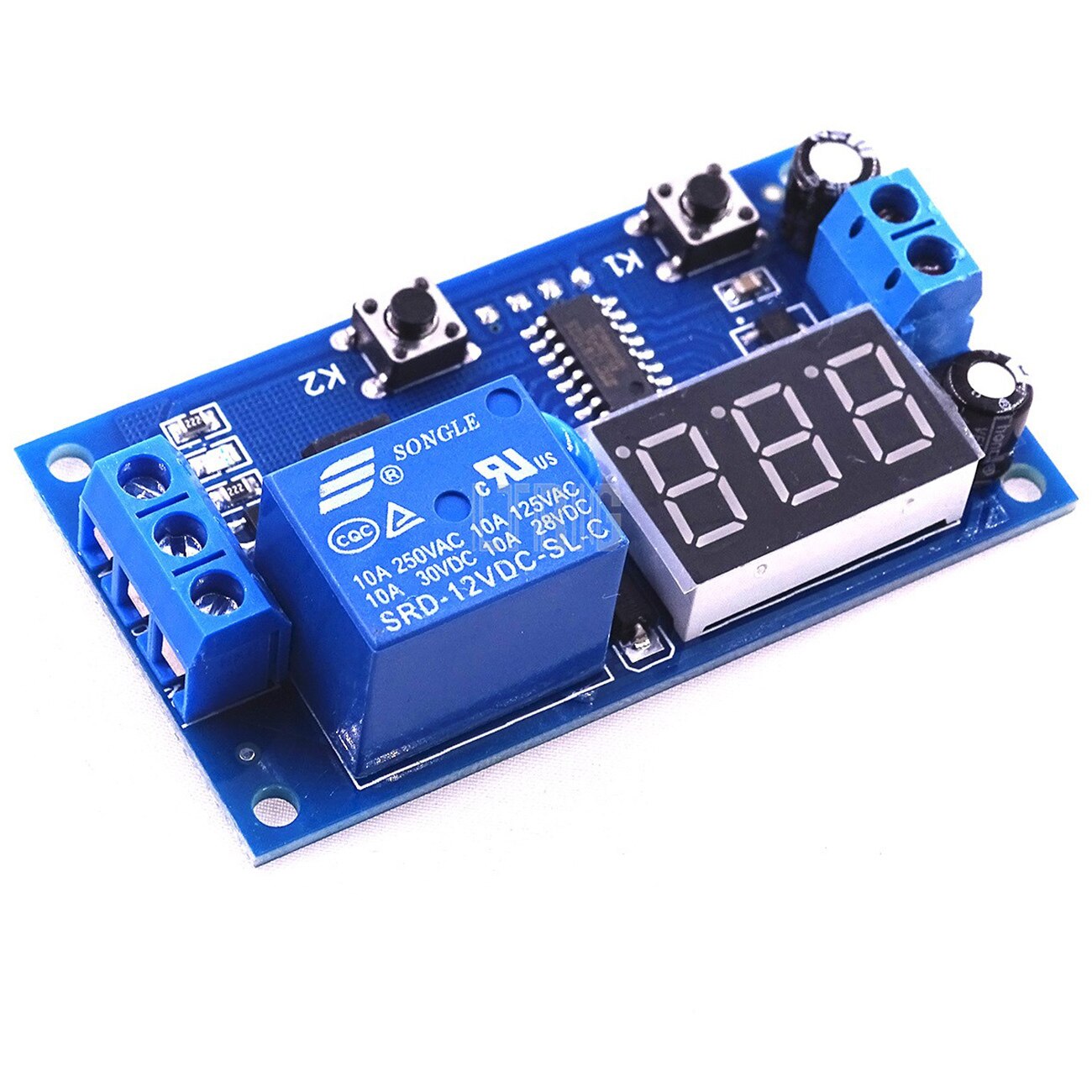

custom 1Pcs DC 12v digital display delay relay multifunctional module infinite loop countdown switch control module

Product mode: turn on for a period of time after power-on, disconnect for a period of time, infinite loop (normally open normally closed contact)

Features:

1: Size: 65mm*36mm*18mm
2: Output capacity: DC DC 5~30V AC 220V10A
3: Quiescent current: 20mA Operating current: 50mA
4: Working voltage: DC12V (the fluctuation between 10V and 15V will not be affected) There is another 5V optional, please leave a message for 5V.
5: Service life: more than 100,000 times Working temperature: -40~85'C
6: The output adopts optocoupler isolation to enhance the anti-interference ability power consumption, ensure stability, industrial grade circuit board, PLC-like, set parameters can be remembered forever after power off.
Setting the time method is also very simple:

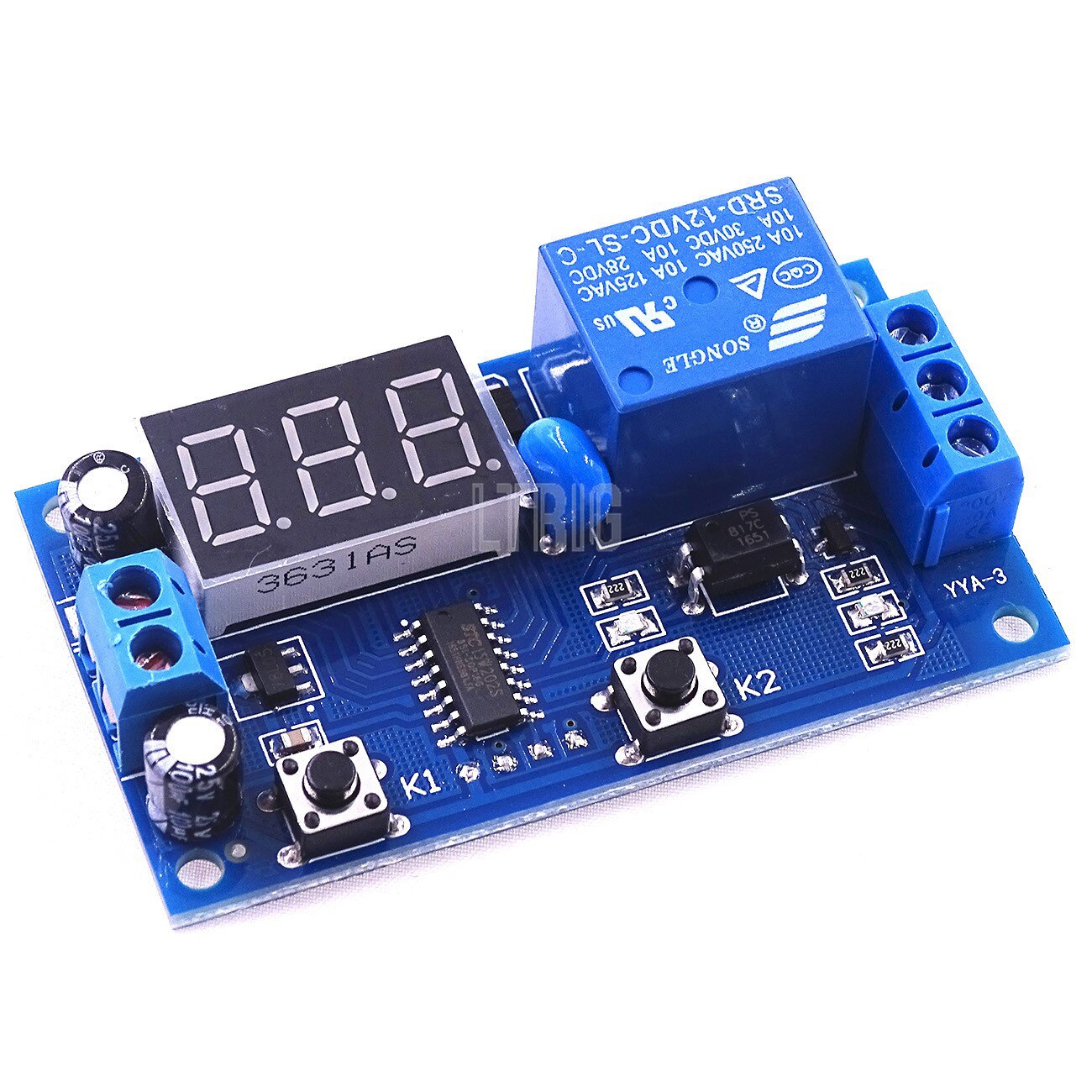

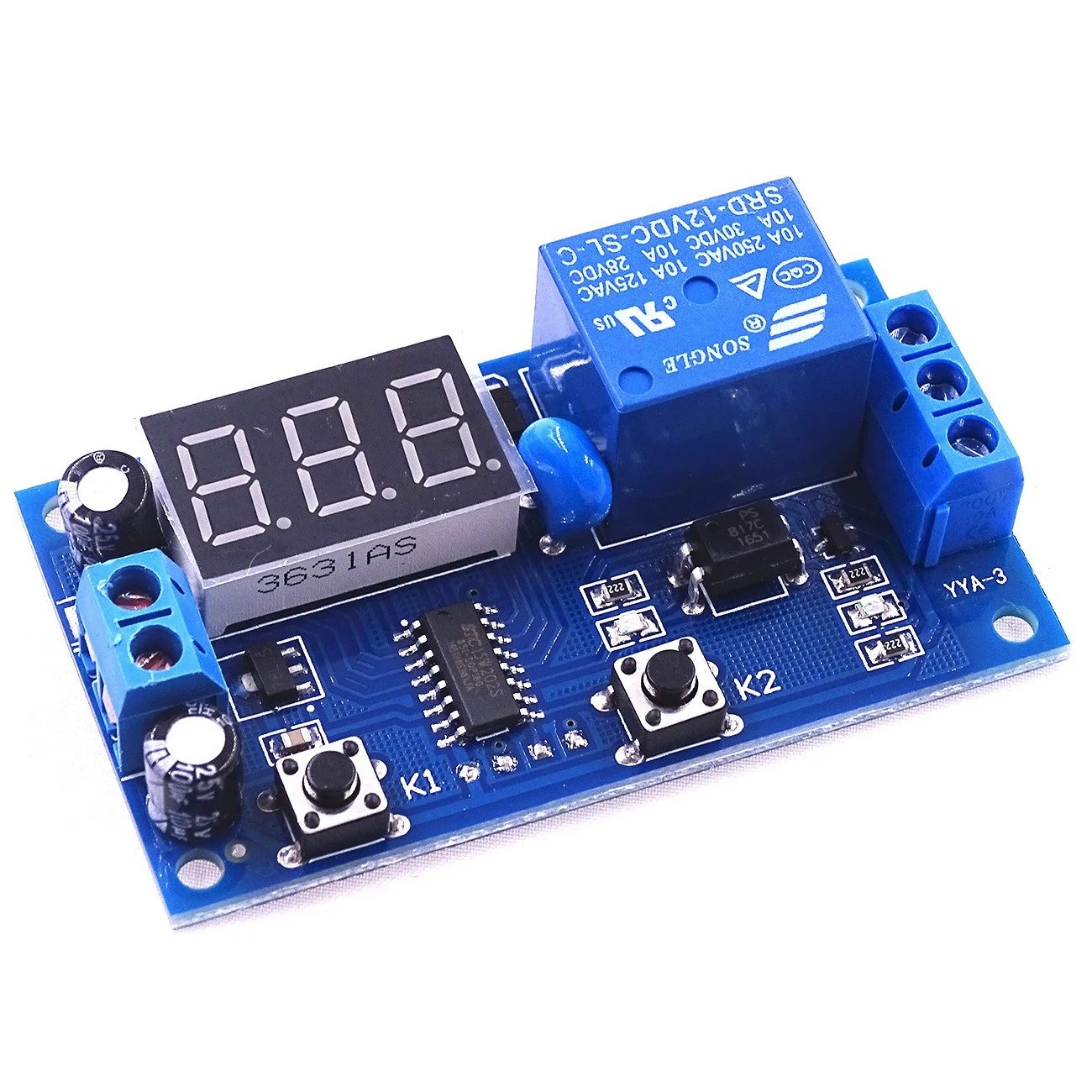

K1 is divided into six cycles, the first three times are the time to set the connection, and the last three times are the time to set the disconnection.

1/The first time you press K1, the digital tube starts to flash. At this time, press K2, the hundred digits change, and set the value you need;

2/ The second time K1 ten digital tube starts to flash, press K2 at this time, the ten digits change, set the value you need;

3/The third time, press the K1 digit digital tube to start flashing. At this time, press K2, the digit value changes, and set the value you need;

Thus the time setting of the first group is completed.

4/The fourth time, press the K1 hundred digit digital tube to start flashing. At this time, press K2, the hundred digits change, and set the value you need;

5/The fifth time, press K1 ten digital tube to start flashing. At this time, press K2, ten digits change, set the value you need;

6/The sixth time, press the K1 digit digital tube to start flashing. At this time, press K2, the digit value changes, and set the value you need;

Then the second set of time settings is completed.

7/The seventh time K1 is pressed, the digital tube is not flashing, and the setting is completed.

When the digital tube is not flashing, press K2 to shift the decimal point;

Xxx. After the decimal place, the unit of time is: minute

Xxx has no decimal point display, representing the time unit: seconds

Xx.x After the decimal point is ten, the unit of time is: 0.1 second
